"Gears of Creation" Sign

11 likes
316 opens
65 copies
3 comments
Casey Wood

Project by

Casey Wood

General Information

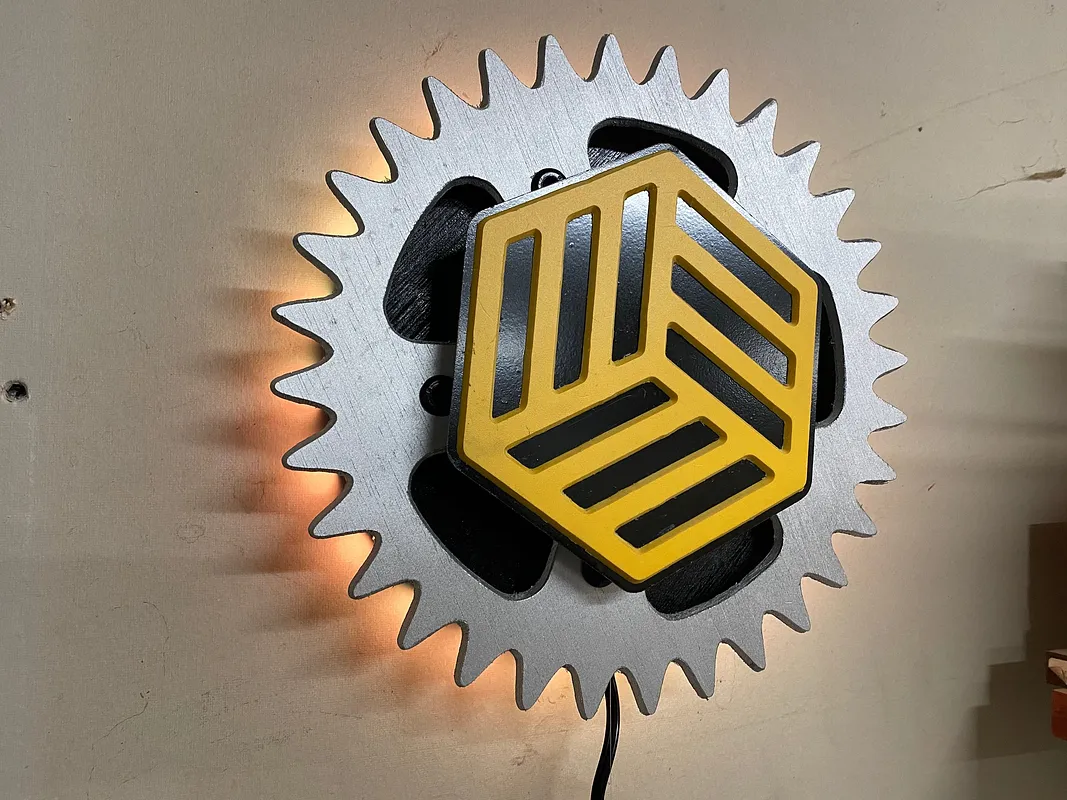

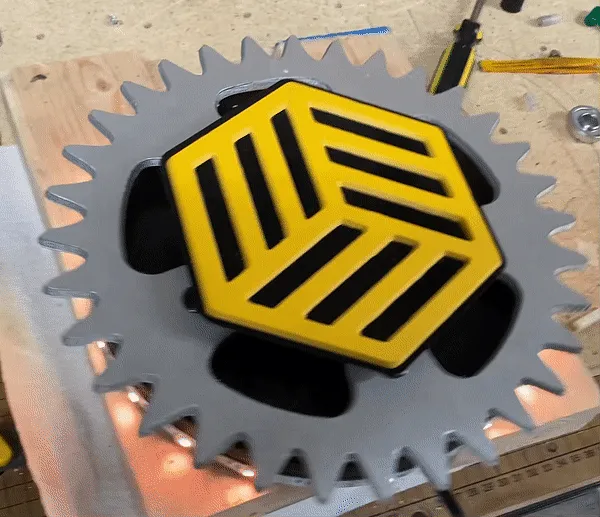

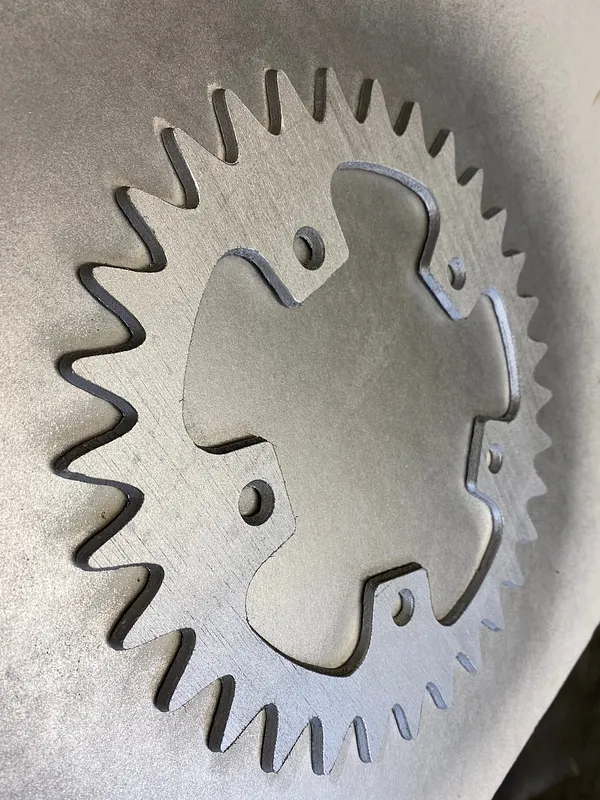

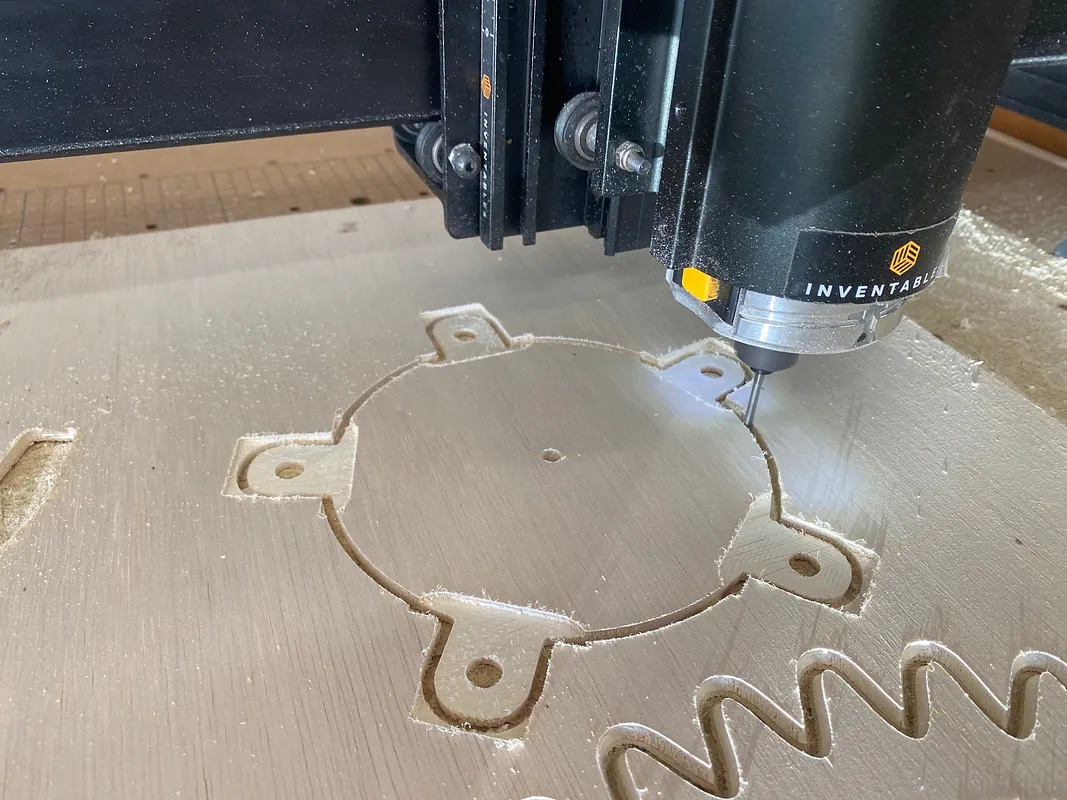

“Gears of Creation” was a concept I thought about when realizing all the amazing things created by the motors and gears used to create the X-Carve. I used a sprocket file from Inventables “Pro Design Gallery” and designed a connecting bracket with logo all sitting atop a motor to drive the sprocket!

Like this project Easel logo Open in Easel®
1

All Info and Instructions for "Gears of Creation"

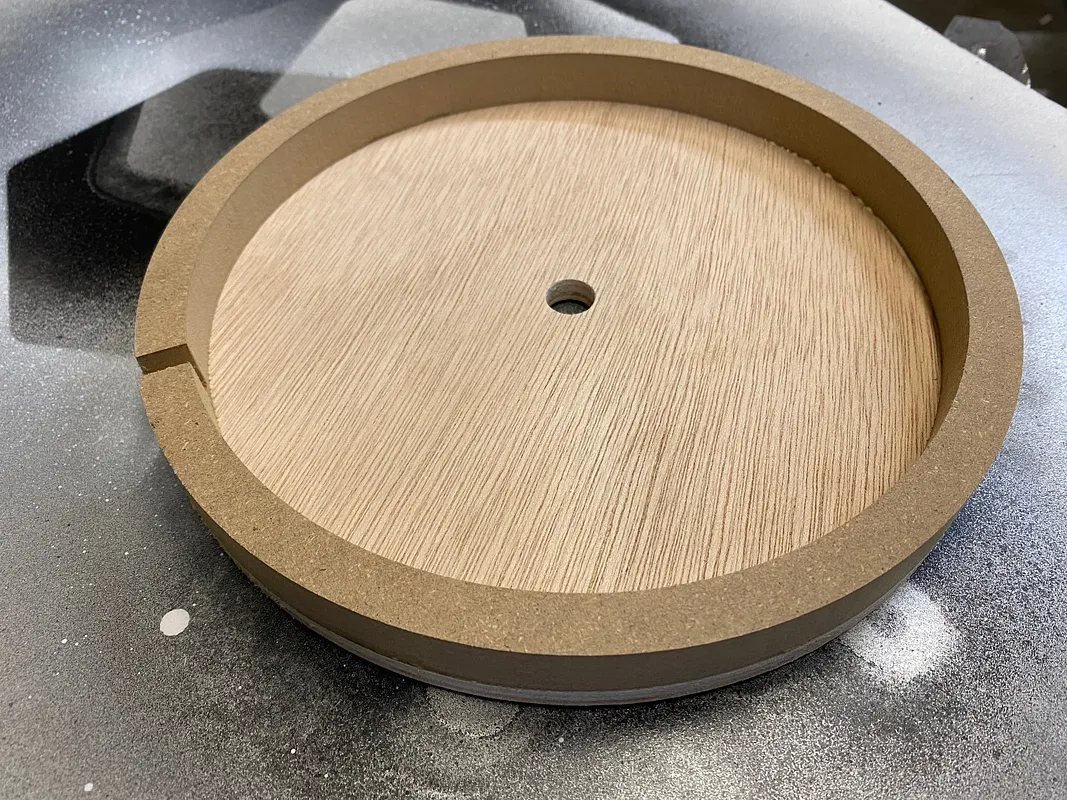

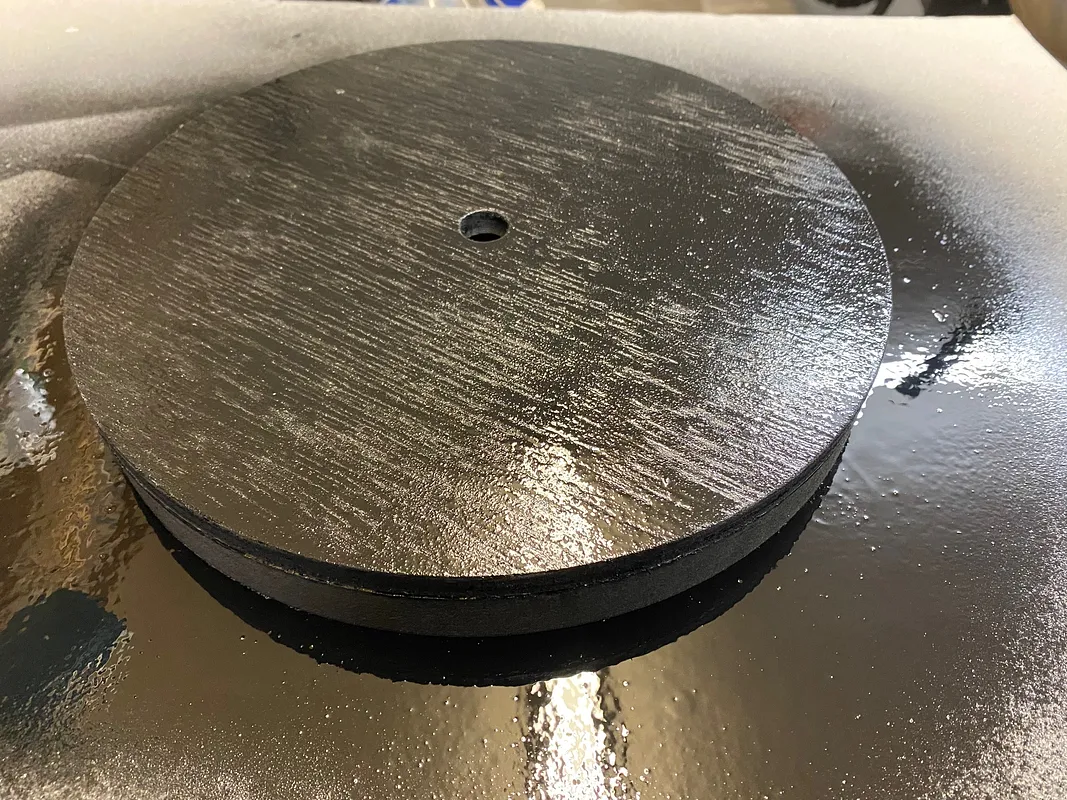

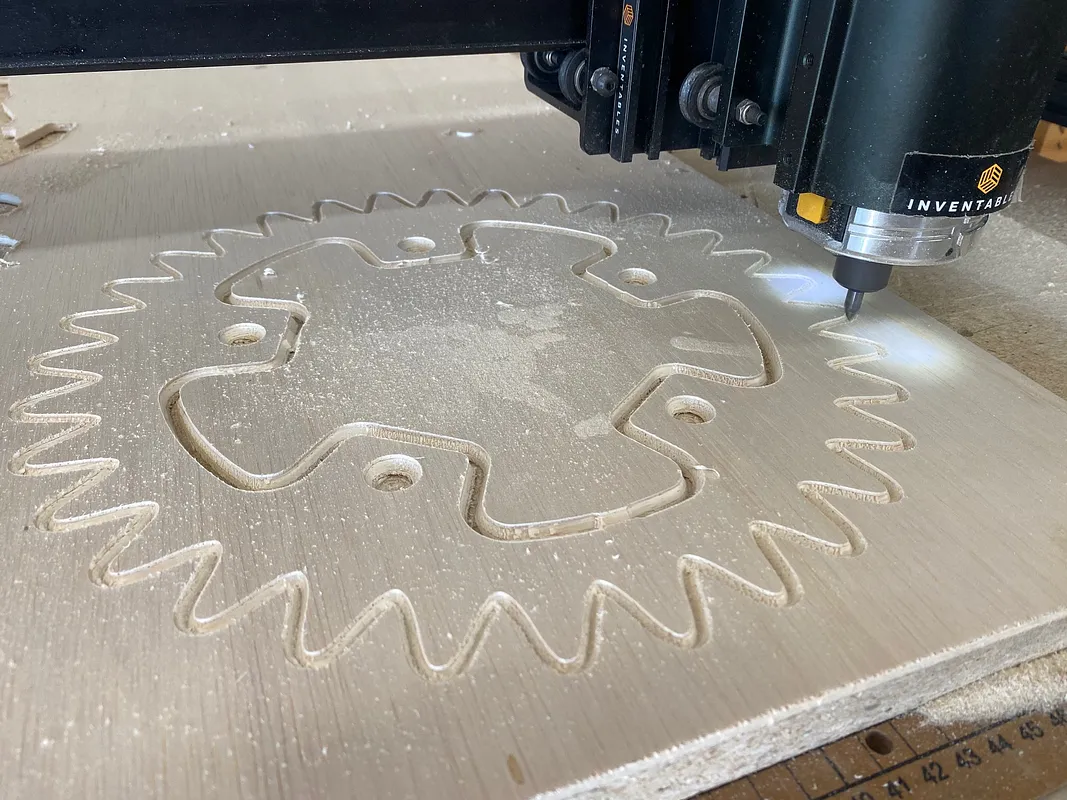

All the files for this project can be made with plywood, like the Easel project above, but my images of my finished product was done using aluminum sheet, MDF, Plywood, and HDPE from Inventables materials. If you would like to create it as I did, and of course you could change out their logo for your own, use the Easel file links below.

List of Materials:

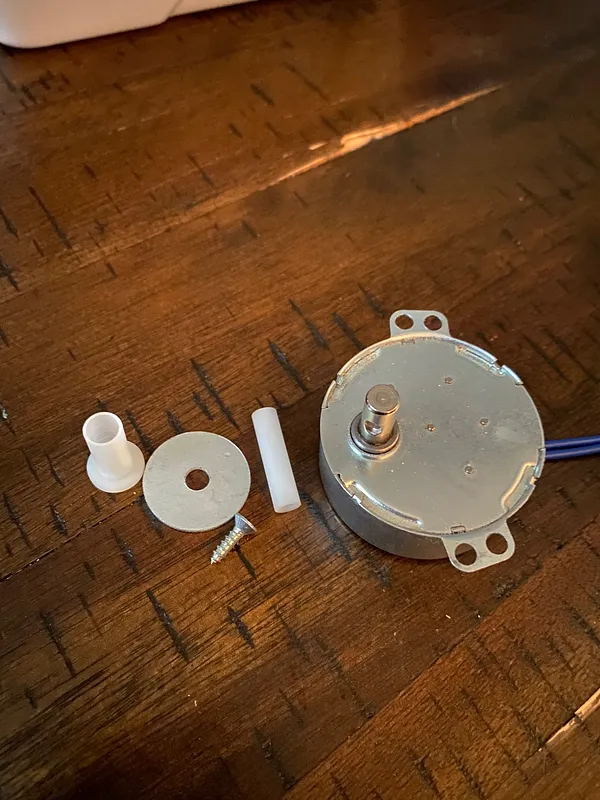

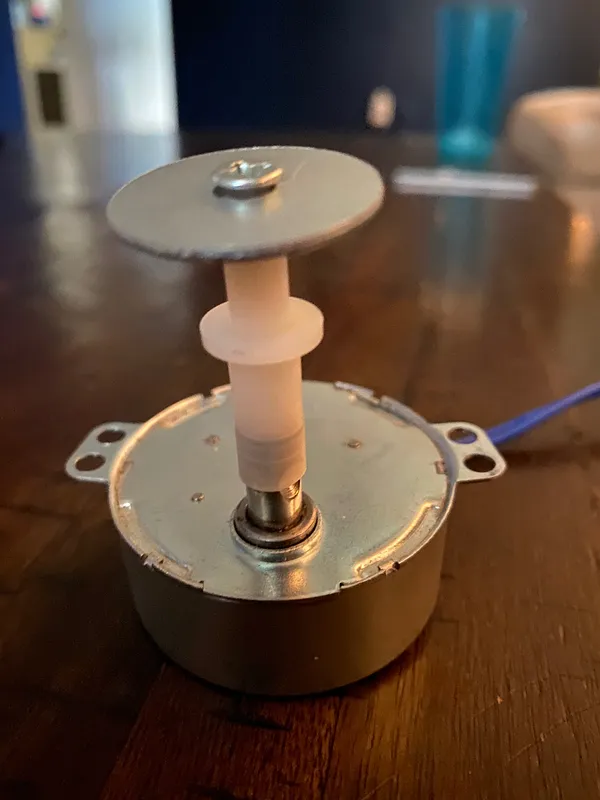

2 - Washers 1 - Screw 1- Plastic Tube 1” Long with .25” OD (Any Hardware Store) 1 - Flange Plastic Tube approx 1” Long (Any Hardware Store) Zipties

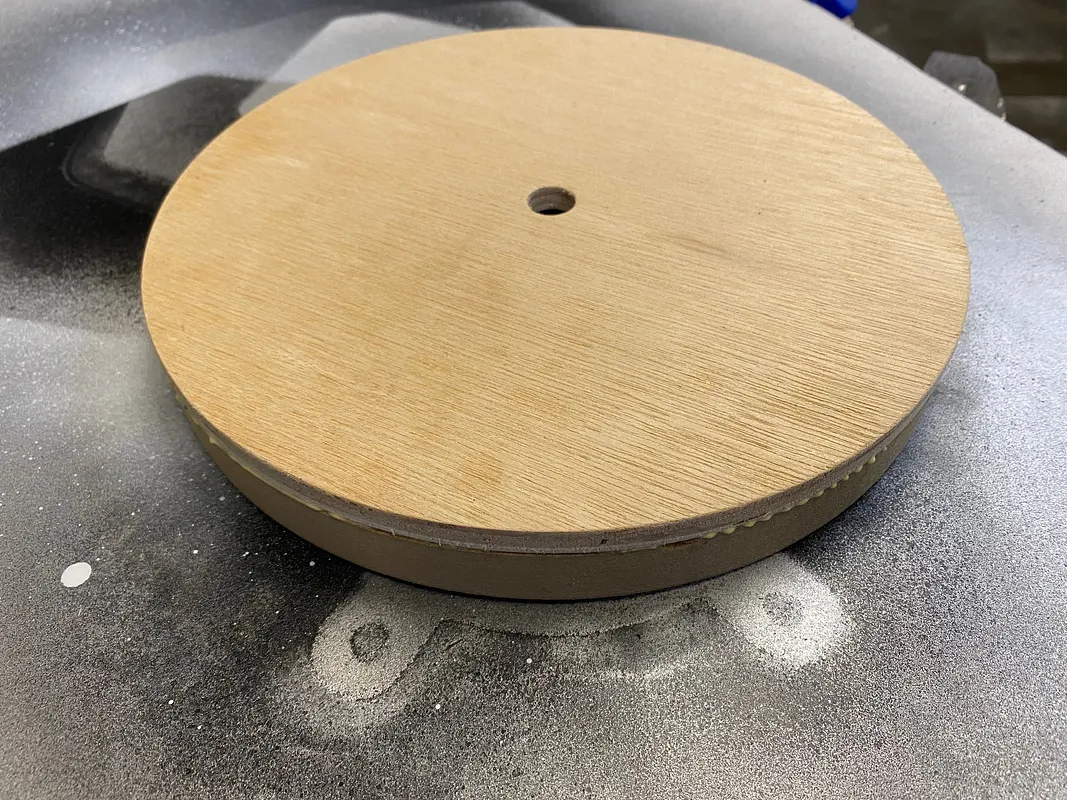

Plywood (1/8” 18x24): Material: https://www.inventables.com/technologies/baltic-birch-plywood--2

MDF (1/2” 12x24): Material: https://www.inventables.com/technologies/mdf-wood Easel File: https://easel.inventables.com/projects/HsrXbkmGy4XQmEQK7gL5gQ

Black Aluminum Sheet (12x12) Material: https://www.inventables.com/technologies/black-anodized-aluminum-sheets Easel File: https://easel.inventables.com/projects/Sj98tVpiPYnPVlNLGck54w

Yellow HDPE (1/4” 12x12): Material: https://www.inventables.com/technologies/two-color-hdpe-yellow-on-black Easel File: https://easel.inventables.com/projects/7BZTNOMCTztbbrV3UM0Vyg

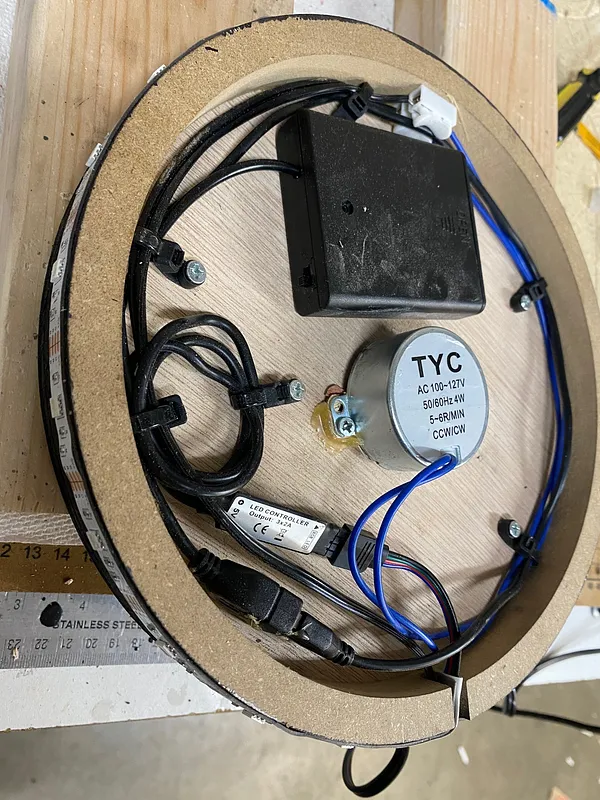

Electric Motor: https://www.amazon.com/gp/product/B07TFDPZP7/ref=ppxyodtbsearchasintitle?ie=UTF8&psc=1

LED Lights with Remote (pick your color and lighting effects): https://www.amazon.com/dp/B089XVPTKC?psc=1&ref=ppxyo2dtbproduct_details

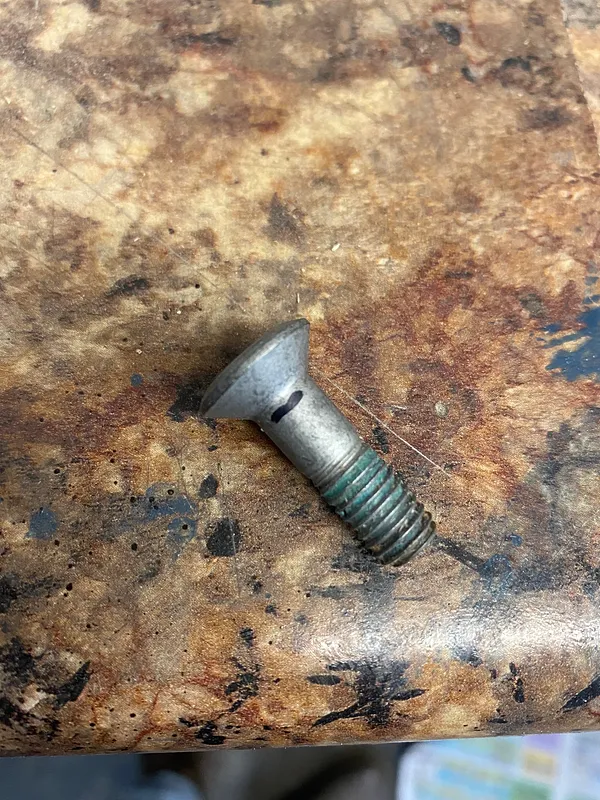

Sprocket Bolts: https://www.rockymountainatvmc.com/parts/primary-drive-sprocket-bolt-and-nut-kit-p

Estimated time: 160 minutes
