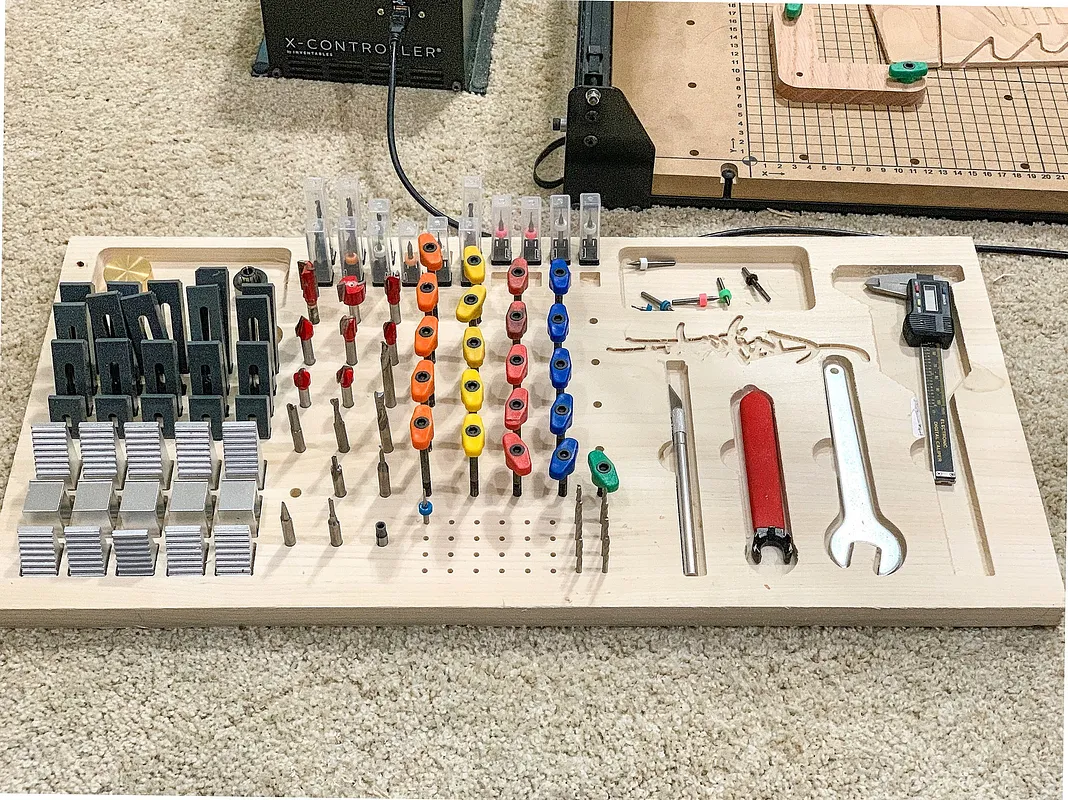

CNC Clamp and Tool Storage - Deluxe - image 1

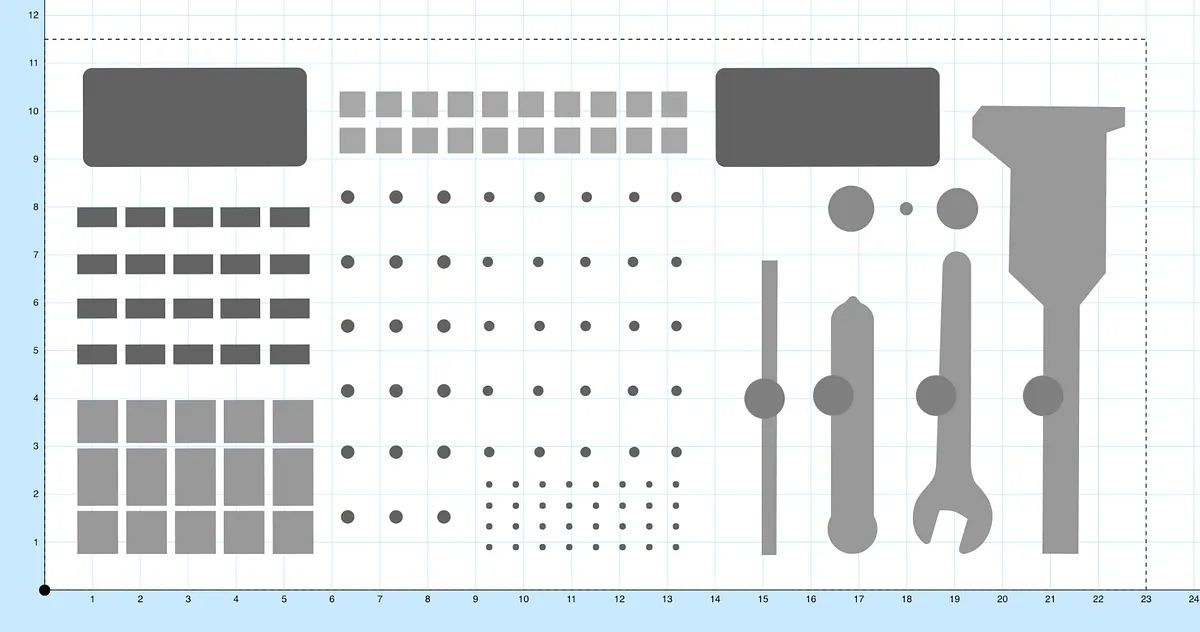

CNC Clamp and Tool Storage - Deluxe - image 2

Published Jan 07, 2019 · Carved

Description

The layout is designed with visibility and fat fingers in mind. The project is a made in two phases. The first is the pocket clearing, with the second being a contour cut using a 7.5 degree V-Groove bit to add a little angle so if you push an item to the edge, it lifts for easy pick up.

26 Favorites

299 Views

2 Comments

153 Copies

Specs

Machine: x-carve 2016
Material: Hard Maple

Remake of

CNC Clamp and Tool storage

Instructions

Pocket Carve

The first part of the project is the pocket carve. The second part is a contour of the tool areas to add a angle to the edges in order to make it easier to pick things up (not required)

Comments

Hi Adam, Love the project but was wondering if you could help me. Every time I carve this, it comes out much smaller then the whole board. could advised what I might be doing wrong? Thanks

Donald BlissPro · March 14, 2022

Awesome layout! Thank you for this!

Patrick · March 04, 2023
