CNC Clamp and Tool storage

712 likes
7968 opens
4441 copies
40 comments
Matthew J. Parker Sr.

Project by

Matthew J. Parker Sr.

Published On

May 20, 2018

General Information

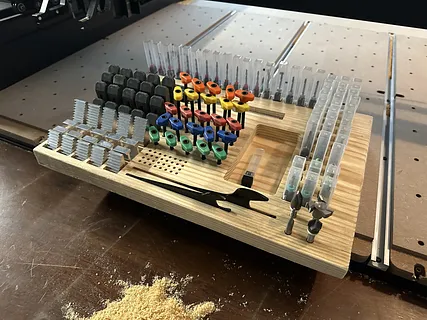

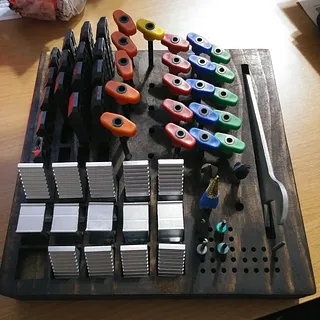

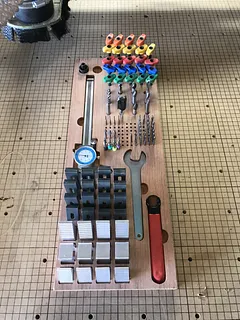

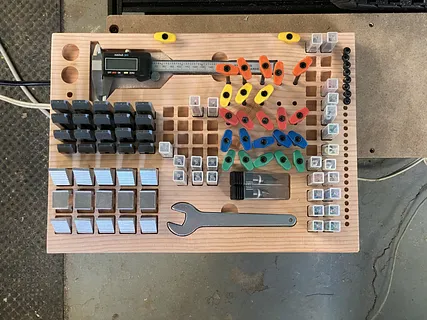

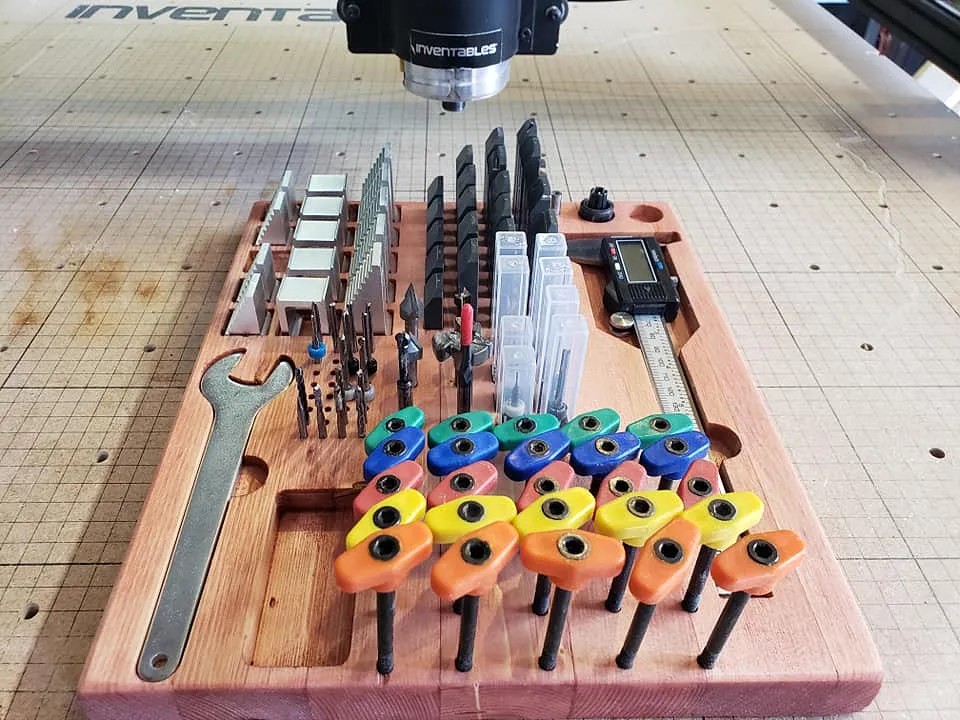

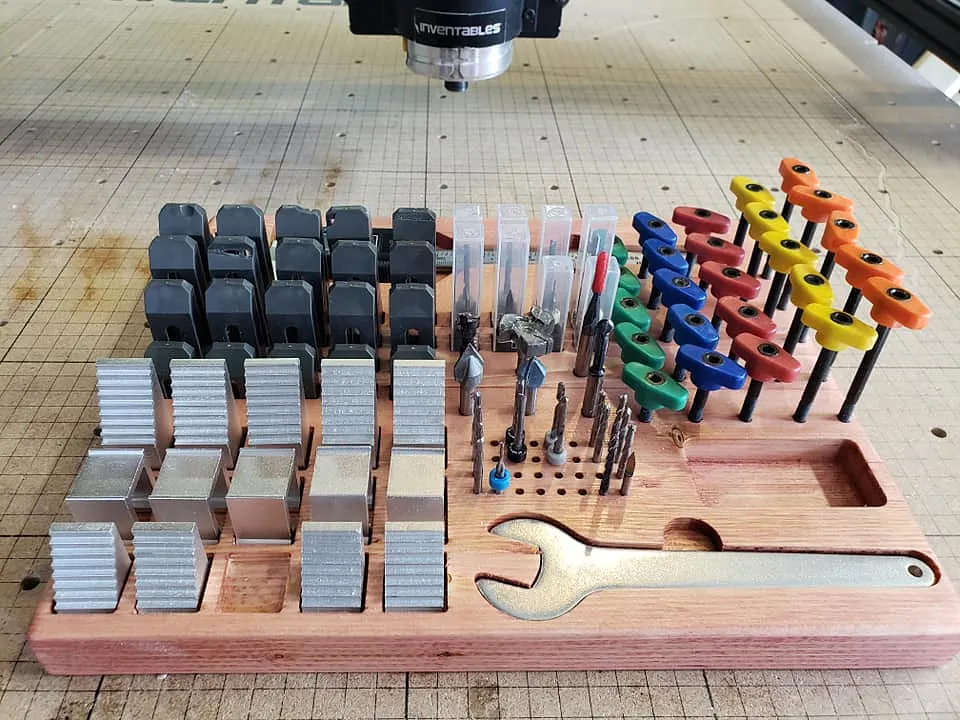

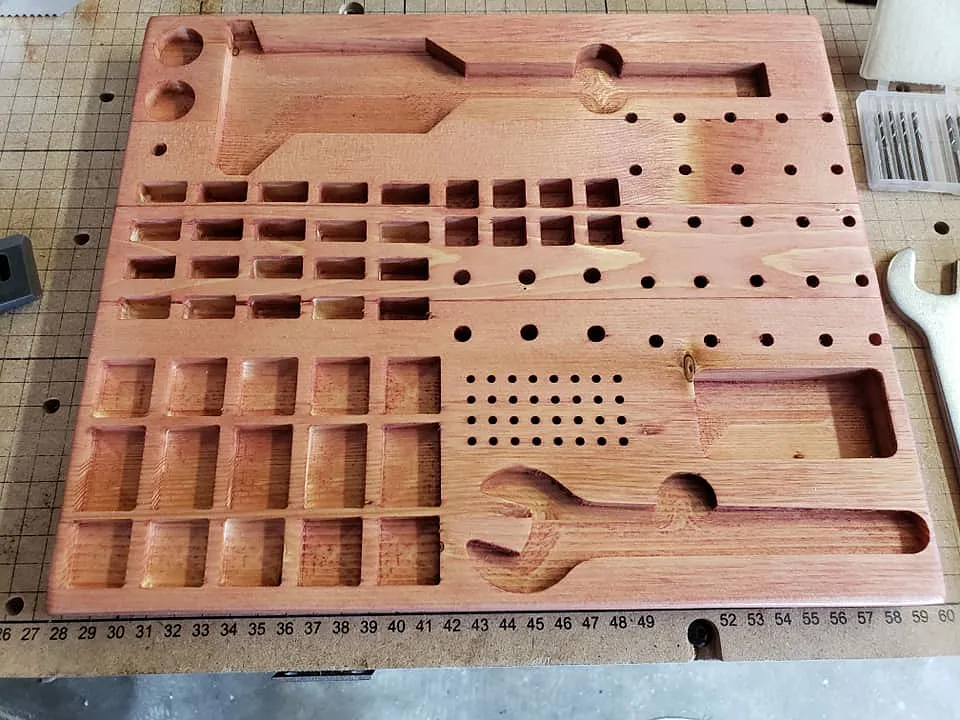

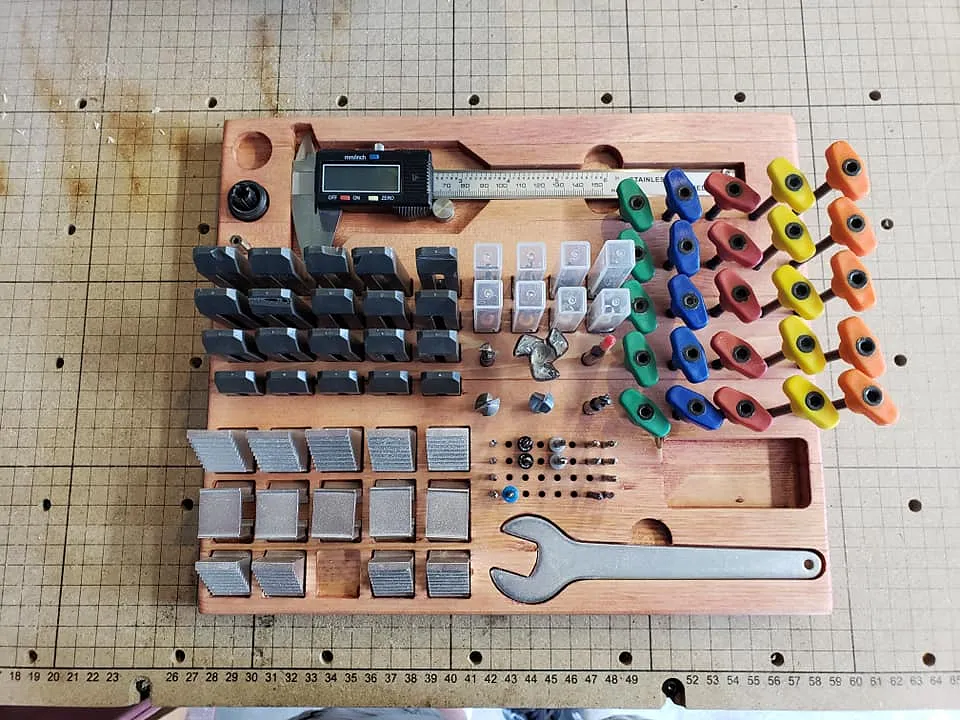

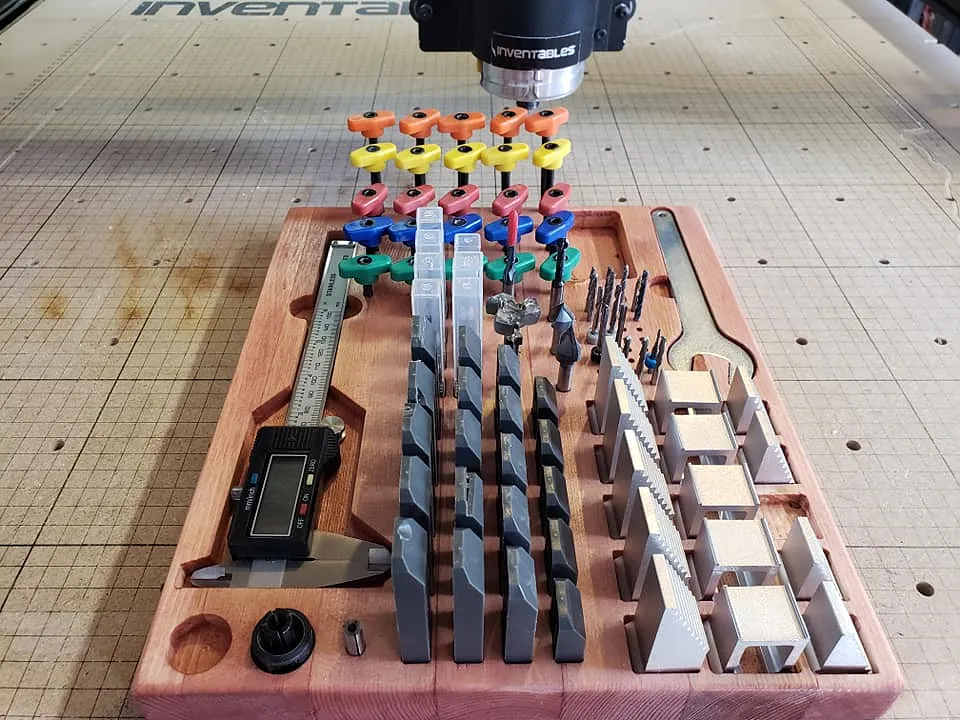

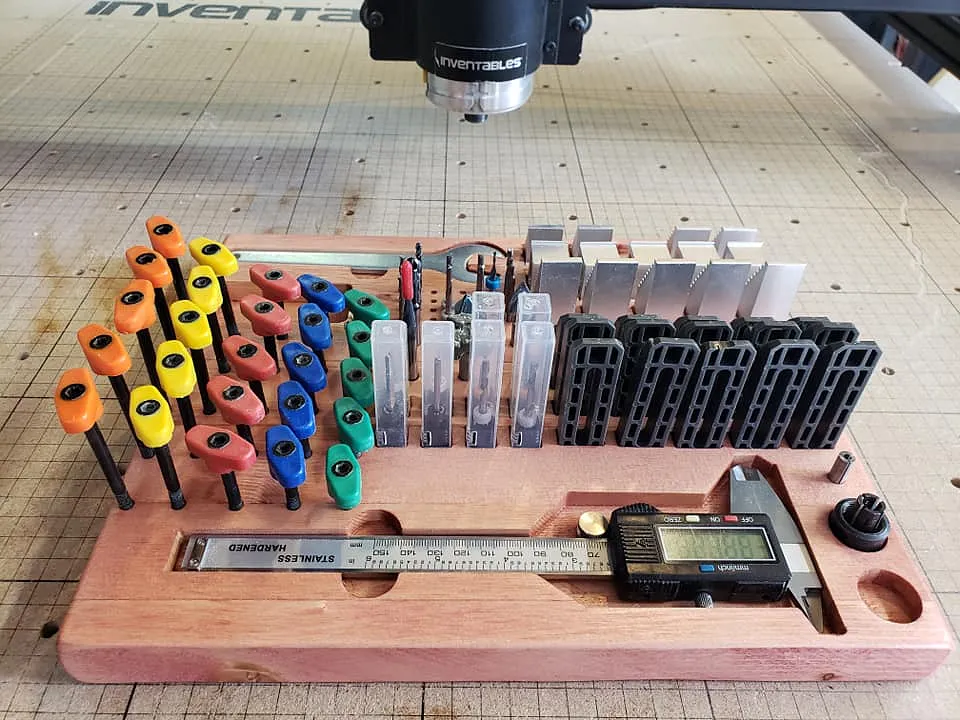

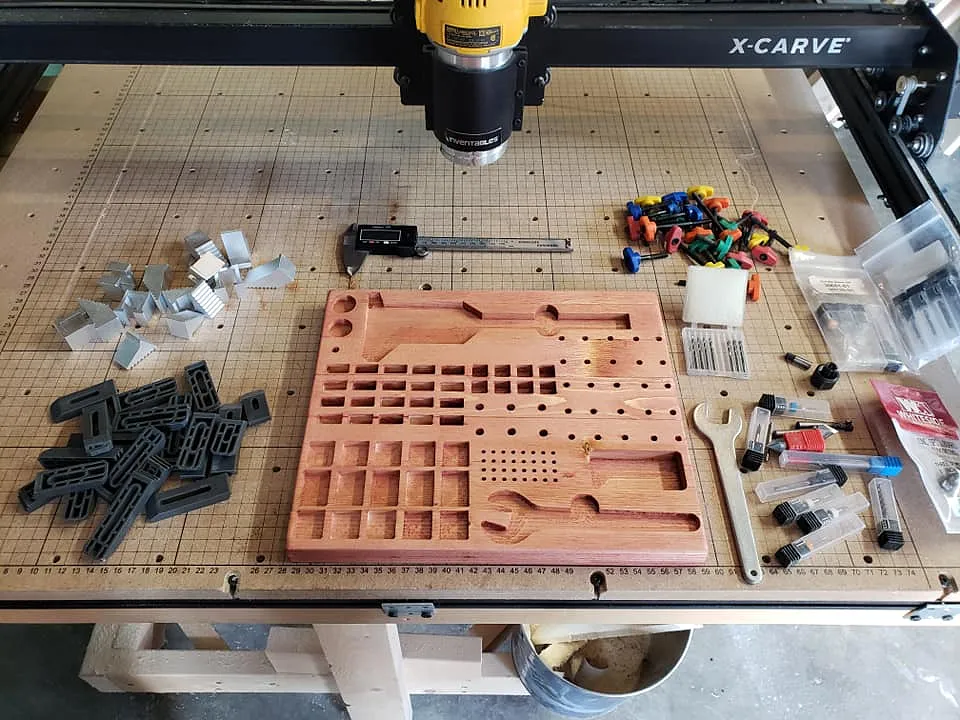

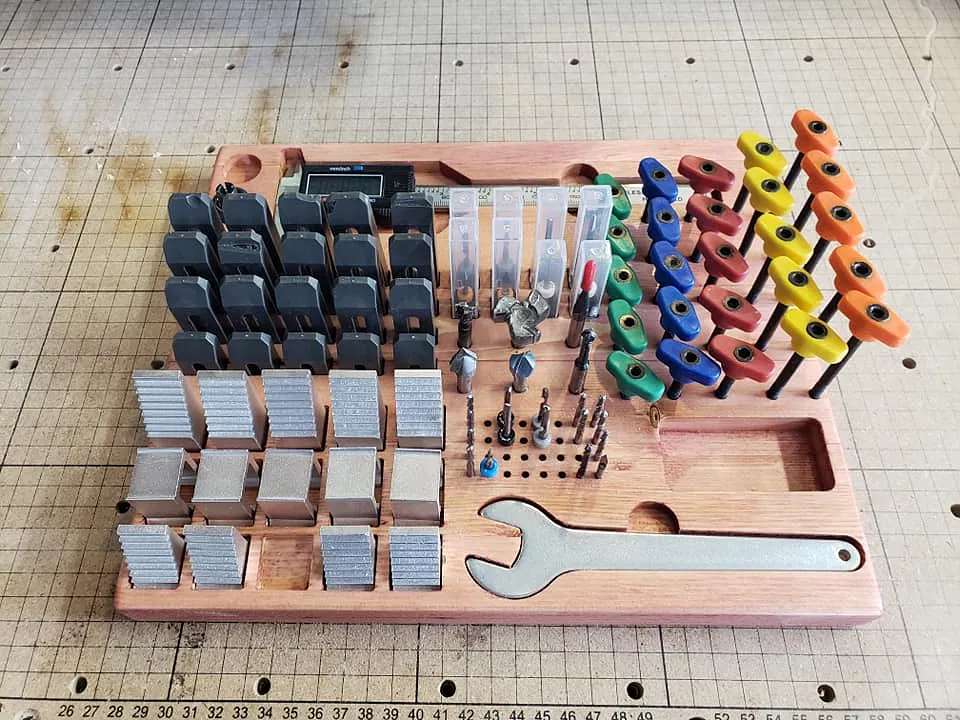

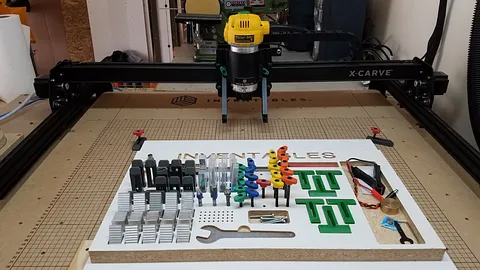

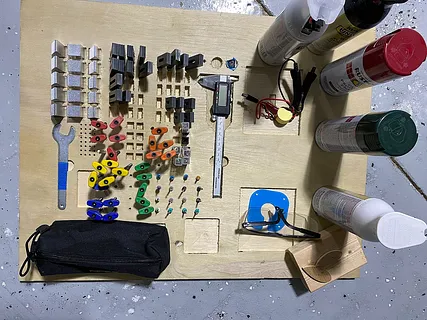

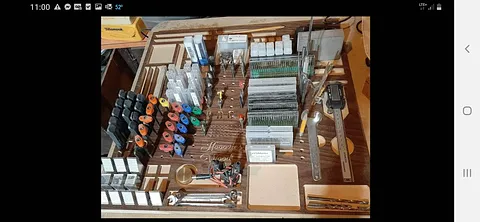

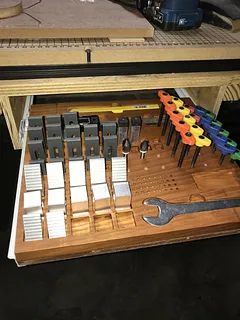

This is an all in one Clamp and Tool storage tray at 10 in x 12 in. It can hold up to 46 cutting tools . The tray is also equipped with a location for your 17 mm wrench and 150 mm caliper set. It will also hold all the hold down screws, clamps, and bases from the Inventables 3D clamp set.

Like this project Easel logo Preview in Easel
Damon webb

What bit did you use?

Damon webb · November 26, 2018

Fabio Alves

I cant open it ... it says that it's not public

Fabio Alves · May 25, 2018

Matthew McCroskery

Very cool design! I'd like to make one, but your design has not been made public.

Matthew McCroskery · May 26, 2018

Matthew J. Parker Sr.

I went into edit and it is telling me it is Public. I am not sure what is going wrong.

Matthew J. Parker Sr. · May 26, 2018

Matthew J. Parker Sr.

Try now I just put a license on it. Maybe that was it.

Matthew J. Parker Sr. · May 26, 2018

Matthew J. Parker Sr.

I figured it out. I needed to Share it on my Easel. You should be able to download now.

Matthew J. Parker Sr. · May 26, 2018

Galen Stevenson

Thank you for this!!! I just got my XCARVE today (finally) and wanted something to do as a test-carve... and since I have all these clamps and accessories, it is PERFECT to carve this design to keep it all organized. THANK YOU again! :)

Galen Stevenson · May 26, 2018

Matthew J. Parker Sr.

Your so very welcome Galen. I wanted to make this right away but I ended up getting to busy making signs for my B&M business. So finally I got around to making this tray. I had a friend tell me this was next level OCD.:) So welcome to the club and enjoy your Xcarve. Happy cutting...

Matthew J. Parker Sr. · May 27, 2018

Zach or Sarah Harner

By the time this gets to the 3rd clamping tool, its already shoved my bit up into the collet, and from there, it keeps making things more and more shallow. Any idea what I can adjust to make this stop happening? I have went through 4 boards now trying to cut this design out.

Zach or Sarah Harner · July 17, 2018

Chris Zeppieri

I just gave this cut a shot and all of my shapes wound up about .050 too small.... Can anyone give me some advice on how to remedy this?

Chris Zeppieri · September 07, 2018

Brian Fleig

Thank you for this, I should have my first machine up and running tomorrow and this will be my first project. :)

Brian Fleig · October 23, 2018

Bennie Holcomb

Thanks for this! Put the result up top!

Bennie Holcomb · October 25, 2018

Matthew J. Parker Sr.

I used a .125 2 flute endmill to cut this out.

Matthew J. Parker Sr. · November 26, 2018

Brett O'Neal

thanks for the design worked out well

Brett O'Neal · February 24, 2019

Chadwick Kyle

this didn't work out to well for me. I used the exact measurements and hardly any of the holes were big enough. They were slightly too small. Thanks though

Chadwick Kyle · April 05, 2019

Zach hall

I am super excited, I ordered my Xcarve this morning and this will be my first project!! Cant wait to get everything and set it up!! This community is awesome!!

Zach hall · April 11, 2019

Alejandro Coleman

not exact dimension but will do

Alejandro Coleman · July 17, 2019

John Putz

Thank you for this. I received my X-carve this past Wednesday and can't wait to start using it.

John Putz · September 16, 2019

Matt Schlosser

Thank you for this design! I just got my X-carve yesterday and this was the second project I did. turned out great.

Matt Schlosser · December 31, 2019

Matthew J. Parker Sr.

Some people are having trouble with the tool bit holes being small. It will not hurt to select them and make the size .15inch. This will give plenty of room for your tool shank.

Matthew J. Parker Sr. · January 01, 2020

Douglas  Heath

Thank you, you are truly a saint!

Douglas Heath · January 13, 2020

Petros Mendonis

Thanks, this was so convenient to be able to have my clamps in order !!

Petros Mendonis · January 22, 2020

Jerry Moreno

What thickness does the board have to be. Thanks

Jerry Moreno · April 07, 2020

Kristi Allen

Carve stopped in the middle of the project. This is my first project...any suggestions?

Kristi Allen · June 07, 2020

Sean Cottman

thanks a lot for this!!!!

Sean Cottman · June 08, 2020

Thomas Berryhill

How do you select the holes to make them larger? Also, how do i lengthen the holder for my calipers? It is about an 1/8 inch too short. Yep. I’m a newbie.

Thomas Berryhill · October 27, 2020

Randall Hebert

I did a partial sample then a text file that I wanted to do then I made one of these. It shows me how much slop I have in my setup. Will tighten everything up then remake this with better wood. Used pine board I had so that may have added to the slop. Thanks to those who put this together.

Randall Hebert · March 21, 2021

Shannon Smolinski

I cut this a couple days ago...no luck my supplies did not fit into any of the slots. Only the calipers fit and the wedges... :(

Shannon Smolinski · May 06, 2021

Gregory Bandurske

nice! thankyou

Gregory Bandurske · May 16, 2021

Donald Yahnke

whats the best bit to use for this

Donald Yahnke · July 06, 2021

Eric Humbert

Carved this whole thing out and most of it is too small to accept the parts. Is there an updated version?

Eric Humbert · November 08, 2021

Randal Mansell

the depth of the cuts was not consistent. I had to go in and manually reset cuts for some of the pockets. it left out all of the holes for the clamp screws.

Randal Mansell · April 13, 2022

Vijay

everthing fits quite snugly. thank you for sharing. no need to widen anything.

Vijay · April 29, 2022

Brian Shinta

Hi Matthew, did you use any special software to scale the objects? Im currently trying to foam inlay my tools, but pictures aren't to scale. Thanks

Brian Shinta · November 14, 2022

Matthew J. Parker Sr.

Brian Shinta I just used easel to adjust the size to fit my tools.

Matthew J. Parker Sr. · November 14, 2022

Mike Beard

Getting ready to do this.

Mike Beard · May 10, 2023
