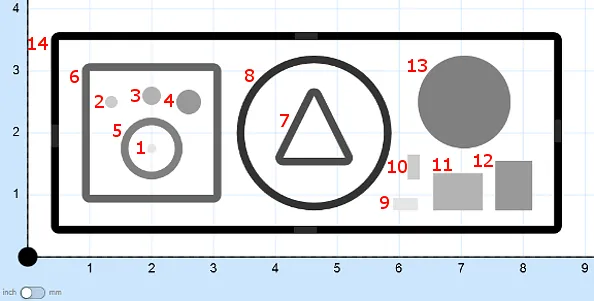

A 3"x8" pattern designed to check the X-Carve or other hobby CNC for indications of stepper motor lost steps, improper stepper motor calibration, and lack of perpendicularity between the spindle/router and wasteboar.
