Make LED LIGHTS blink to music

Published: January 07, 2017

description

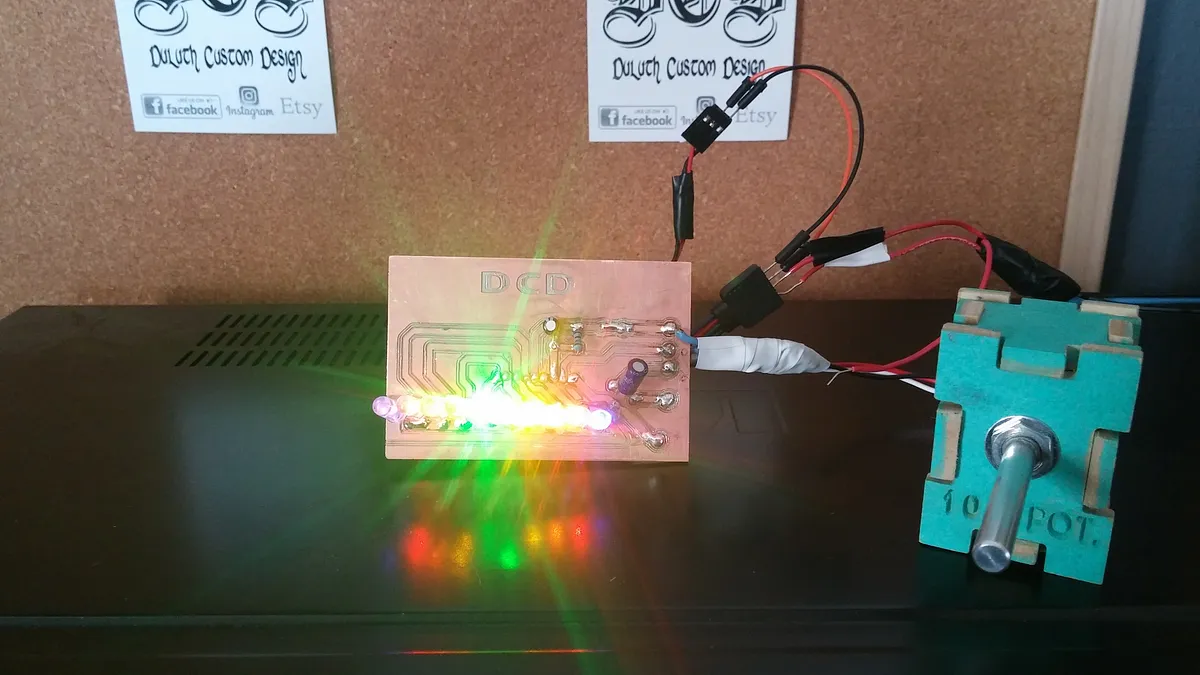

LED Vu meter Make LED LIGHTS blink to music Under 5$ build! using the an6884 LED driver v - bit was used to carve the blank PCB search creative channel for a great tutorial here is the link https://www.youtube.com/watch?v=6gyhOeCgtmA

license

Attribution 3.0 Unported (CC BY 3.0)
6
12
1
17
INSTRUCTIONS

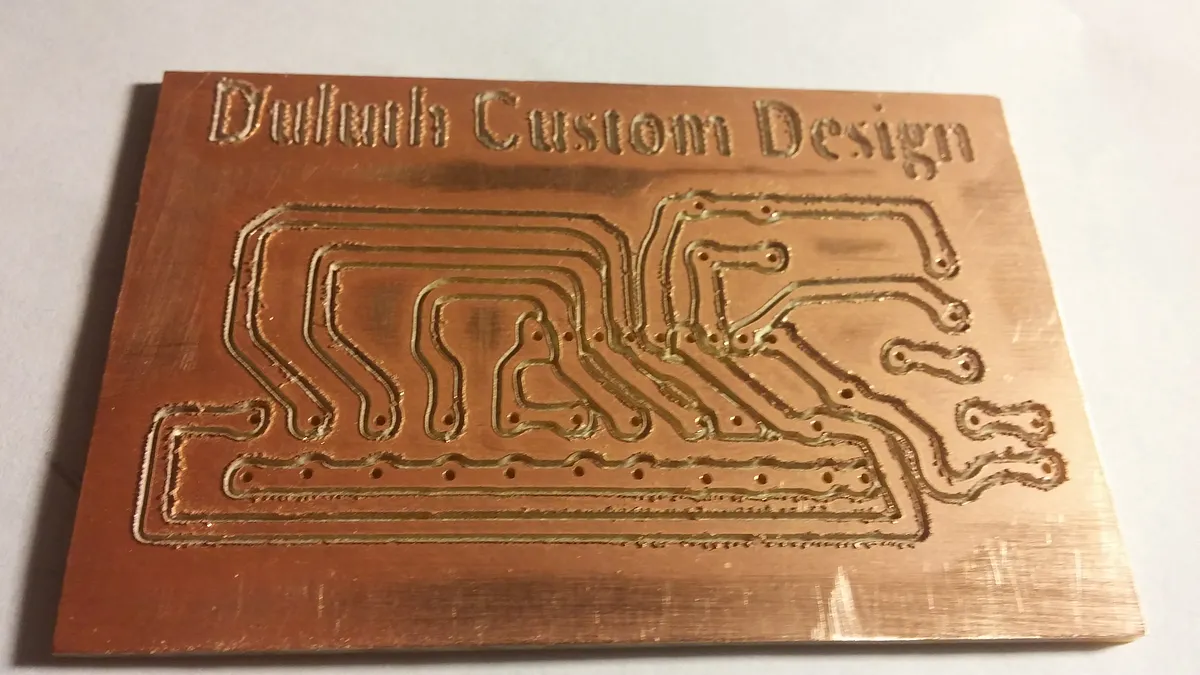

1. carve paths

Secure circuit board blank onto X-Carve. Use a small v bit to carve the paths. Set z - axis to .014 inch set speed to 15 in/min CARVE! Takes 9 min to carve paths

Estimated time: 10 minutes

2. drill holes

change out the drill bit for a .03 inch bit. set cut speed to 30 in/min carve holes

Estimated time: 2 minutes

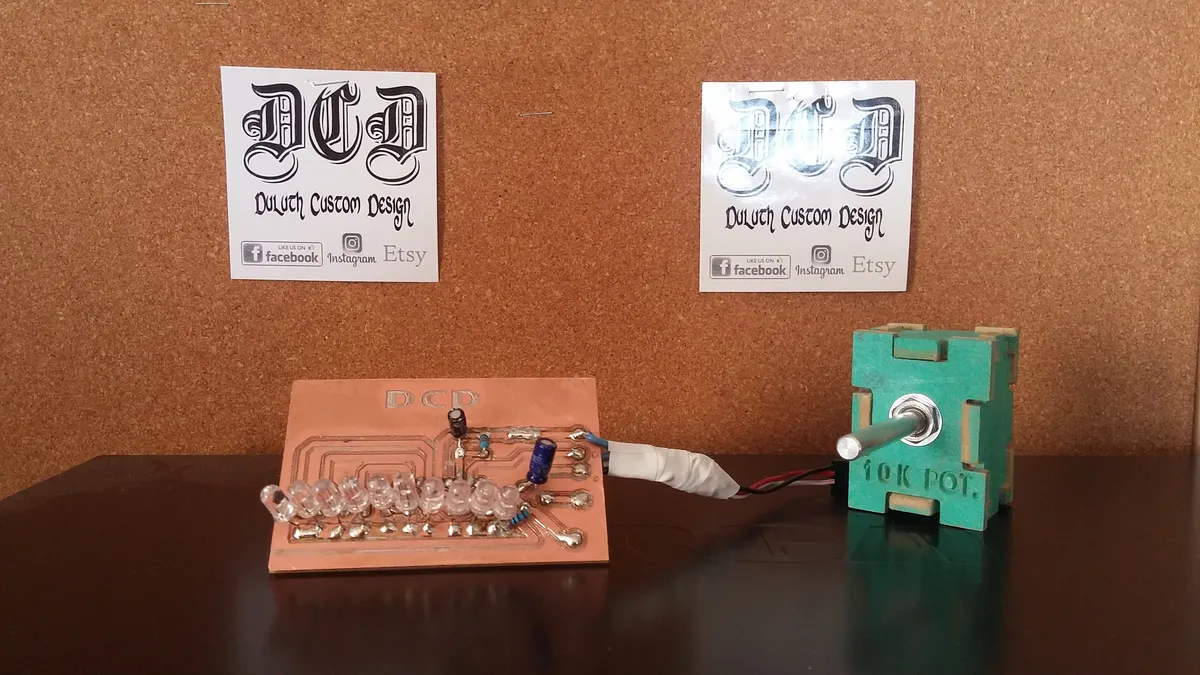

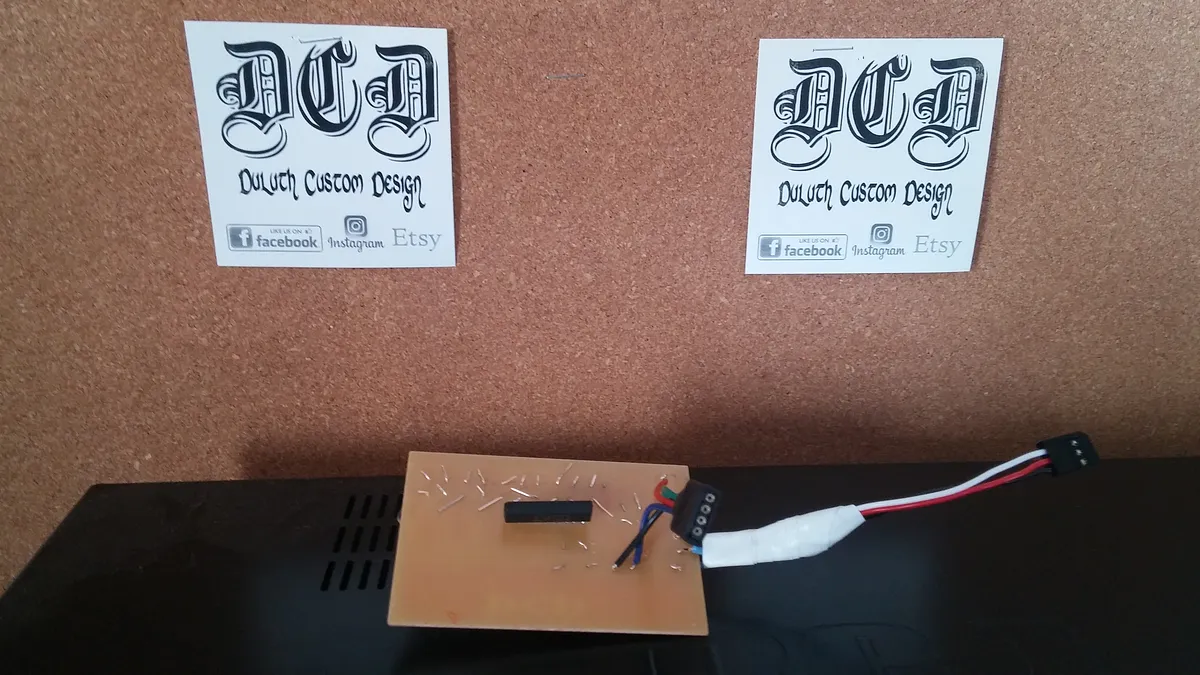

3. solder parts

carefully place and solder parts
