General Information

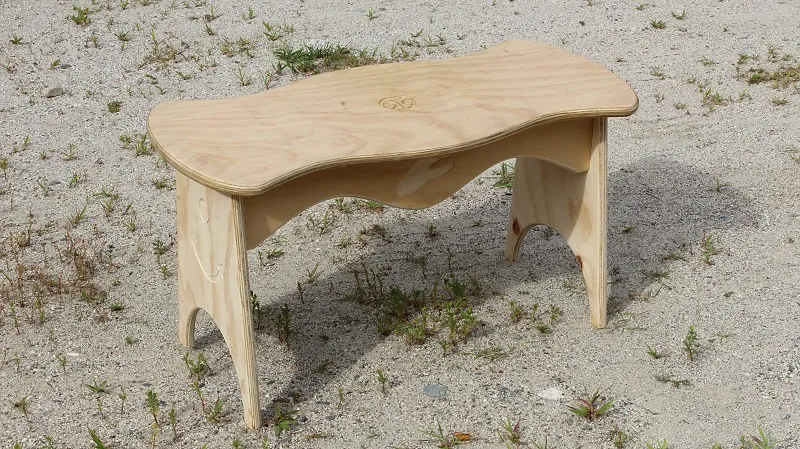

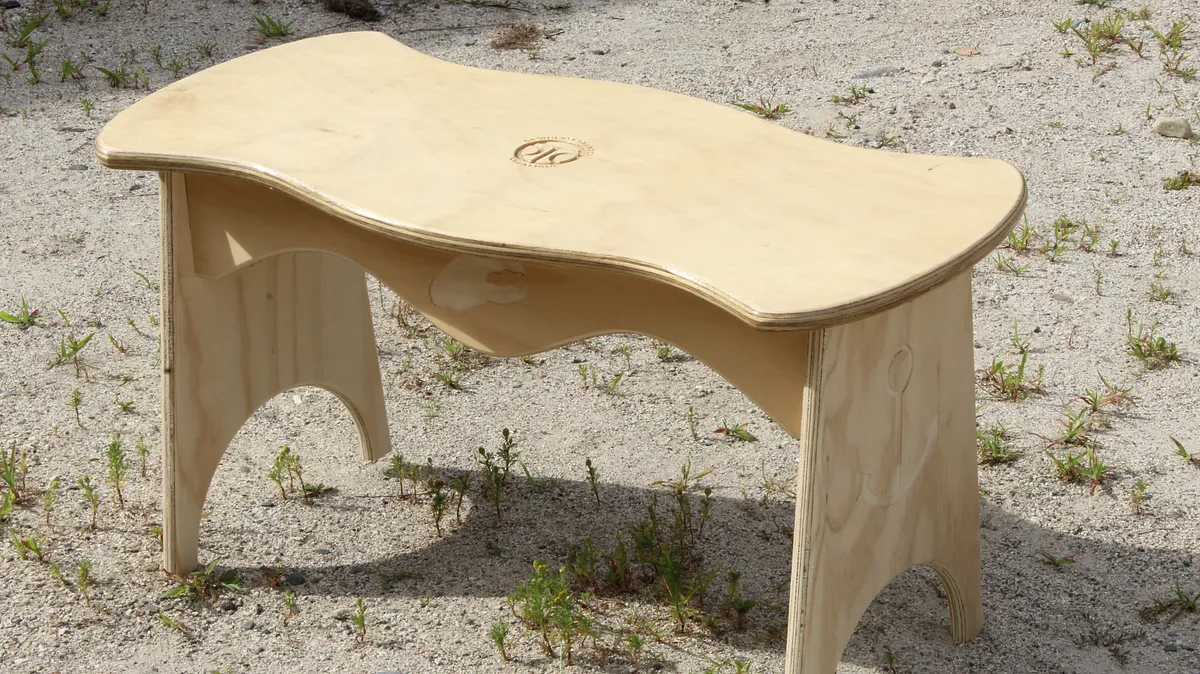

This 5 Panel Bench was specifically designed to fit in my Inventables X-Carve 1000mm, CNC router. It was also designed within the Easel software that drives the CNC machine. I built the bench for a non-profit fund raiser and posted a YouTube video of the build.

Like this project Easel logo Open in Easel®
1

5 Panel Bench Assembly - Drill Pocket Holes

After cutting out parts on the 1000mm X-Carve and cleaning them up, drill all the pocket holes as shown in the video. Please note the stretchers file is located at the bottom of the Easel page by clicking on the link that says "Workpieces for DTC 5 Panel Bench.

You will need two pieces of plywood.One is 31" x 31" for the top and legs. The second (for the stretchers) is 28" x 16"

Estimated time: 15 minutes

2

5 Panel Bench Assembly - Assemble with Pocket Screws

Position parts and fasten with Kreg 1-1/4" course, pocket screws as shown in the video.

3

5 Panel Bench Assembly - Finishing

Sand bench down to 220 grit sandpaper, and apply finish of your choice. You may paint, stain, varnish, etc. as you choose.

Estimated time: 30 minutes

Paul J. Bennett

I was able to correct the errors previously reported to me. When you open the file in Easel, you will find the stetchers for he bench in the "Workpieces" section (hyperlink) at the lower left hand corner of the page.
