Shop Vac Shelf Tray

2 likes
4 opens
0 comments
7 copies
Allan Schwartz

Project by

Allan Schwartz

Published On

October 25, 2022

General Information

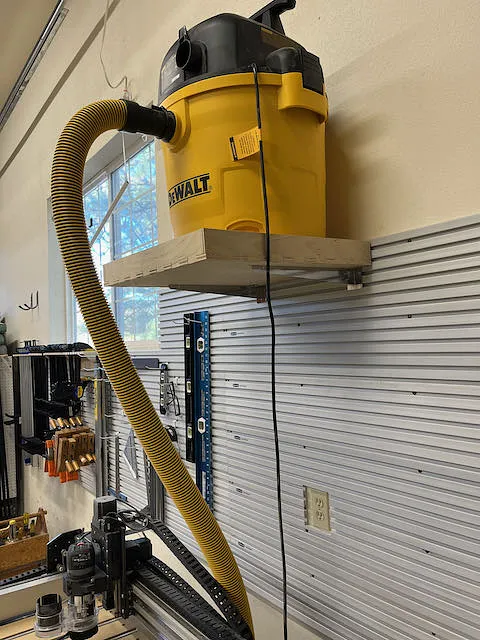

A strong but lightweight finger-jointed shelf built to hold a DeWalt shop-vac. CNC-cut from plywood and mounted to the wall using two steel shelf brackets.
Includes README with cutting, assembly, and an optional auto-start vacuum switch.

Materials:

Birch Plywood

Machine Type:

Shapeoko XXL Pro

Notes:

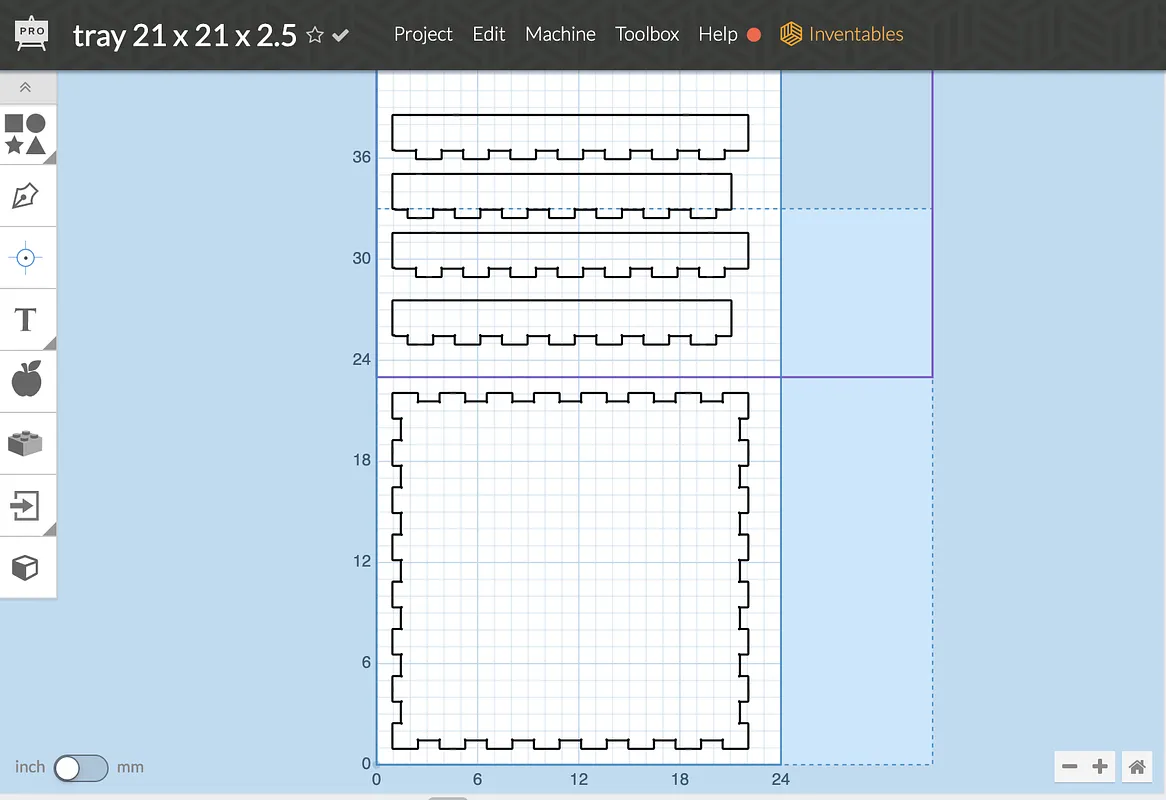

• Exterior size: 21" × 21" × 2.5" • Material: 12mm Sande plywood (or 1/2" birch ply) • Bit: 1/8" upcut, 60 IPM, 0.125" depth/pass • All 5 parts cut from a 24" × 48" quarter sheet • Full instructions included in the README workpiece • More CNC shop-storage designs at: https://www.etsy.com/shop/TahoeCNCDesigns
