gear 120 teeth_d170 mm
Project by
augustine
General Information

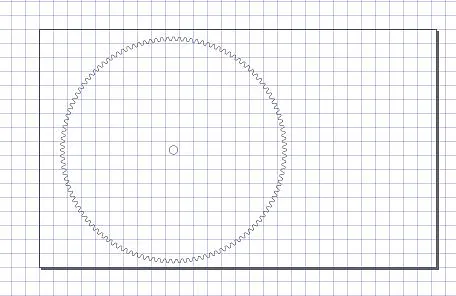

This 171 mm (6.73 ") diam 120 tooth gear. Characteristics : Circular pitch (tooth size): 4.4 mm (0.17 ") Pressure angle: 20 mm (0.79 ") Cent. hole diam: 6.5mm (0.25 ") wood : plywood thickness 5 mm (0.196 ") Cyl drill bit diam 2.5 mm (0.1 ") CNC3018Pro-Working area 300x180 mm (11.81 "x 6.3")
Open in Easel®
