DeWalt cabinet drawers 16.25 x 20.75 x 4.25

9 likes
132 opens
1 comment
58 copies
Allan Schwartz

Project by

Allan Schwartz

Published On

November 28, 2022

General Information

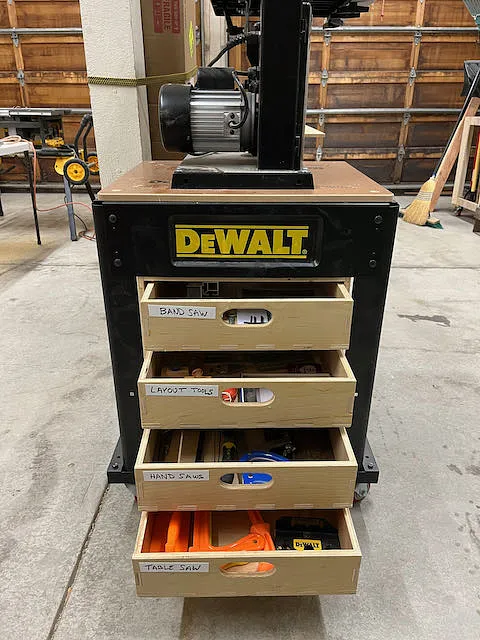

CNC-cut finger-jointed drawers sized for the DeWalt planer stand. Exterior dimensions 16.25″ × 20.75″ × 4.25″. Includes 12 mm and ½″ plywood versions. One sheet yields four drawers. Perfect for shop storage or custom cabinets.

Materials:

Birch Plywood

Machine Type:

Shapeoko XXL Pro

Notes:

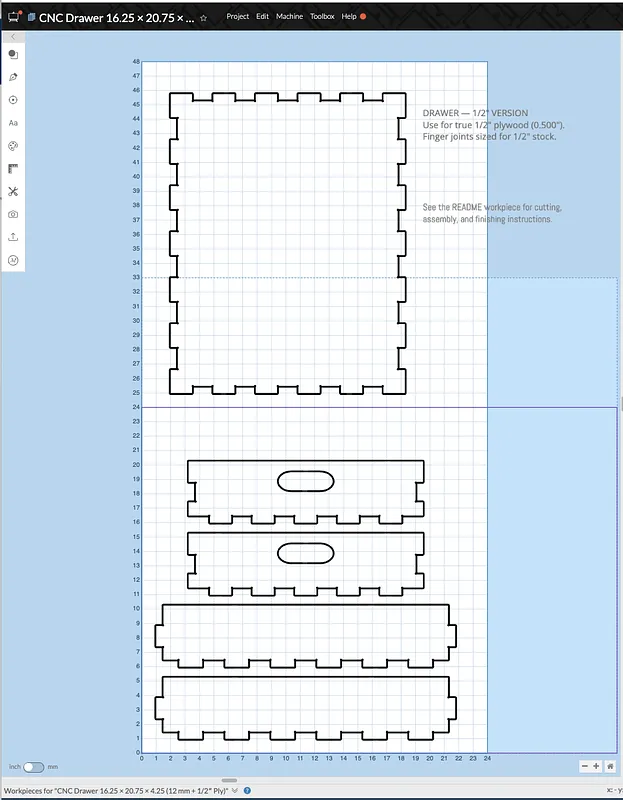

  • Two versions included: 12 mm (0.472") and 1/2" (0.500") plywood.

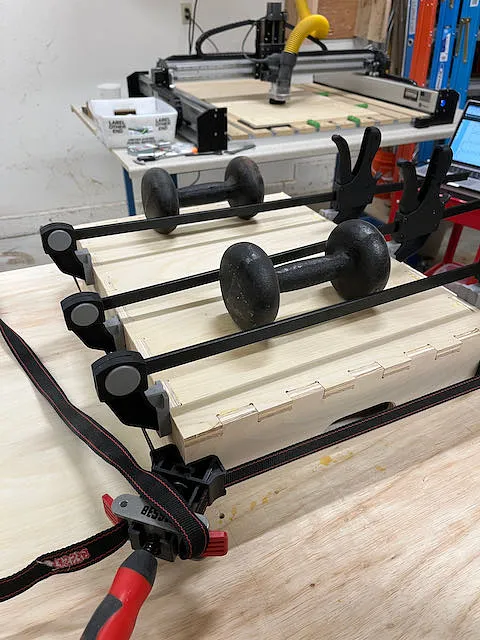

  • Finger joints have been generated for each material thickness.
  • One full sheet yields four drawers.
  • More CNC shop designs at TahoeCNCDesigns on Etsy.
