DTC Bump Stops

Published Jan 16, 2019 · Carved

Description

Here's a collection of handy bump stops. There is a long pair, an "L" shape, and a short pair of bump stops. Great tools for the X-Carve of any size.

83 Favorites

816 Views

8 Comments

494 Copies

Specs

Machine: x-carve 2016
Material: MDF, Soft Maple

License

Attribution 3.0 Unported (CC BY 3.0)

Instructions

Secure material on X-Carve

I used a 3/8" straight cut router bit with 1/4" shank for roughing out the long MDF pair of bump stops, and a straight cut 1/8" bit for the finish pass.

For the shorter pine bump stops, I used a 1/8" down spiral, fishtail bit for the entire carve.

The short video pretty much shows the process. More info in the video description below the video on YouTube.

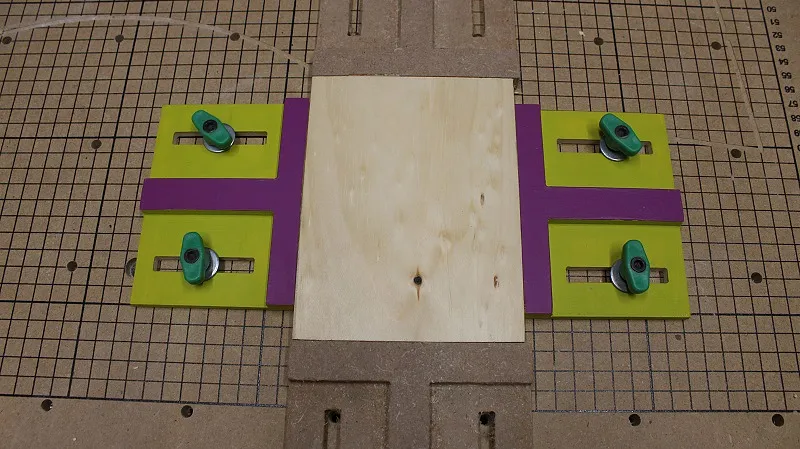

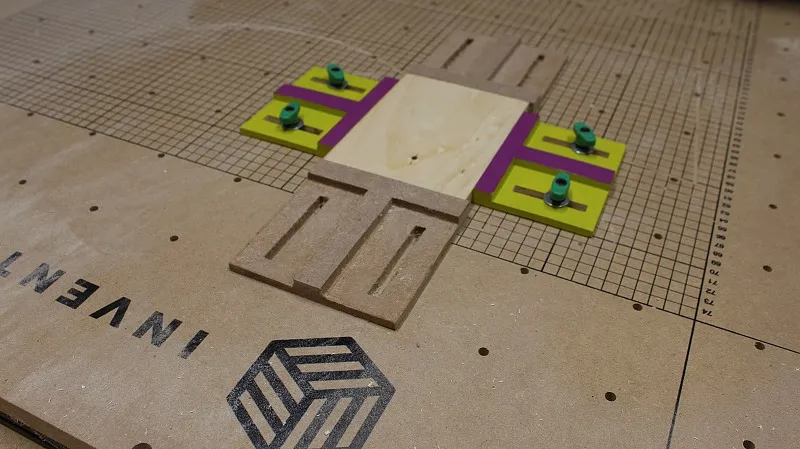

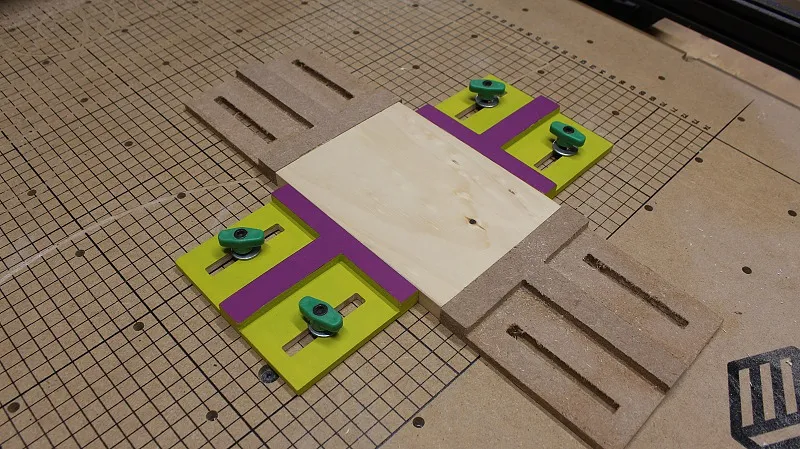

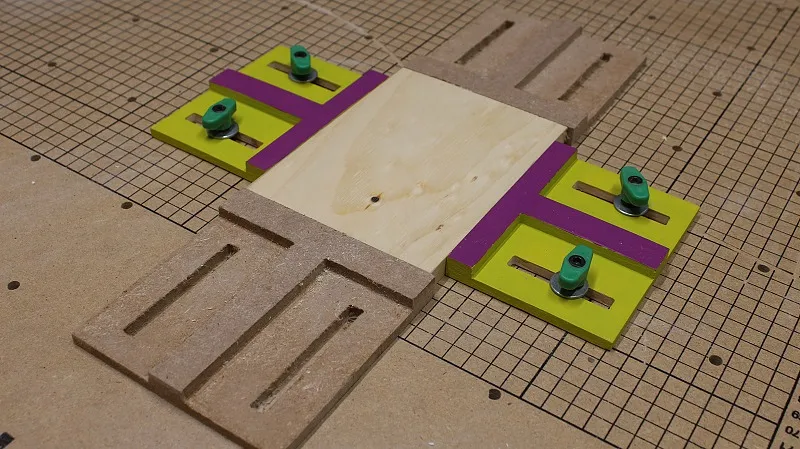

DTC Bump Stops — Secure material on X-Carve

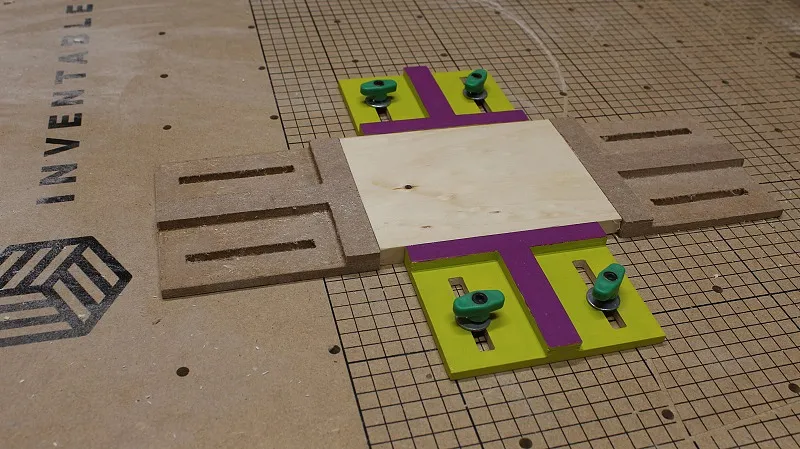

DTC Bump Stops — Secure material on X-Carve (image 2)

DTC Bump Stops — Secure material on X-Carve (image 3)

Alternative construction information

You'll find a link in the video description below the video on YouTube that will lead you to a free plans download page. I drew plans for the short pine bump stops so they can be made with conventional tools (sometimes it's faster than making them with X-Carve).

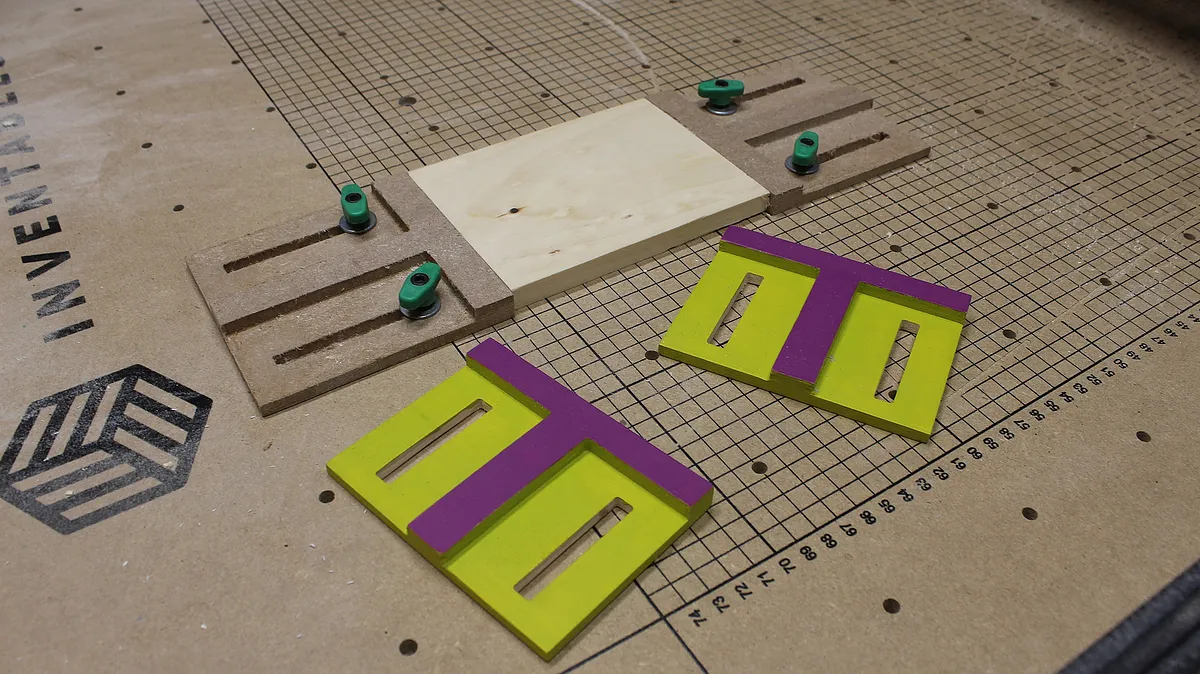

DTC Bump Stops — Alternative construction information (image 2)

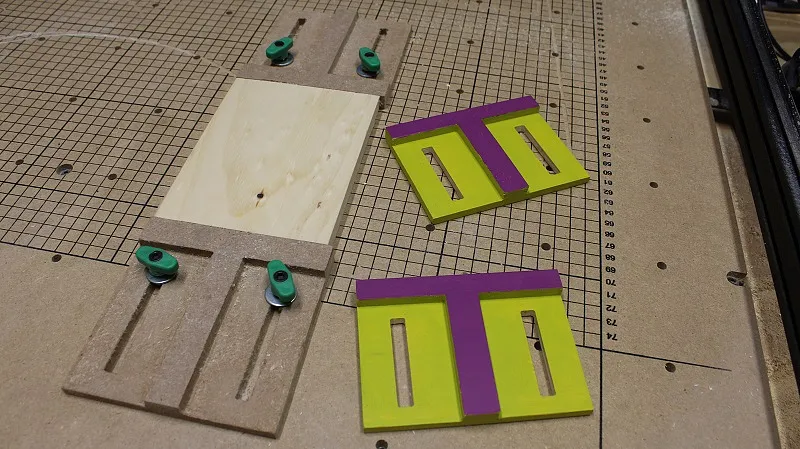

DTC Bump Stops — Alternative construction information (image 3)
