Stepper Motor Covers

Published: June 26, 2015

description

Some simple stepper motor covers that can be created quickly and will clean up the look of your machine a bit.

license

Attribution 3.0 Unported (CC BY 3.0)
10
40
0
11
INSTRUCTIONS

1. Complete Build Video

Complete Build Video

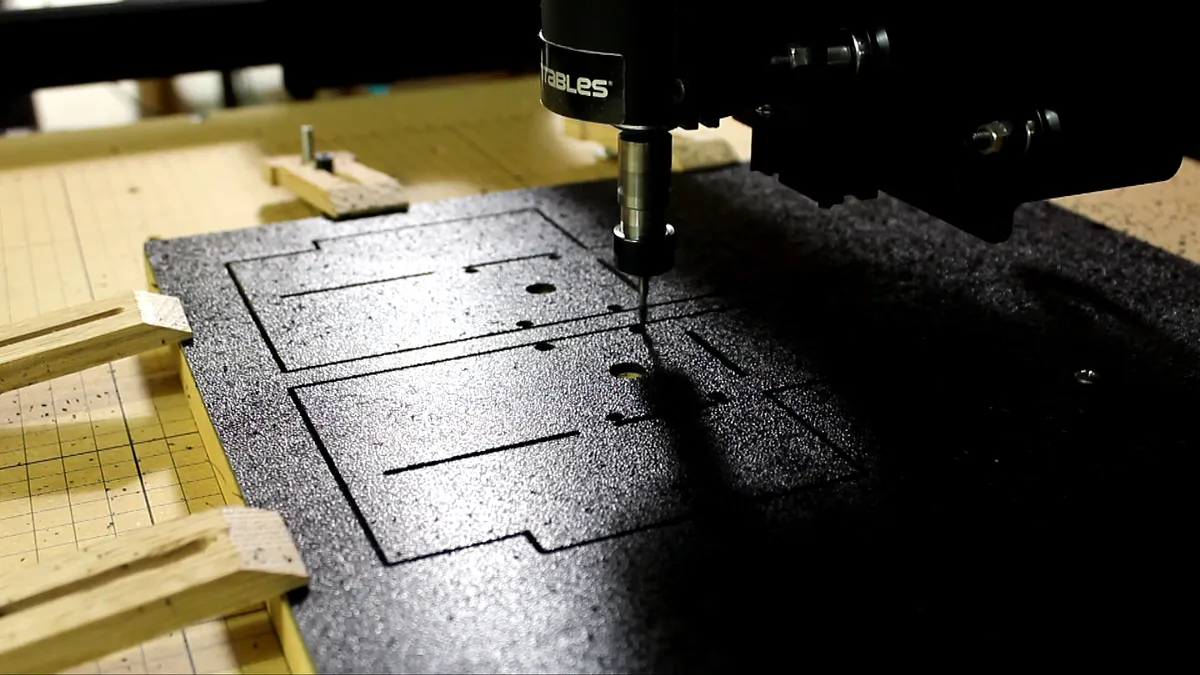

2. Cut Parts

Open design in Easel and cut parts.

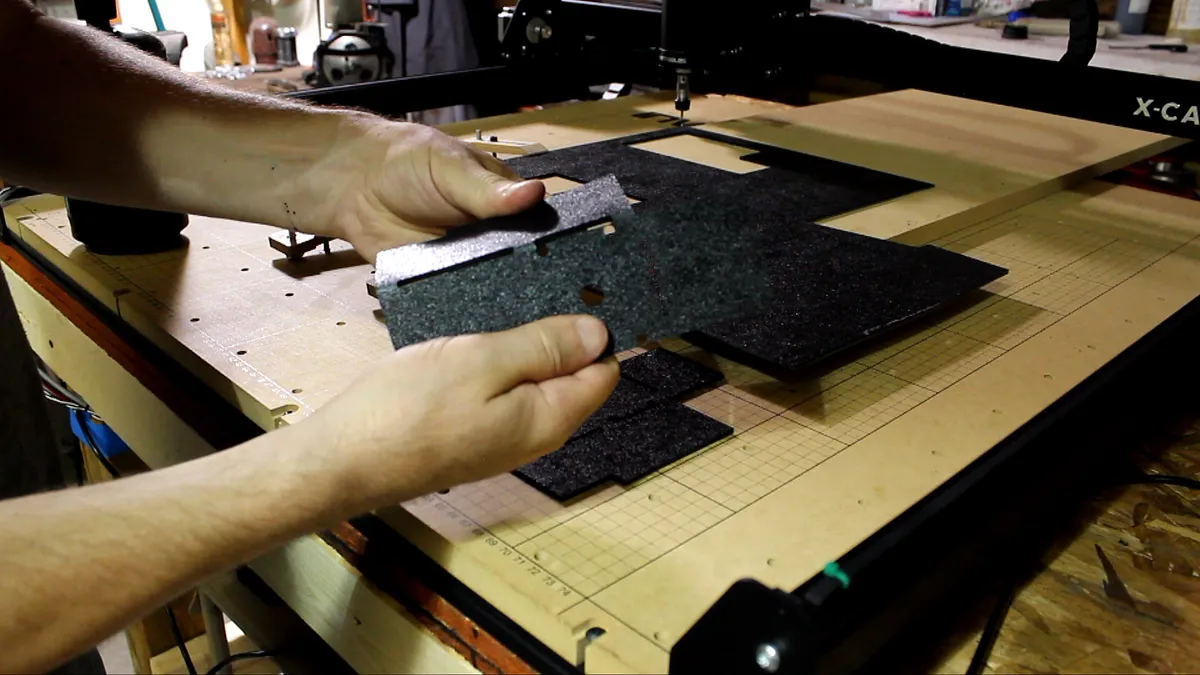

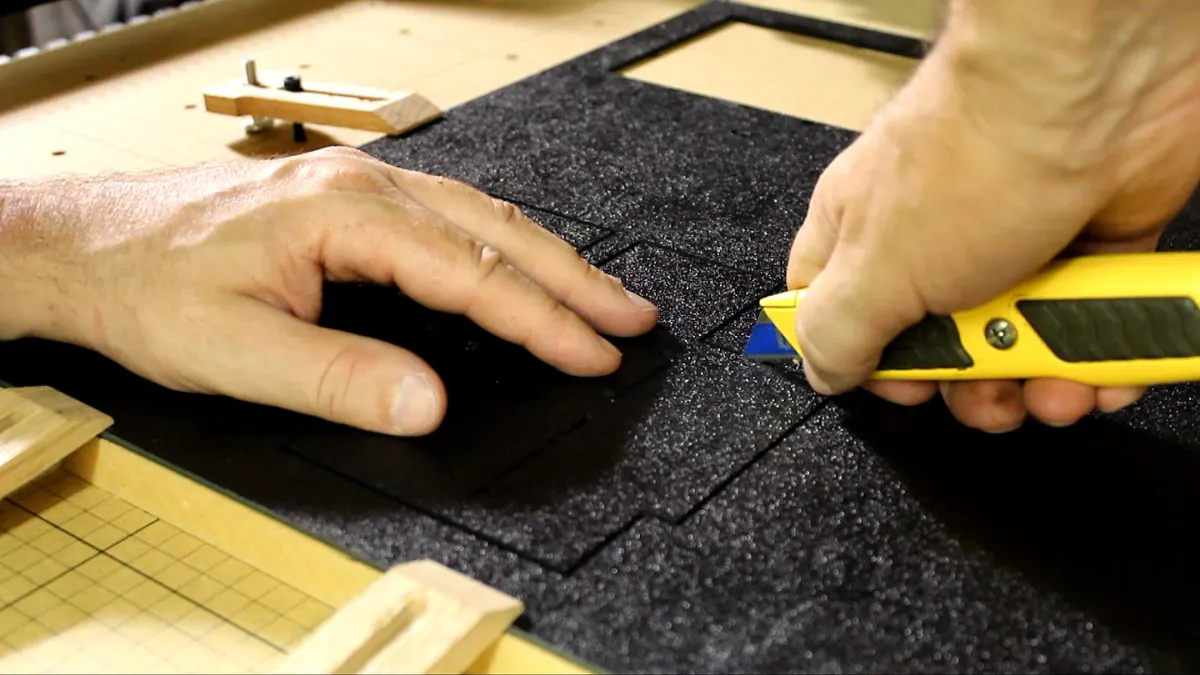

3. Cut Tabs

Cut the tabs loose that are holding parts in place.

Estimated time: 1 minutes

4. Bend Parts

Heat and bends parts 90 degrees on the bend lines.

Estimated time: 2 minutes

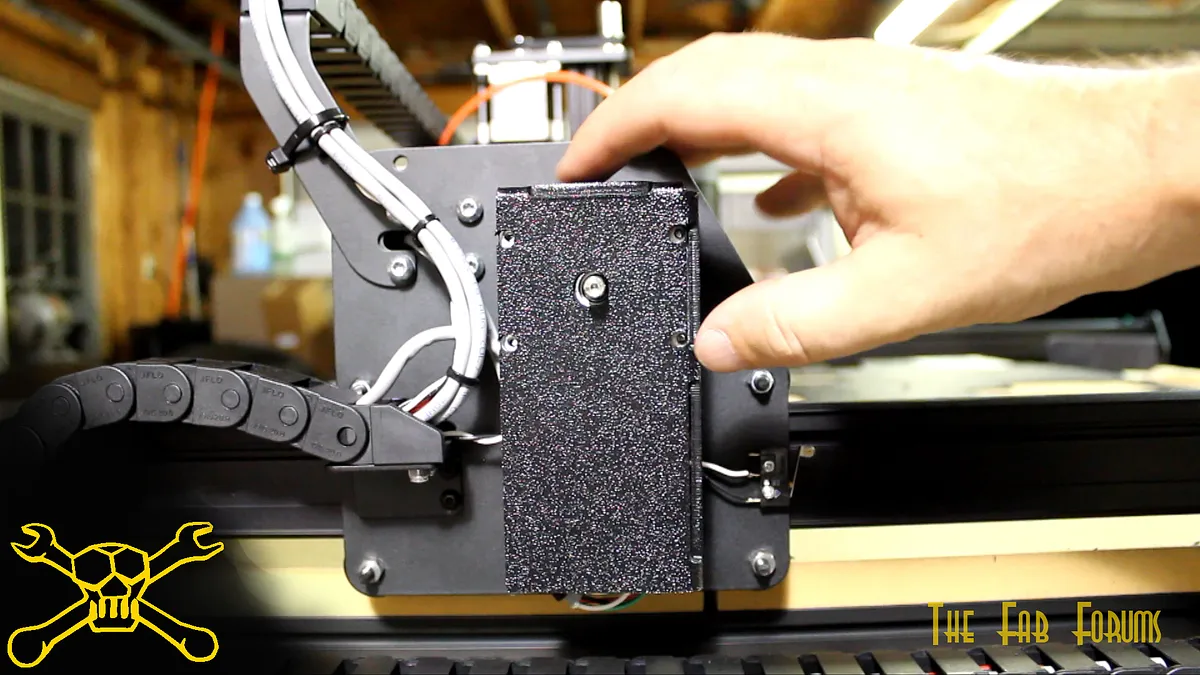

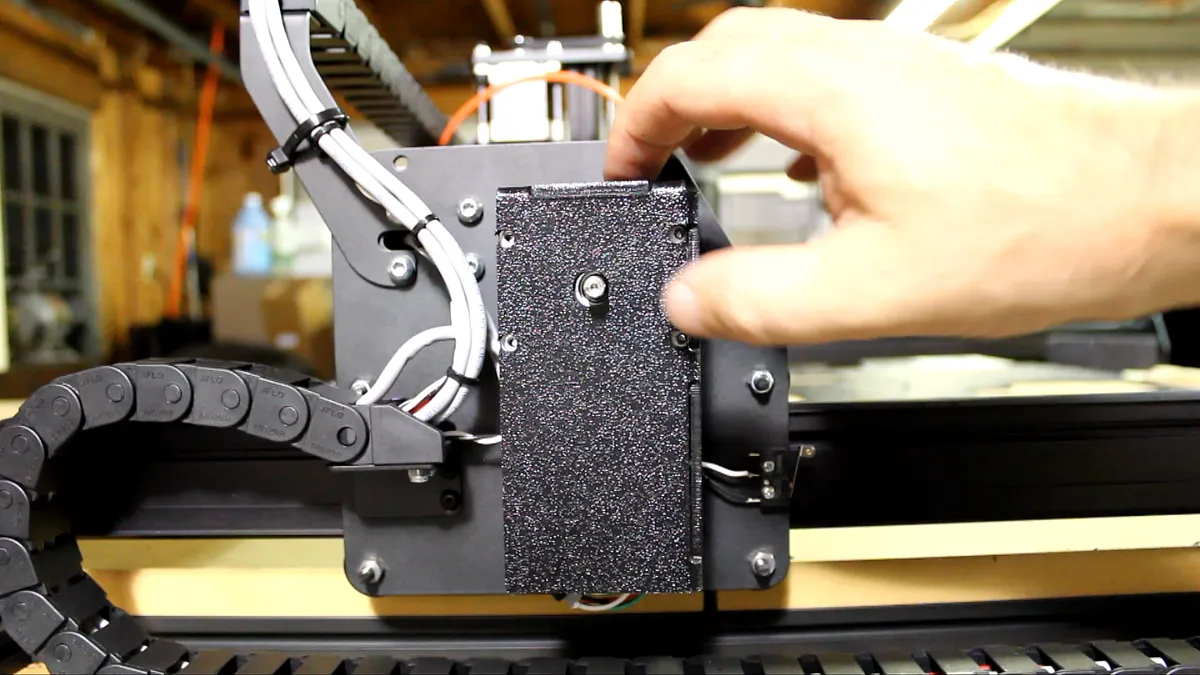

5. Mount Covers to Steppers

Mount new covers to stepper motors with 4 screws.

Estimated time: 1 minutes
