DIY Clamp Set
Instructions
1

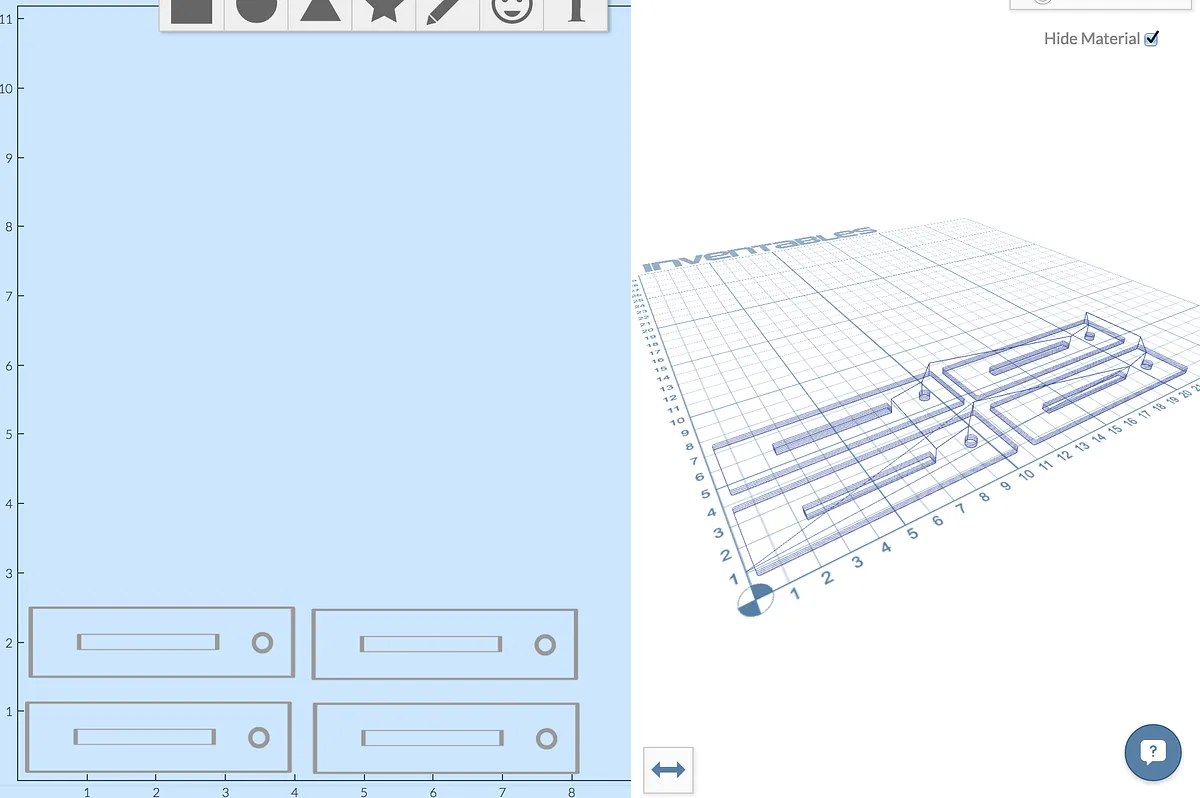

Cut out the parts with Easel
Use the "Open in Easel" button above to open and copy the clamp set project. I used 3/8" MDF, but you could use any material.
2
Press in the threaded inserts
The circle is perfectly sized for the M5 sized threaded inserts with a 6.35mm mounting hole. Just press them into the hole.
3

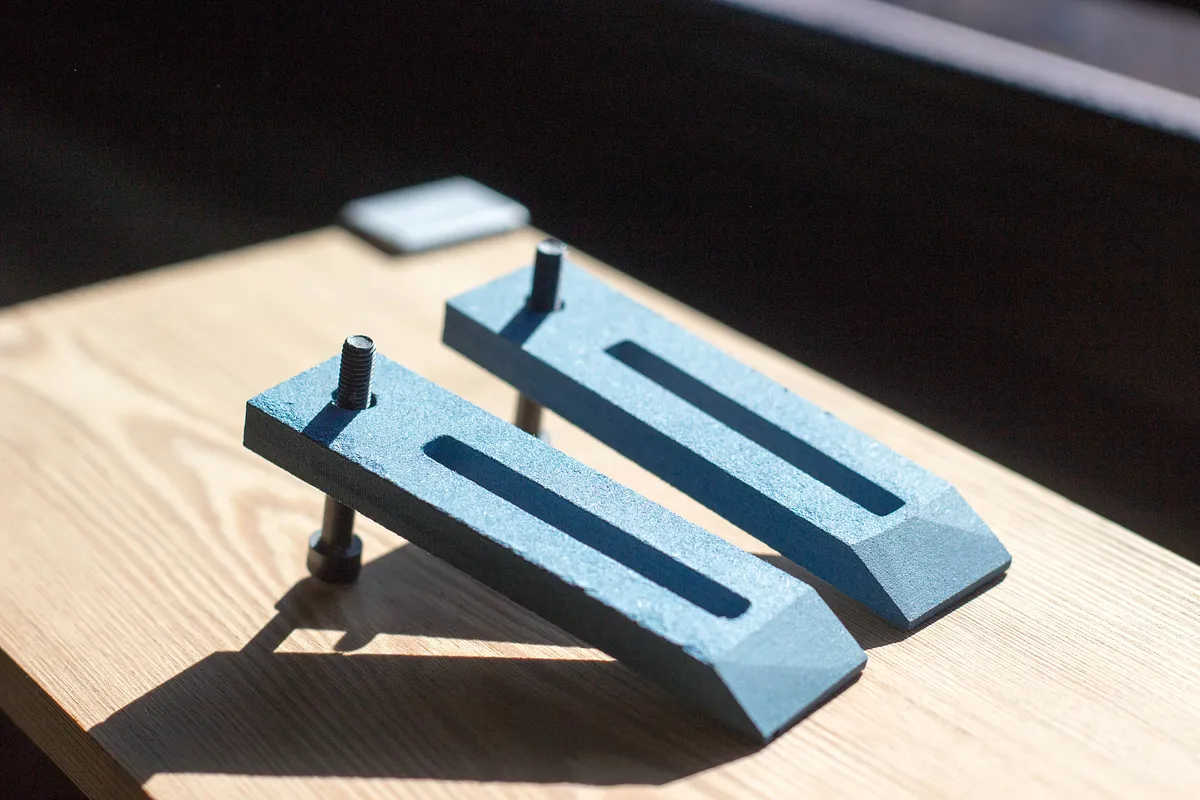

(optional) Sand down the bevelled edge
I sanded an angled edge onto my clamps to give them a lower profile for the part of the clamp that is over the material. This makes it easier to avoid hitting the bit against the clamp.
4

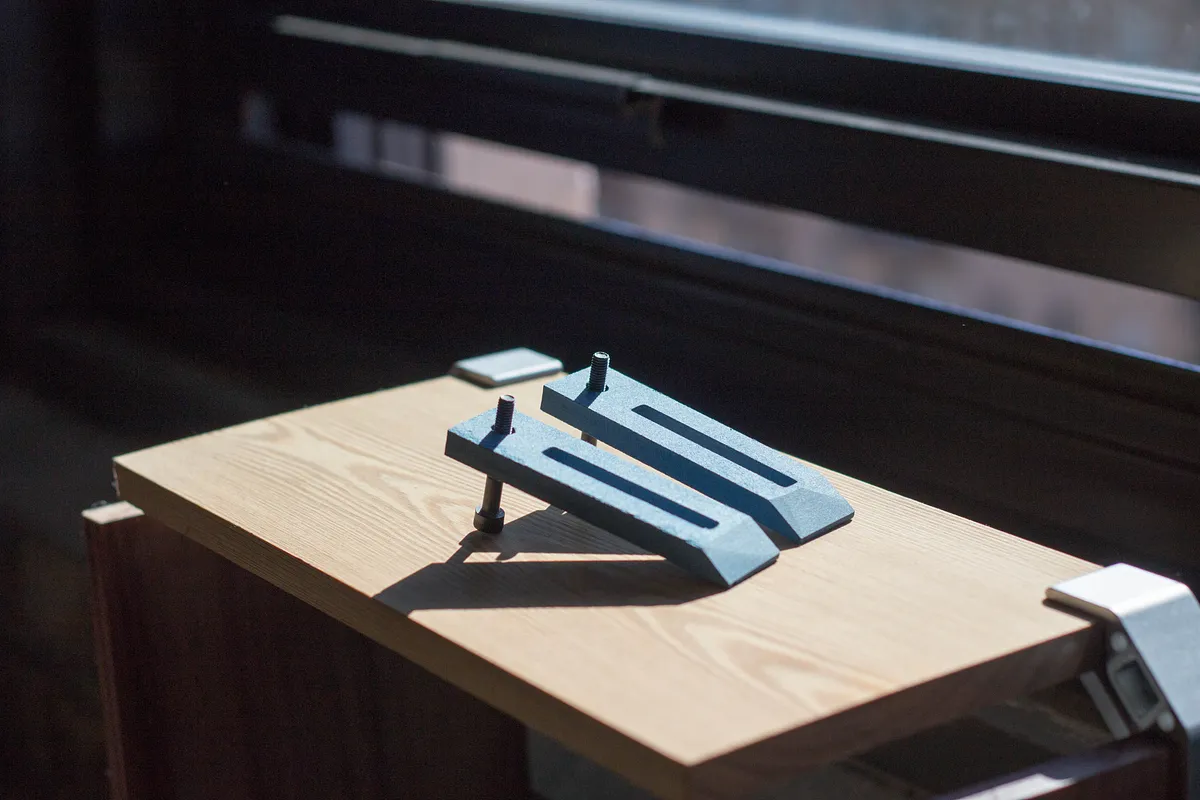

Add the M5 screws
Each clamp uses 2 screws, one in the threaded insert and one which goes into the threaded inserts in the wasteboard.
