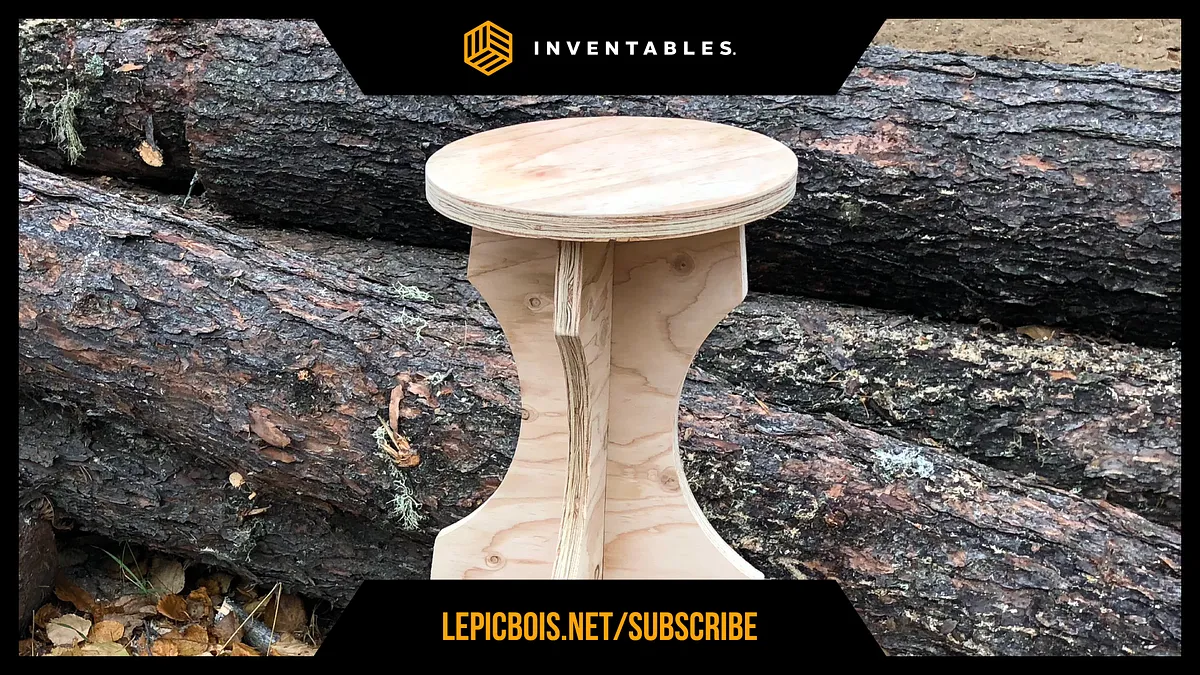

Knock-Down 30" Stool by Le PicBois

46 likes
449 opens
0 comments
183 copies
Patrick Laperriere

Project by

Patrick Laperriere

Published On

October 23, 2018

General Information

I decided to test the capacity of my new X-Carve by drawing a 30 inches knock-down stool. This is the project file. Feel free to modify it as you want. Enjoy!

Project License

Attribution 3.0 Unported (CC BY 3.0)
Like this project Easel logo Preview in Easel
INSTRUCTIONS

1. Watch the Video!

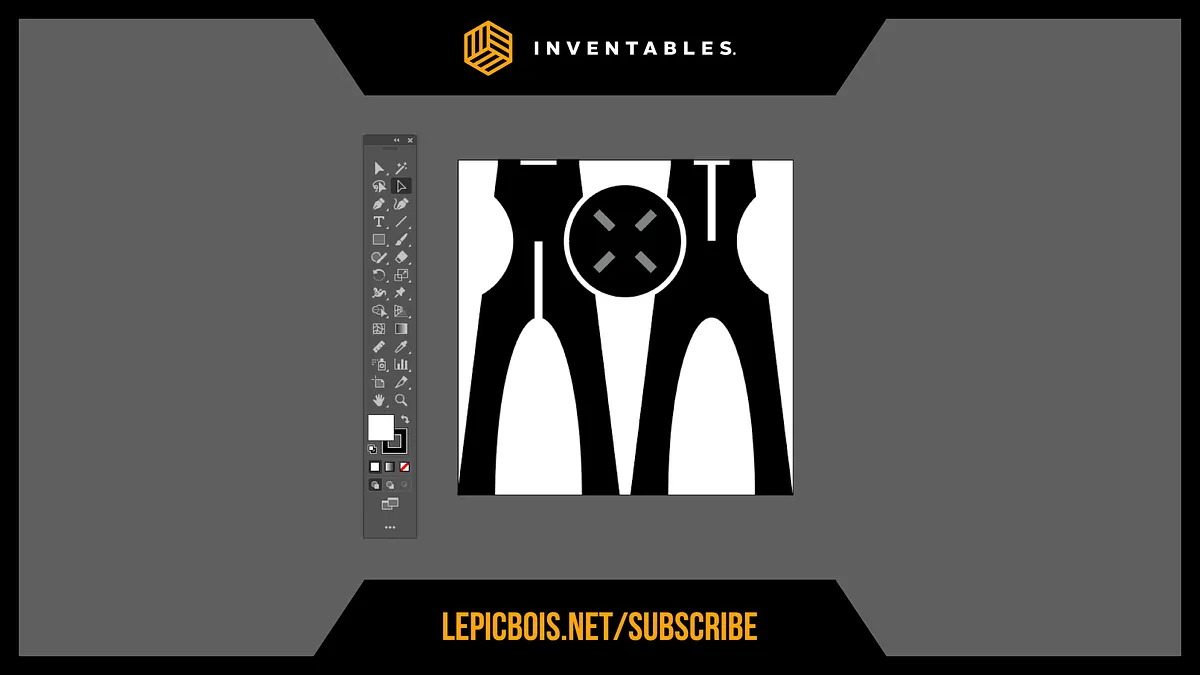

2. Design in Adobe Illustrator

  • Make your design in Illustrator on a 30" X 30" canvas.

  • Then export a .SVG file.

*Note: You don't need to make this step as I did it for you!

Estimated time: 30 minutes

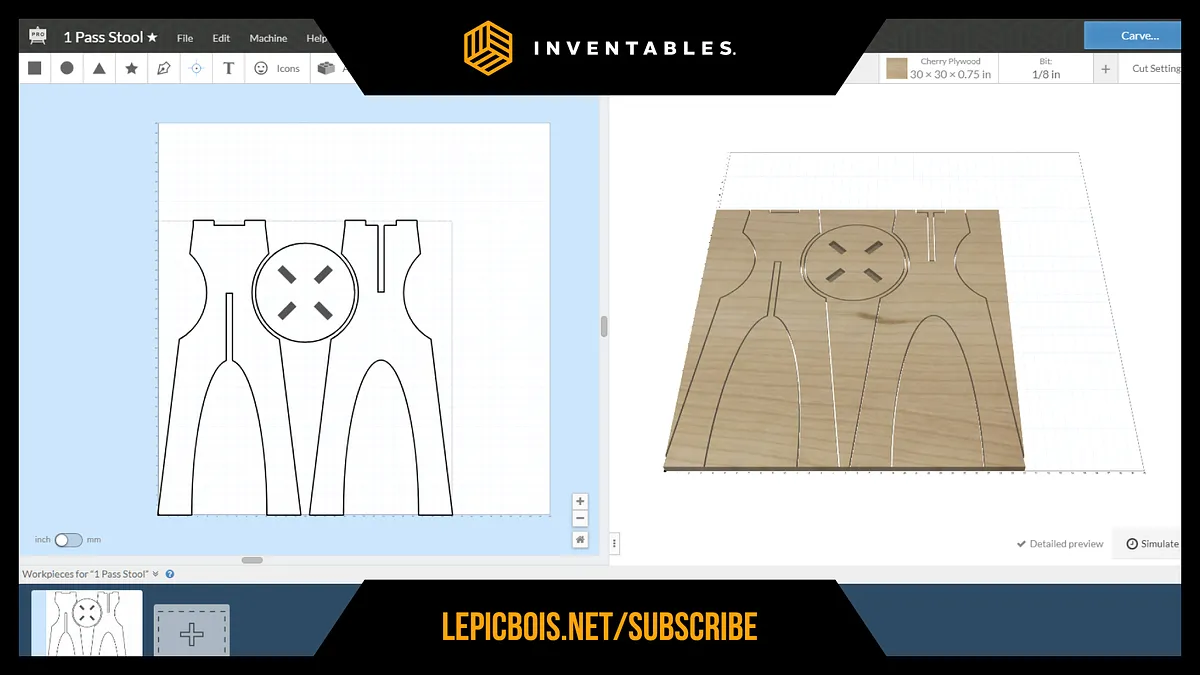

3. Open the file in Easel

  • Import the .SVG file into Easel.

  • Make sure you enter the correct dimensions of the project which is 30" X 30" X 0.75".

  • Set the cutting depth at ¾" for the whole design except for the tabs on the seat. (those needs to be set to ½" deep.)

*Note: You don't need to make this step as I also made it for you as well! Just put a 30" X 30" X ¾" material on the machine and carve it!

Estimated time: 1 minutes

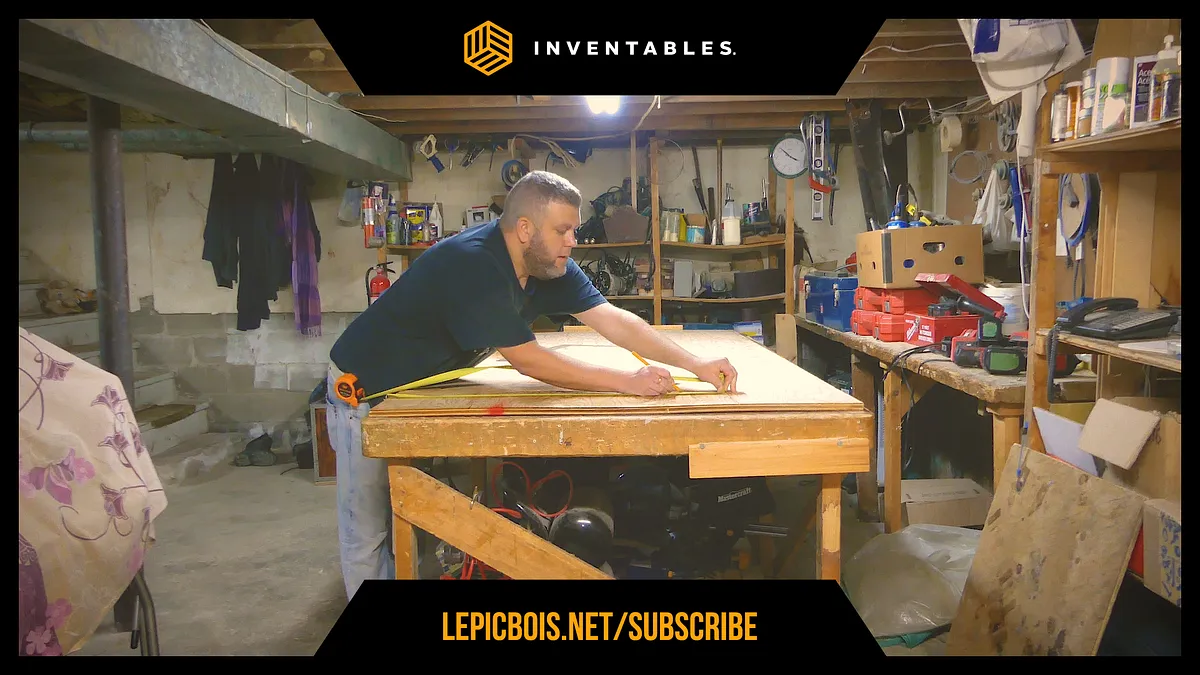

4. Make your Blank

  • Take a piece of plywood ¾" thick, and measure a 30" x 30" square. (you can use MDF or laminated wood also)

Estimated time: 5 minutes

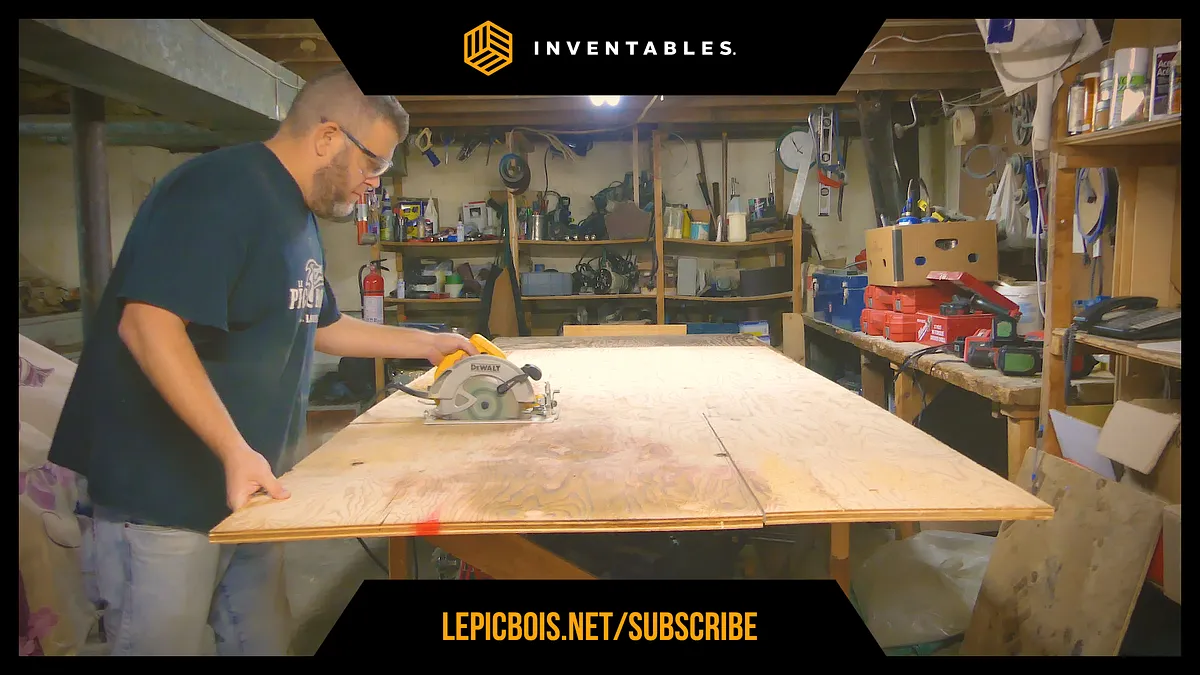

5. Cut your Blank

  • Now it's time to cut your blank. I did 31" x 31" on mine just in case but you don't need to. The design is made to fit a 30" x 30" blank.

Estimated time: 5 minutes

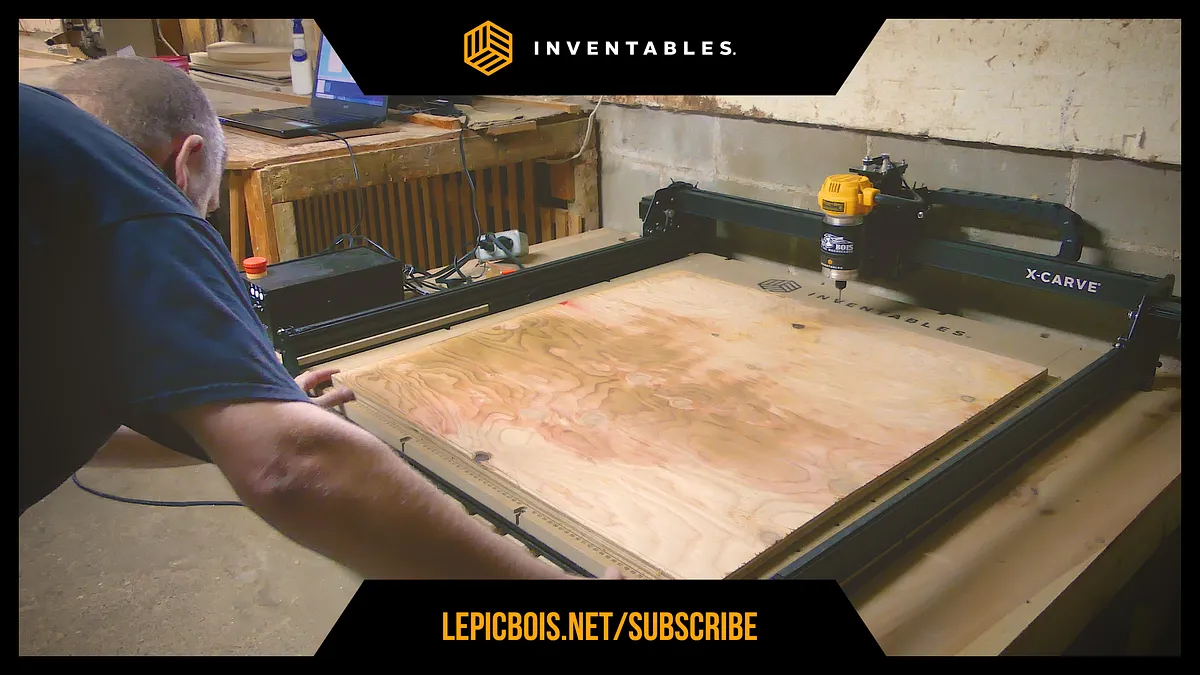

6. Install the Blank on the X-Carve

  • Install and secure the blank on the X-Carve. I screwed my blank directly on the wasteboard, but if you don't want to damage it, just use clamps provided with the machine.

Estimated time: 5 minutes

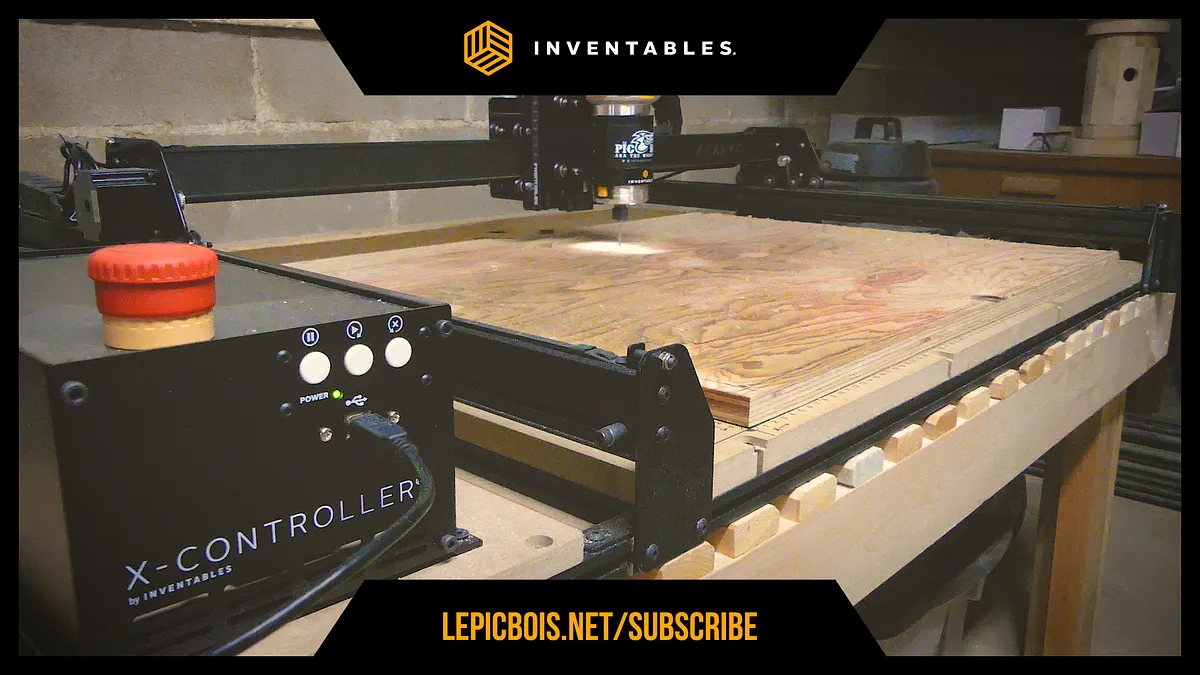

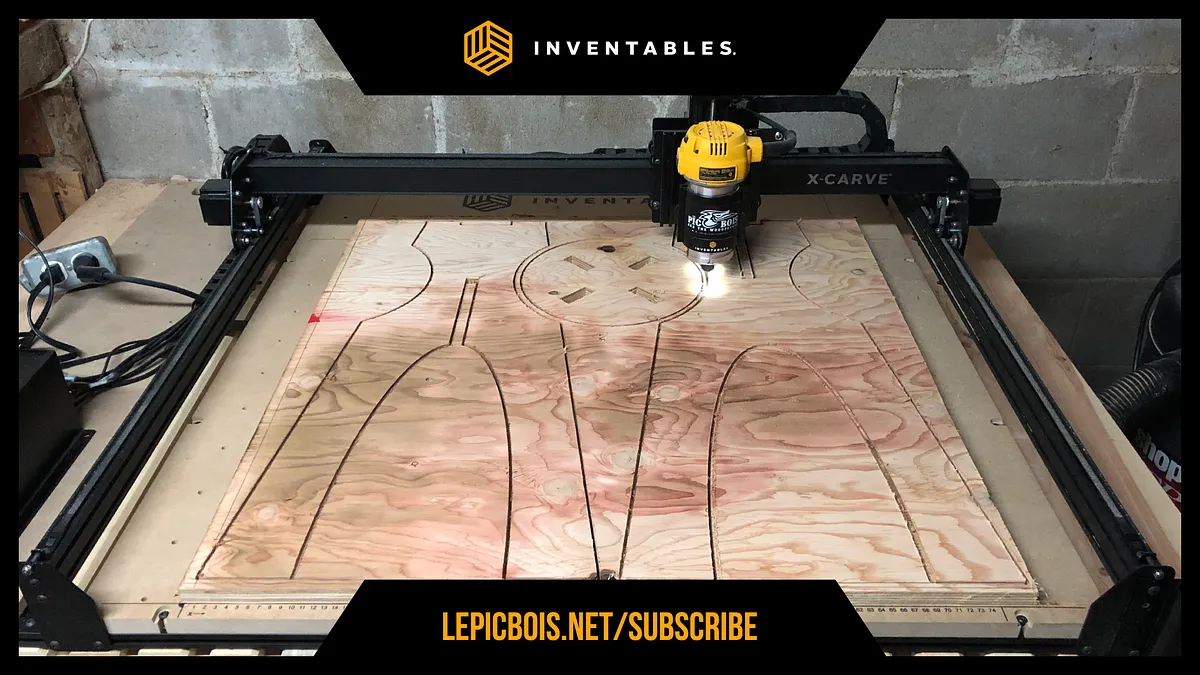

7. Carve the Design

  • The longest part of the process is to wait for the machine to do its job. But it's worth it!

  • It took me about 2 hours to carve this design with the original parameters. You may be able to save a few minutes by changing the settings.

Estimated time: 120 minutes

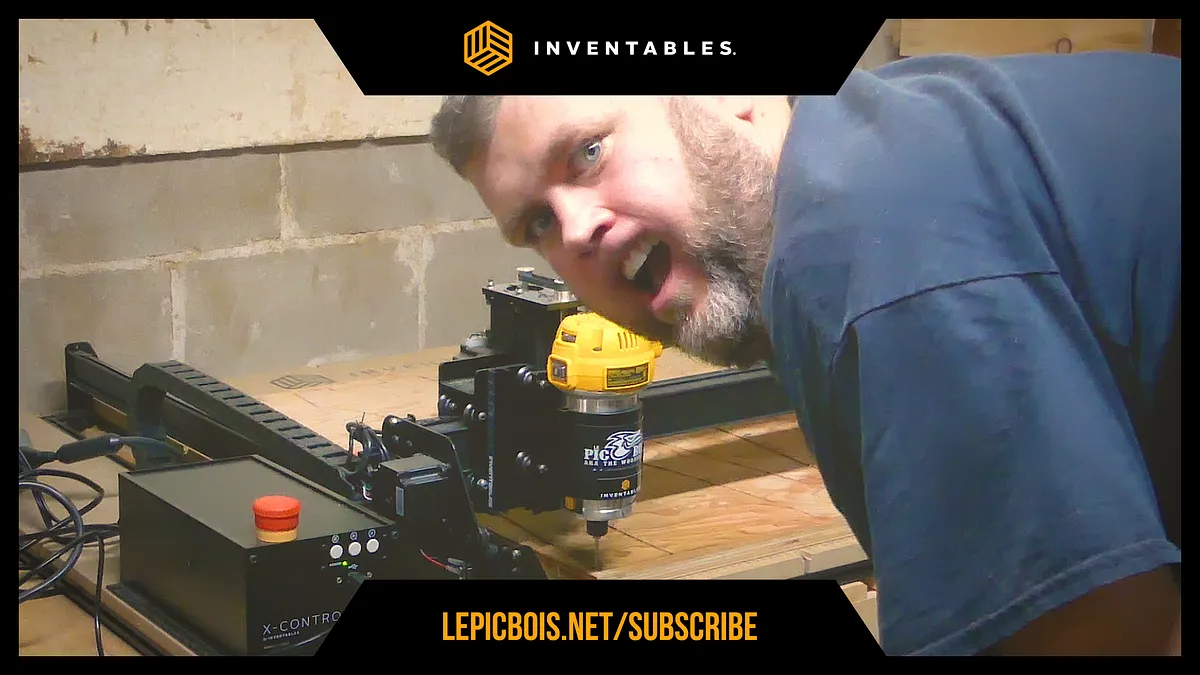

8. Wait for it...

  • Stay close to the machine during the process to make sure there are no pitfalls or mechanical breakage. (you're almost there)

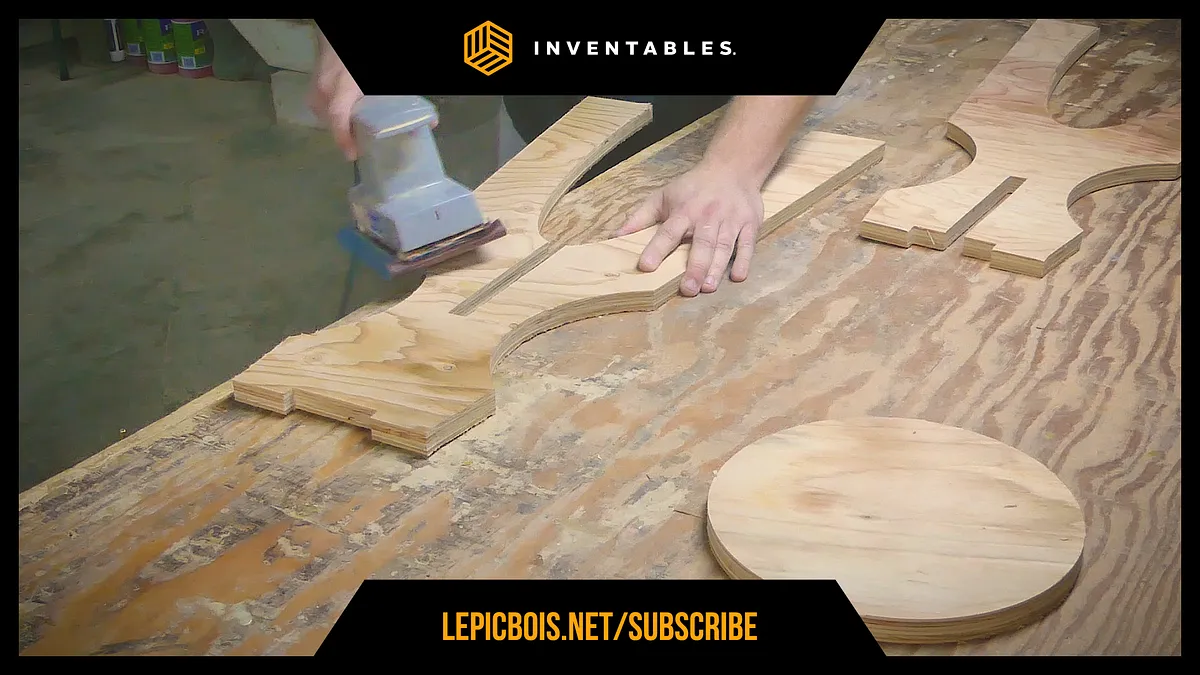

9. Sand your Pieces

  • Once the carving is done, remove the pieces from the machine and sand them to avoid splinters.

Estimated time: 5 minutes

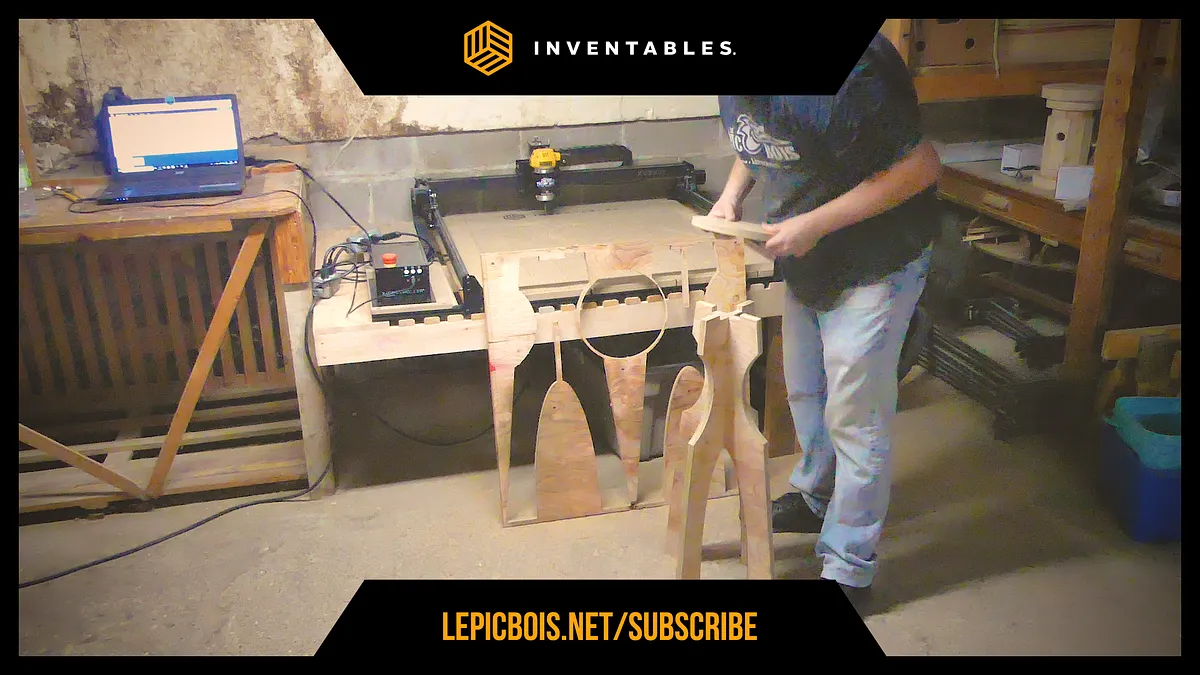

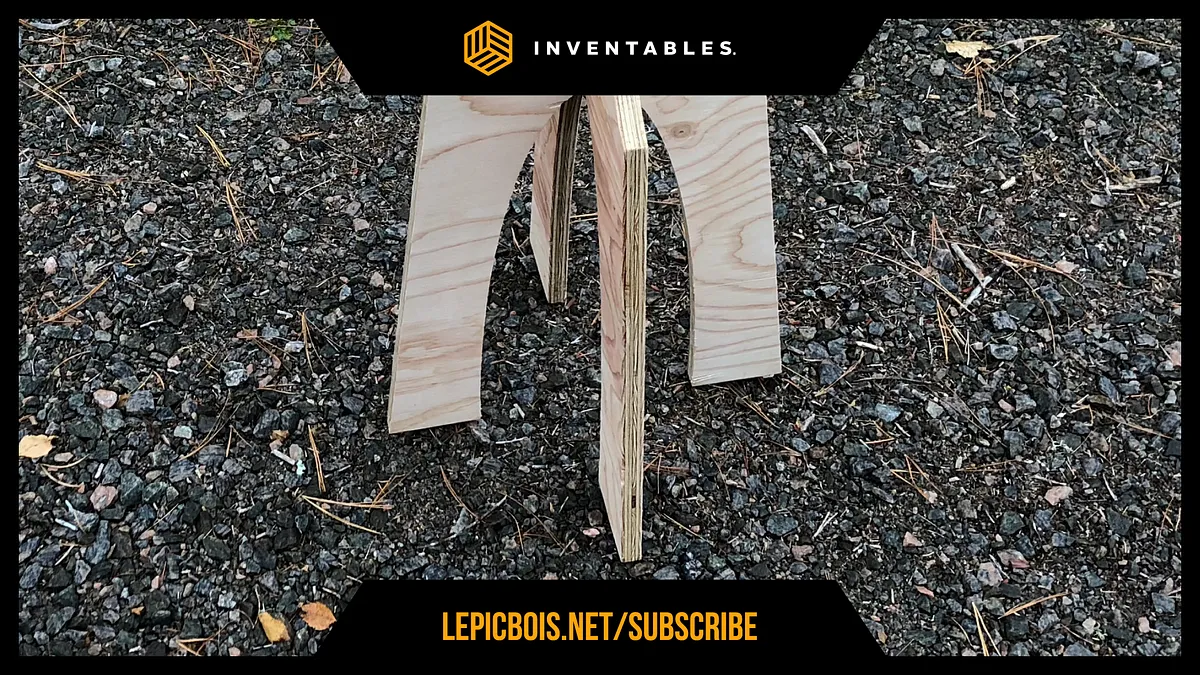

10. Assembling

  • It's finally time to put the pieces together!

Estimated time: 1 minutes

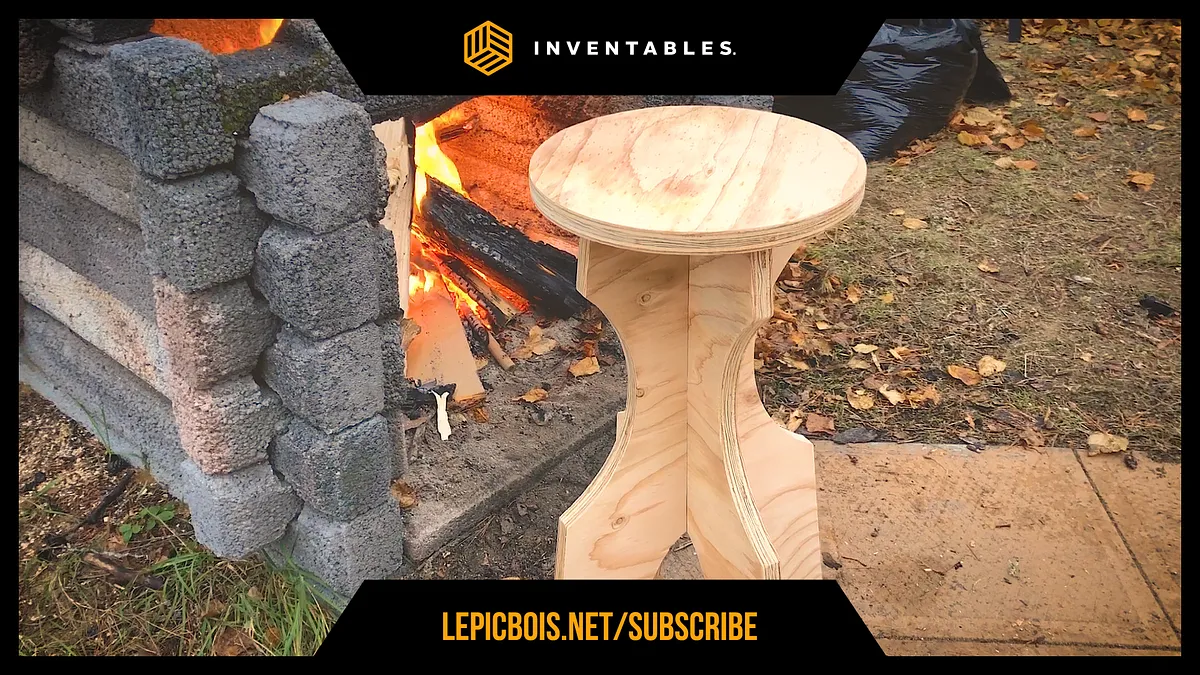

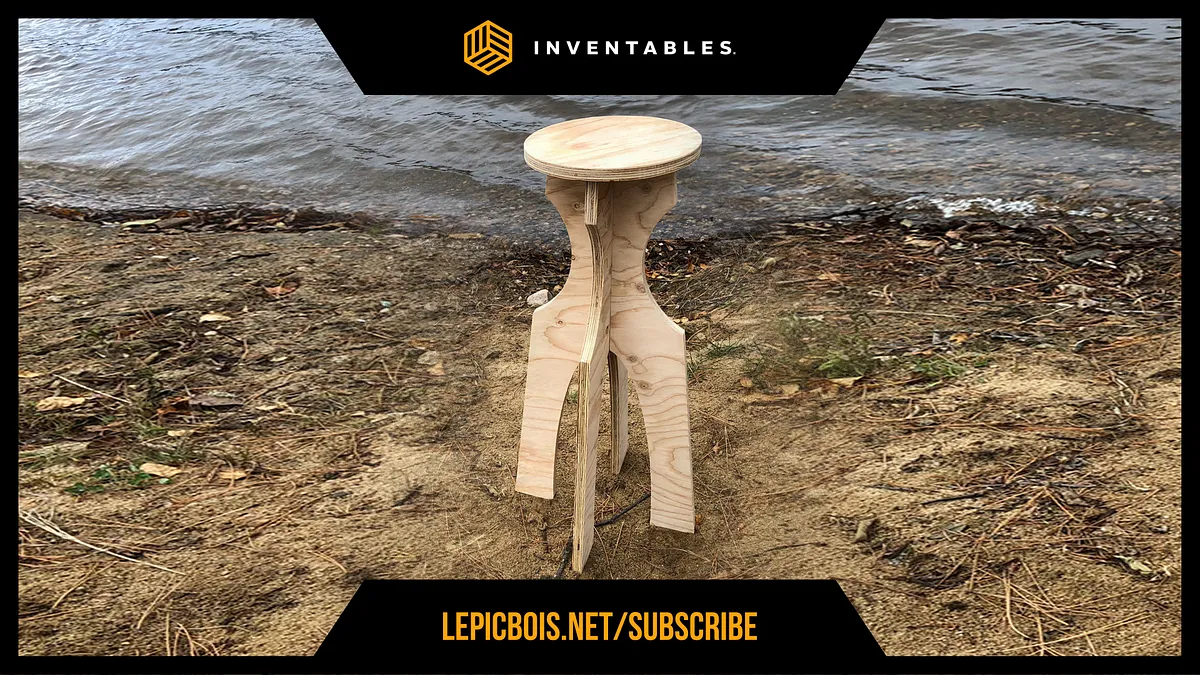

11. You're done!

  • Enjoy your New Knock-Down Stool and don't forget to watch the Video! ;)
