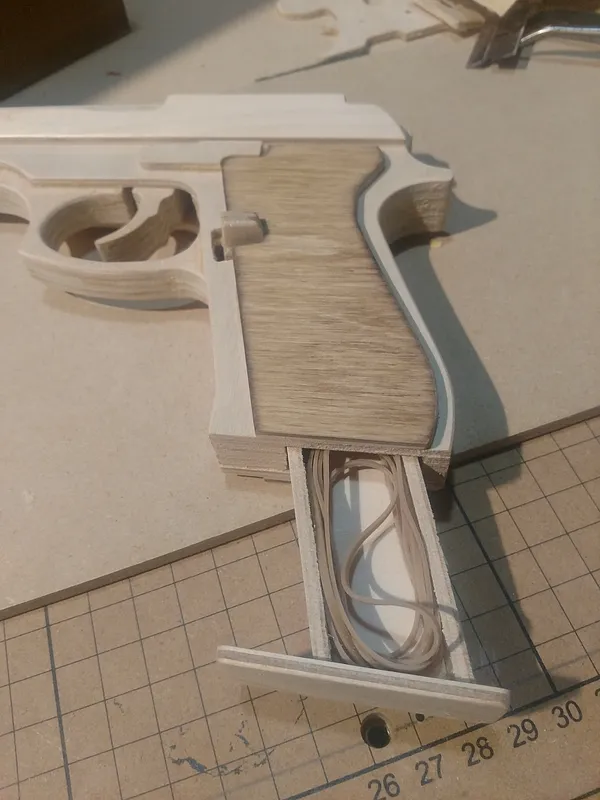

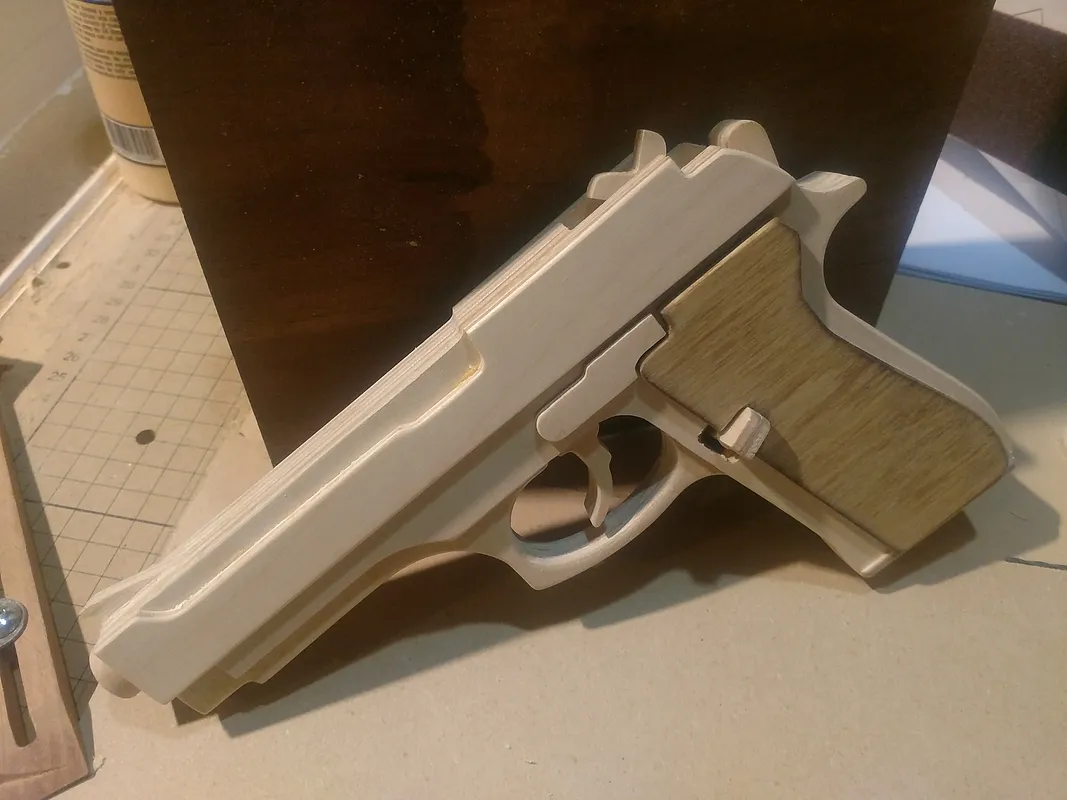

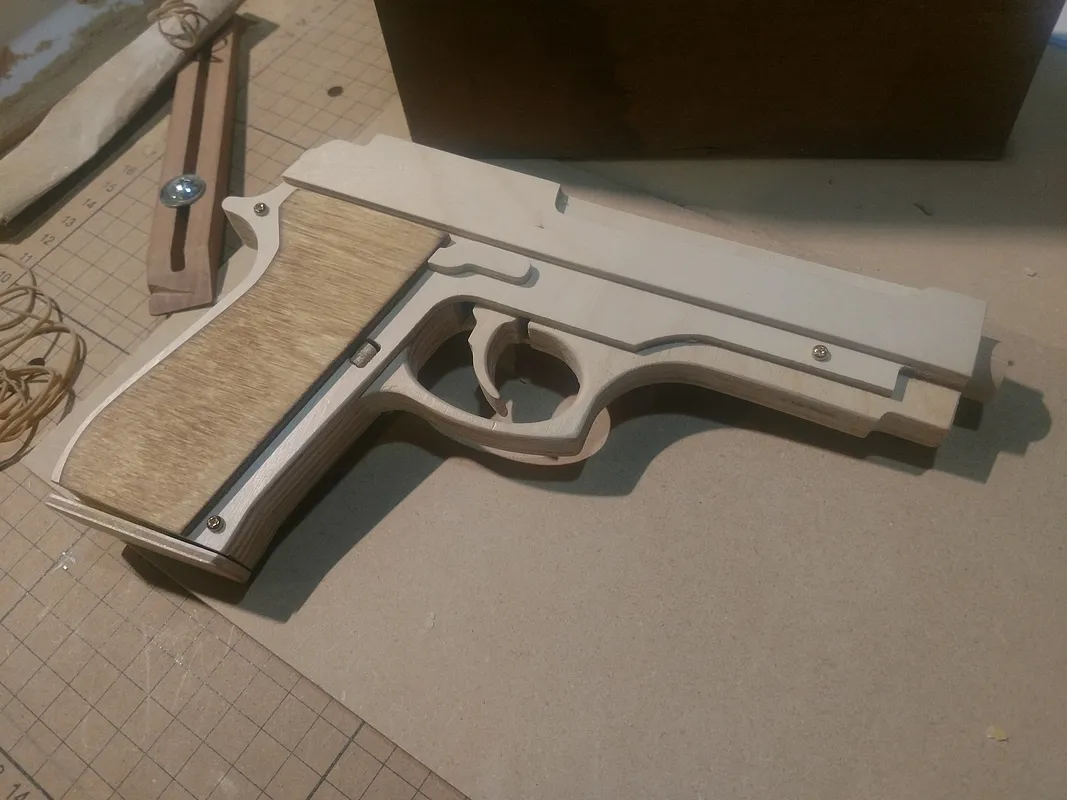

M9 Rubber band gun. Design is by RBguns.com and is offered as a free pdf download to be cut on a scroll saw. The nested parts were all redrawn in Corel then saved in Inkscape to svg. All the parts will fit on one sheet of plywood 1\8'' (0.125) 12in. x 24in. 0.125 Dowel rod. #16 rubber bands.
77Favorites
542Views
7Comments
282Copies
Specs
Material
Birch Plywood
Comments
Hey Nick,
Nice job! My son is asking for similar gun. Have you SVG files to share?
I want to make toolpath with VCarve...
Elliot, all of the layers of one side and the middle sections are glued together. One opposite side and a grip layer are glued together and then those two layers are held on by a couple of small brass screws. I use Cp10 glue but regular glue is best to fit the parts precise. Hope that makes sense.
Install the moving parts in the pockets made by glueing up the layers together. Then they are held in place when you screw on the other side piece that has the other grip glued to it.
Comments
Hey Nick, Nice job! My son is asking for similar gun. Have you SVG files to share? I want to make toolpath with VCarve...
Tomas Bagdonas · April 24, 2018
Open the project. Make a copy in Easel and cut it from there
Nick Arnold · April 24, 2018
Hiya I love this gun! but I am kinda confused, how do you put it all together? and do you have some kind of instruction manual?
Elliot Garven · October 22, 2019
Elliot, all of the layers of one side and the middle sections are glued together. One opposite side and a grip layer are glued together and then those two layers are held on by a couple of small brass screws. I use Cp10 glue but regular glue is best to fit the parts precise. Hope that makes sense.
Nick Arnold · October 22, 2019
Install the moving parts in the pockets made by glueing up the layers together. Then they are held in place when you screw on the other side piece that has the other grip glued to it.
Nick Arnold · October 22, 2019
Pleas can you post a photo of the internals so one can see how it fits together, not sure how the trigger mechanism works. `Thanks
Claire Williams · June 26, 2021
youtu.be/-z--omK1hHo
Nick Arnold · June 27, 2021
