Bit Box 1/8" PVC
Instructions
Open Easel
Open Easel
Set you material up -Length/Width/Thickess -Set what bit you will be cutting with -Pick your material of choice
Estimated time: 5 minutes
Go to Easel Apps
Go to Easel Apps
Open the Box Generator App
Set your dimensions of the size of hold you will want
I chose 4"x4"x1"
Set you material thicknesss
Adjust the size of the tabs to your preference
Estimated time: 5 minutes
Go back to Main Easel Screen
Adjust the newly generated box to fit your material size
Adjust the interactive tabs so they are placed in easy to remove and sand spots
Estimated time: 5 minutes
Place circles for bits to fit in
Draw 1 circle set to a fraction larger in size then your bit
For example I made my tool holder for 1/8" bits or (0.125") I made the circles 0.130" to allow for wiggle room and the bits to fit well.
Copy and repeat your circle to as many positions on the one top board of your box
Estimated time: 5 minutes
Time To Carve
Ensure your material is clamped securely
Cut out your new bit holder box
Estimated time: 10 minutes
Assembly
Once cut out
Remove the parts from the material skeleton.
Sand of the tabs, do any fine sanding to clean all edges up
I used crazy glue to assemble the box.
Start with the base and glue the 4 x 1" high sides around it
Finish with gluing the top down

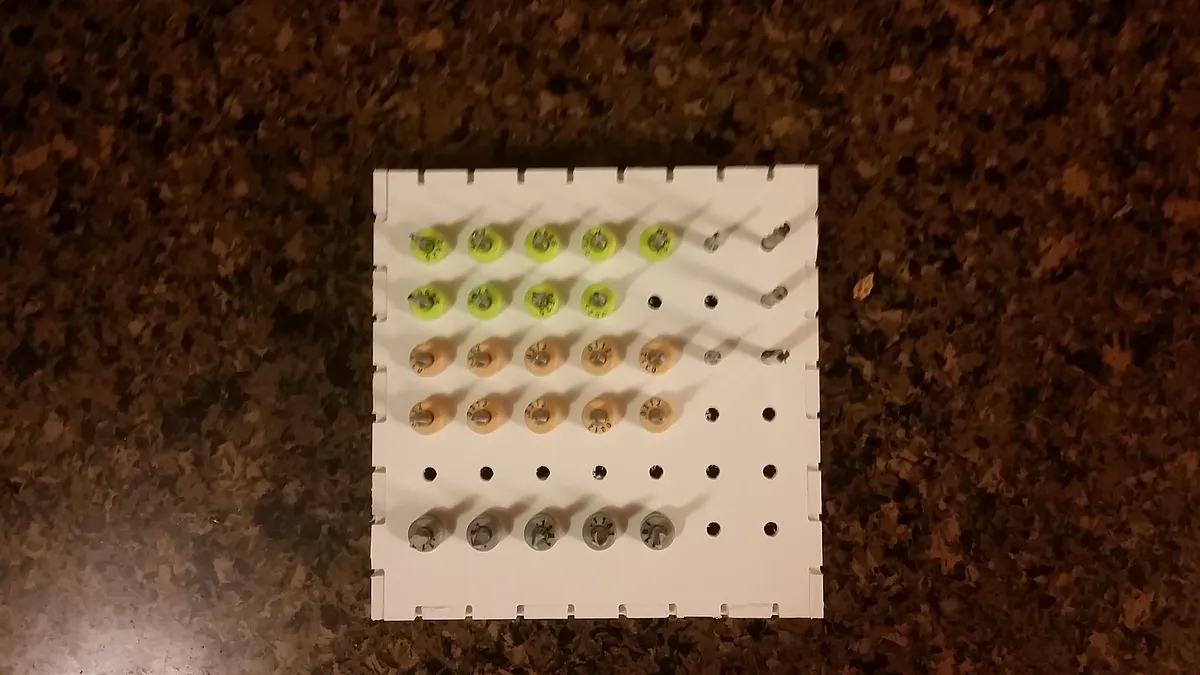

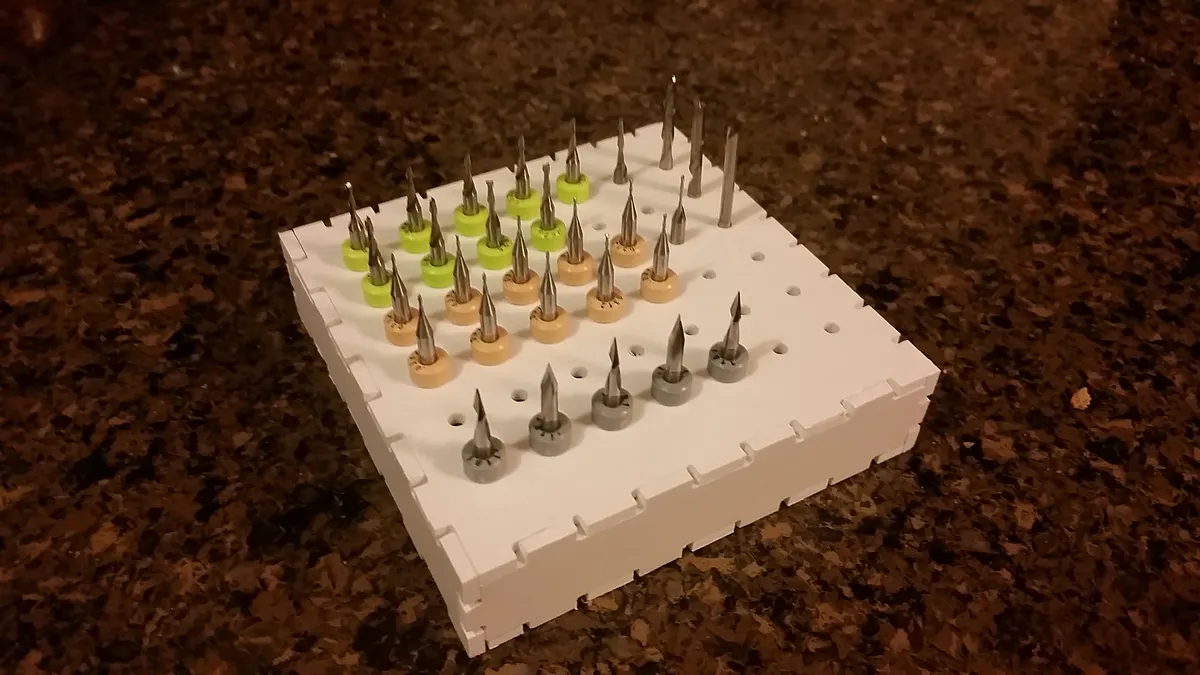

Finally Insert all of your bits for easy access storage
Estimated time: 10 minutes
