X-Carve Pro Left and Front Plate

13 likes
183 opens
85 copies
4 comments
Rick Ratayczak

Project by

Rick Ratayczak

Published On

August 06, 2022

General Information

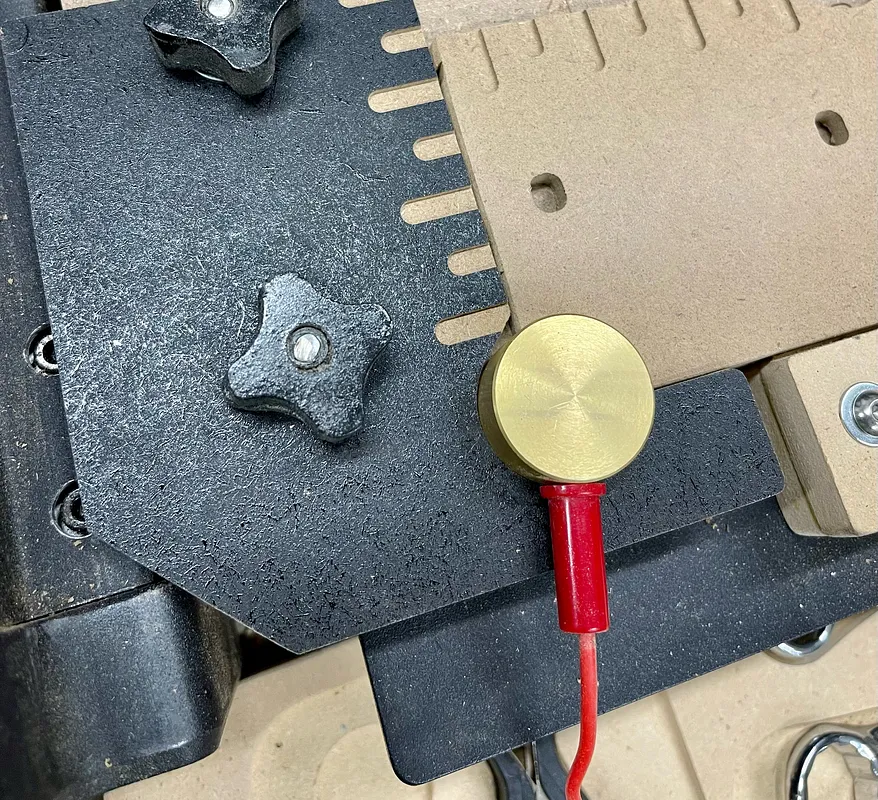

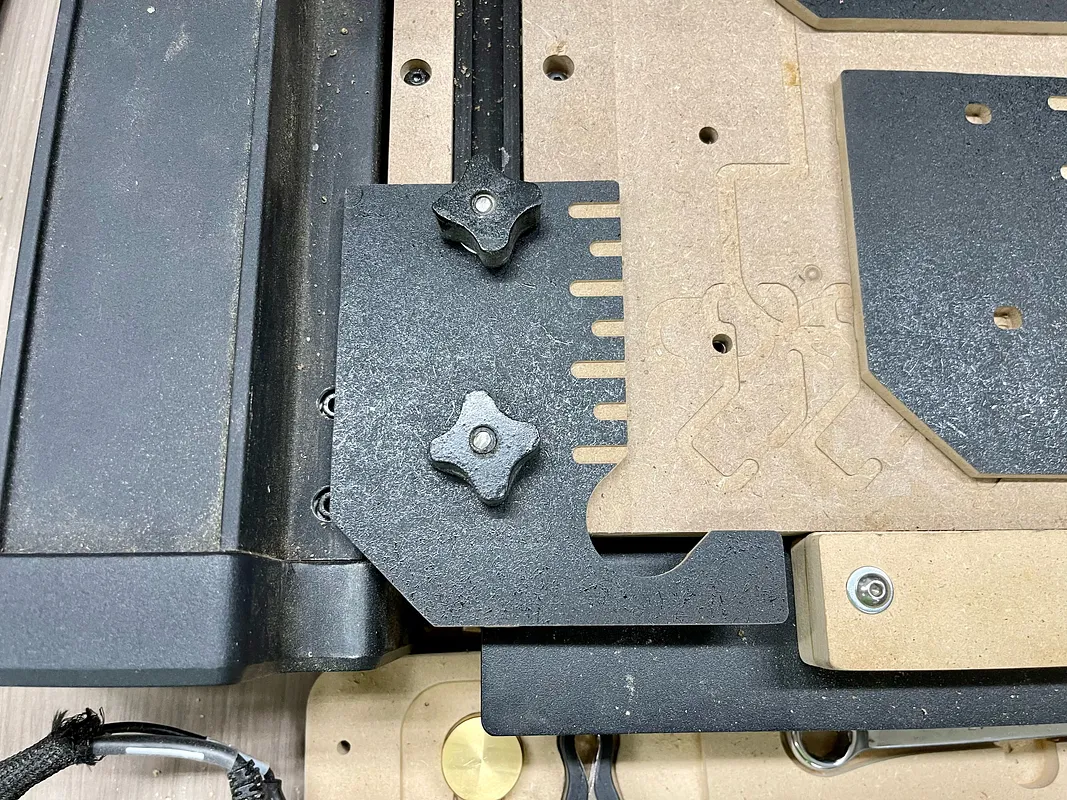

An alignment plate for the left side on the T-Track to square up your board to the zero position when homed. Designed for 1/4 inch MDF.

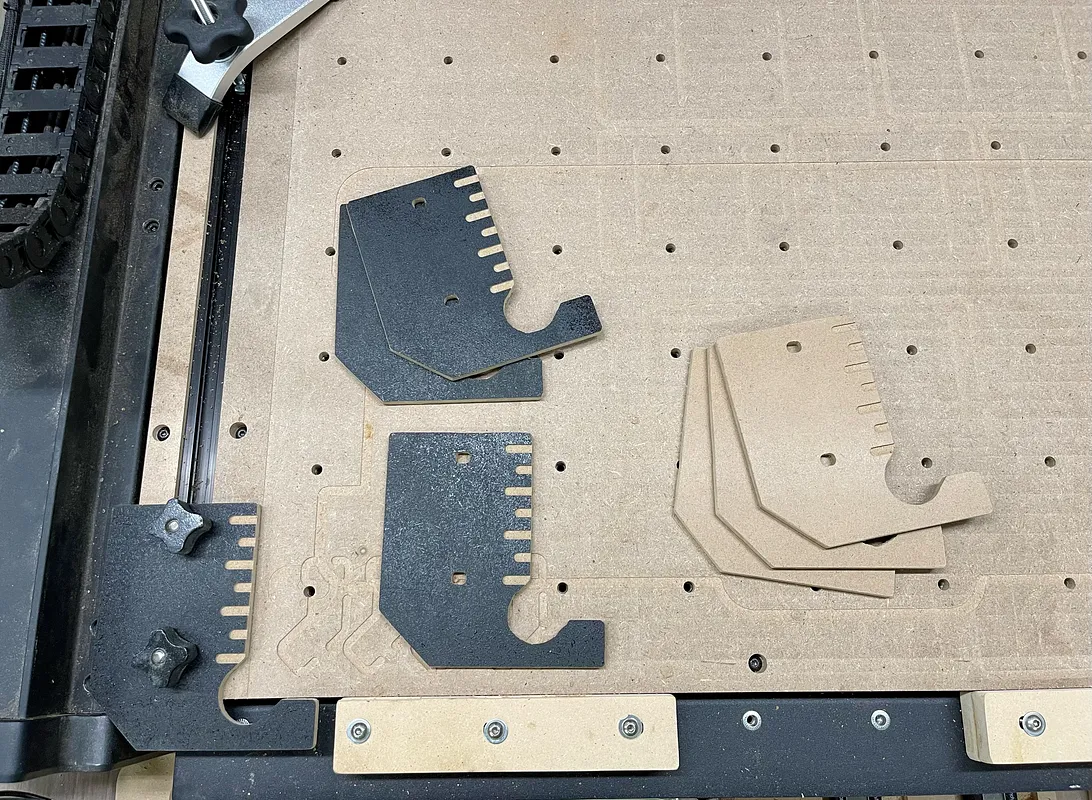

A front alignment plate is included too. You have to double up the front plates by gluing them together to make them 1 inch tall. Designed for 1/2 inch MDF.

Like this project Easel logo Open in Easel®
Brett nosakowski

It says designed for 1/4 and 1/2, so two bottom alignment trays in 1/4 and the one etched top plate in 1/2?

Brett nosakowski · March 02, 2023

Rick Ratayczak

It’s two 1/4 inch thick pieces glued after cutting

Rick Ratayczak · March 03, 2023

Shane Clark

This is a great idea but... The holes for the T-track are too far to the right. It's a simple fix but your file, as is, will result in unusable parts.

Shane Clark · May 07, 2023

David A Cunningham

Do you have the base CAD files? I would like to print these in PLA.

David A Cunningham · May 06, 2024
