X-Carve Replica Whiskey Holder

X-Carve Replica Whiskey Holder - image 3

Published Jun 29, 2018 · Carved

Description

This my simple version of my design for a liquor/ whiskey bottle & glass set holder. This was my first Easel project and designing it was a blast. I wanted to capture the shape of the X-Carve with side board to hold glass, the bottle as the spindle, and the base as MDF waste board. All under 60 min.

28 Favorites

152 Views

0 Comments

66 Copies

Specs

Machine: x-carve 2016
Material: MDF, Soft Maple

License

Attribution-NonCommercial-NoDerivs 3.0 Unported (CC BY-NC-ND 3.0)

Instructions

Step-1 Carve Side Panels (Mini CNC Maker Slides)

You will need to run this program twice (both sides of Mini CNC) & place aside for later assembly

Estimated time: 12 minutes

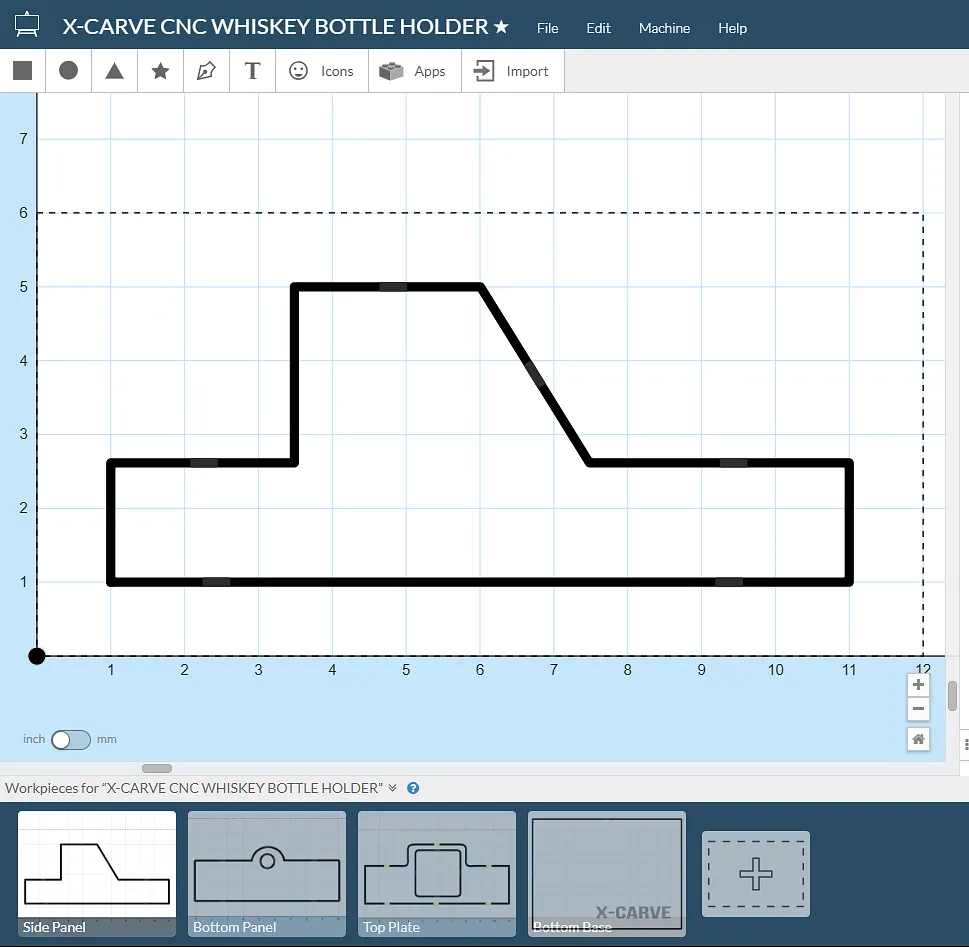

X-Carve Replica Whiskey Holder — Step-1 Carve Side Panels (Mini CNC Maker Slides)

Step-2 Carve Bottom Panel (Gantry Bottom)

Depending on what bottle you plan to use this will be per your modification. I designed mine to fit a 750 ml square Jack Daniels bottle.

Estimated time: 7 minutes

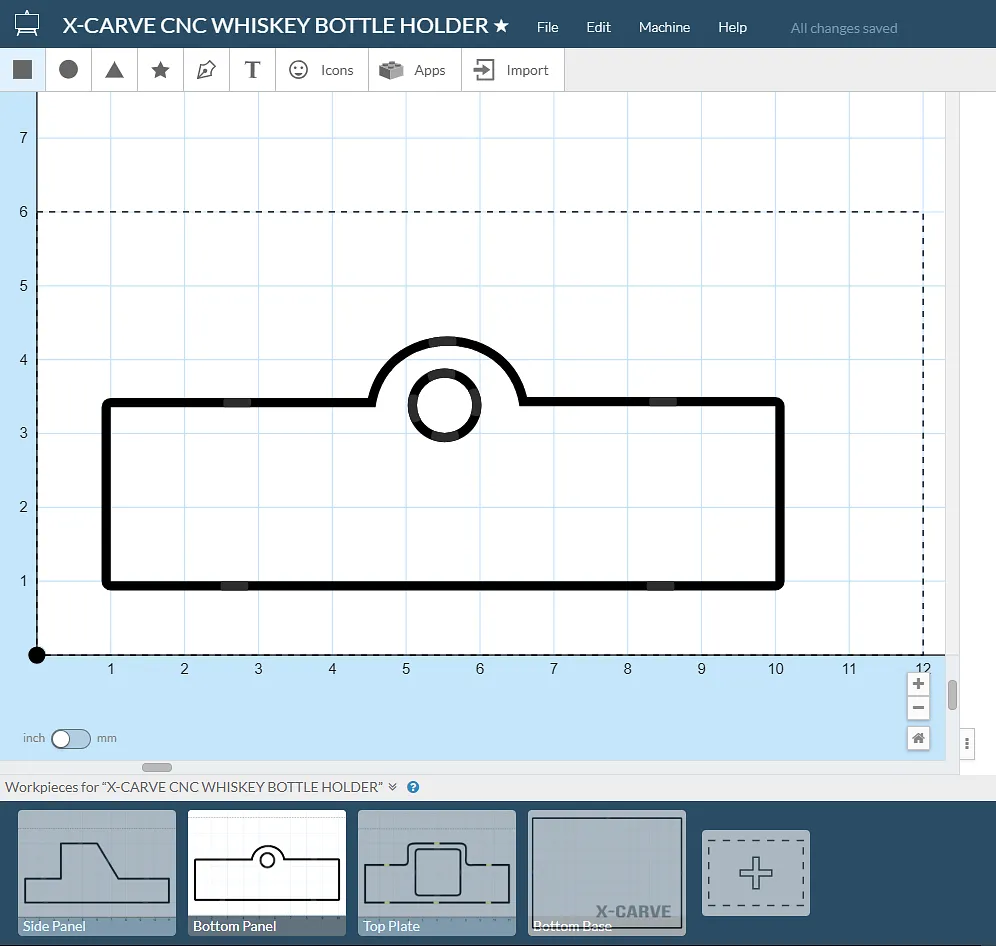

X-Carve Replica Whiskey Holder — Step-2 Carve Bottom Panel (Gantry Bottom)

Step-3 Carve Top Panel (Gantry Top)

Again here depending on what bottle you plan to use here is your place for modifying the opening to hold the bottle. Mine is square

Estimated time: 10 minutes

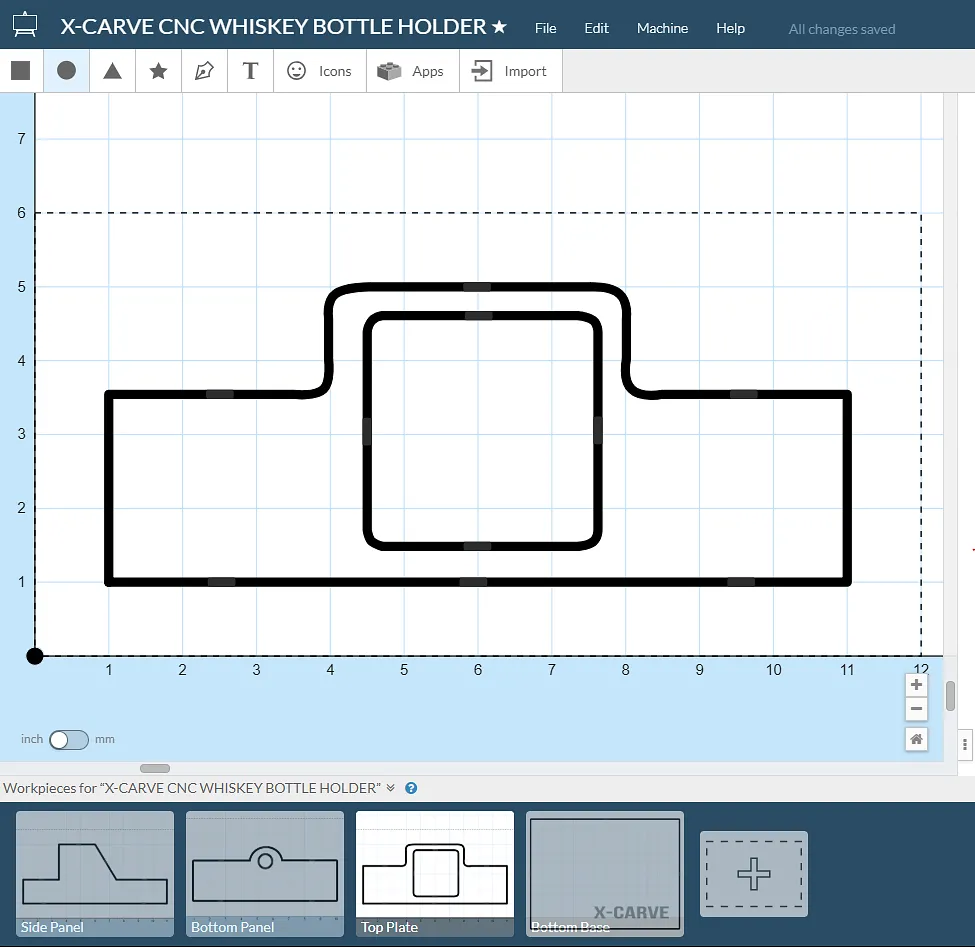

X-Carve Replica Whiskey Holder — Step-3 Carve Top Panel (Gantry Top)

Step-4 Carve Bottom Base (Mini CNC Waste + Side Board)

This is where you can really make it yours. I engraved just the X-Carve name where the spindle (bottle) would carve into the waste board.

Estimated time: 19 minutes

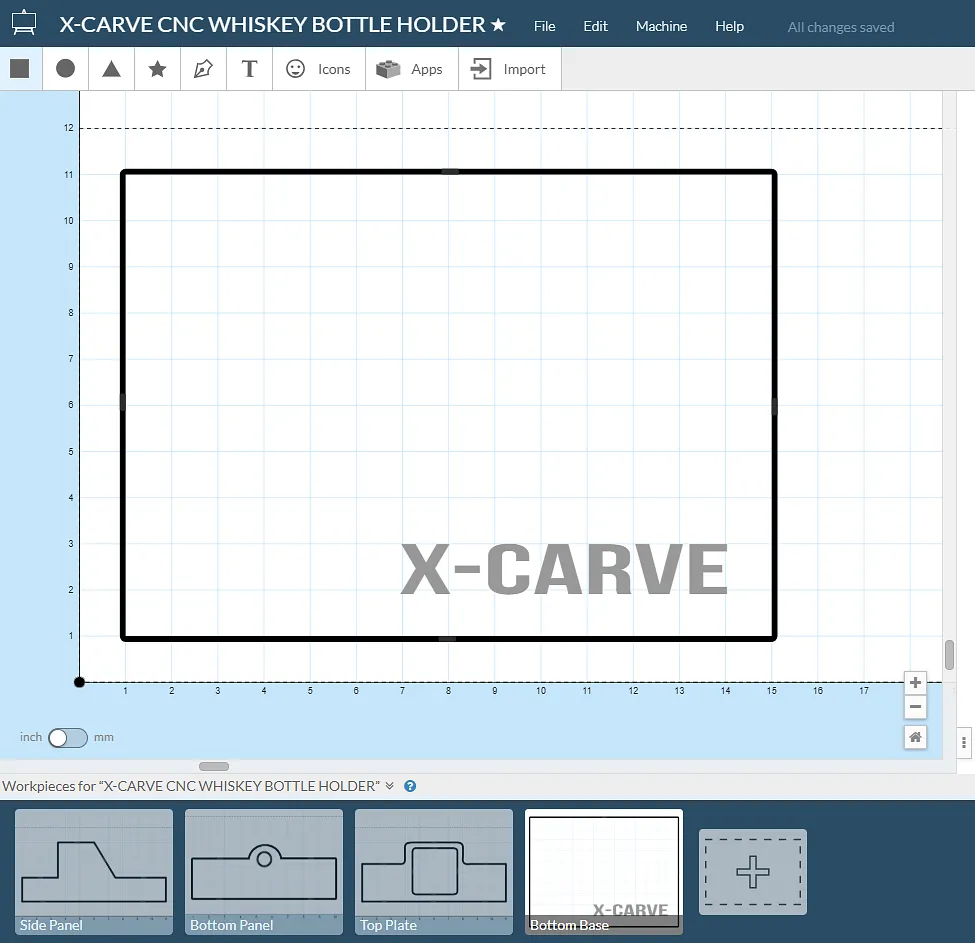

X-Carve Replica Whiskey Holder — Step-4 Carve Bottom Base (Mini CNC Waste + Side Board)

Step-5 Assembly

I'm going to say this will take about 11 minutes so total time will be at 59min. Sand and smooth all parts paint as desired I would paint my side rails black to match X-Carve and clear coat MDF to prevent any water damage. Place all parts together with glue/screws.

Estimated time: 11 minutes

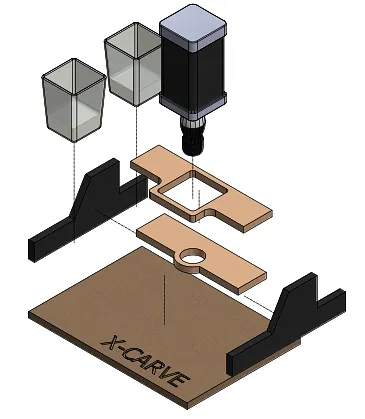

X-Carve Replica Whiskey Holder — Step-5 Assembly

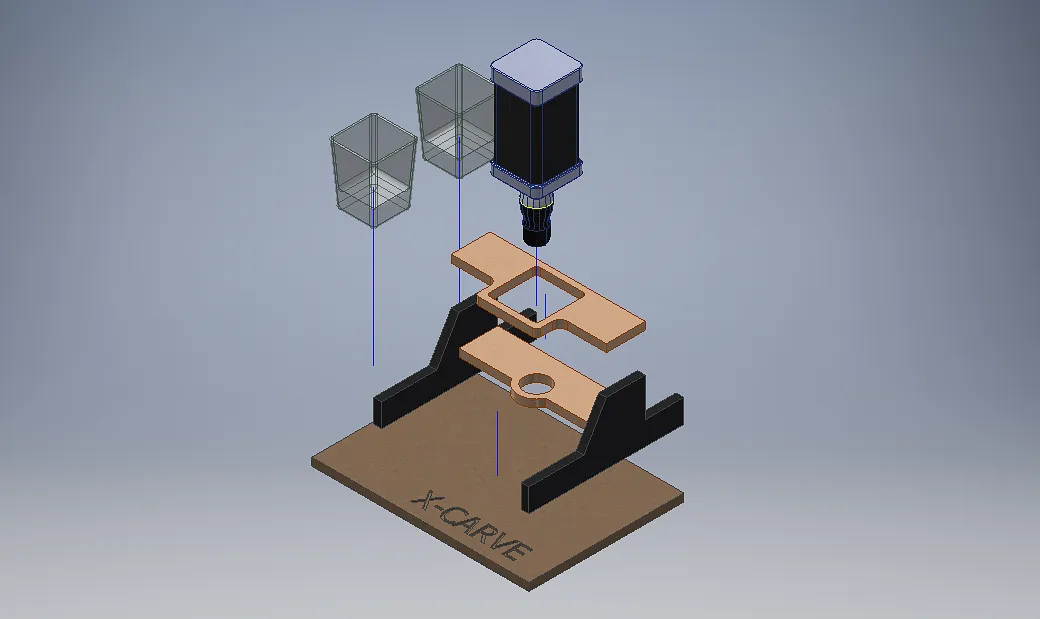

X-Carve Replica Whiskey Holder — Step-5 Assembly (image 2)

Step-6 Enjoy!

Most important is to enjoy the in between time of carving.

AHHHH last 1 min sip to complete this build for Inventables 60 min power hour challenge.

Please Drink Responsibly :)

Estimated time: 1 minutes

X-Carve Replica Whiskey Holder — Step-6 Enjoy!
