Hill_JTechphotonic Laser Mount

9 likes
23 opens
3 copies
4 comments
Jeremy Hill

Project by

Jeremy Hill

General Information

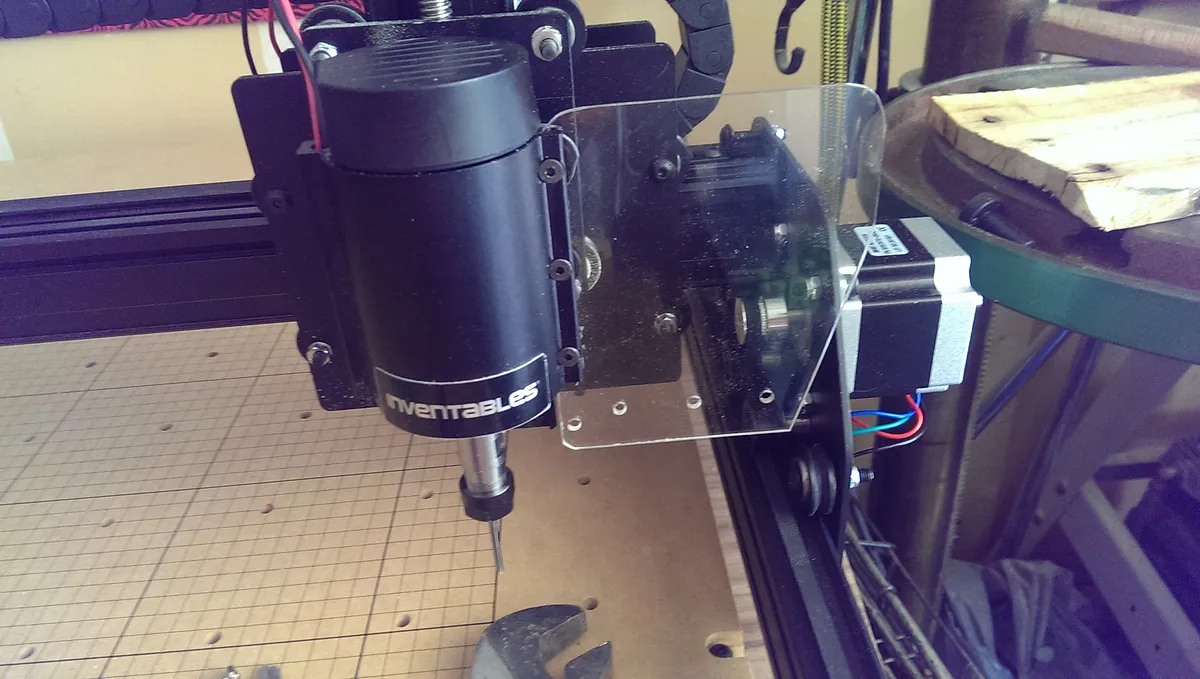

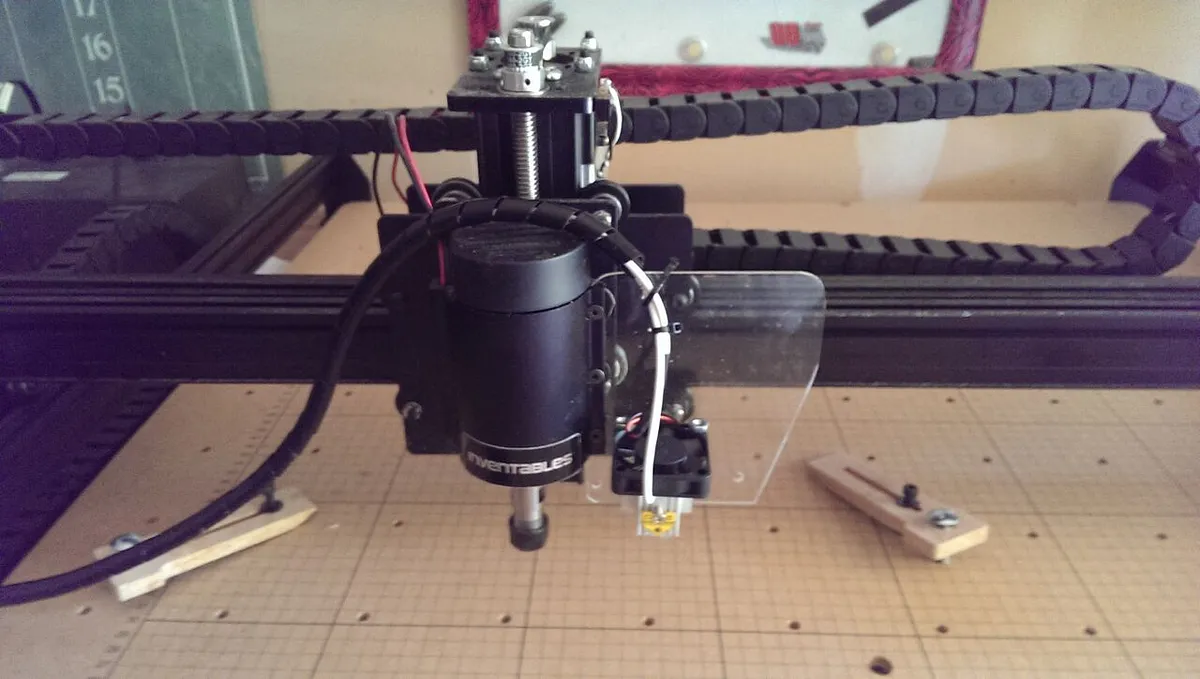

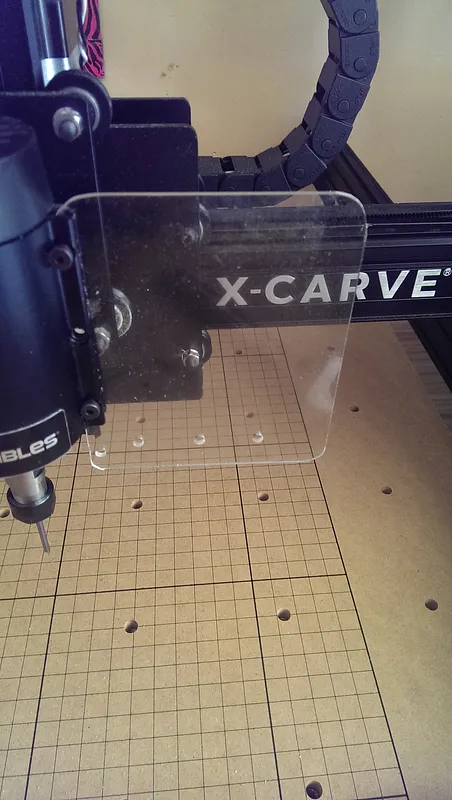

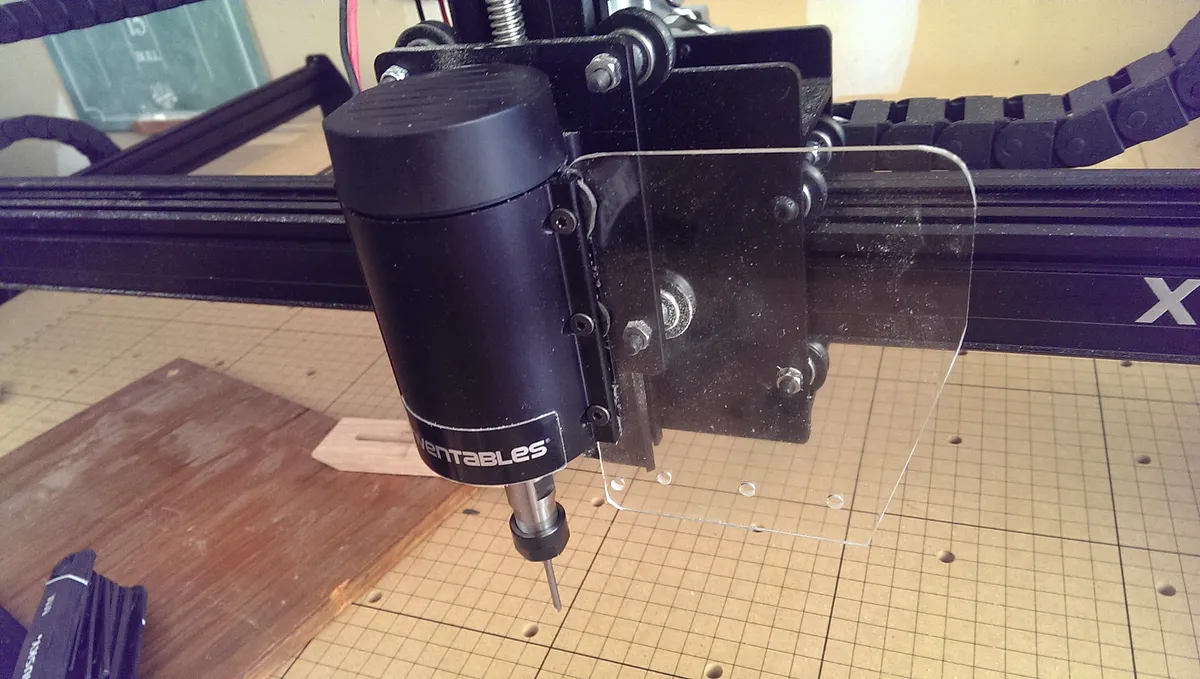

X-Carve holder for the JTech Laser. Trimming occurred to make it fit better and more x-axis available. -0.093" thick acrylic.
-4.5" X 4" overall.
-4mm holes.
-Spindle holes-30mm apart, 4.5mm from the left edge.
-Bottom holes-24.6mm apart, 14.8mm from bottom.

Like this project Easel logo Open in Easel®
Michael Zawicki

where are the pictures of finished project with laser mounted?

Michael Zawicki

Jeremy Hill

Thanks for the feedback. I am not sure why I did not post the final photo. It is uploaded now.

Jeremy Hill

Jeremy Hill

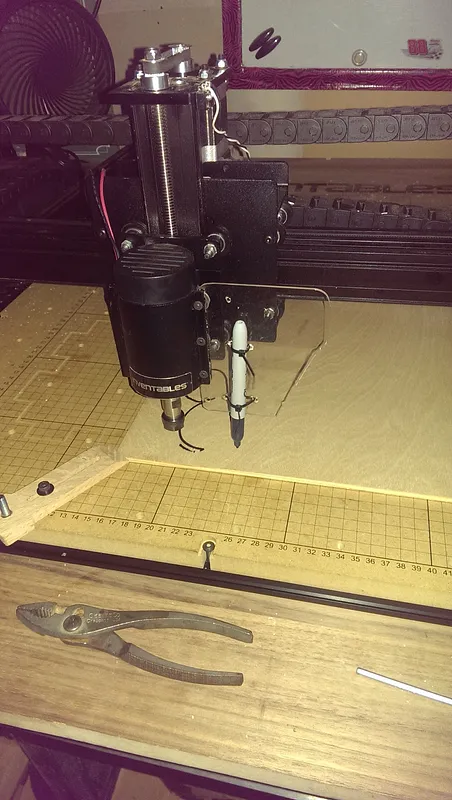

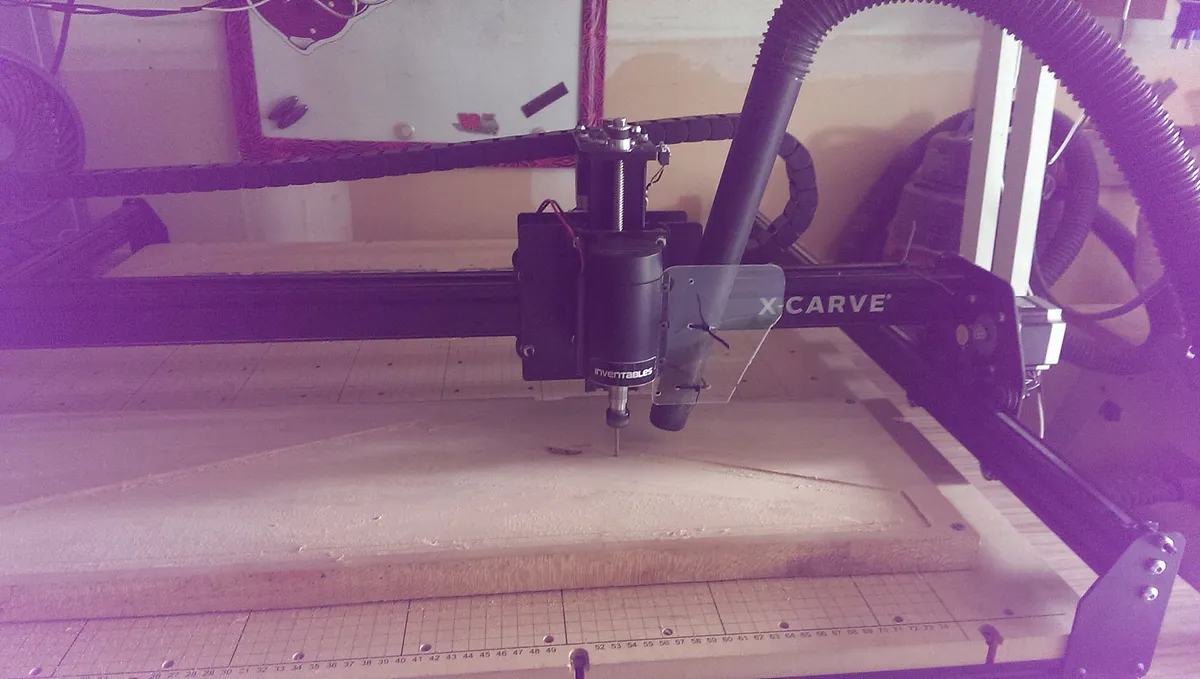

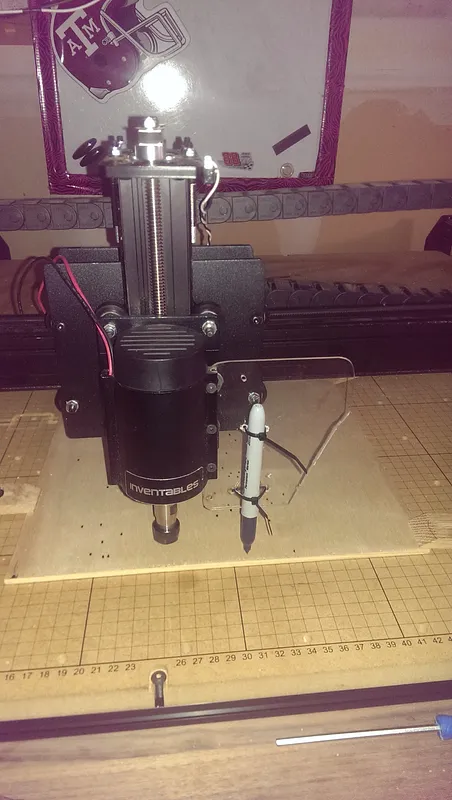

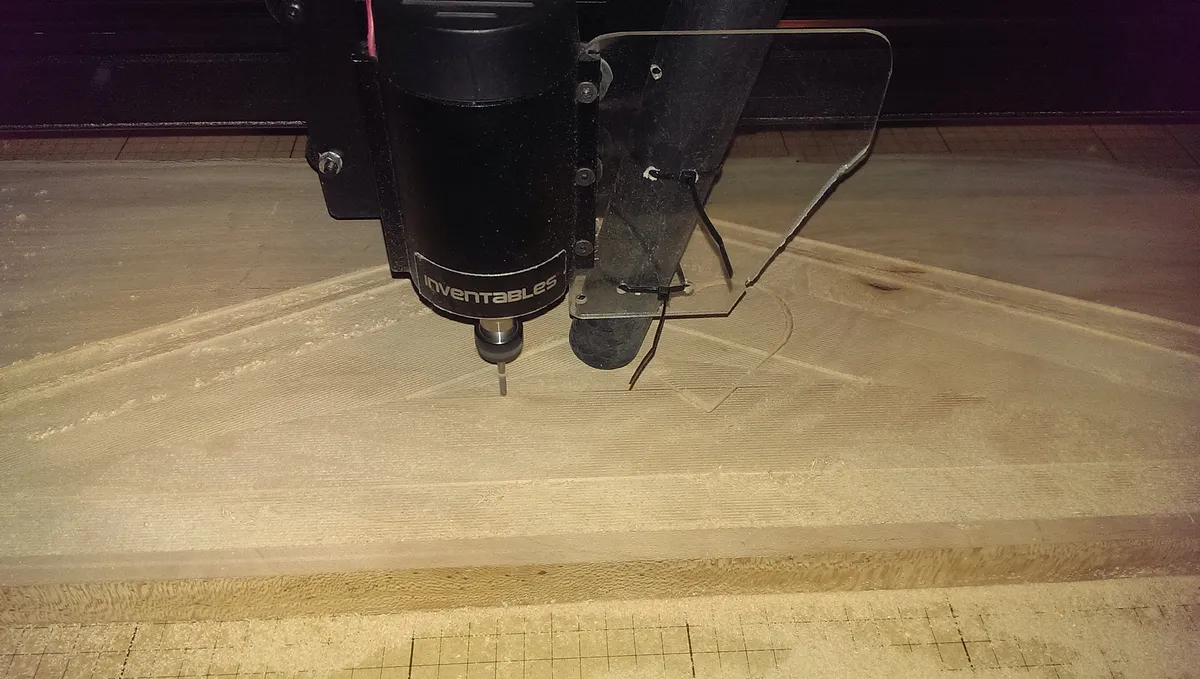

Since the start, I have sanded down he right side a bit more to give me room/movement. I also added a few more holes with a drill bit to install other things. I have now used this setup for a laser, pen, and a vacuum/shop vac hose.
