GDL 5xR mounting tray under Appareo ESG

Jonathan Robbins

Jonathan Robbins

Published: May 12, 2020

Like Preview Project

description

I designed a tray to allow a Garmin GDL 5xR to be mounted under/over the Appareo ESP transponder tray in small aircraft installations.

0
8
0
1
INSTRUCTIONS

1. Materials and Bends

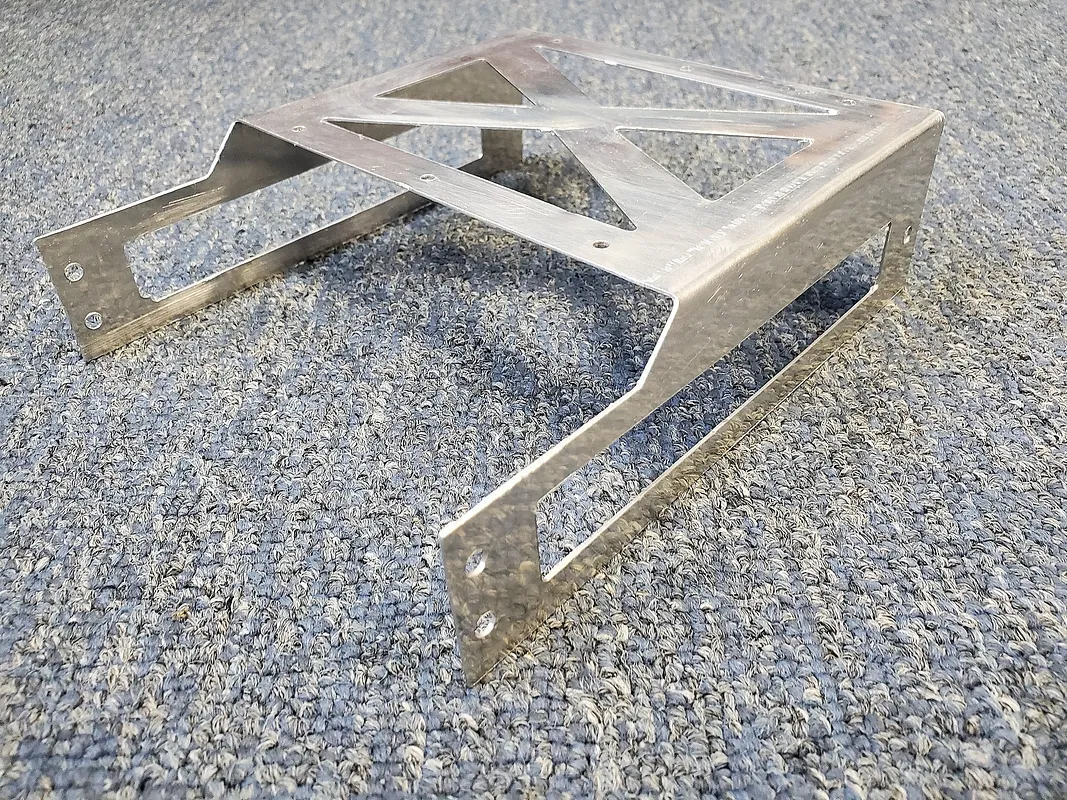

Uses a 13 x 8 in. piece of 0.032 2024-T3 aluminum. Bend like shown in photo.

2. Mounting

The sides mount to the same six mounting locations used by the Appareo Stratus ESG transponder tray and the six holes on the flat are matched to the Garmin GDL 5xR ADS-B receiver mounting bolt hole locations.
