Description

A modern take on the classic labyrinth marble maze that you can make on a Carvey. Create multiple custom mazes in Easel with easily swappable and reversible top surfaces. The base features a rounded bottom for tilting the maze, but uses materials efficiently to keep production time down.

65 Favorites

319 Views

5 Comments

102 Copies

Specs

Material: Two-Color HDPE

License

Attribution 3.0 Unported (CC BY 3.0)

Instructions

HDPE Top

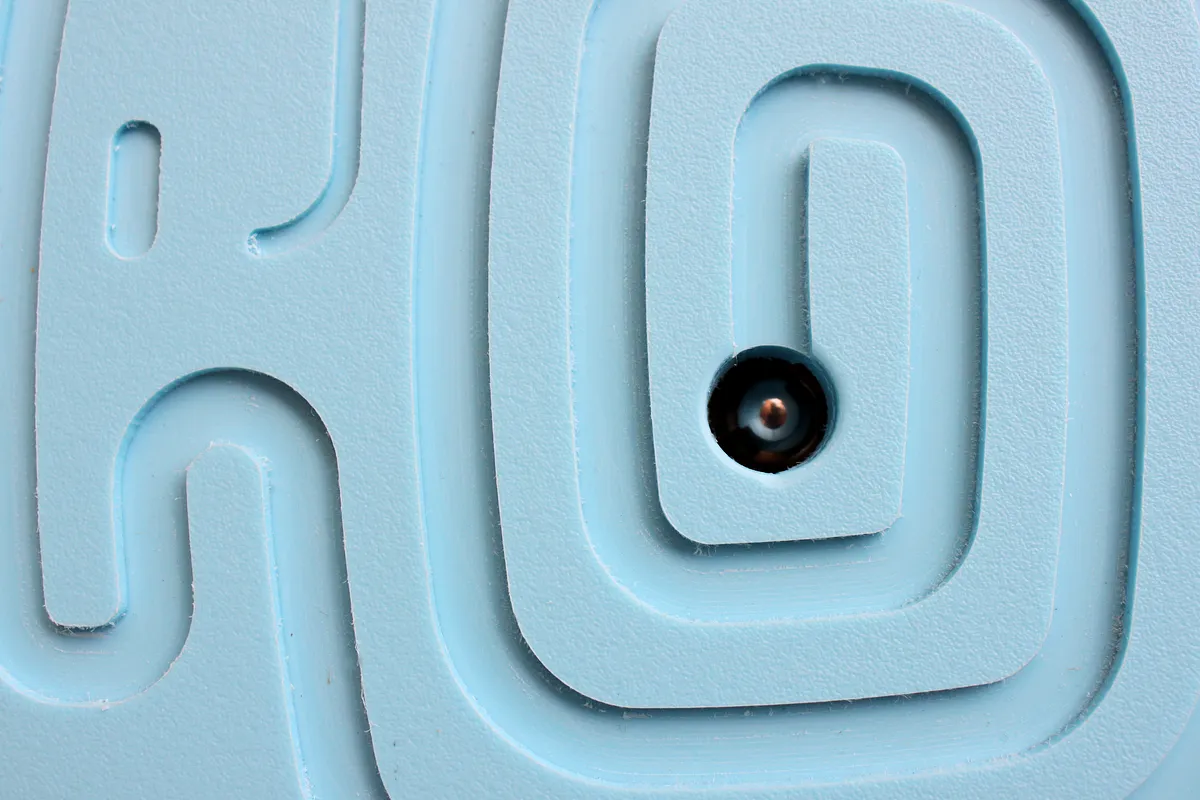

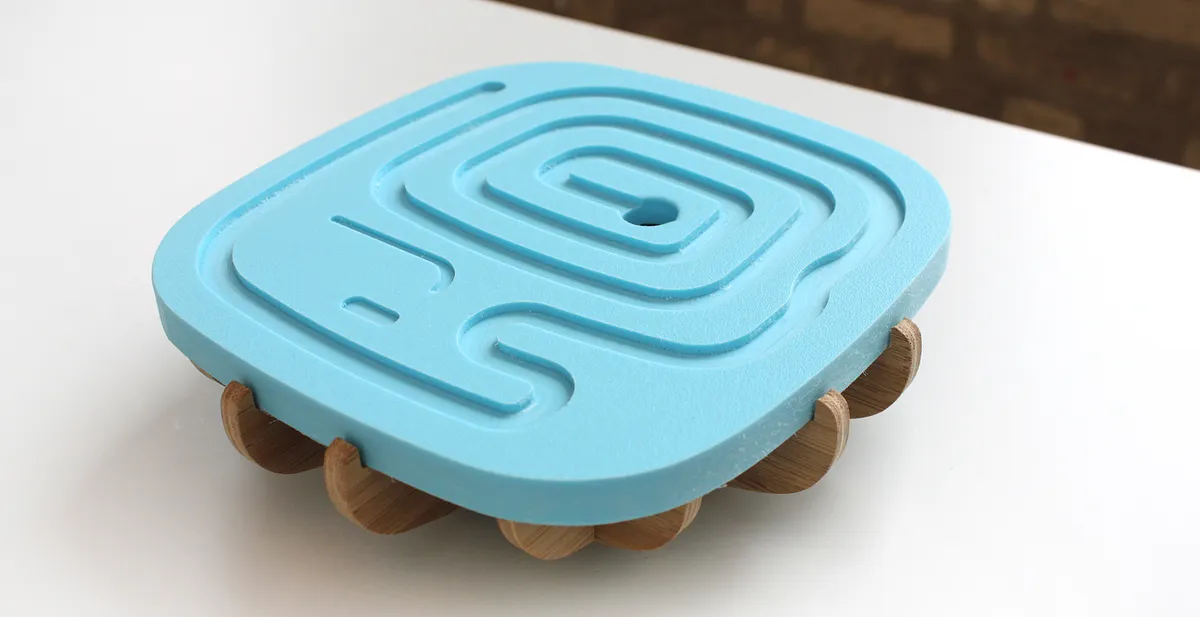

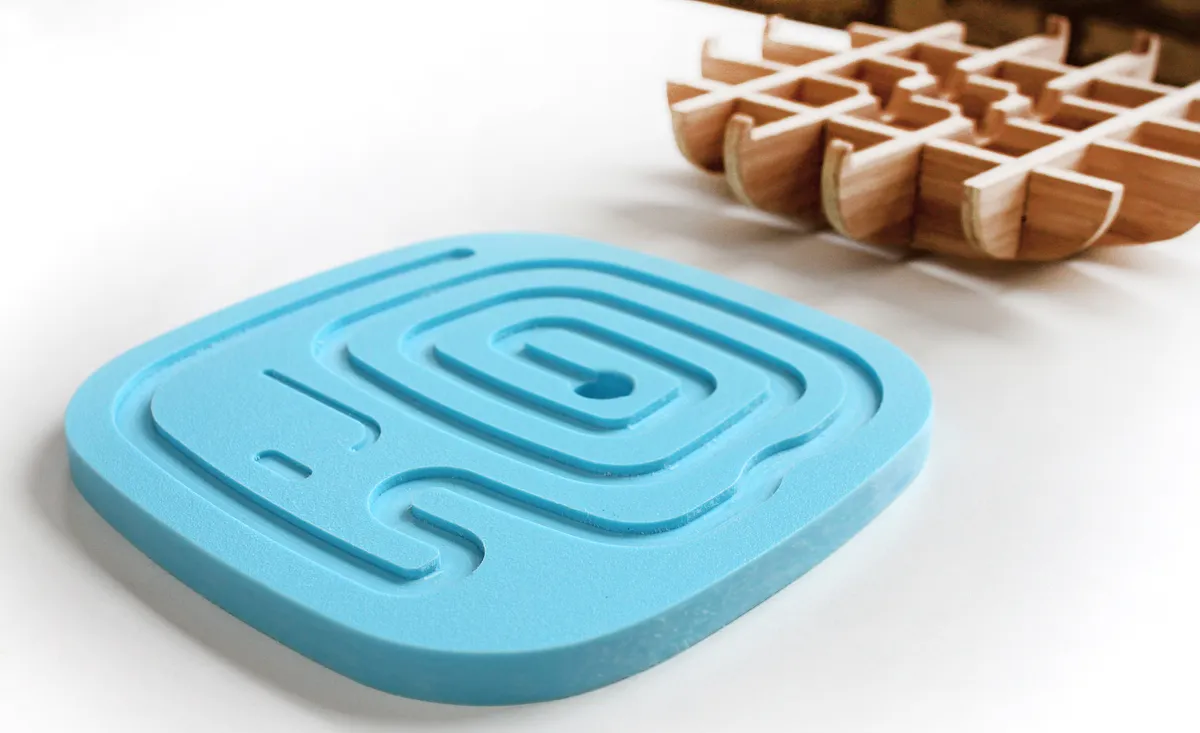

Cut the "Elephant Maze":elephant top out of 1/2" thick HDPE, any color. We used the "light blue HDPE":hdpe from the Inventables store.

[elephant]http://easel.inventables.com/projects/fLt3DnOfUamD-y9dpsr-bQ

[hdpe]https://www.inventables.com/technologies/blue-hdpe-sheet

Design your own maze

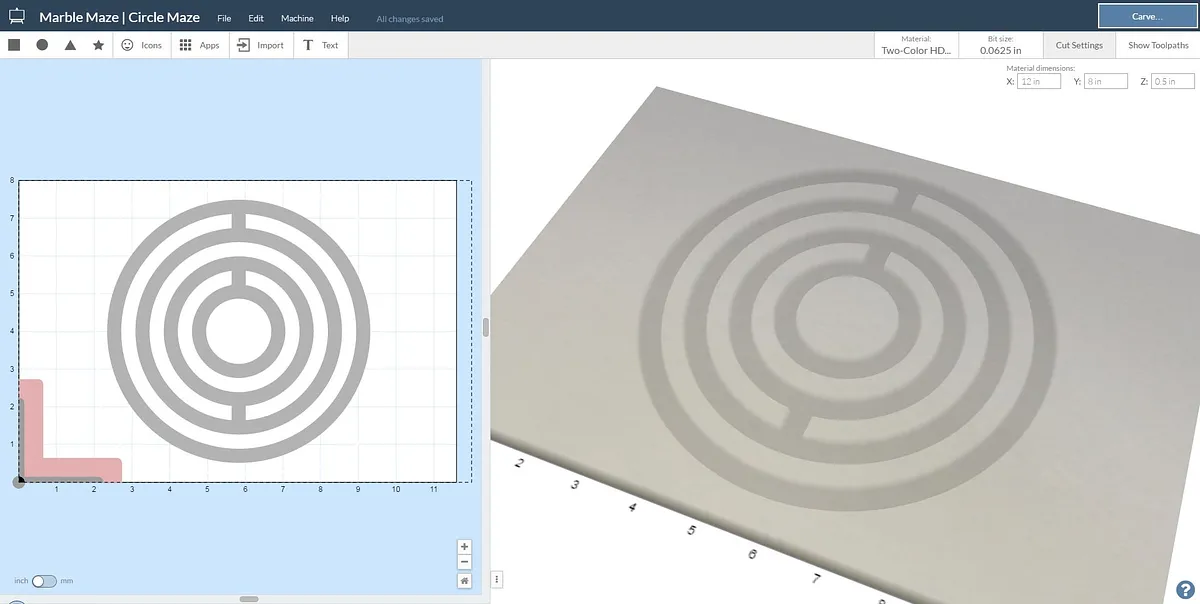

Optional: Design your own maze in Easel or use "this one":circlemaze and cut it on the reverse side of the Elephant Maze. No need to cut another through-hole for the marble - the one from the other side will work.

[circlemaze]http://easel.inventables.com/projects/qn7Opyr88nBKlKGv0UXmSA

Bamboo Ply Base Part I

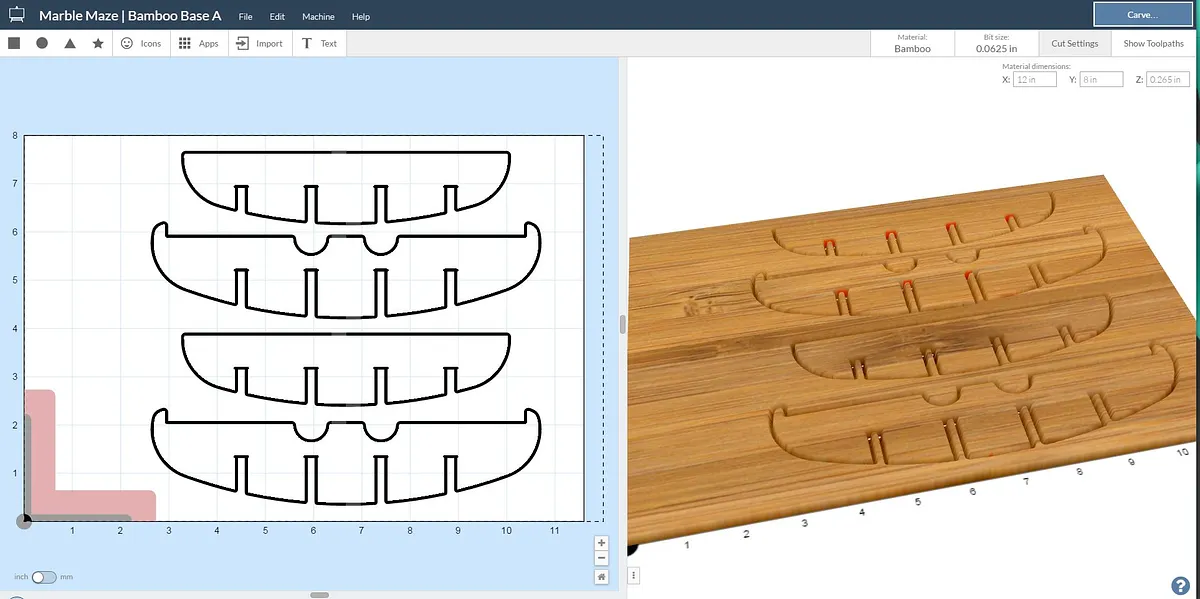

Cut the first set of "Bamboo Base":bambooA parts out of 1/4" thick Bamboo ply from the Inventables store

[bambooA]http://easel.inventables.com/projects/CkwNeANWBx0TmCg7V0qIRw

Bamboo Ply Base Part II

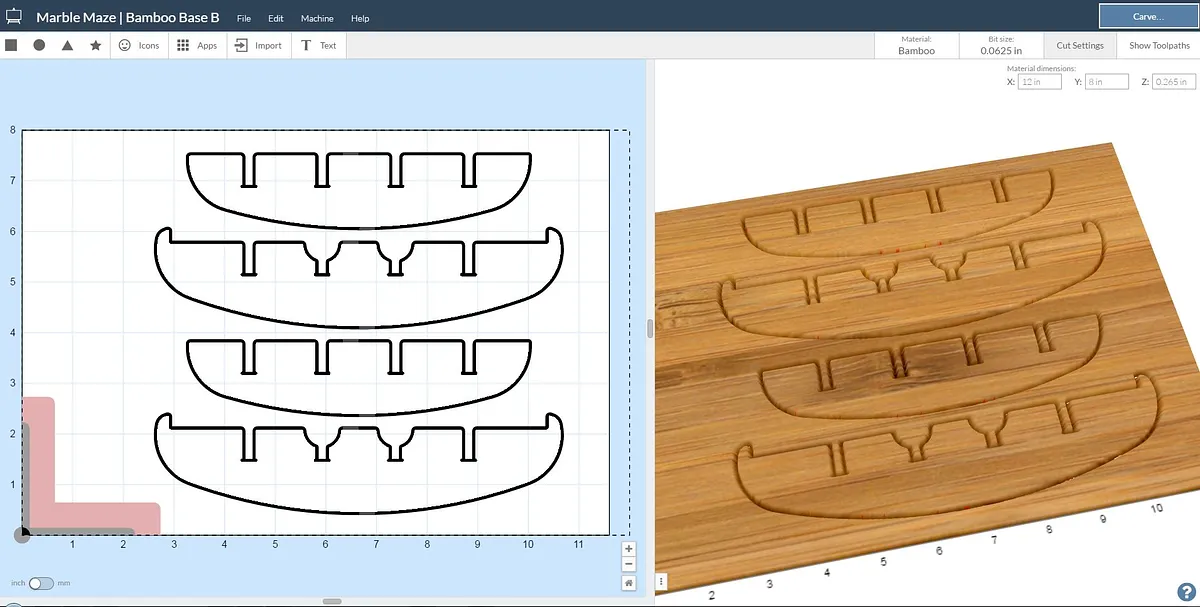

Cut the second set of "Bamboo Base":bambooB parts out of 1/4" thick Bamboo ply from the Inventables store

[bambooB]http://easel.inventables.com/projects/h-vXMI45N8FU4BzoxSGZrw

Build The base

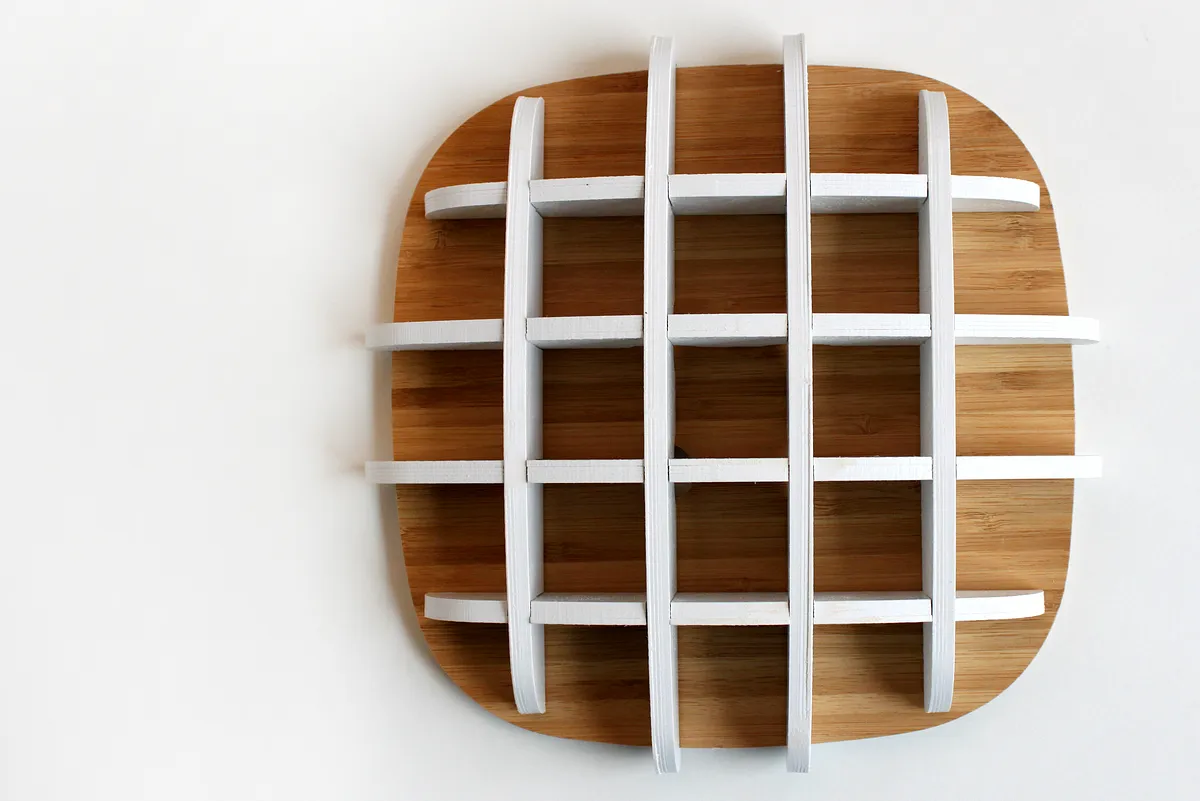

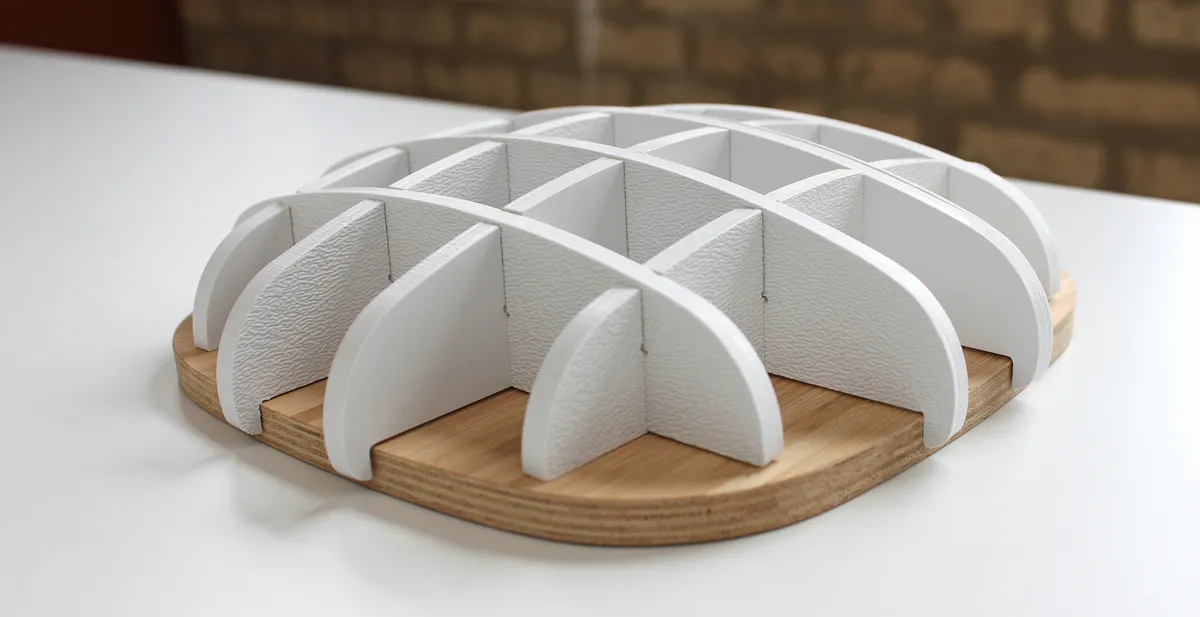

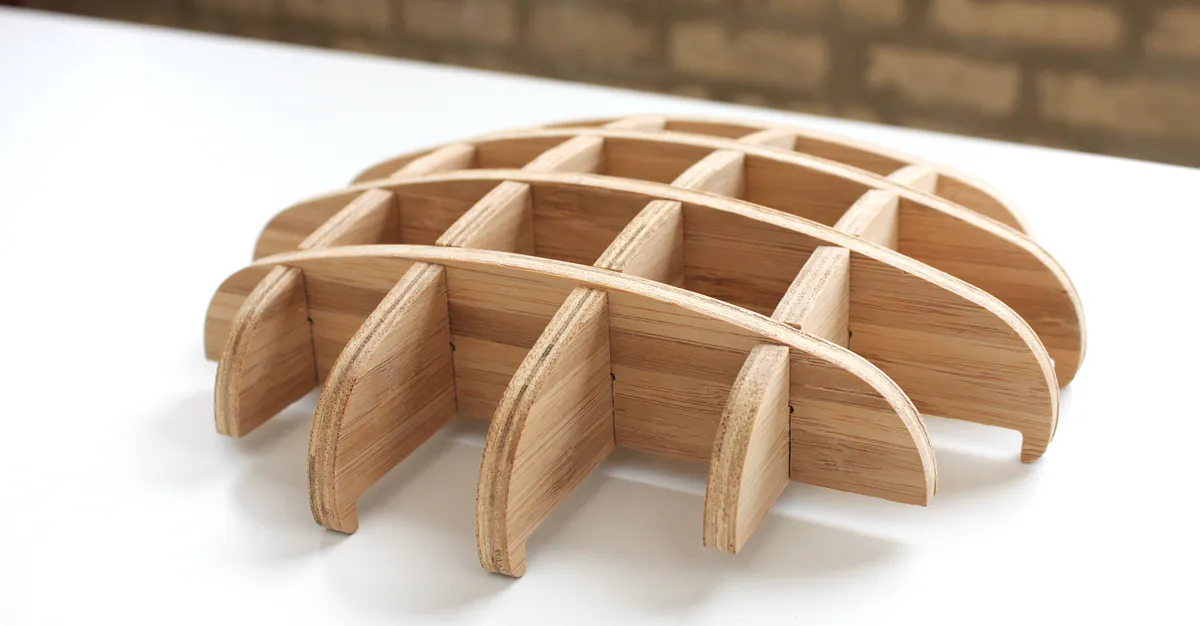

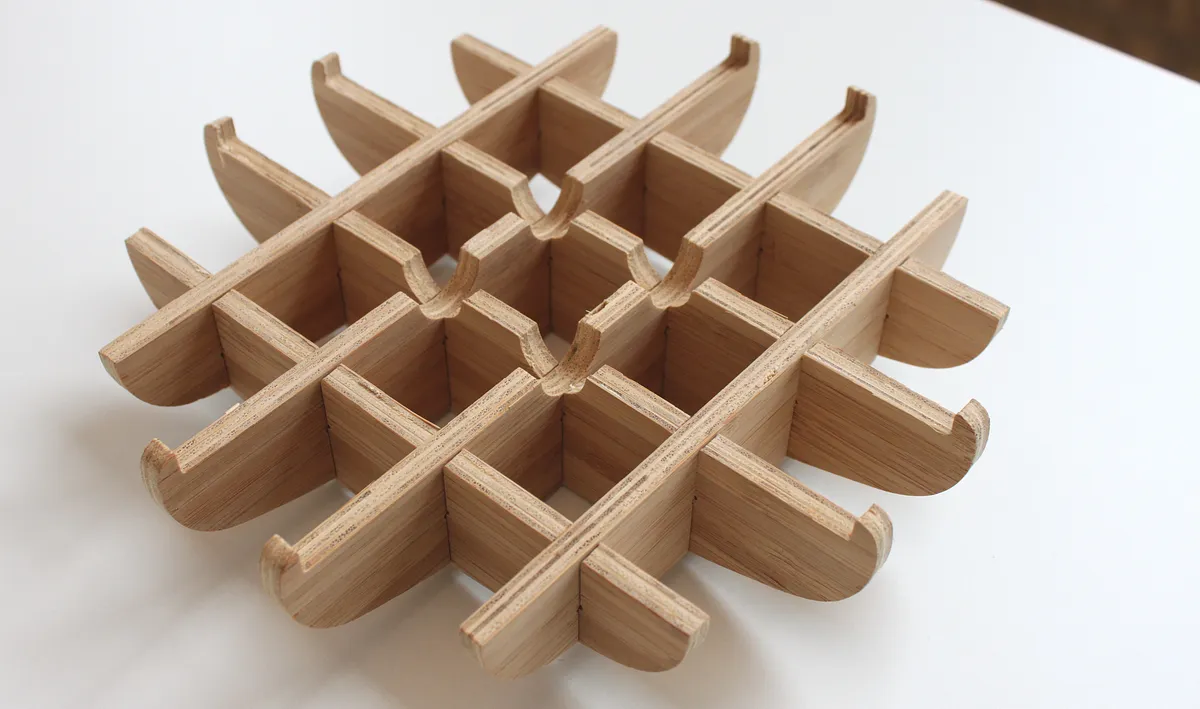

Clean up the bamboo parts and interlock them to create the round-bottom base. If the parts fit loosely, add a dab of wood glue to hold everything together.

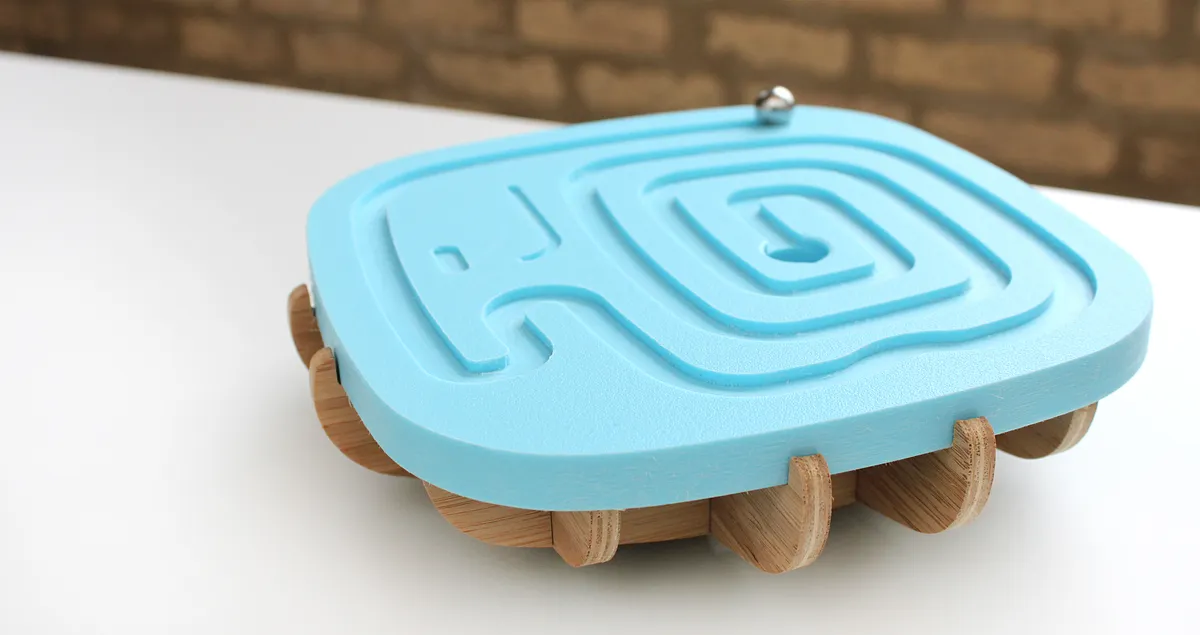

Drop the top & get rolling

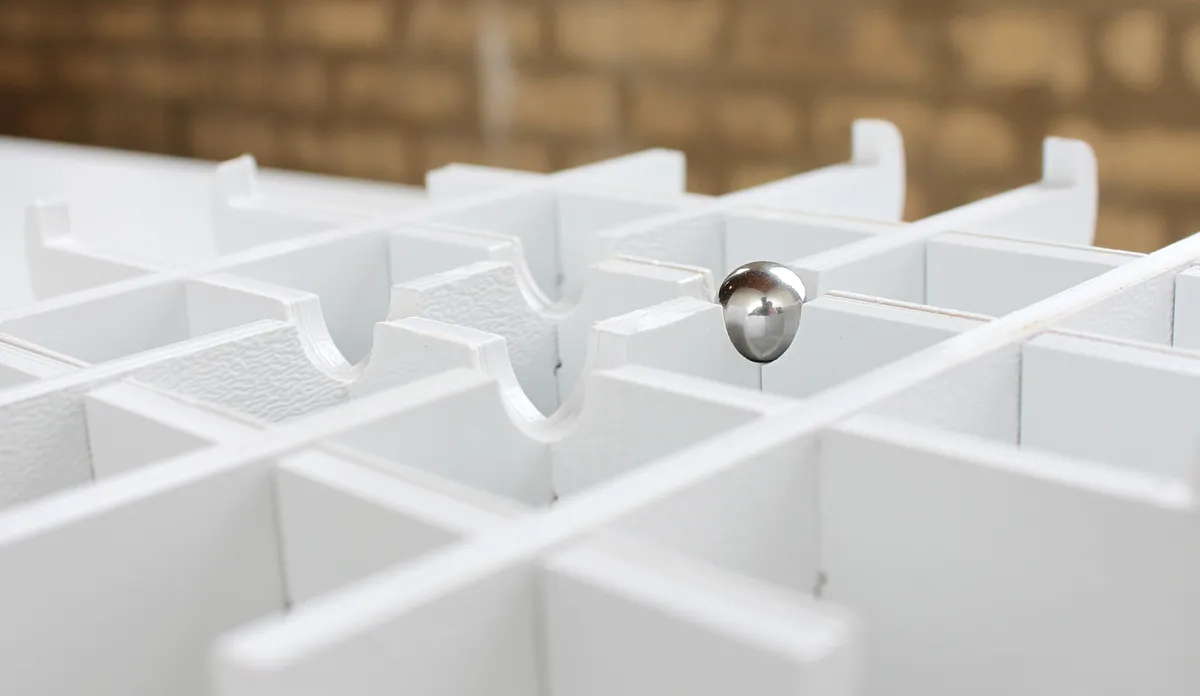

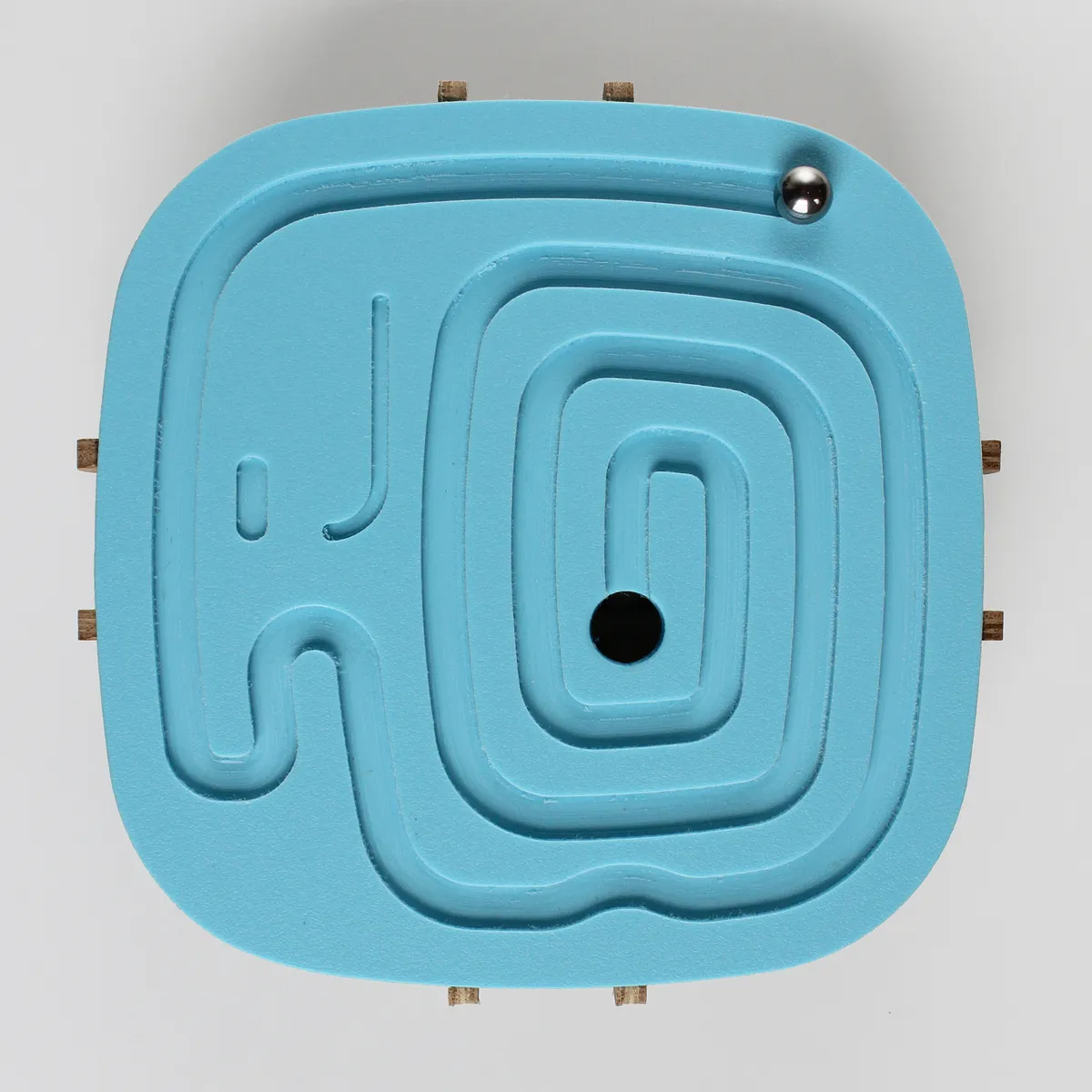

Place the HDPE top on the bamboo base. We used a "1/2 Stainless Steel ball bearing":bb from McMaster-Carr for our marble.

[bb]http://www.mcmaster.com/#9291k54/=11kvknf

Marble Maze — Drop the top & get rolling

Try some different materials

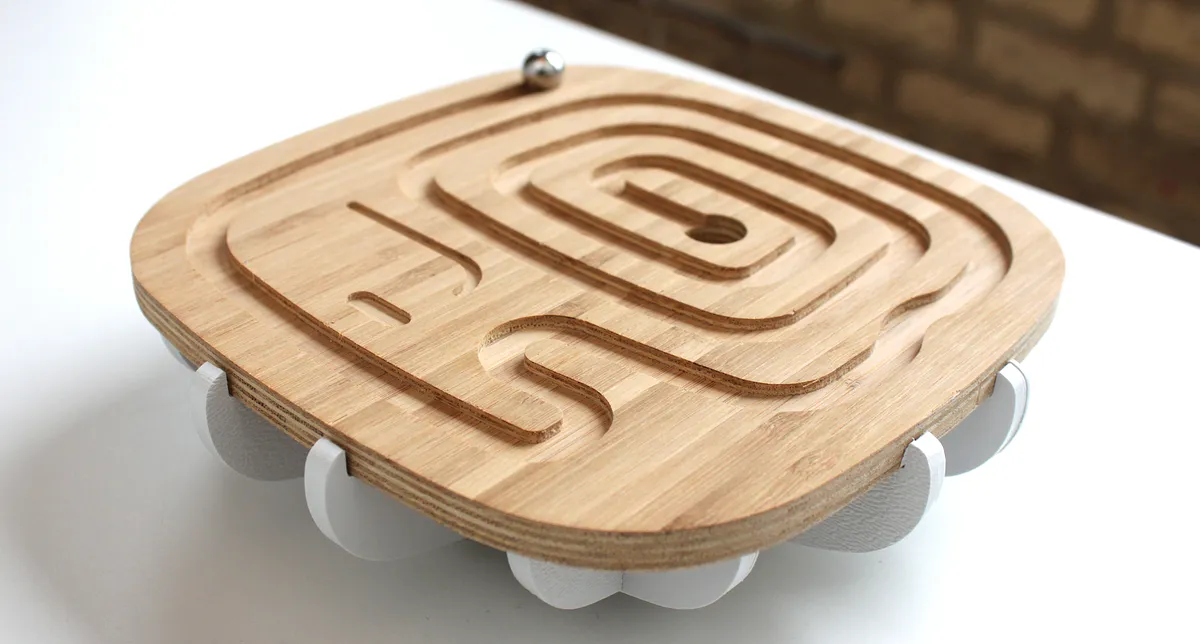

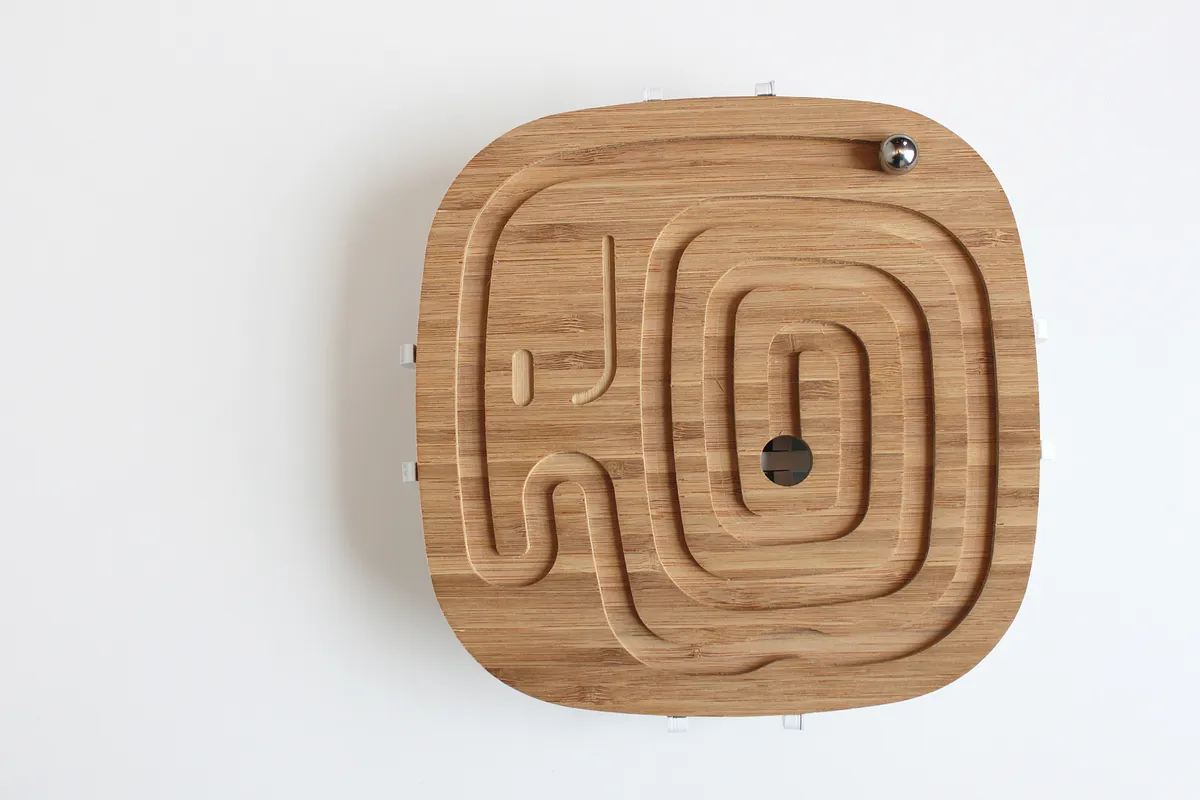

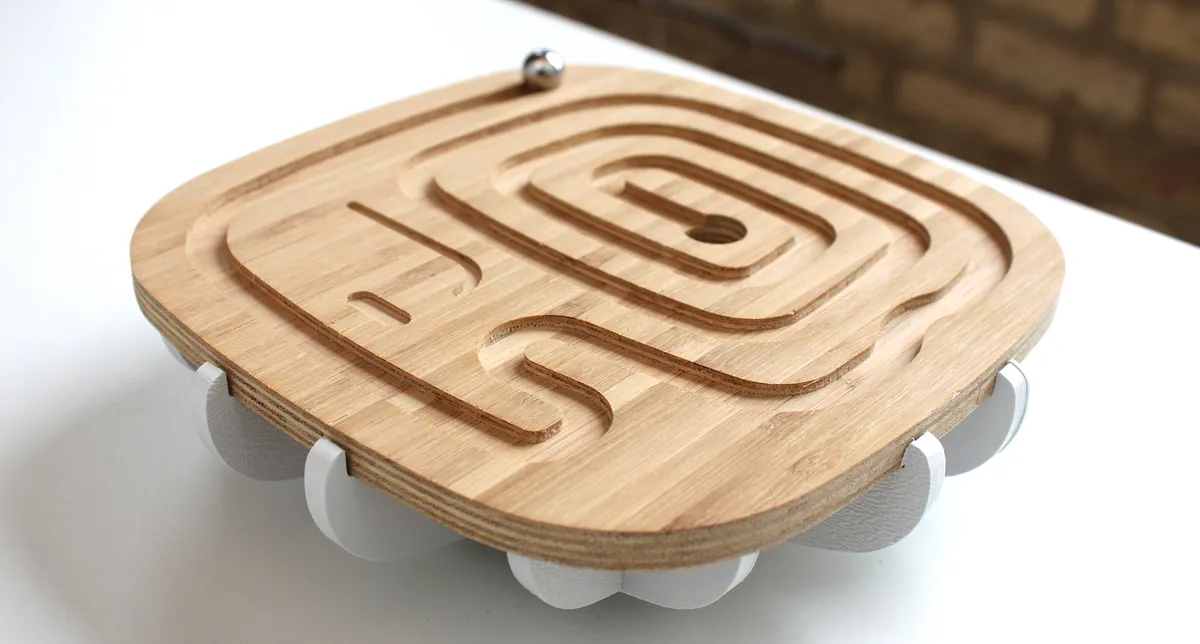

Create a custom Marble Maze by playing with different materials for the top and bottom. We did a version with a Bamboo Ply top and white .25" ABS base

Marble Maze — Try some different materials (image 2)

Marble Maze — Try some different materials (image 3)

Marble Maze — Try some different materials (image 4)
