Steve's 4" Blast Gates

Published: January 10, 2020

description

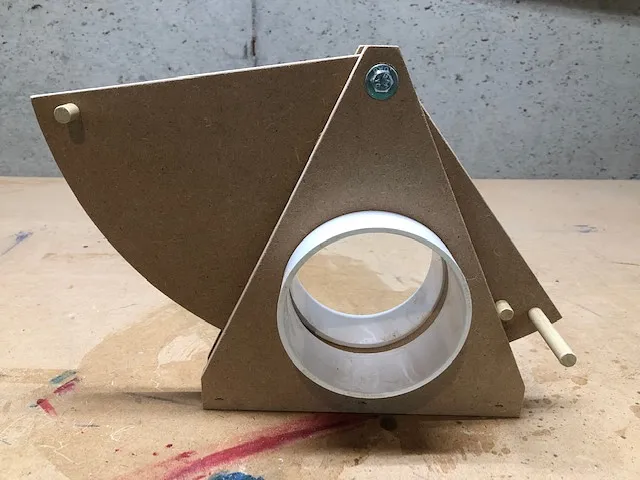

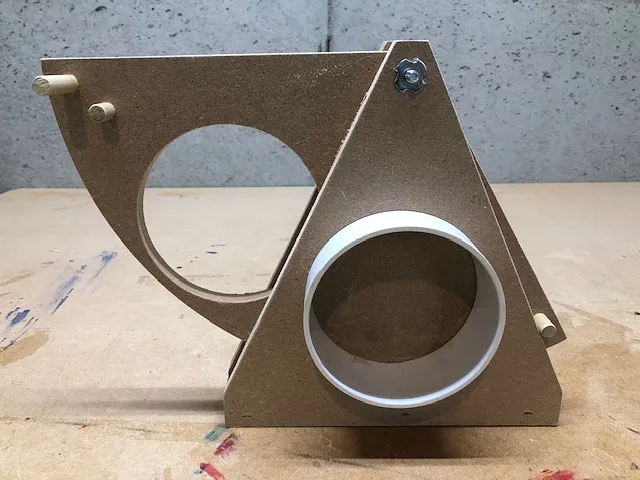

4" blast gates. Use sewer line PVC and fittings.

I cut a coupling in half so you only need one per blast gate.

To go to the standard dust collector fittings . Line the inside of the coupling with a piece of the 4" pipe then the standard couplings will fit in perfect.

license

Attribution 3.0 Unported (CC BY 3.0)
20
141
2
80
INSTRUCTIONS

1. Pieces and parts

1/2" MDF 3/8' Dowel 2 @ 1" 3/8" Dowel 1 @ 4" 1/4" - 20 x 5/16" Pronged T-Nut 1/4" x 2' Bolt 1/4" Washer 4" Sewer and Drain Coupling. 2 rings cut from it at 1-1/2" 1/4" drill Bit 19/64" drill bit for T-nut 3/8" drill bit
