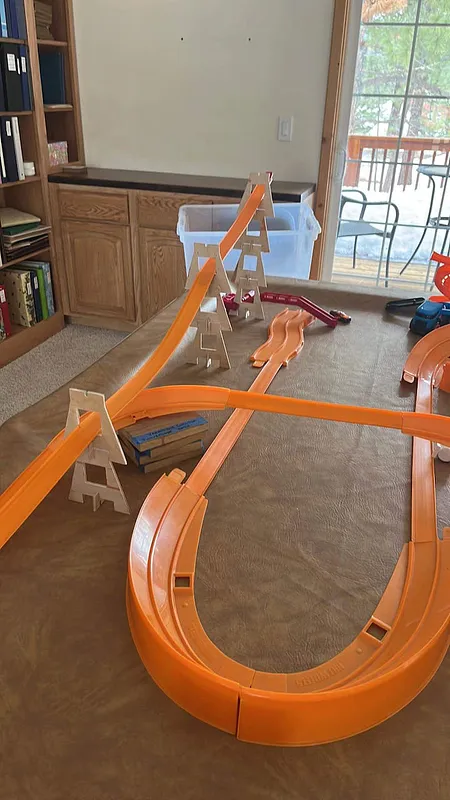

Modular bridge supports for Hot Wheels™ track. The 42 mm center opening fits the orange track, while the removed “H-piece” acts as a connector so the bridges can stack into multi-level structures.

This is the first CNC project for architecture student Owen, and tested by his 3-year brother.

Materials:

Birch Plywood

Machine Type:

Shapeoko XXL Pro

Notes:
  • Single 1/8" endmill, all operations.

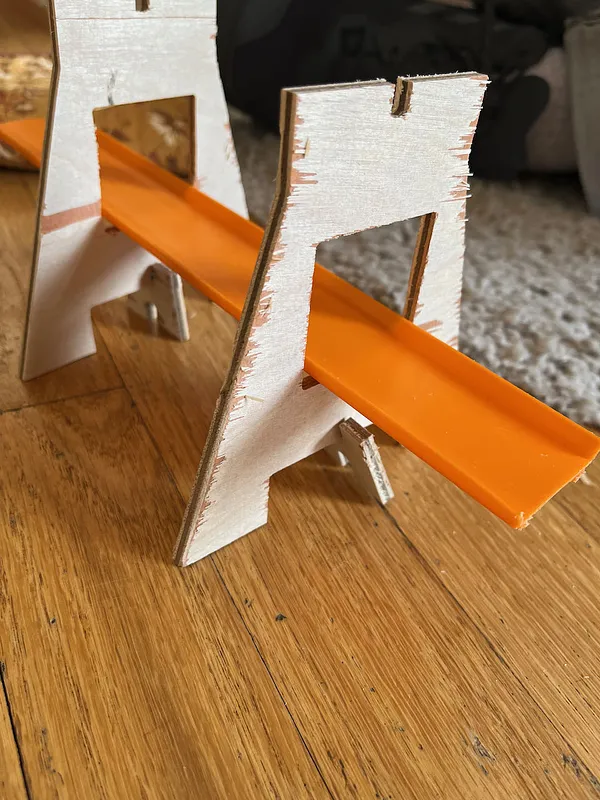

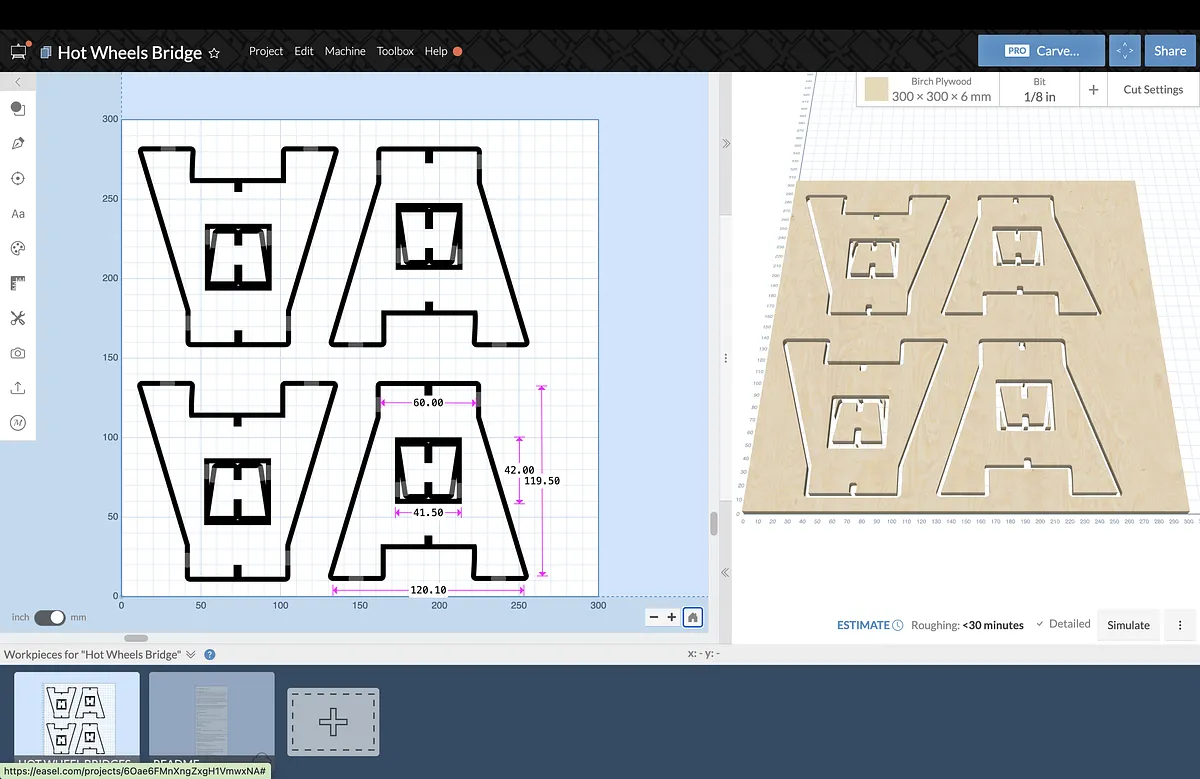

  • 42 mm x 42 mm center opening for standard Hot Wheels track.
  • The center “H” dropout is a stacking connector for tall bridges.
  • Supports can be used upright or inverted.
  • Adjust slot widths if using non-metric plywood.
  • More CNC designs at: https://www.etsy.com/shop/TahoeCNCDesigns
