Instructions
Cut mounts

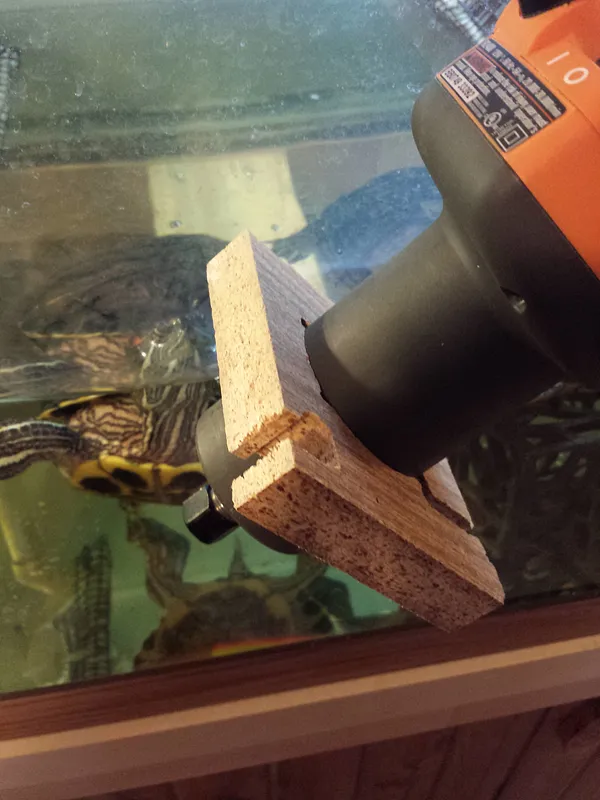

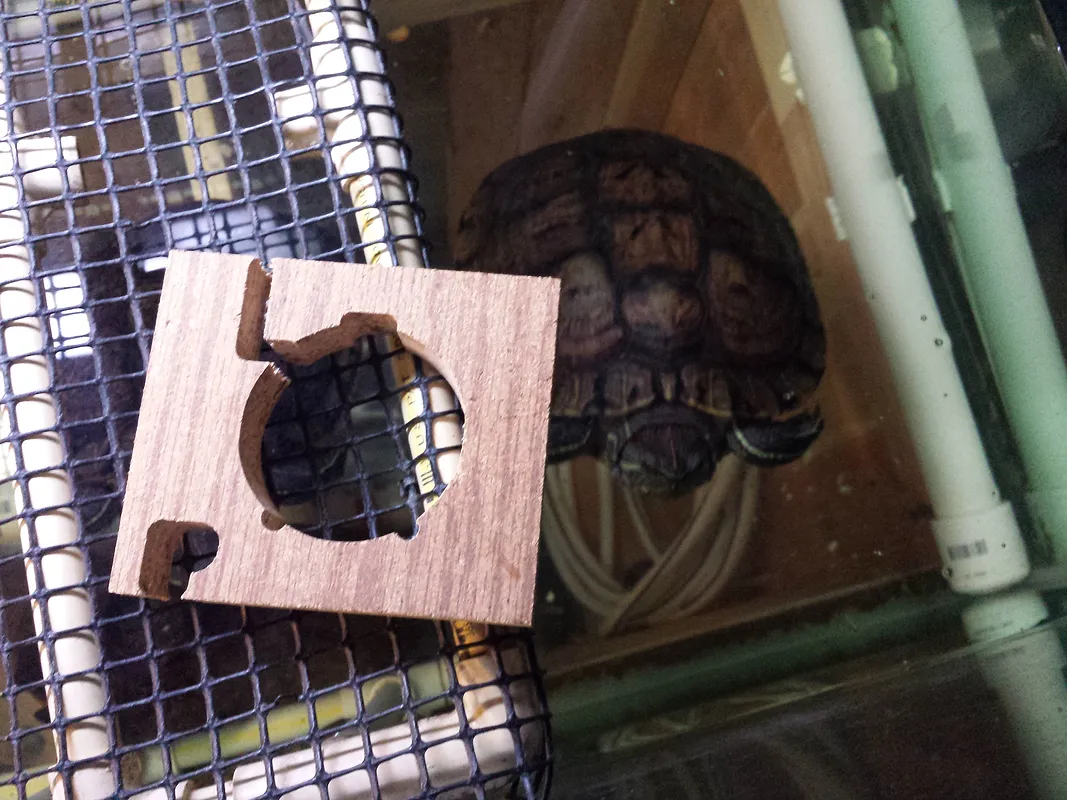

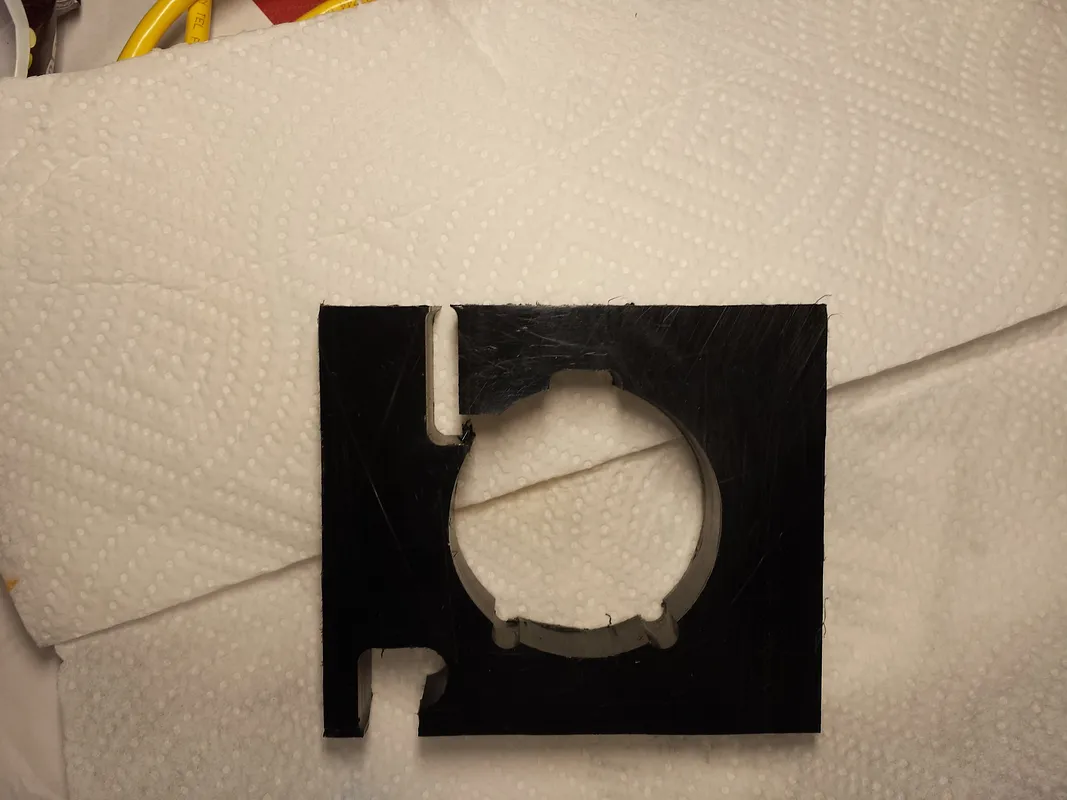

I cut two mounts out of 3/4" HDPE. If you desire only one, you can just set depth of second mount to zero.
Estimated time: 20 minutes
Drill and tap
Leave blocks and tabs intact while drilling mounts.
I used a marking tool to draw centerline down back of mount and the mounting plate for positioning of holes. Drill two holes (inners) with #19 drill (4.2164mm / .166") for use with M5 tap. Drill two more holes (outers) to fit hardware of your choosing. I went with traditional wood screws.
On front side, drill another #19 hole lined up with center of rod holder (cutout) and tap. For the clamp I chose a medium lag screw with hex head and flange. Drill appropriate sized hole for screw and larger drill for the tab part of clamp.
Estimated time: 45 minutes
Clean up and mount

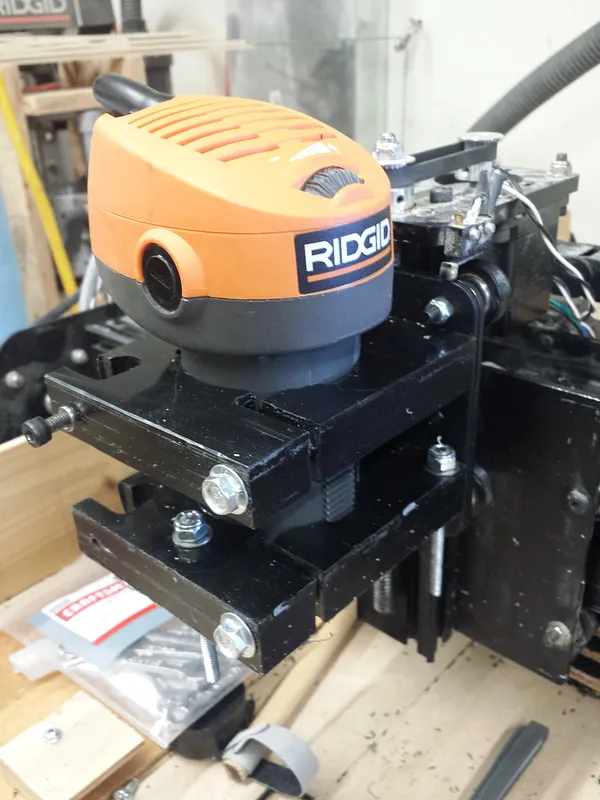

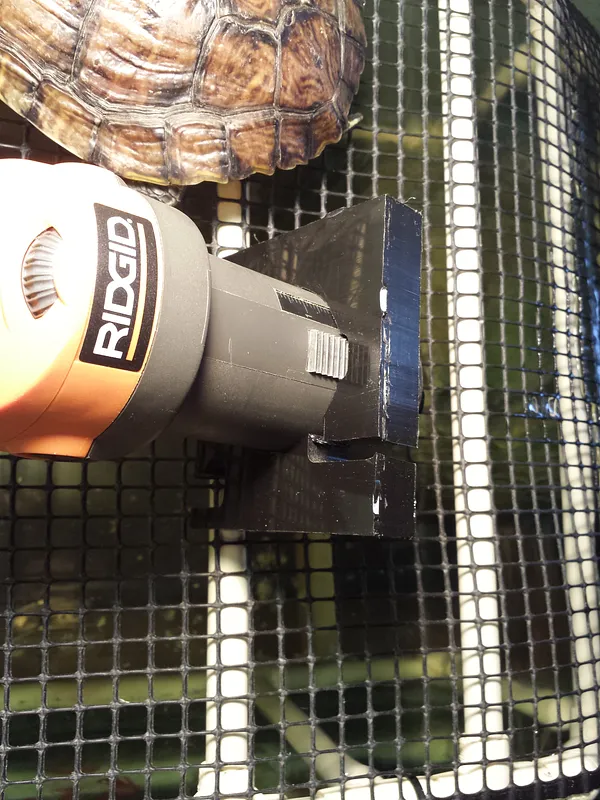

Clean up tabs, bore should be smooth for router. Mount on backing plate, adjust slide as needed, and enjoy!
Comments
Rod holder (lower left of mount) doesn't clear profile of router. Needs to be moved out (left) .45"
DamnitJim · December 14, 2016
Fixed position of Rod holder.
DamnitJim · December 14, 2016
