Love Bus
Instructions
Purchase Axles and Axle Caps
Purchase Axles and Axle Caps from McMaster-Carr
Part# 2025K1 2-each 1/4" Dia. 3" overall length Stainless Steel Axle Shafts "link":http://www.mcmaster.com/mv1453150942/#catalog/122/1122/=10r7mhw
Part# 94802A120 1-pack of 10 Push Nut Cap for Unthreaded 1/4" axle shafts. "link":http://www.mcmaster.com/mv1453150942/#catalog/122/3234/=10r7mi2
Estimated time: 1 minutes
Cut Path Setup

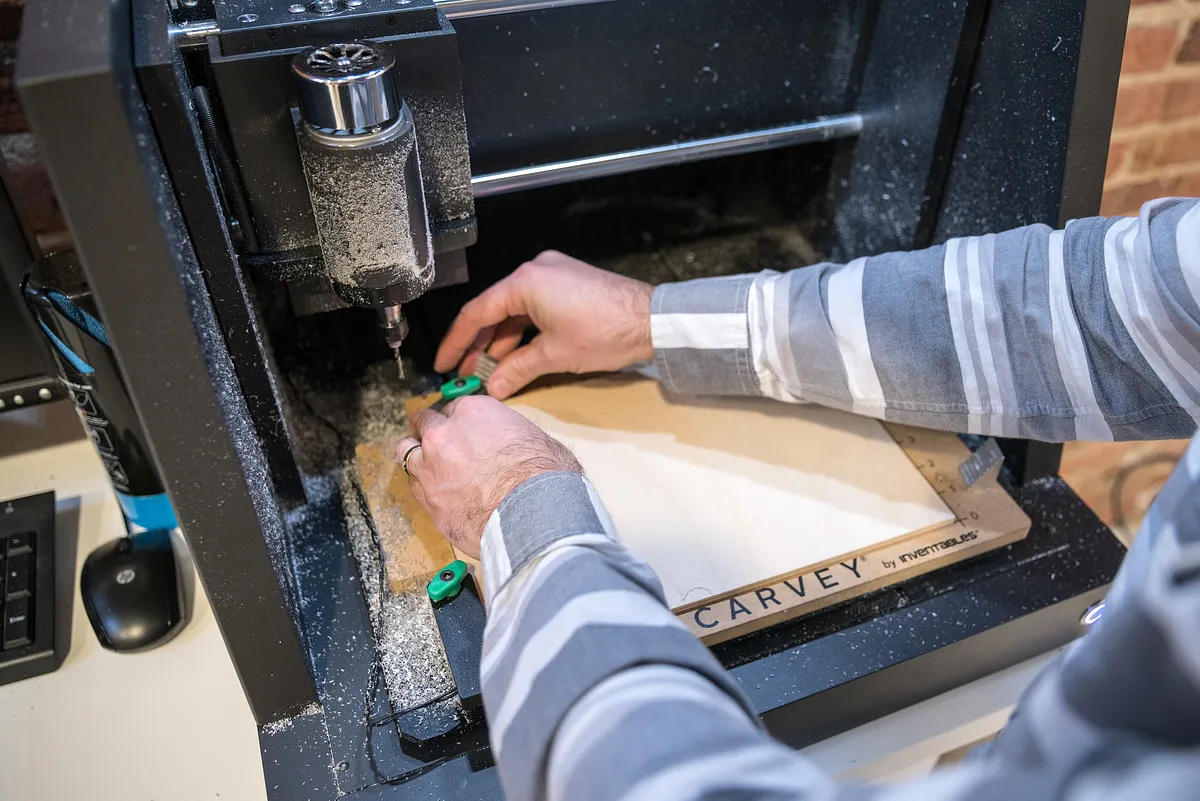

Setup proper material and bit for each cut.

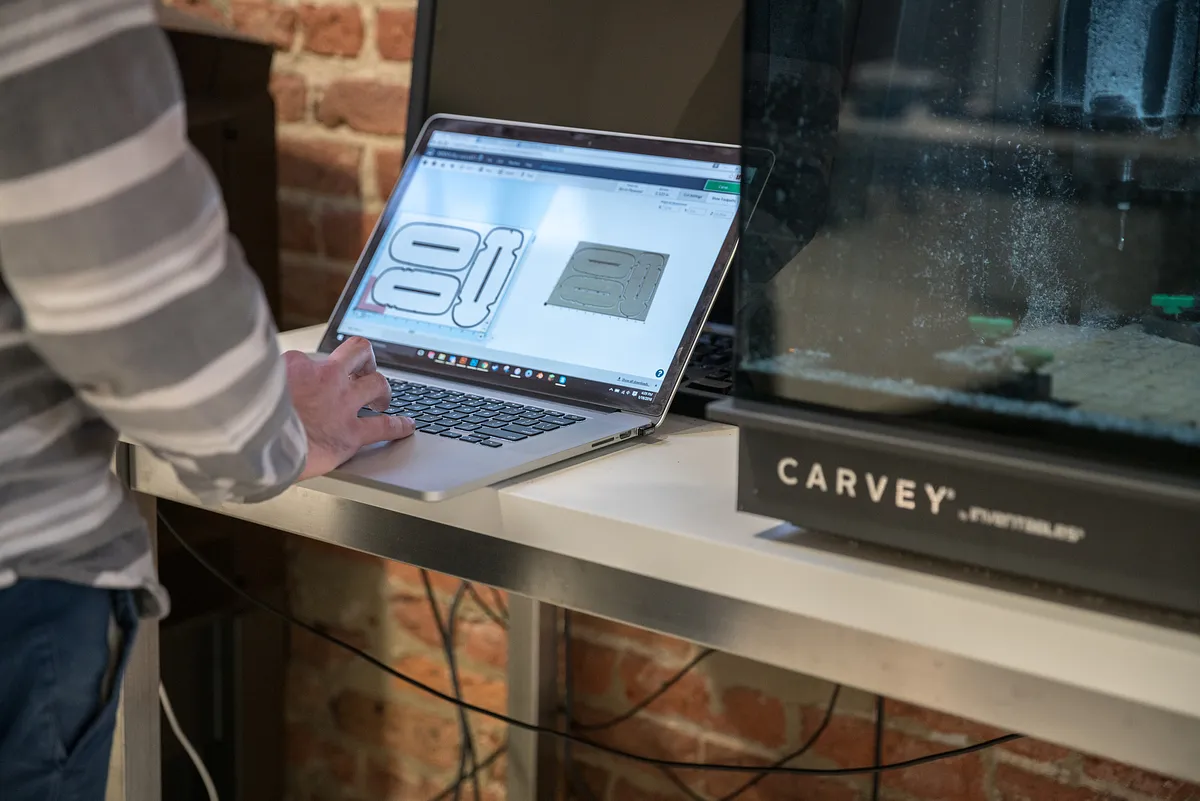

Cut Files: "Wood01":http://easel.inventables.com/projects/QpwYZK92xVtG88ioOJT77w - .25" Birch Ply , 1/16 2FL FishTail "Wood02":http://easel.inventables.com/projects/39Vur0issST6ayoPKieRMA - .25" Birch Ply , 1/16 2FL FishTail "White":http://easel.inventables.com/projects/2voSAi2t0j9HYMrsDAkZvQ - .25" Opaque White Acrylic , 1/16 2FL FishTail "Black":http://easel.inventables.com/projects/cANNTq3LFzFHPKEQ_jGNFg - .25" Opaque Black Acrylic , 1/16 2FL FishTail "Clear":http://easel.inventables.com/projects/nYayYqlc3wo08MoPIE8w9g - .25" Clear Acrylic , 1/16 2FL FishTail
Estimated time: 30 minutes
Cut Out All Parts
Switch out material and setup cut files for the all six cuts.
(see step 2)
Estimated time: 240 minutes
Finish All Parts

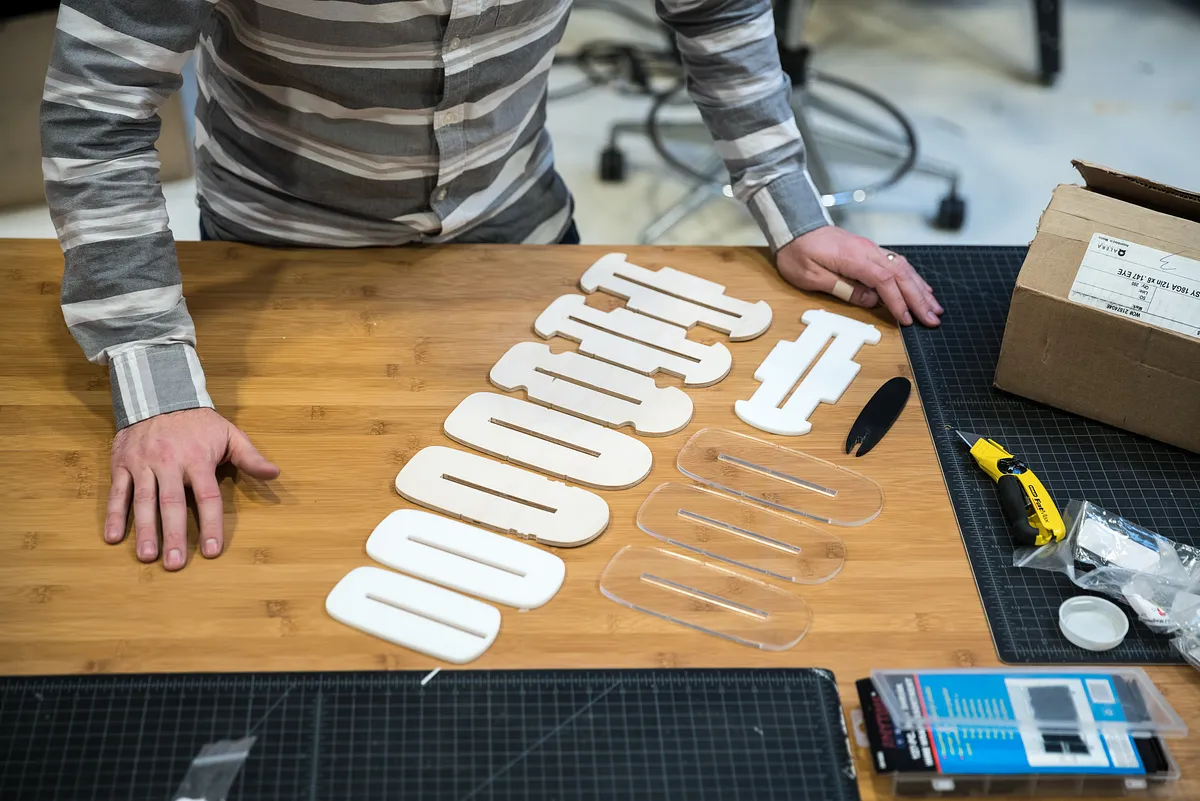

Sand, polish, and finish all parts to desired level.
Estimated time: 120 minutes
Glue Up Wheels

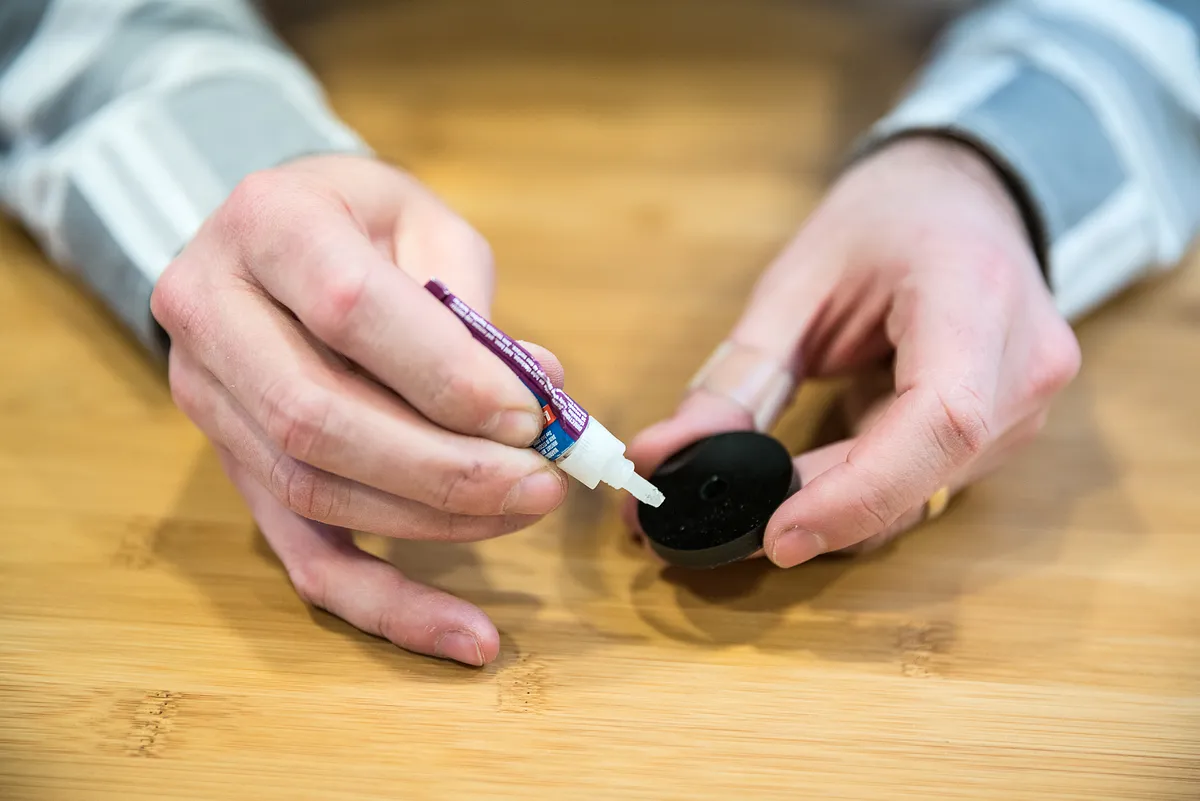

Apply a thin layer of JB Weld, Super Glue, or a strong adhesive of your choice between each wheel and tire. Clamp work together and let glue set.
Estimated time: 20 minutes
Assemble Bus Chassis

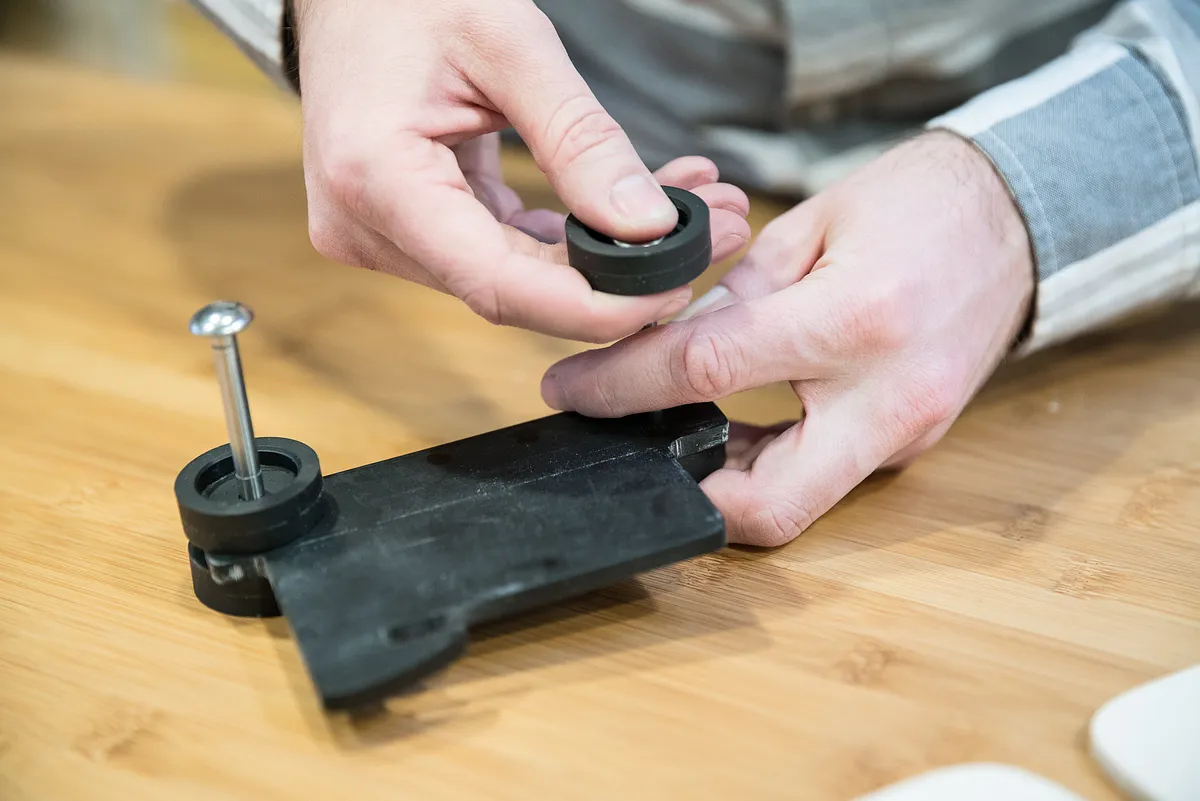

Starting with the back axel, press fit axel cap to one end of the axel. Add a wheel and place on to chassis center board. Add second wheel and cap off with a second axel cap. Repeat steps for the front axel.
Estimated time: 5 minutes

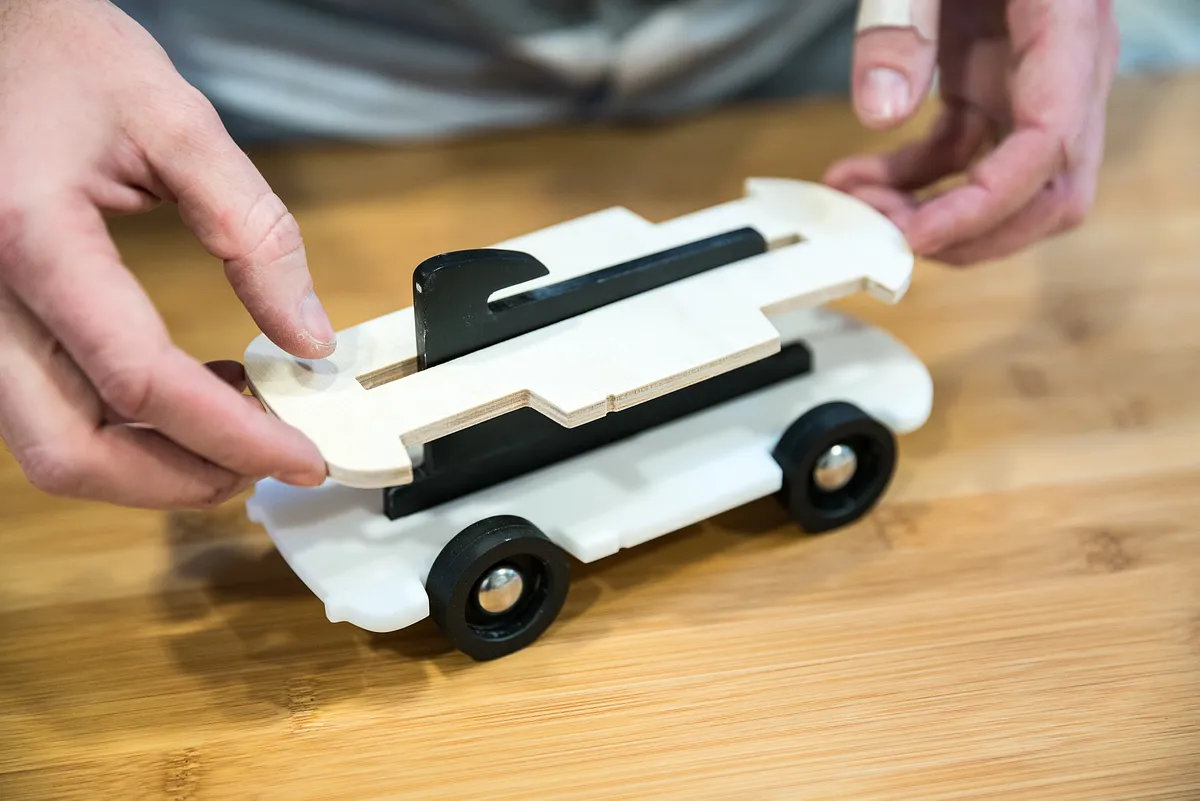

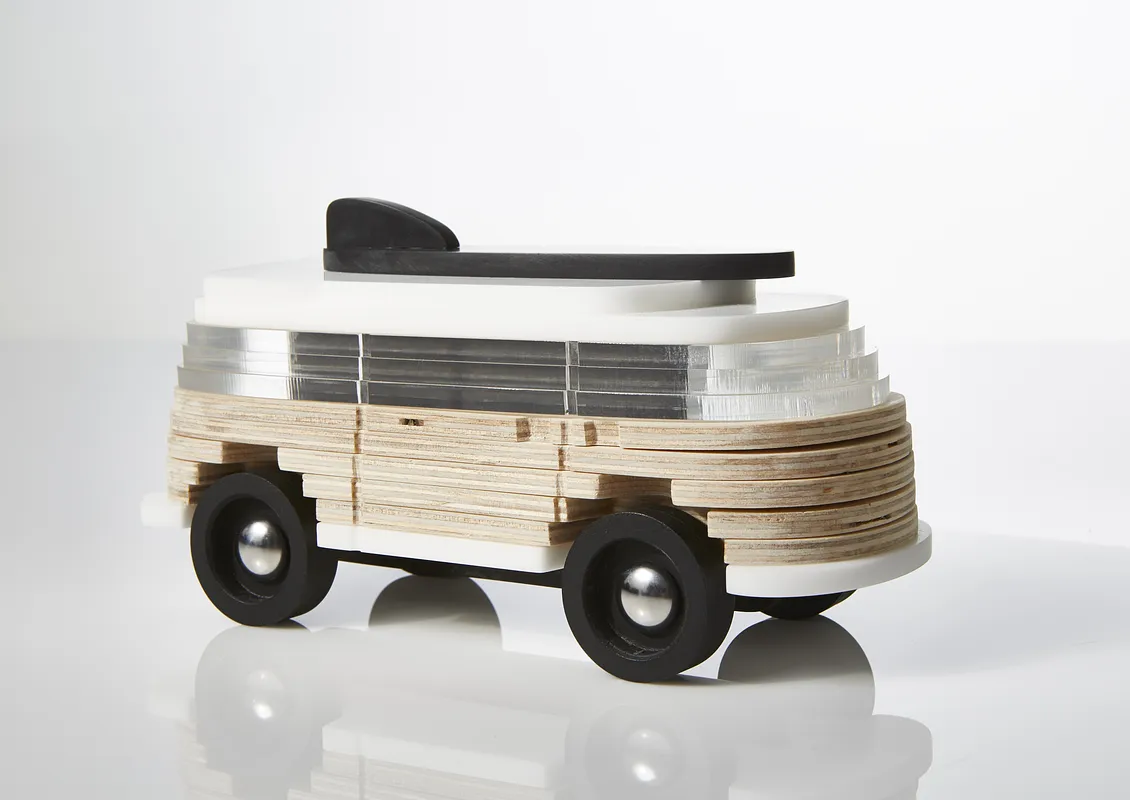

Assemble Bus Layers
Add each layer of the bus in order to create a gradual profile curve.
Estimated time: 2 minutes

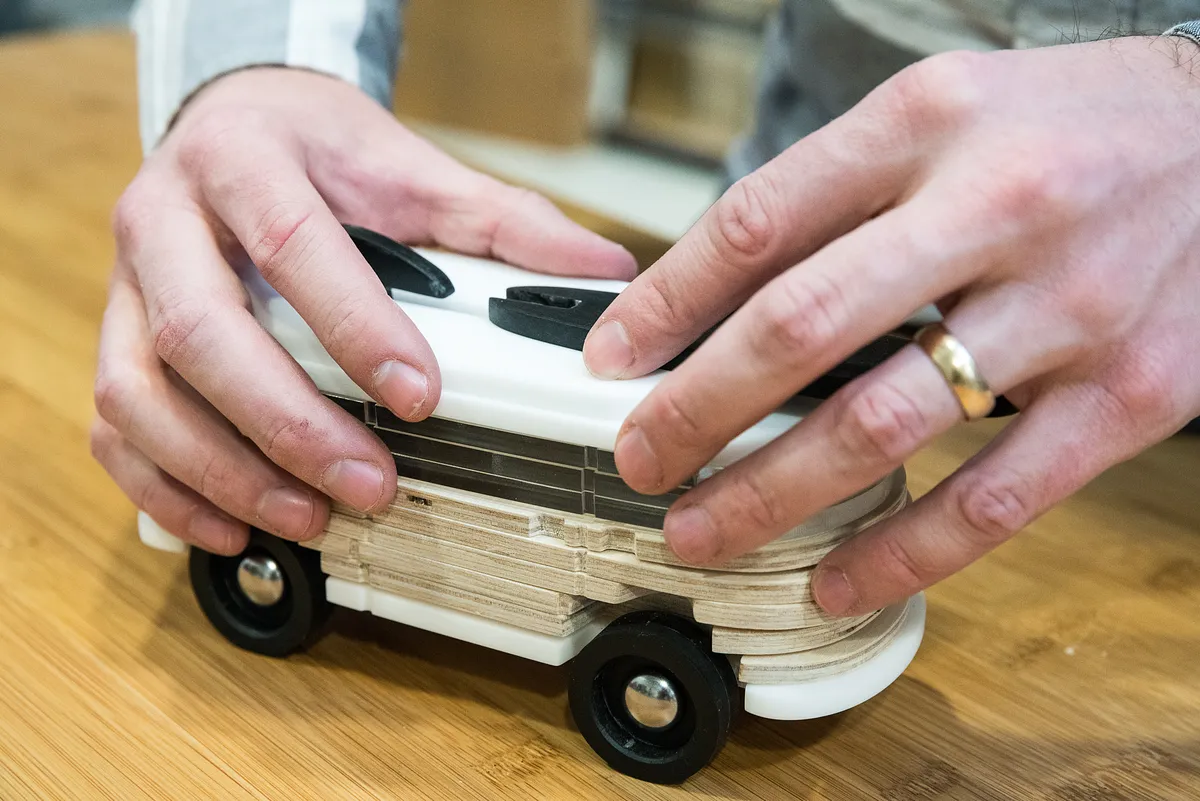

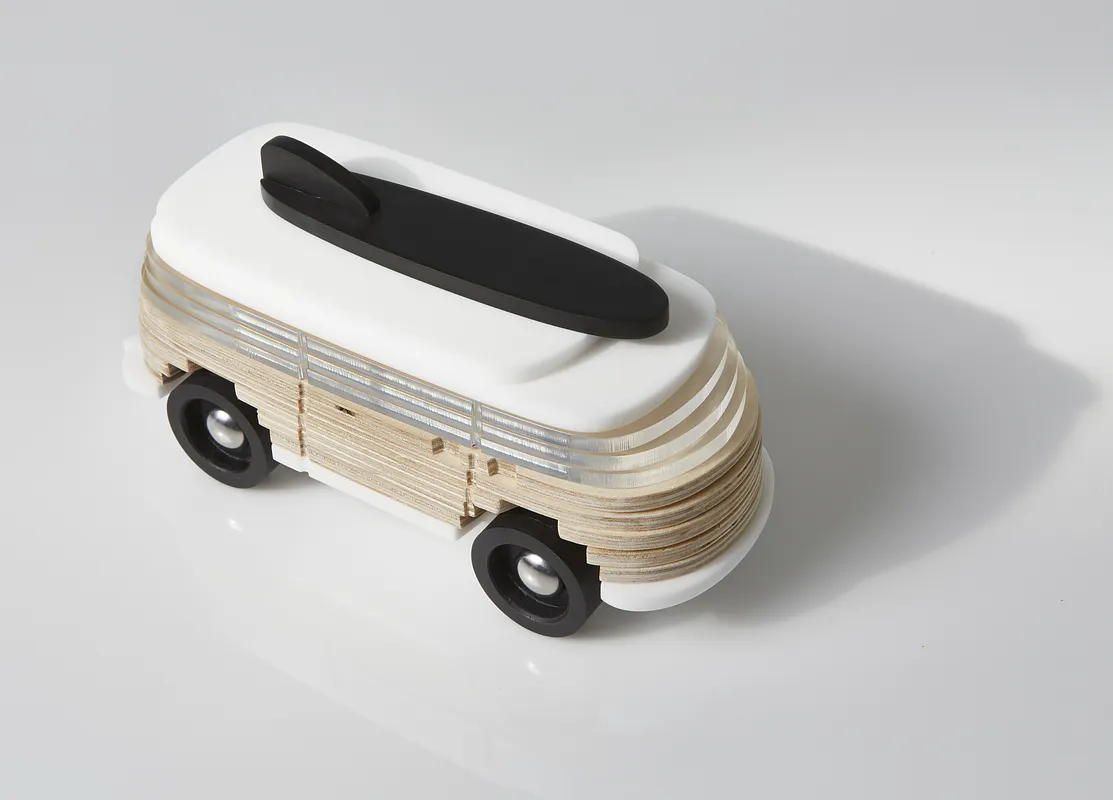

Add Surfboard

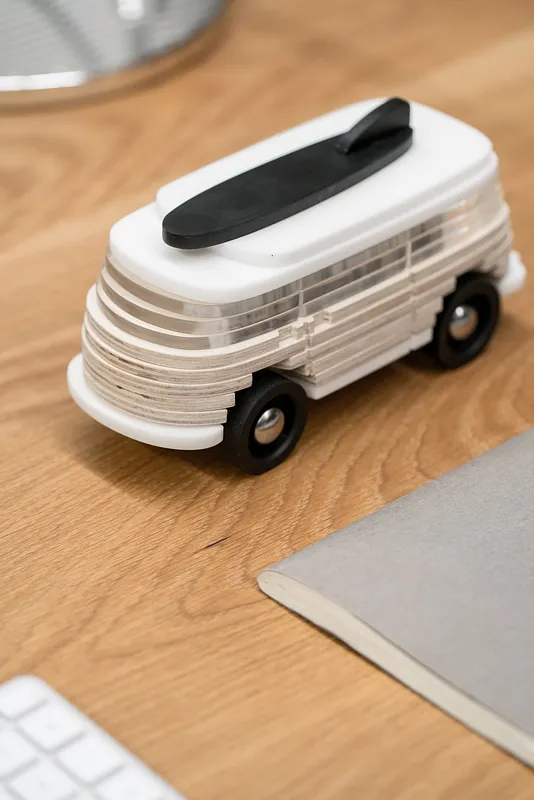

Press layers together and insert surfboard to lock layers together.
Estimated time: 1 minutes
