Quick-Clamps Rack

9 likes
135 opens
0 comments
80 copies
Allan Schwartz

Project by

Allan Schwartz

Published On

October 17, 2022

General Information

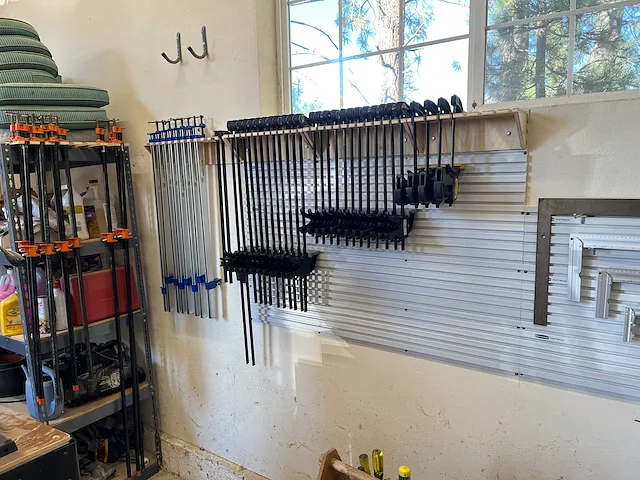

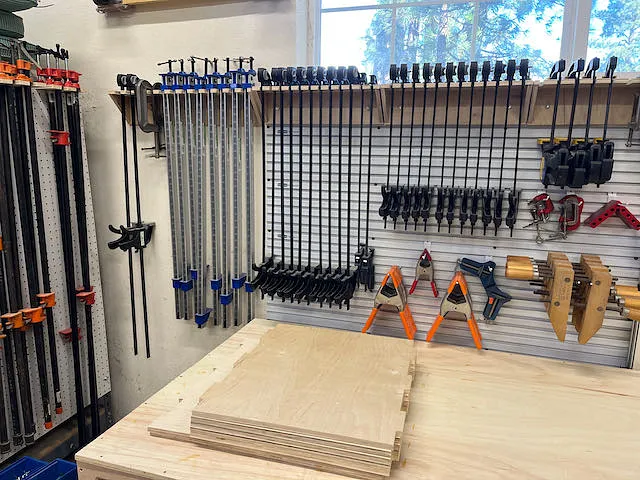

A set of different efficient racks for storing F-clamps or quick-clamps, or bar clamps, or pipe clamps for tool wall mounting on a slat-wall or directly. Designed for fast CNC carving from ½″ply.wood.

Materials:

Birch Plywood

Machine Type:

Shapeoko XXL Pro

Notes:

Legacy Design (circa 2022) This project represents an earlier version of my clamp rack designs, prior to adopting box joints and multi-workpiece layouts.

For updated designs with improved joinery, clearer documentation, and multiple rack sizes, see: Clamp Racks 1 — F & Quick Clamps Clamp Racks 2 — Bar & Pipe Clamps
