Intake_Pivot_Gearbox_plates

Christopher Hoyler

Christopher Hoyler

Published: February 10, 2026

Like Preview Project

description

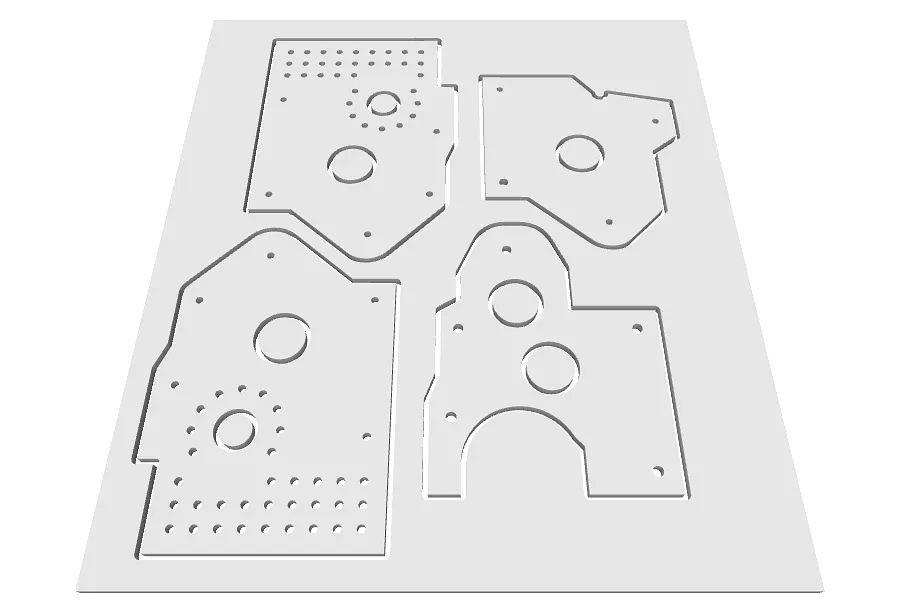

CNC design for precision metal gearbox mounting plates featuring circular bearing cutouts and ventilation holes. The four interlocking plates form the structural framework for a pivot intake gearbox assembly, with various sized apertures for mechanical components and hardware mounting points.

0
0
0
0

machine

X-Carve

materials

ABS
