PivotArms

Published: May 19, 2018

description

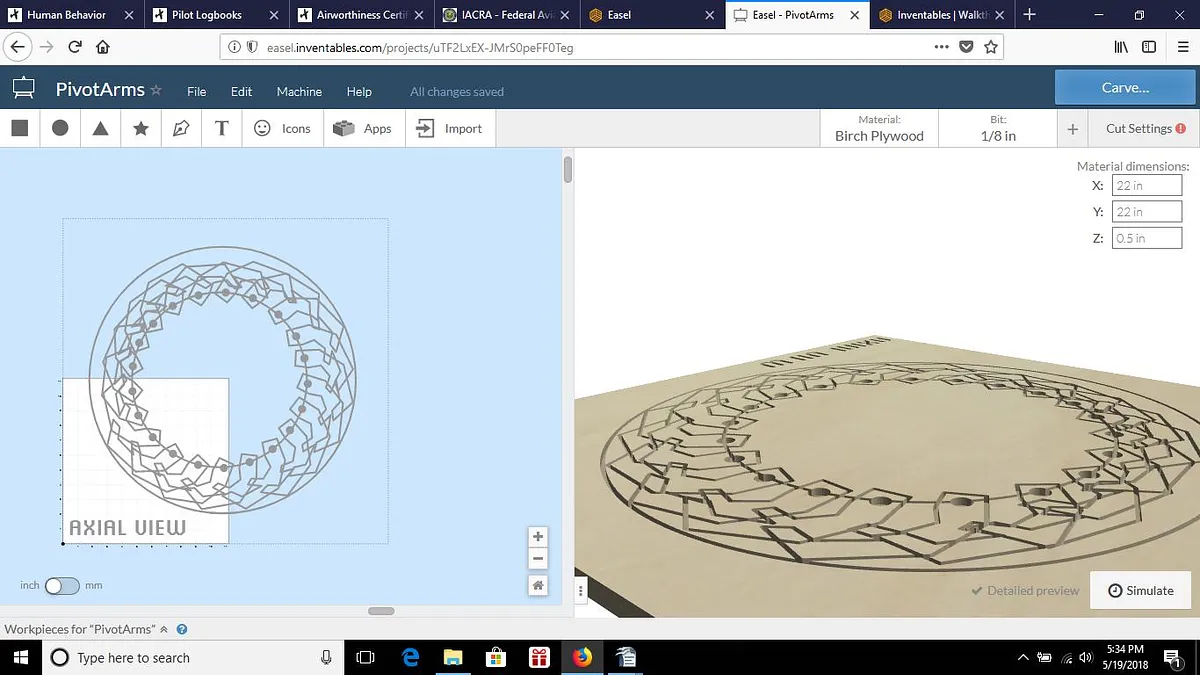

Example pivot arms and a notional axial view after assembly showing 21 arms. Would be arranged as 7 arms per section, 3 rows deep, off-set such that the axial view appears as show on the second page of the project.

license

Attribution-ShareAlike 3.0 Unported (CC BY-SA 3.0)
