General Information

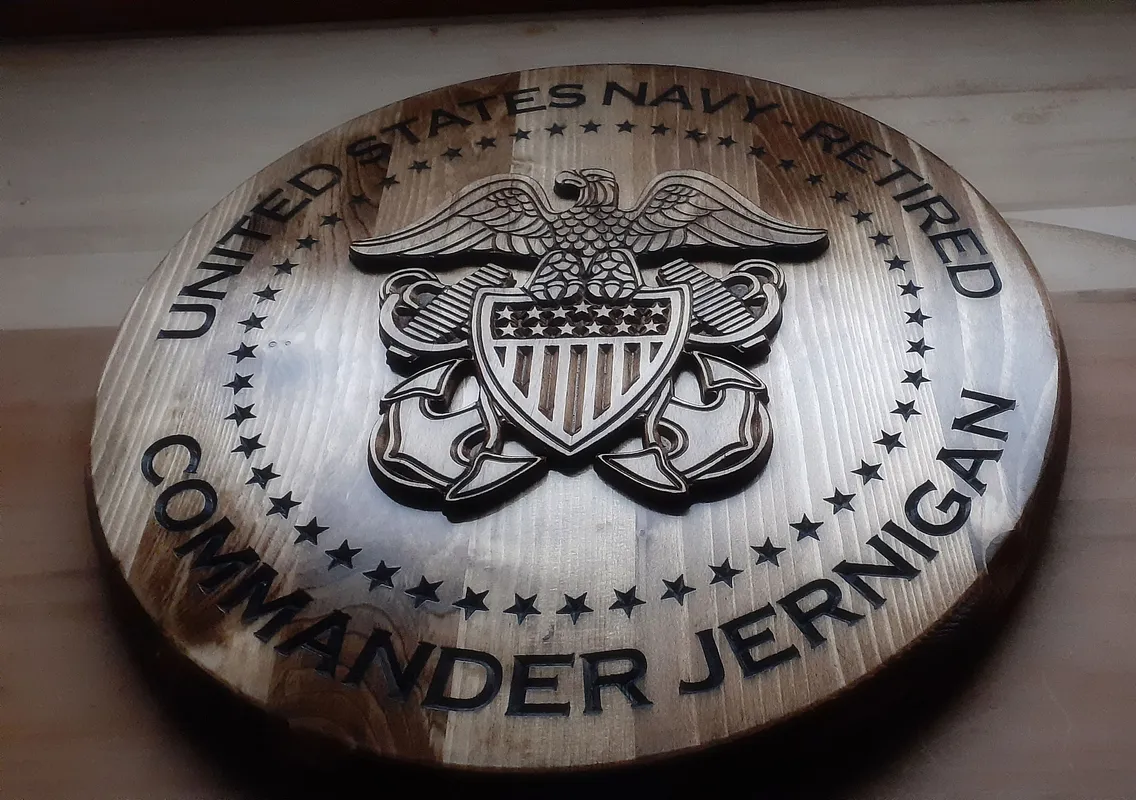

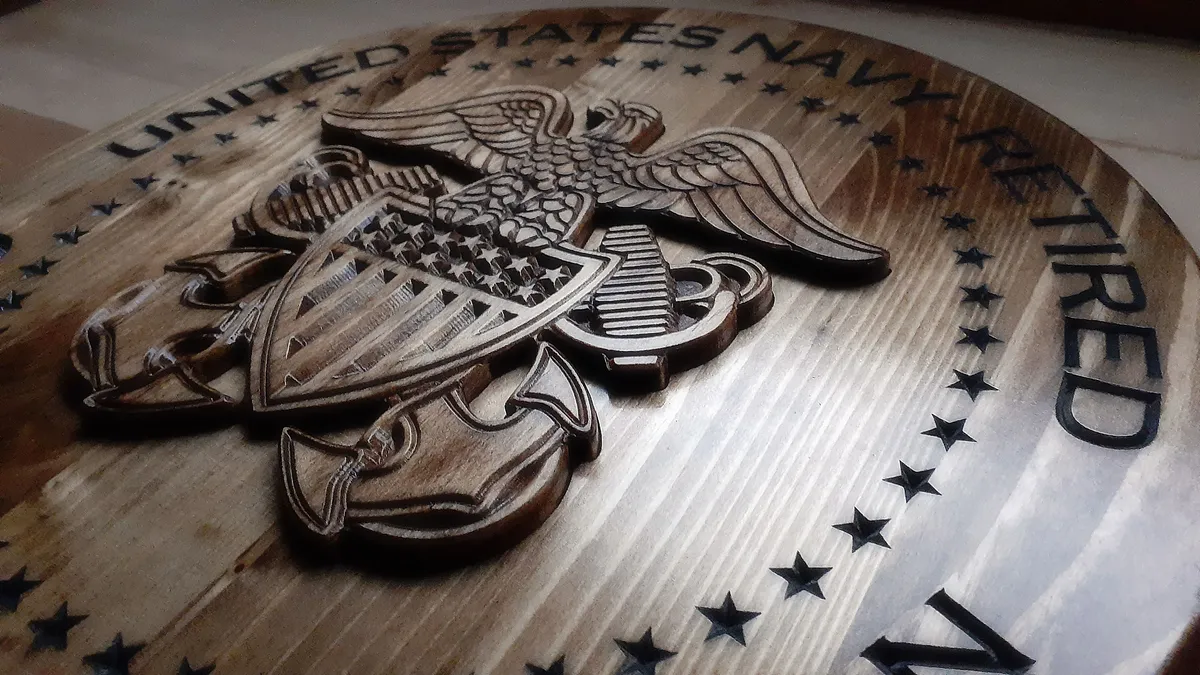

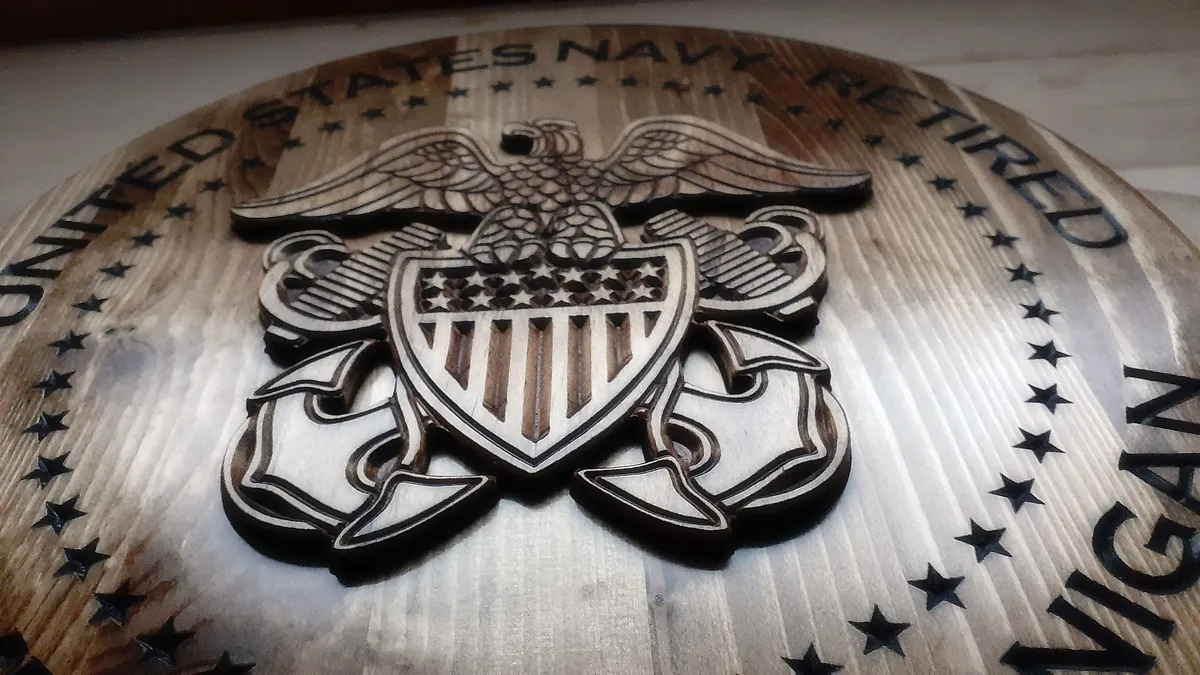

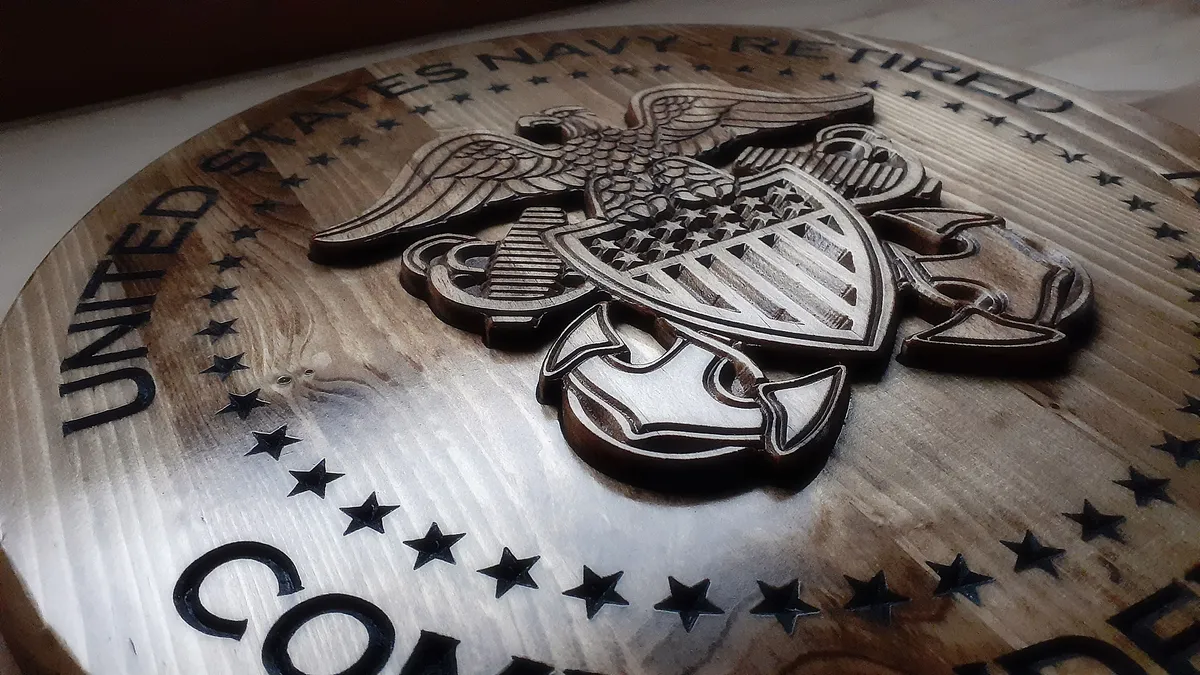

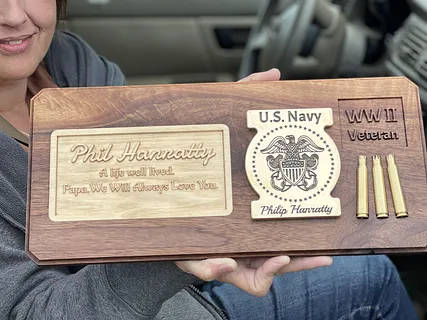

This was made for a customer requesting the US Navy Officer's crest with the person's name at the bottom. I used 50 stars in a circle around the plaque.

Like this project Easel logo Open in Easel®
Ryan Mulcahy

GO NAVY BEAT ARMY!

Ryan Mulcahy

MOHANNAD

its so nice good job

MOHANNAD

Charles Daily

Can you share this project?

Charles Daily

Dean Bielitz

Please share this project. Great gift for my brother...

Dean Bielitz

Donald Freas

very nice!

Donald Freas

Louie Podunavac

could you please share this project? I tried opening it and it says it isnt shared publicly?

Louie Podunavac

Alan G Miller

Did you do this all in acrylic?

Alan G Miller

Troy Brady

Sorry for the delayed response. This should be shareable now. The project is in pine, I use the acrylic material to show detail only.

Troy Brady

Gordon Lewellen

What Bit did you use?

Gordon Lewellen

Troy Brady

Hey Gordon - I used a 90 degree V bit for everything except the cutout. I used a 1/4" spiral bit to cut the pocket and a 1/8" to cut out the insignia.

Troy Brady

Duane Heda

Troy, love his crest. After Vietnam my door gunner enlist in the Navy and spent over 20 years retiring as a Captain and really want to make this for him. One of my questions, I say "one" because there might be more, how do I edit the name?

Duane Heda

Troy Brady

Hi Duane - Glad you like it! I use Adobe Illustrator for my text, but you may be able to use Easel to curve your text.

Troy Brady

Duane Heda

Apparently the whole file is locked and will not allow me to do any editing. Any chance of you unlocking it????

Duane Heda

Troy Brady

Hmm... it doesn't appear to be locked on my end. Not sure what's happening.

Troy Brady

Troy Brady

Try this - https://easel.inventables.com/projects/bEhq2qanghSypFjme2Uhkw

Troy Brady

Duane Heda

No luck. I don't understand either. Guess I'll do more checking on my end end. But this the only file I seem to having trouble with. think I'll try another file from this site and see what happens.

Duane Heda

Duane Heda

Found the problem Tony. The workpieces were locked. I clicked on the lock icon and no more problem!!!

Duane Heda

Duane Heda

How do you edit the persons name?? Also, I routed and cut the crest and it came out perfect!!

Duane Heda

Troy Brady

I don't think it can be edited in Easel. It was originally created in Illustrator and converted to an SVG file, then imported into Easel.

Troy Brady

Duane Heda

I just now got it figured out. I went to Light Burn did the edit and exported it as a svg file and exported it to Easel. Doing a test run as I type this and looks good. Thanks for your time and help.

Duane Heda

Troy Brady

My pleasure!

Troy Brady

Donald Cale

Troy, Nice job. I'm a retired CPO and new to XCarve. I have a couple of questions do you have this file set up for a Chief or Senior Chief ? That was my rank. I am try to use the file you shared and having a hell of a time with the letters.

Donald Cale

Troy Brady

@Donald Cale - If you'll give me your email address, I'll send you a Senior Chief file you can use.

Troy Brady

Donald Cale

donald_cale@yahoo.com

Donald Cale

Brad Sylvester

Is this made from two pieces, one on top of another, or is everything outside of the eagle carved lower?

Brad Sylvester

Troy Brady

Hey Brad - It is made from 2 pieces. The top piece is about .7" thick and is inlayed about .25" into the bottom piece (1" thick).

Troy Brady

Randall Reyes

Great project

Randall Reyes

REGINALD MITCHELL

Did you use Vectric's Aspire program or Easel Pro for this project? I trying to get an idea how you carved the eagle. I am just getting my xcarve and trying to learn it...sorry

REGINALD MITCHELL

Alex Ramirez

can you share this with me? My Wife would love this..

Alex Ramirez
