full rubber band carbine
Project by
sam
Published On
June 14, 2016
General Information
google search will bring up a video of how to cut/make it with a scroll saw... just brought it to cnc with the help of one other to make the files functional. modified pieces some for a better feel/sturdier for kids to play with.
Project License
Attribution-NonCommercial 3.0 Unported (CC BY-NC 3.0)
Open in Easel®

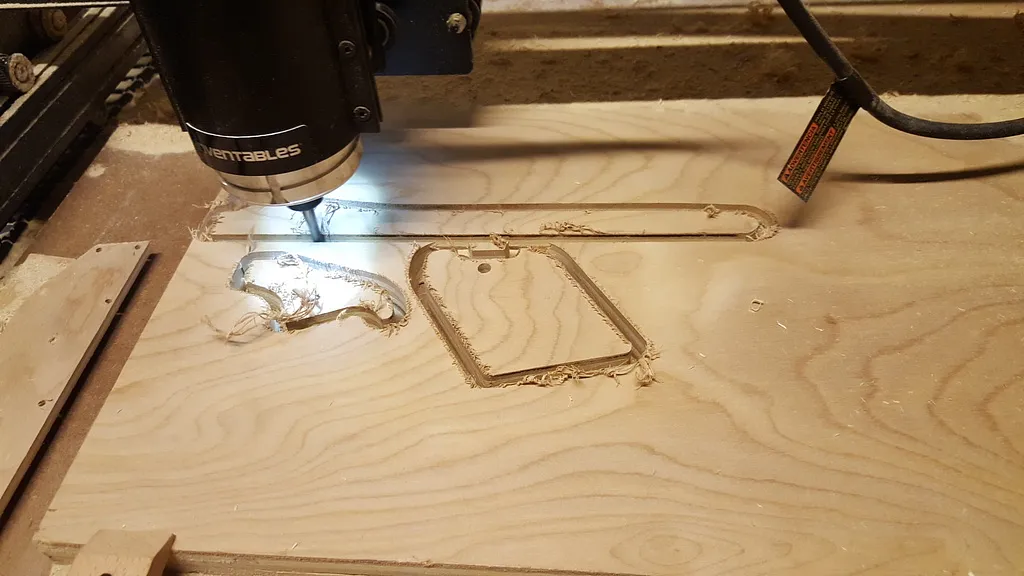

cut out 3/4 pieces.
cut out all 3/4 pieces.
i use a 1/4 bit and cut on the outside of the path.
i switch to a 1/8 bit to mark the holes and hand drill them. my 1/8th inch bit is only 3/8's of a inch long.
Estimated time: 90 minutes
cut out 3/8th pieces.
move the 3/4 inch pieces to the side and bring the 3/8th pieces into the cut area. then carve them out.(need both plates)
cut out with a 1/8th inch bit
Estimated time: 16 minutes
cut the plastic.

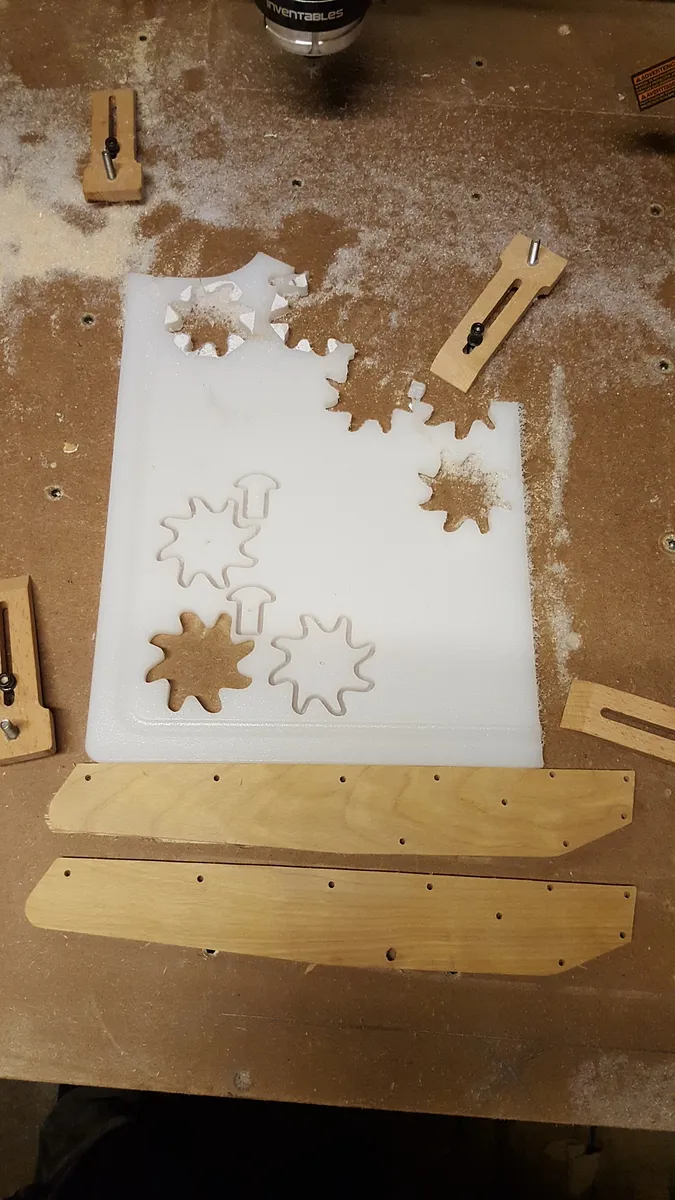

move the 3/8th pieces to the side and bring the plastic pieces into the cut area. then carve with a 1/8th inch bit
plastic i use is a cutting board from walmart. its right under 3/8th thick and works for all of the rubberband guns i make.
Estimated time: 6 minutes
sand
sand the burs and thin the trigger/mag down a little so it moves freely when assembled.
the plastic t needs a 45 cut in the tip of it. i just push it against my belt sander. no accuracy needed. just has to fit inside the star wheel to make it single fire.
round the edges of the star a bit so it doesnt cut the rubber bands.
Estimated time: 10 minutes

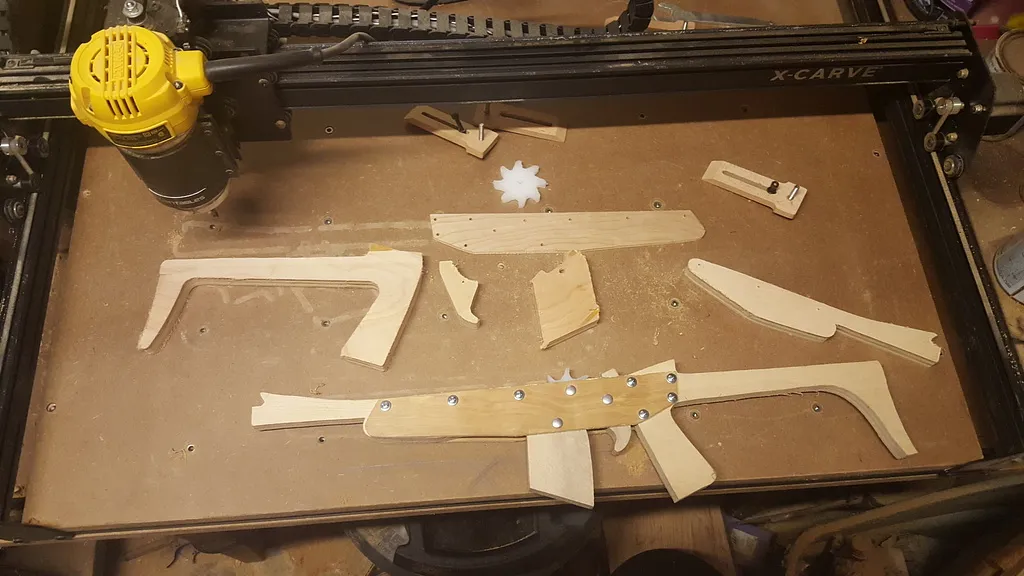

assemble
7 screws are 1/2 inch long on each side the chicago screws are 1 1/4 long cannot select length in parts list.
the 3 holes for the chicago screws need to be adjusted to fit the post size you can find.
top center of the trigger needs drilled so a screw can go threw the plastic T to make select fire work. keep this only finger tight so it can spin so it can go full auto or single fire.
if the mag is larger it fires at a slower rate. smaller makes it fire faster.
Estimated time: 10 minutes
google rubber band carbine and there are youtube videos of how to make it.
before using the cnc it takes me about 1 hour to make drill sand assemble tweak and so on to get one going.
now i can cut enough out to make it so i can have enough pieces cut so i cannot keep up with the cnc cutting on assembly.
Estimated time: 10 minutes
have fun
have fun mowing down card houses and all sorts of things. get around 24 bands per load.
i have done 32 on 1/4 inch side plates and it snapped the plates. 24 is where i would stop. it can hold more but be warned!
