A solid Wasteboard with lots of clamping options is a must! Whether you need to replace your current wasteboard or the shipping costs are tough on your wallet this step by step guide will have your machine up and running in no time!

Like this project Easel logo Open in Easel®
1

Gather Materials and Tools

Tools Required:

-Drill -3/16" Drill Bit -Countersink Bit -Orbital Sander -Saw (Table saw, Circular Saw or Jig Saw) -Pencil

Materials:

MDF (1/2" for 500mm and 3/4" for 1000mm) M5 Threaded Inserts M5 Socket Head Bolts

Estimated time: 5 minutes

2

Measurement

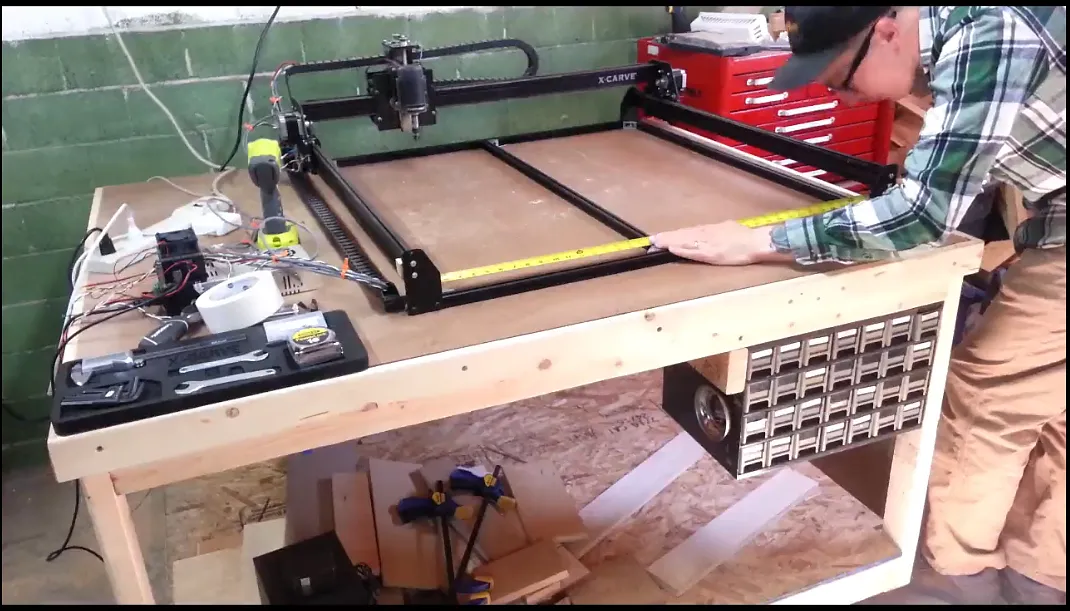

Start by measuring both the X and Y rails. Measure the front and back as well as the left and right side to ensure your machine is square.

The 3/4" MDF will hit the V-wheels on the Y axis if it sits directly underneath them so ensure it is clear of the Y axis before getting final measurements.

Estimated time: 3 minutes

3

Cut your Wasteboard

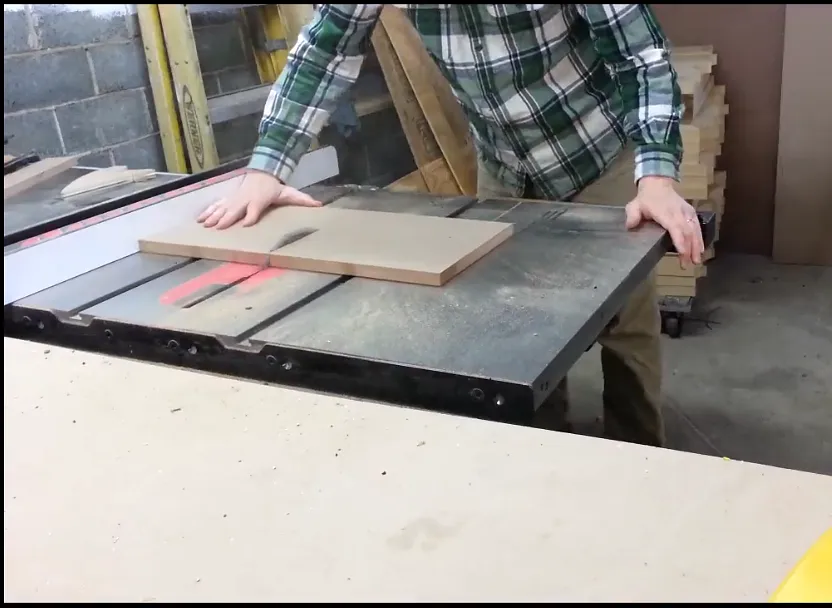

You can use a Tablesaw, circular saw or jig saw to cut the wasteboard to final size.

Note: If you do not have access to any of these saws or if the MDF doesn't fit in your vehicle many big-box stores will cut sheet goods for you.

Estimated time: 10 minutes

4

Create a drill template and spacer block.

Rip a piece of scrap 1/8" material to about 3" wide and cut to the same length as your x-axis wasteboard dimensions.

Determine the total number of holes you want across your wasteboard, add one and divide by the dimension of your drill template.

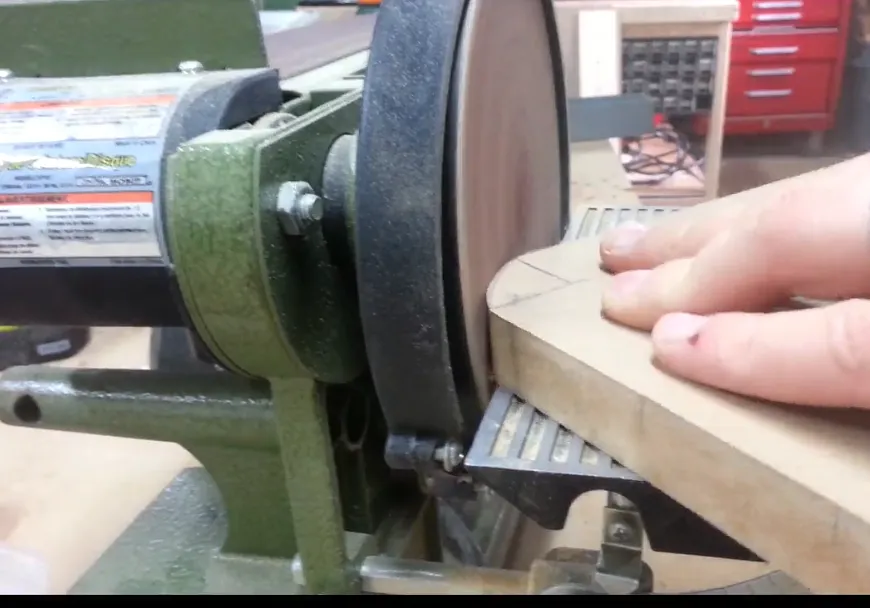

Example: If your X axis is 34" and you want 10 holes, Divide 34" by 11 = 3 1/16" Spacer Block

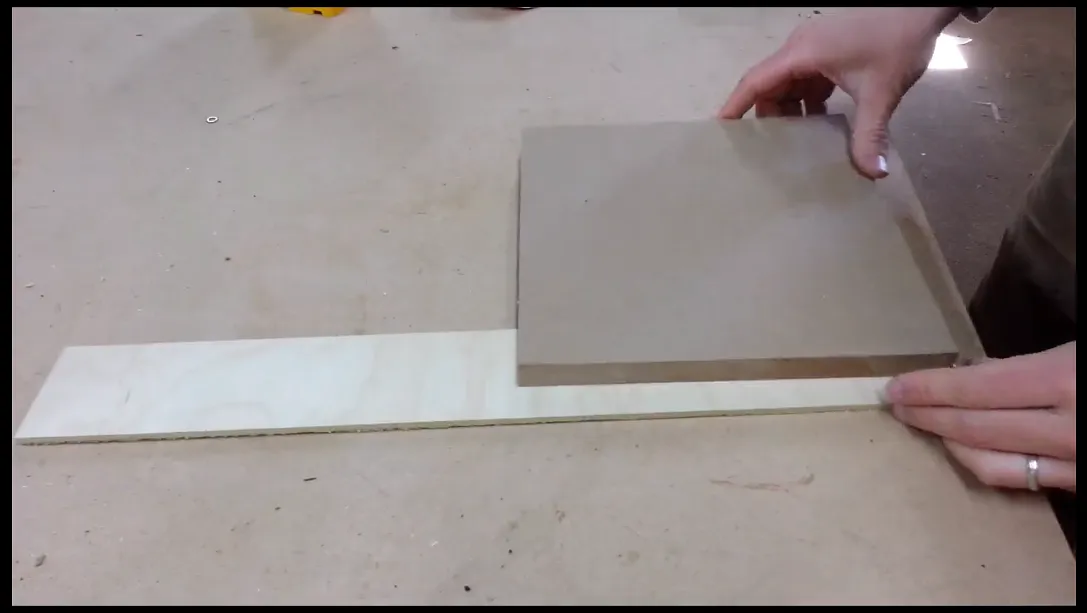

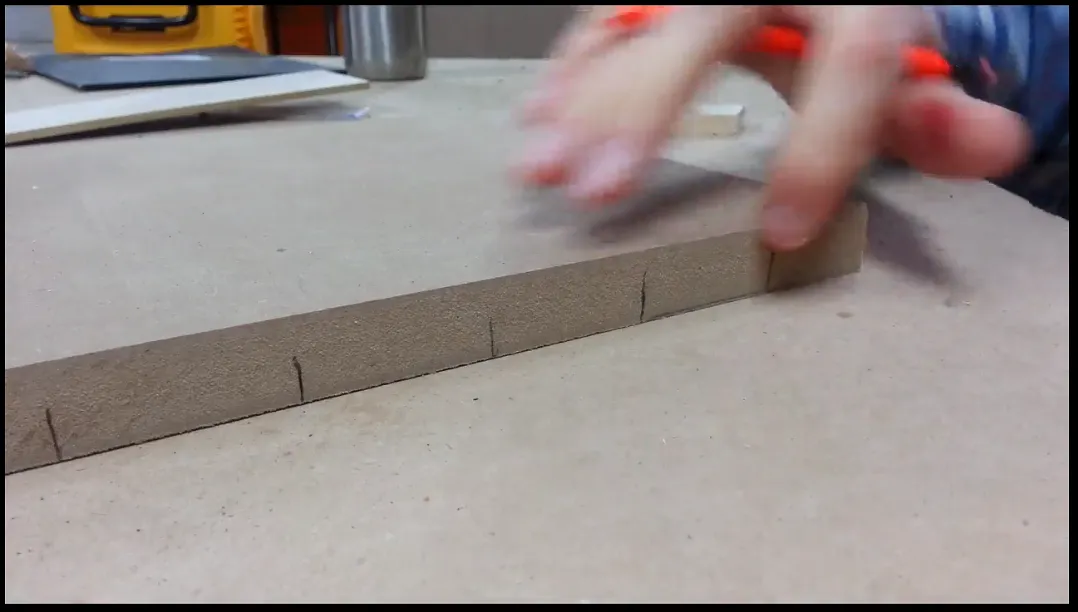

Use the spacer block to transfer evenly spaced lines onto your drill template.

Draw a centerline through the entire drill template intersecting with the lines drawn on the spacerblock.

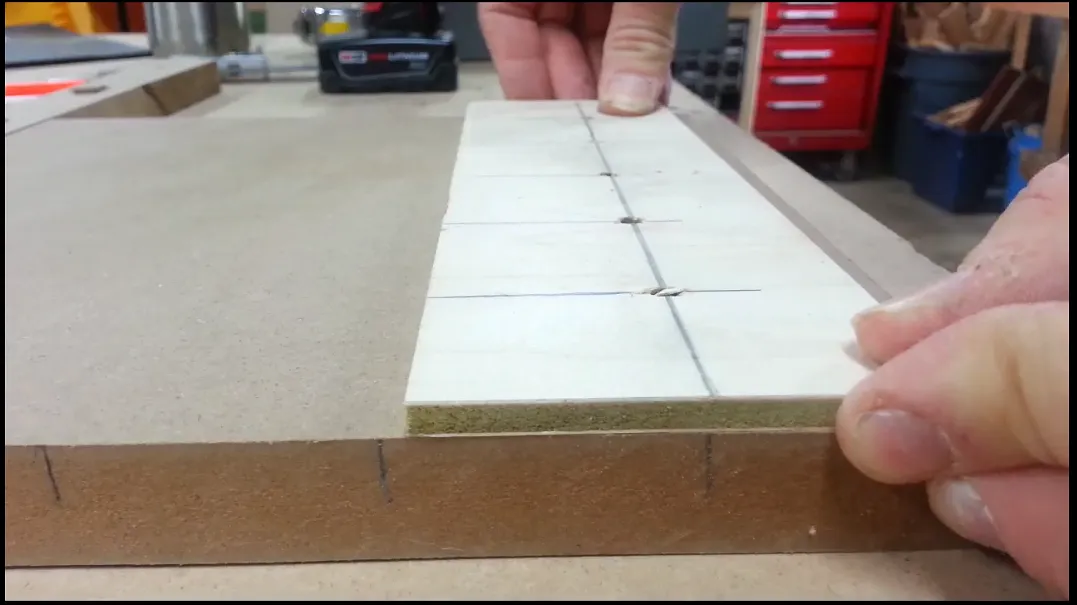

Repeat the process for your y-axis, transferring the lines instead to both the y-axis sides on the wasteboard.

Estimated time: 15 minutes

5

Drilling the Holes

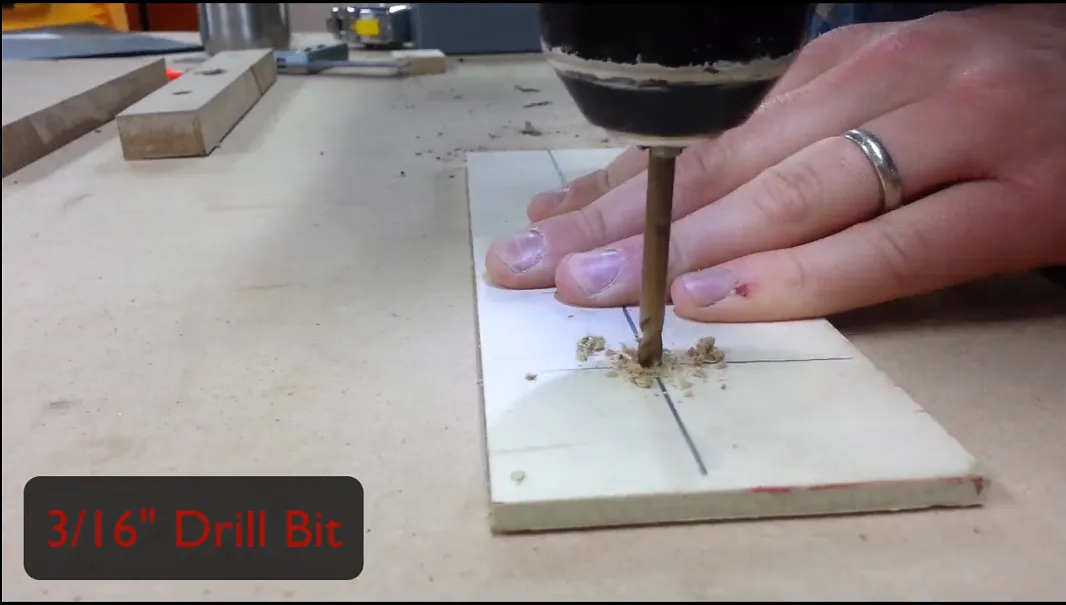

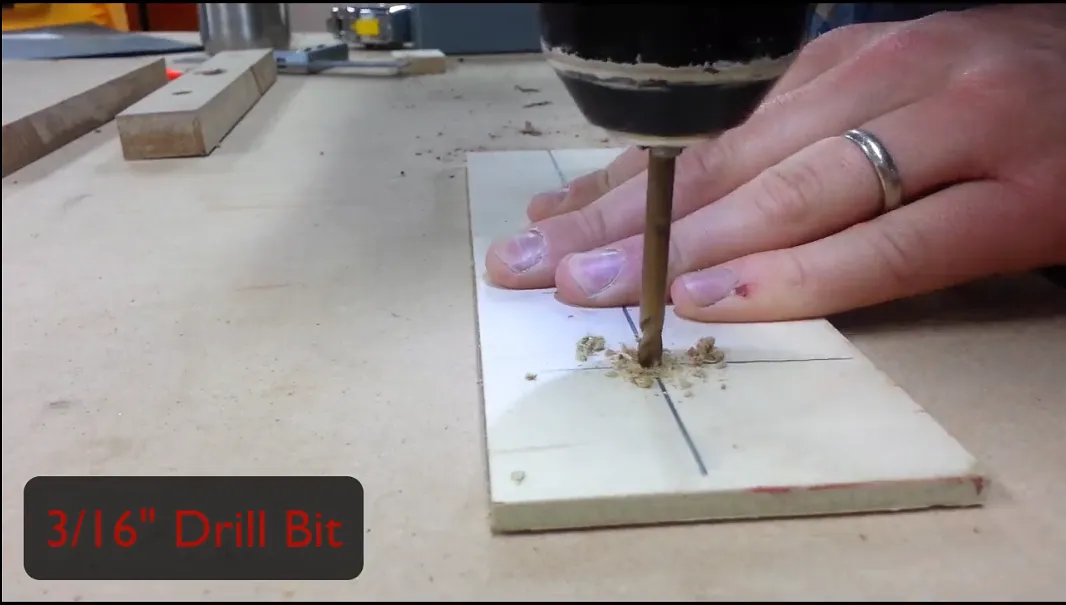

Using a 3/16" drill bit, drill holes at the intersecting points on the drill template.

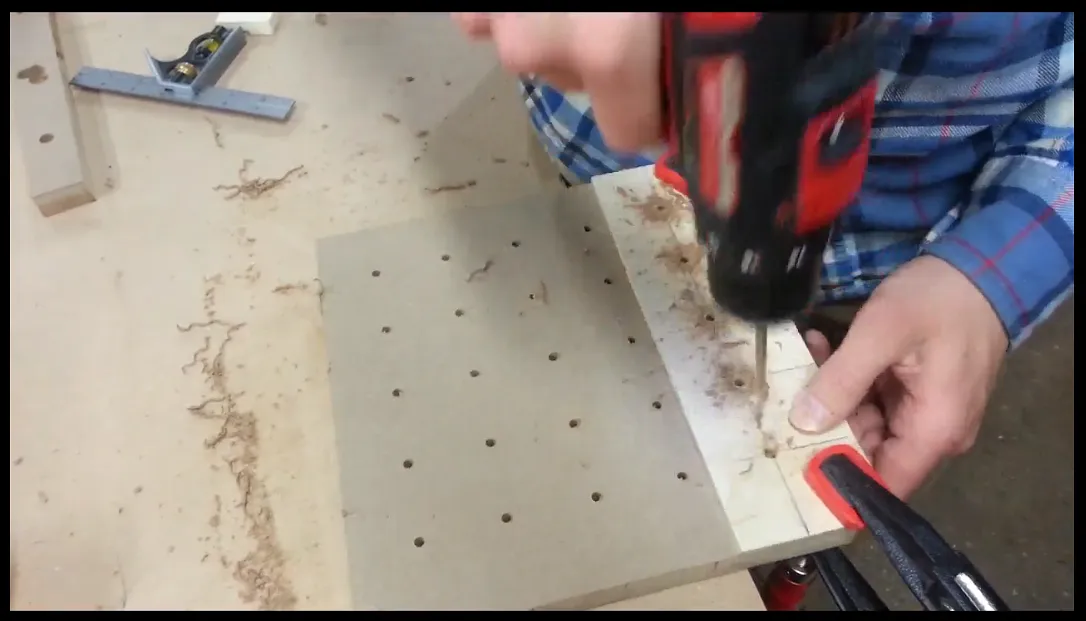

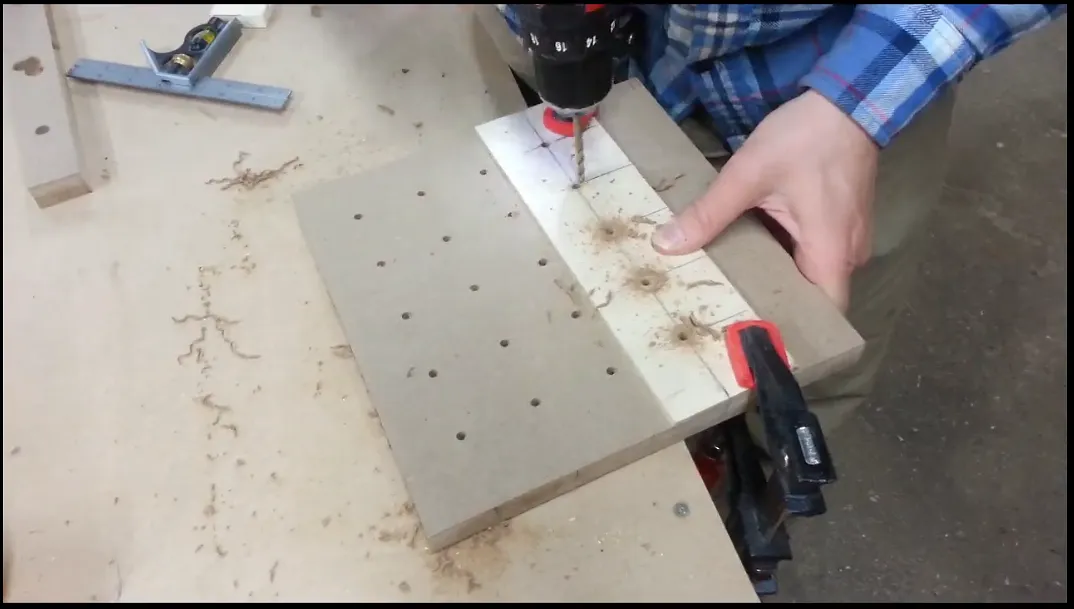

Clamp the drill template to the wasteboard being sure to alight the centerline on the drill template with lines drawn on both sides of the wasteboards y-axis.

Drill through the template holes all the way through the MDF.

Estimated time: 15 minutes

6

Countersink and Sand

Flip the wasteboard to the underside and use a countersink bit to countersink all the drilled holes, this will allow for the threaded inserts to sit flush or below the surface of the MDF.

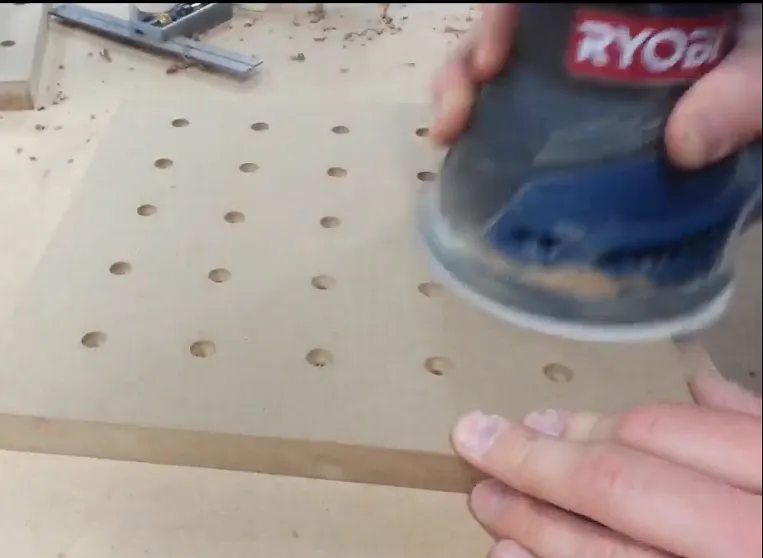

Sand both sides of the wasteboard with a low grit sandpaper and orbital sander to remove any tearout or burs insuring a flat surface.

Estimated time: 10 minutes

7

Threaded Inserts

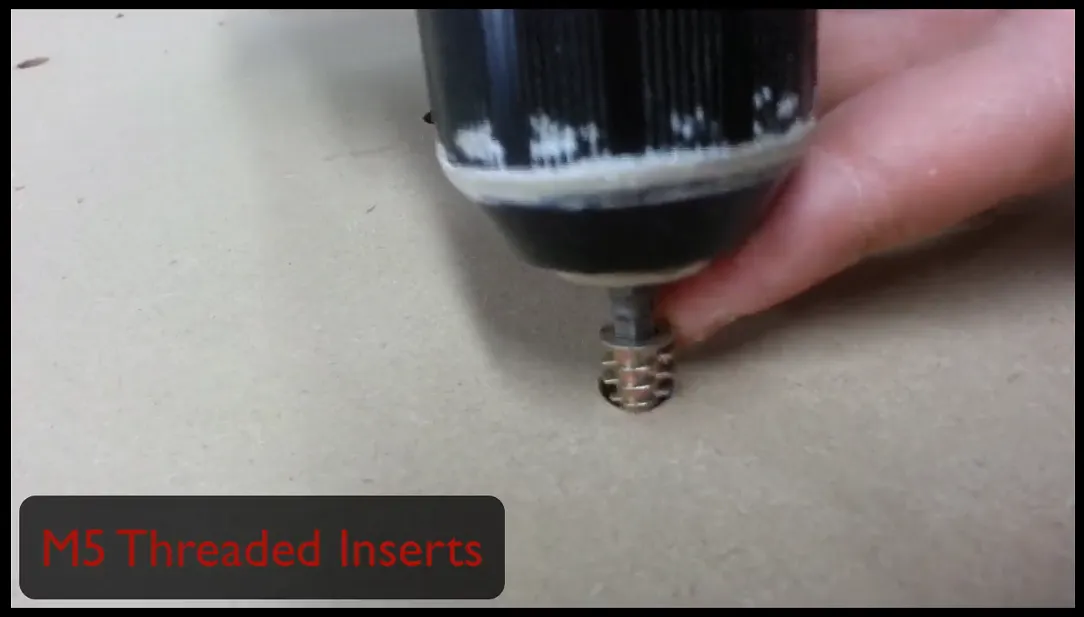

Add the threaded inserts to the underside of the wasteboard. Use a drill and not a driver as the threaded inserts are very soft and strip easily. Drill them until the heads are flush or below the surface.

Estimated time: 5 minutes

8

Installing to the machine,

Drill additional holes above the groves in your x and y rails. Add insertion nuts to the rails and bolt it to the machine.

Additionally I added 3" screws through the wasteboard and directly into the top of the workbench securing the machine to the bench.

9

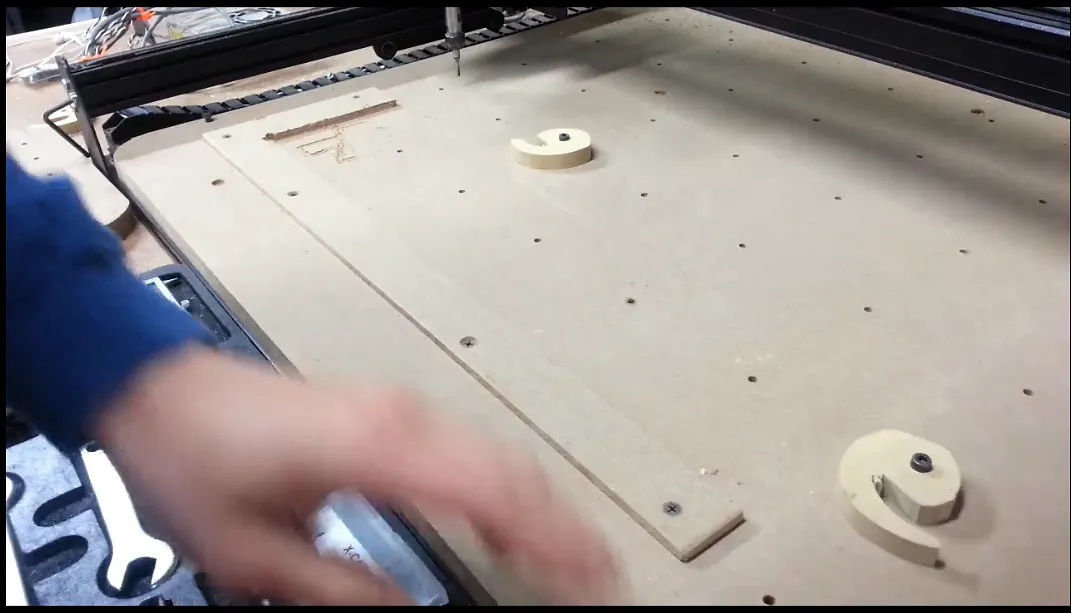

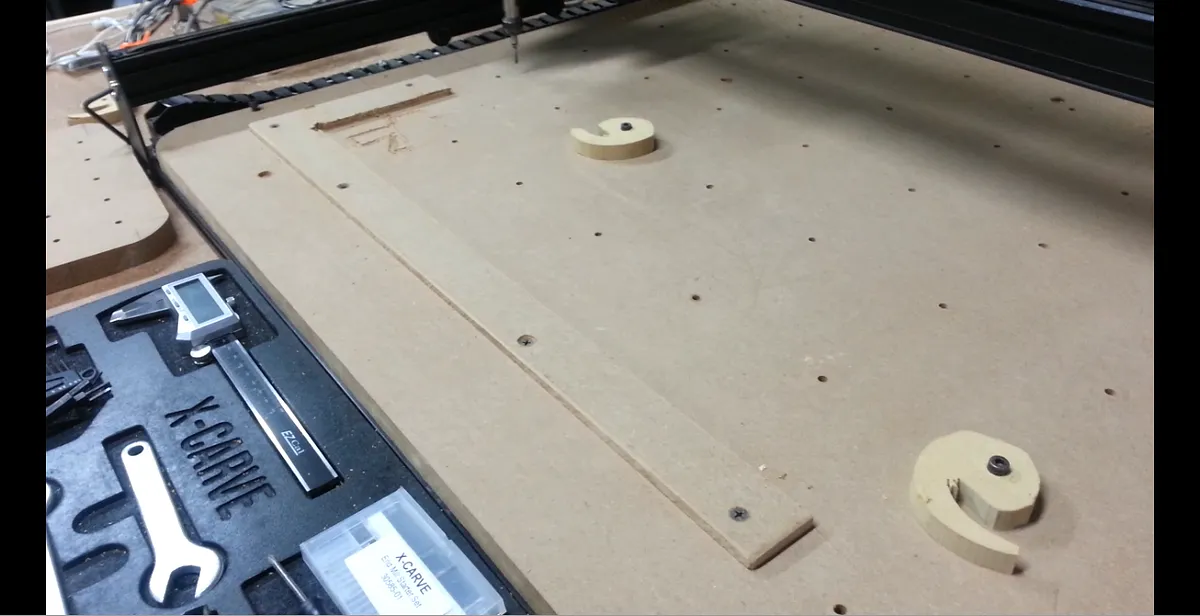

Add a bump stop, clamps and get carving!

Screw and 24"x 6"x 1/8" piece of MDF to the front left corner of the wasteboard. Run the attached easel file cutting through the 1/8" MDF completely giving you a 90 degree bump stop square to the machine.

Search through the projects section for great clamp projects. I have been using the spiral clamps as they seem to work really well!

Chris Rader

Hey what size countersink bit did you use? Also thanks for the guide! Really helpful for me!

Chris Rader

Justin C

Great guide Travis. I originally saw this on your YouTube channel, but am looking to build one for myself now. Looks like you need to update the parts list as the part number for the threaded inserts changed.

Justin C

TLG

Hello, How many of millimeters (measure French) equal MDF 3/4" ? Thanks you very much

TLG

Theo Retos

Do you mean you had Pre Assembly T-Slot nuts left over? I don't understand how you could drill the insertion nuts into the rails. Thx.

Theo Retos

Jeff Taylor

@TLG https://www.google.com/#q=.75+inches+to+mm

Jeff Taylor

Jeff Taylor

I think the bill of materials is completely off on this project. Those lengths of socket head cap screws would not be useful at all on the X-Carve. M5 button head 20mm length would be appropriate to attach the MDF to the rails. And you'll need a bunch of M5 T-slot nuts; 12 or so.

Jeff Taylor

MICHAEL ILLINGBY

I have to ask, Why did you drill the holes by hand? Why not have the CNC Drill/cut them? Gotta know, sure you have a reason I just can't figure out WHAT it could be.

MICHAEL ILLINGBY

don merrifield

What is the size of the wasteboard for a 1000 x carve

don merrifield
