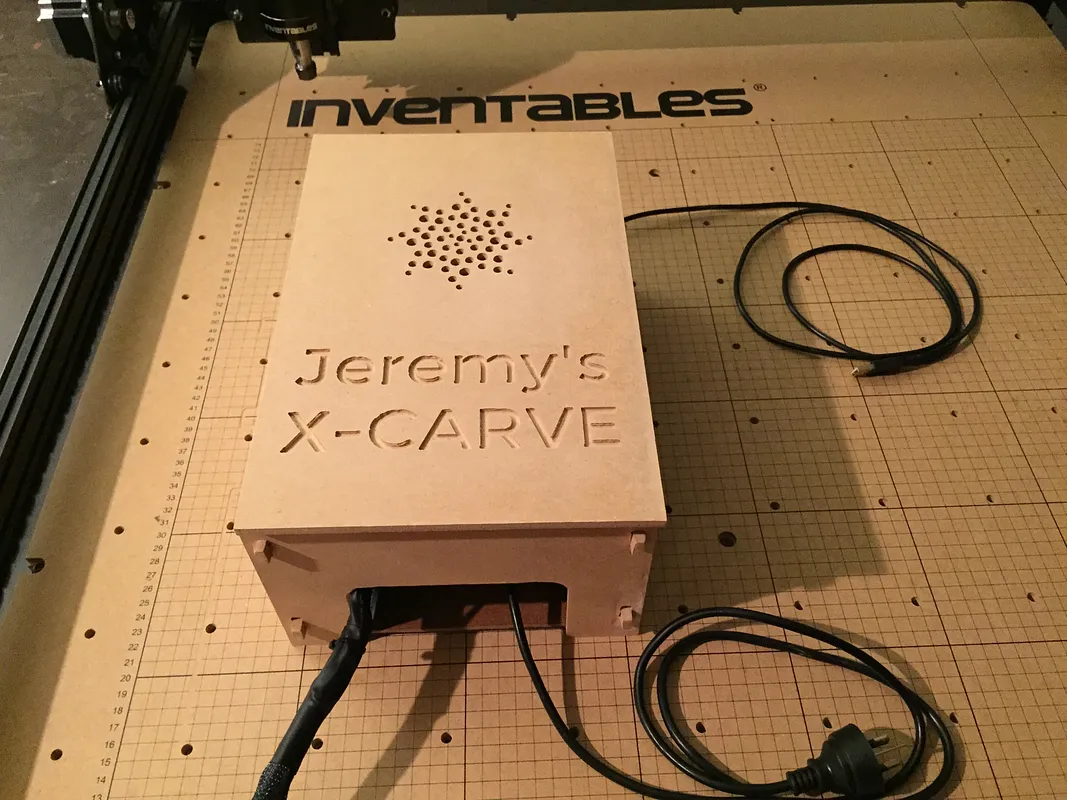

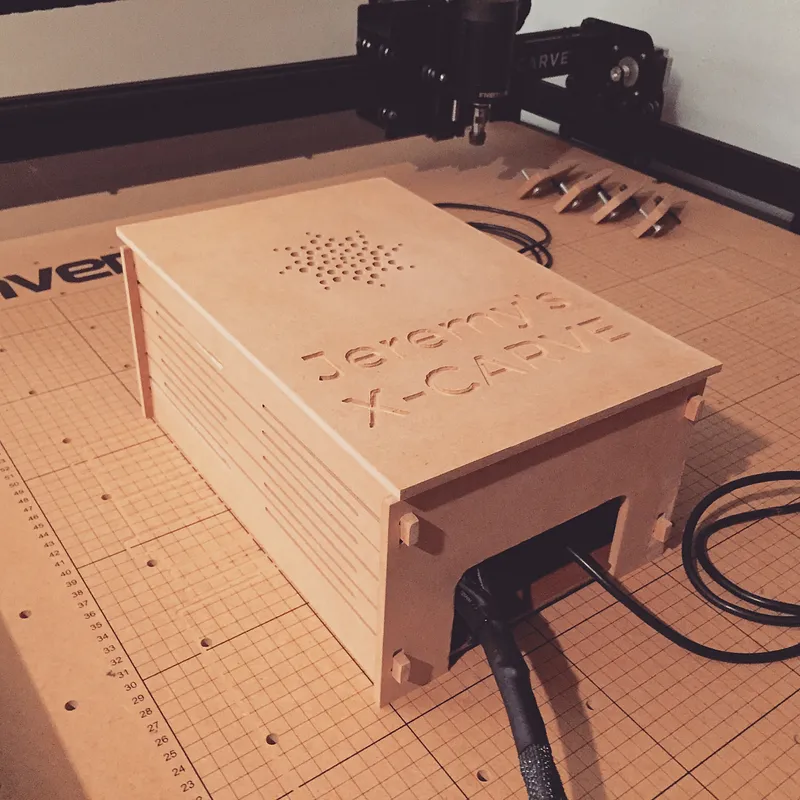

Spring Joint Box Electronics Enclosure

Spring Joint Box Electronics Enclosure - image 3

Spring Joint Box Electronics Enclosure - image 4

Jeremy Richards

Published May 20, 2015

Favorite Preview

Description

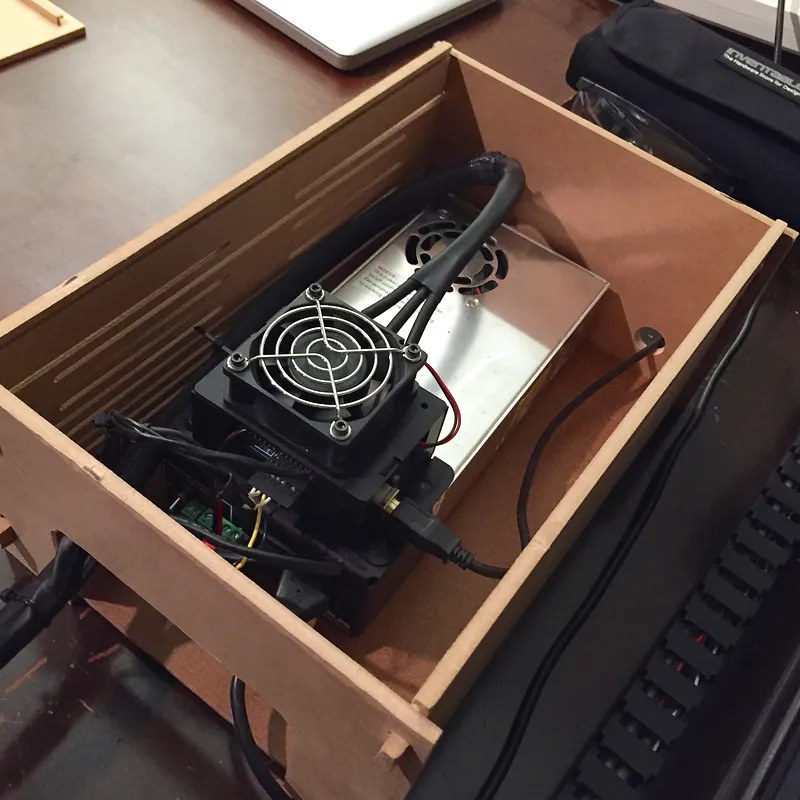

Here is a spring joint box that I made to be an enclosure for the X-Carve electronics. There are two files to cut. The first is a file that cuts most of the slots, and the second is a file that cuts out the pieces.

105 Favorites

694 Views

12 Comments

206 Copies

Specs

Material: MDF

Instructions

Preparation

Please read the instructions and familiarize yourself with the attached files and the 2 Easel files and also the referenced Spring Joint Box link below:

This box is designed with a .125" bit in mind and a sheet of quarter inch MDF measuring 24" by 24" by .238" thick. Take some time to clamp this sheet down tightly and square to the X/Y axis.

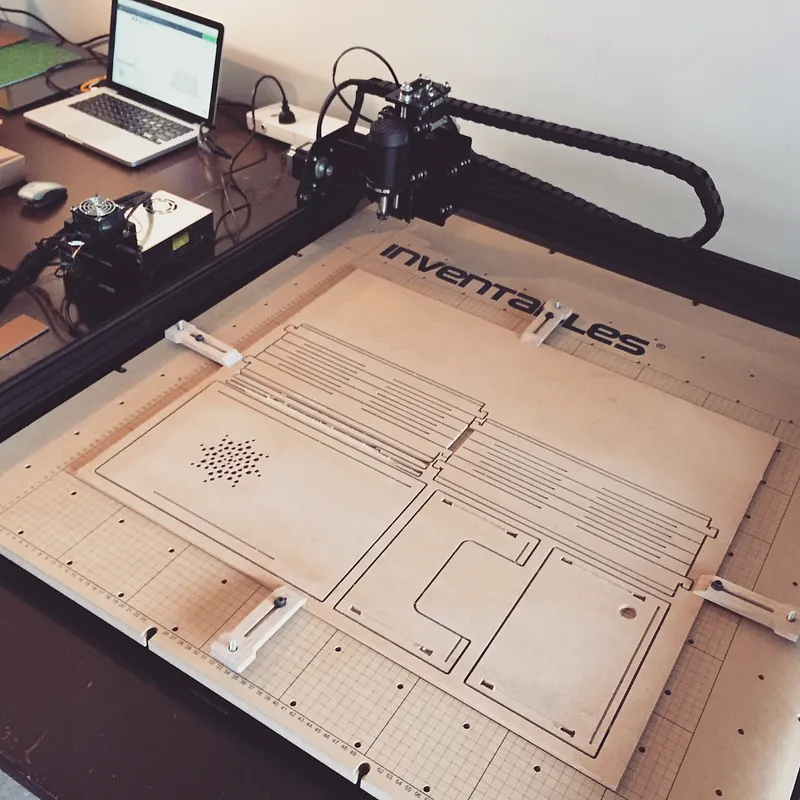

Cut the slots

Click the "Open in Easel" button above to open the first file for cutting. Step through the process of carving the material.

Cut out the pieces

Open the following link to the cut through file in Easel and step through the process of carving the material.

http://easel.inventables.com/projects/HPLSIniJf3MzcMrEkxilLA

Assembly

This step should be self explanatory, but just in case you need some extra guidance, follow this link to the instructions over at Popular Woodworking

Comments

Why are the cut out parts in a different file from the slots?

Paul Kaplan · May 26, 2015

Ah, because I wanted to control the order that they were cut in. They also overlap in some places and it worked best when doing them separately.

Jeremy Richards · May 26, 2015

Great project. I'm looking forward to making this when my X-Carve gets delivered next month.

Christopher McCoy · May 27, 2015

Thanks Christopher! Hope you like it. If you make this take some pics and post them as a remake.

Jeremy Richards · June 04, 2015

What type of wood did you use for the project the web links go to? I like the wood over the MDF cause I can stain the box after its all done

Jeffrey Zinger · July 13, 2015

Hi Jeffrey, I just cut mine with MDF. I would probably cut it out of a good plywood the next time. I'm not sure that Randy used in the links but maybe it is maple?

Jeremy Richards · July 13, 2015

I'm looking forward to making one soon! Thanks!!

Dark Diamond · October 16, 2015

Cut this last night. I like the design! I agree mdf may not be the best material, it might come together nice after I glue everything. I used 1/4" mdf and should have used a 1/4" bit or modified the design so it slides together better. Thanks for the project!

Daniel Potthast · January 23, 2016

Thanks Daniel! I eventually want to make one of these from hard wood and see how it goes. Post a remake if you get a chance so I can see some pics of your completed project. :) Hope it serves you well.

Jeremy Richards · January 23, 2016

I would like to make one for my X Carver but I have the middle carver. And the 24 x 24 MDF Board is to big. How can I do it in sections

Ralph Hilkowski Pro · January 20, 2020

Hi Ralph, when you press the blue "Open in Easel" button above, you should see all of the pieces... once you have them in Easel, you can just carve individual pieces by moving the piece you want to carve into the cutting area and the rest set to 0 depth of cut. Hope that helps.

Jeremy Richards · January 20, 2020

Yes Thank you
