Star Wars Silhouette Figures

77 likes
476 opens
207 copies
2 comments
Garin Gardiner

Project by

Garin Gardiner

General Information

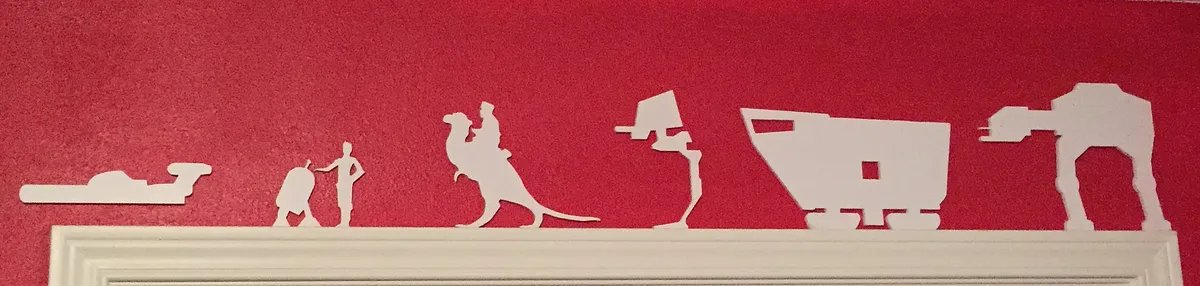

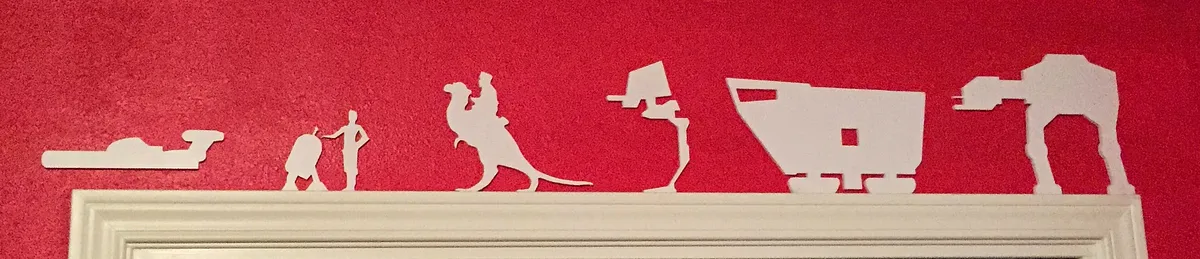

My son wanted to decorate his room with Star Wars goodies so we cut out a few silhouette figures to hang above his closet door. We found a few images to trace as vector art and saved them as SVG files we could import into Easel to cut out. It's an easy project once you have the design files

Like this project Easel logo Open in Easel®
1

Getting Started

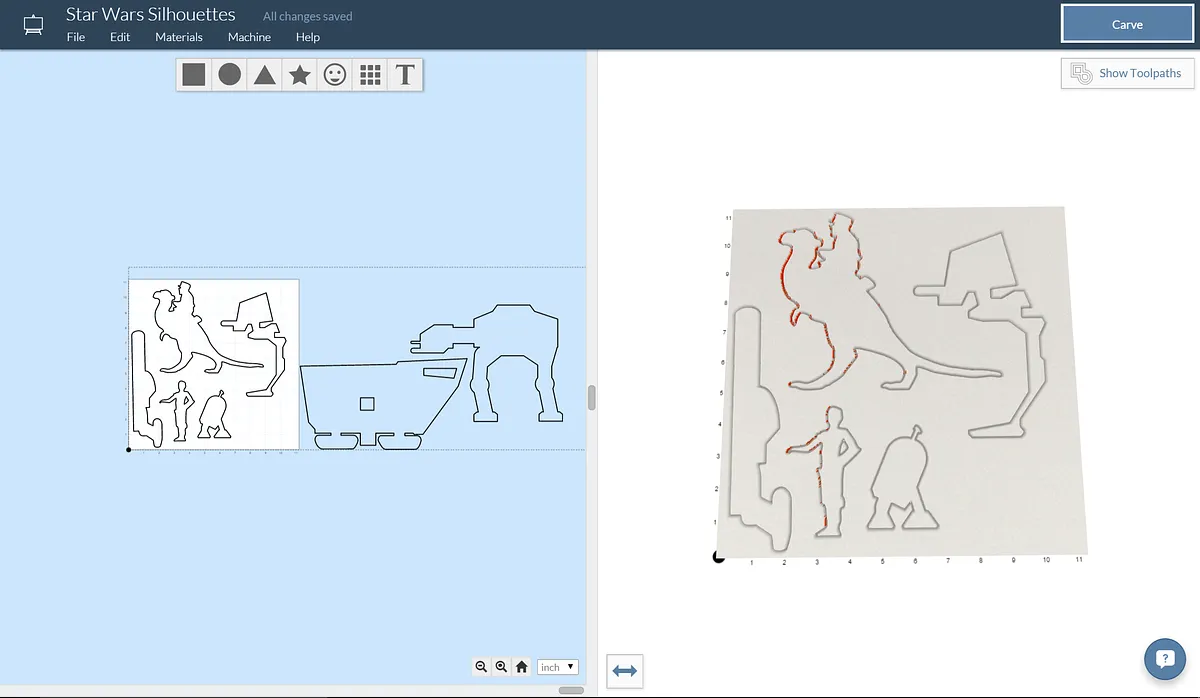

I have provided the Easel project you can open and use as well as SVG files you can import into your own project. Since there isn't a way to provide multiple Easel projects, I have made the material 3X longer so I could include all shapes in one project.

Open the Easel project and arrange the the shapes you want to cut out. Determine the material thickness you are using and make sure the depth is correct on each opject

Estimated time: 10 minutes

2

Set up Machine

Put your sheet in your machine and clamp it down. I have used glue, tape and clamps but have found my favorite way to hold down my material is with the "Work piece hold down":https://www.inventables.com/projects/work-piece-hold-down-clamps that Warren posted a bit ago.

Estimated time: 10 minutes

3

Cut Out Shapes

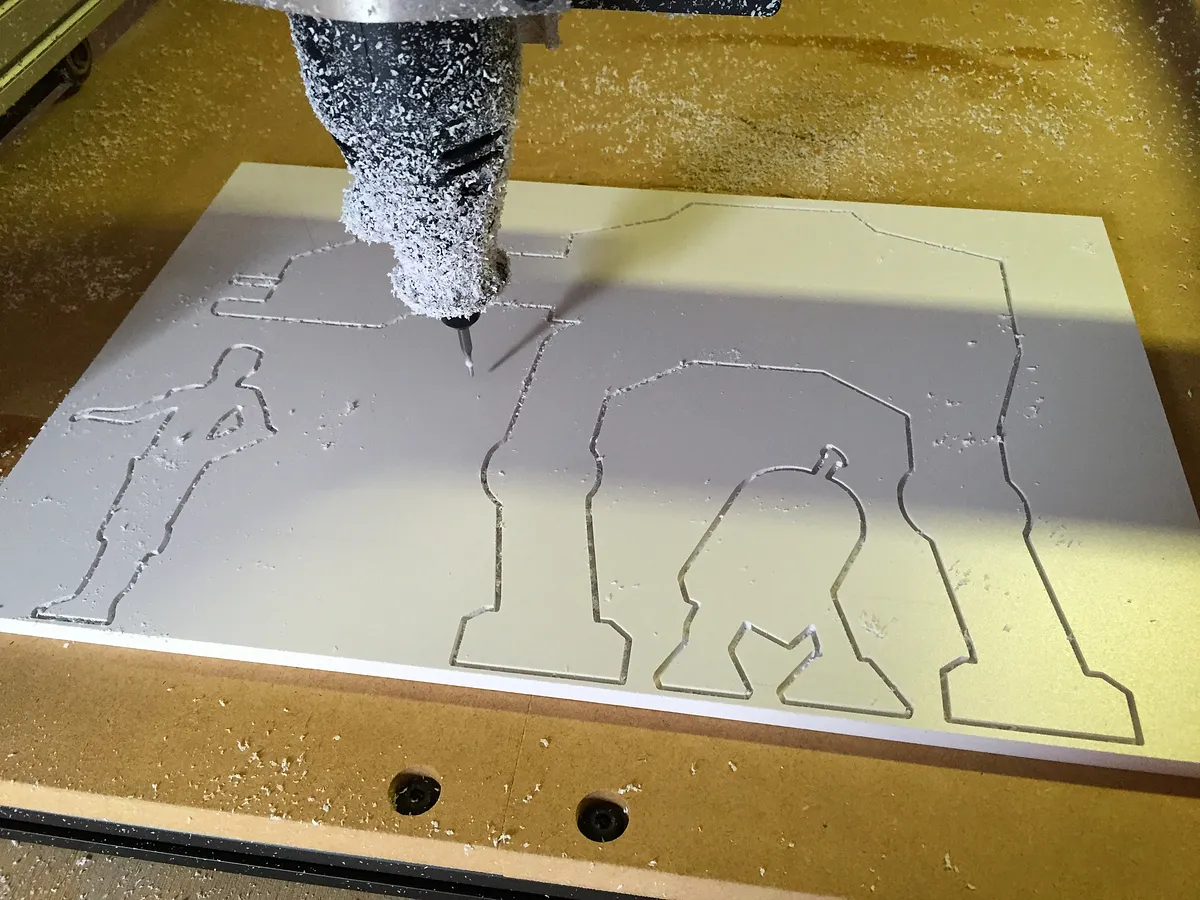

With your material properly held down, select "Carve" and let er rip!!!

Estimated time: 20 minutes

4

Remove Shapes

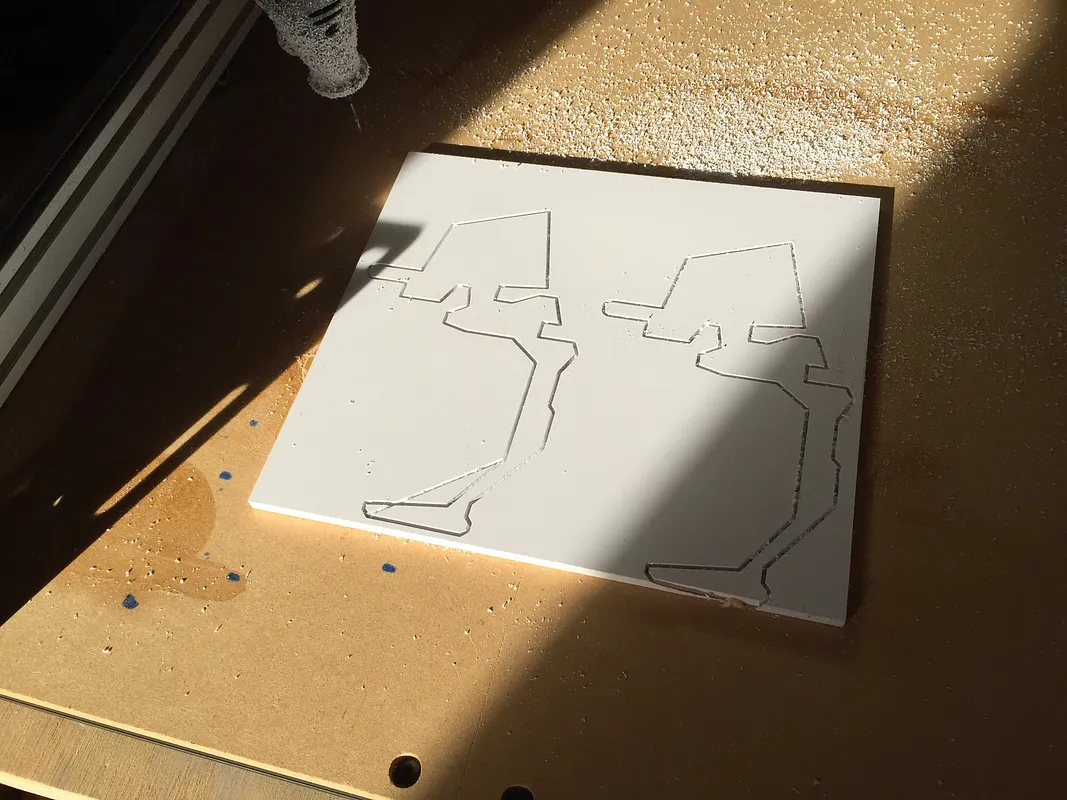

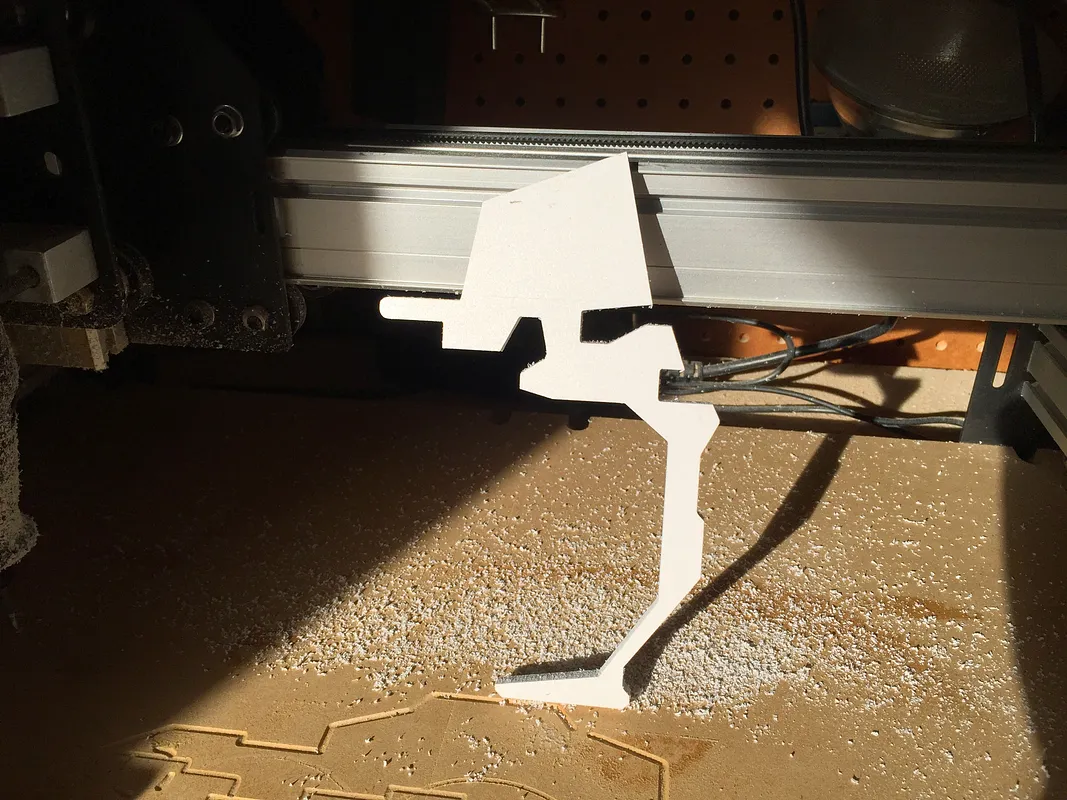

Remove the ABS sheet from your machine and cut the tabs to pop out each of the shapes. if necessary sand off burs from where the tabs were.

Estimated time: 20 minutes

5

Stick Em Up

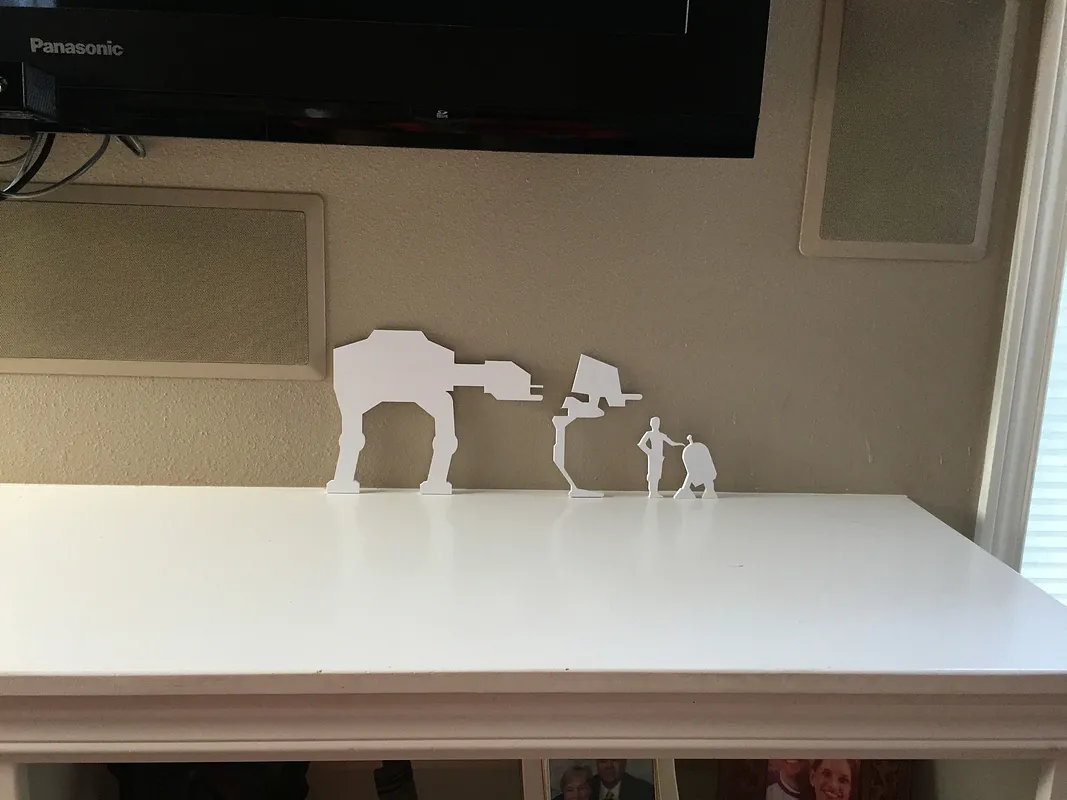

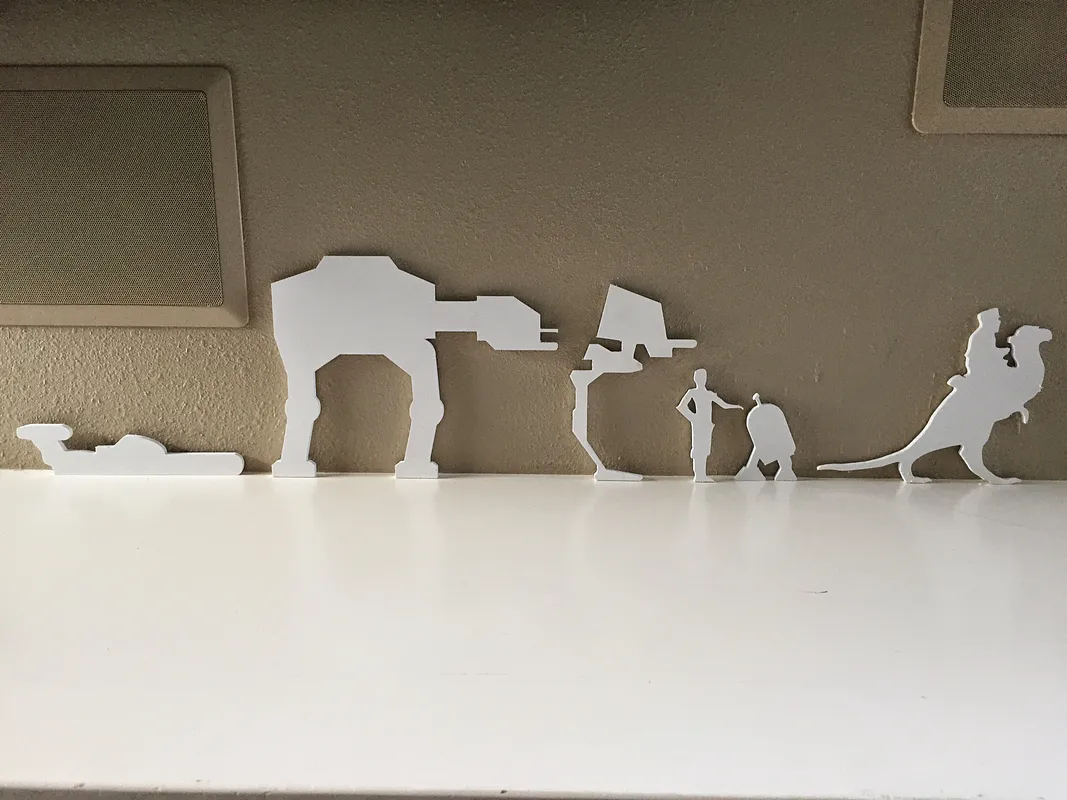

I grabbed some "3M Tape":http://www.amazon.com/3M-109-Wallsaver-Removable-Mounting/dp/B00004Z4BR and just put a piece or two on each shape and pressed them to the wall firmly.

Sit back and relive the glory days of Star Wars!!!
