Adding t-track clamps and bracket to X-Carve

199 likes
1066 opens
267 copies
25 comments
Evan and Katelyn

Project by

Evan and Katelyn

General Information

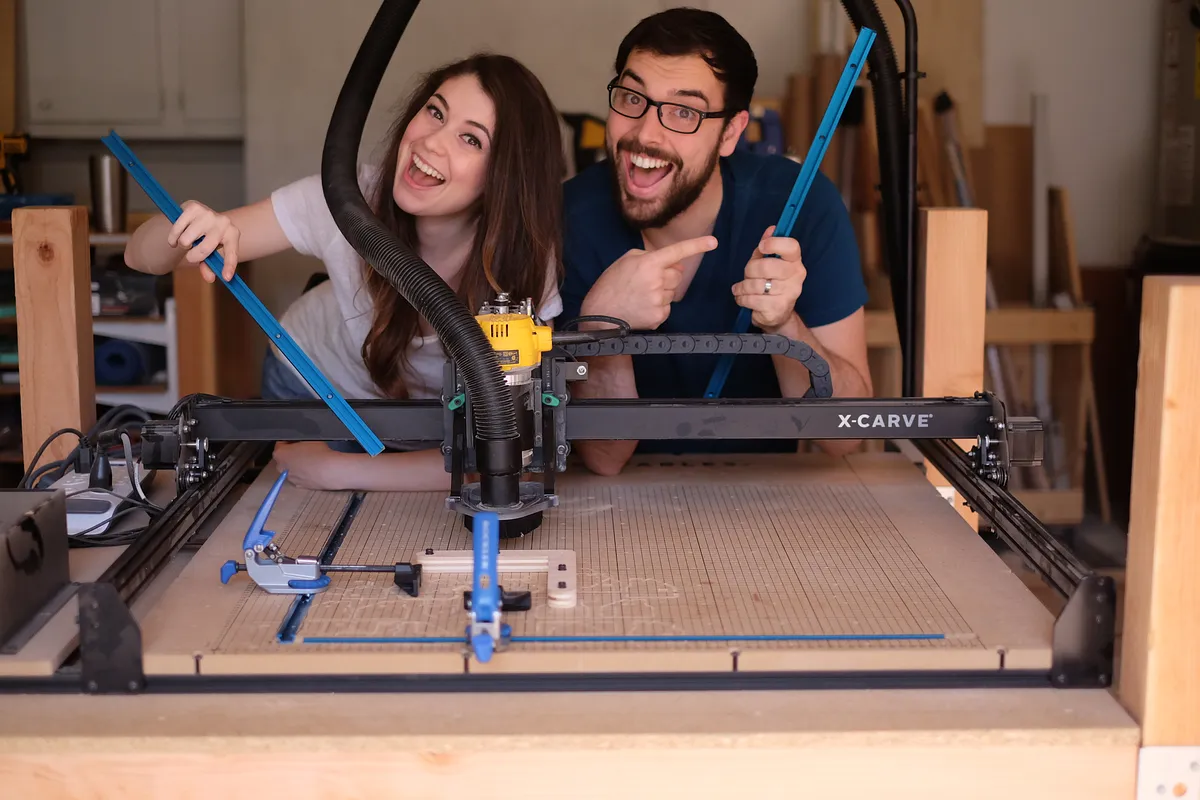

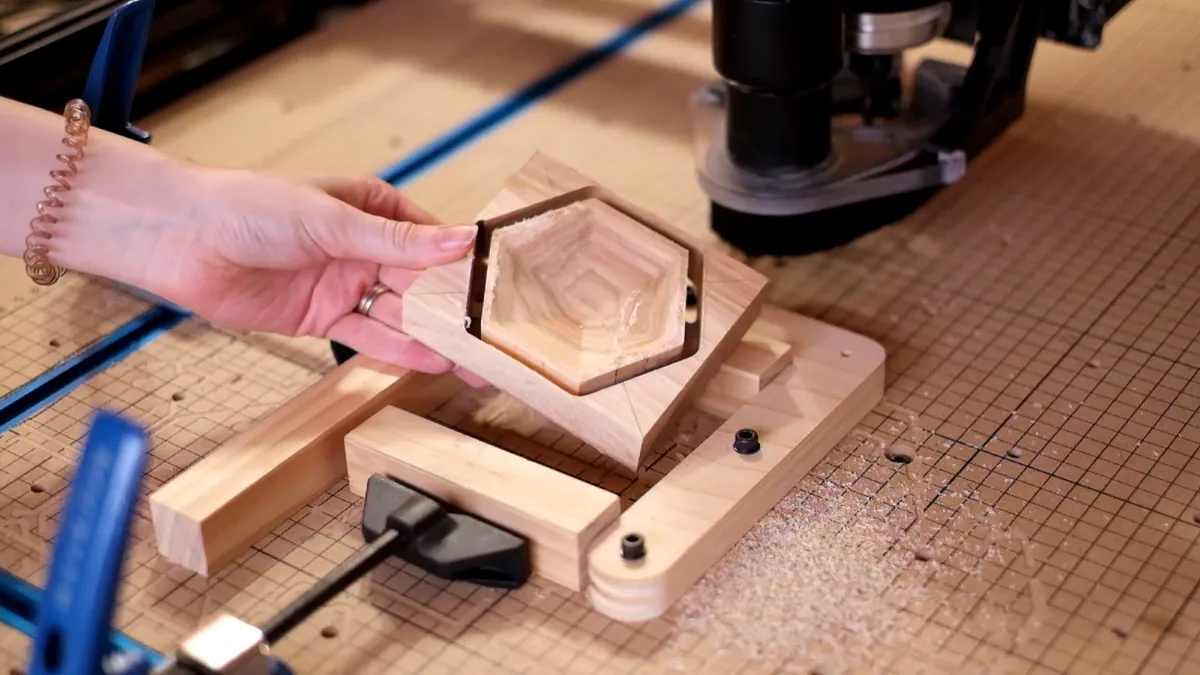

We added t-track clamps to our X-Carve to make it easier to clamp things, set jigs, and use less material. It helps us set up jigs which is great when we are making multiples of the same cut, but it also allows us to use less stock because it can clamp from the sides instead of the top.

Like this project Easel logo Open in Easel®
1

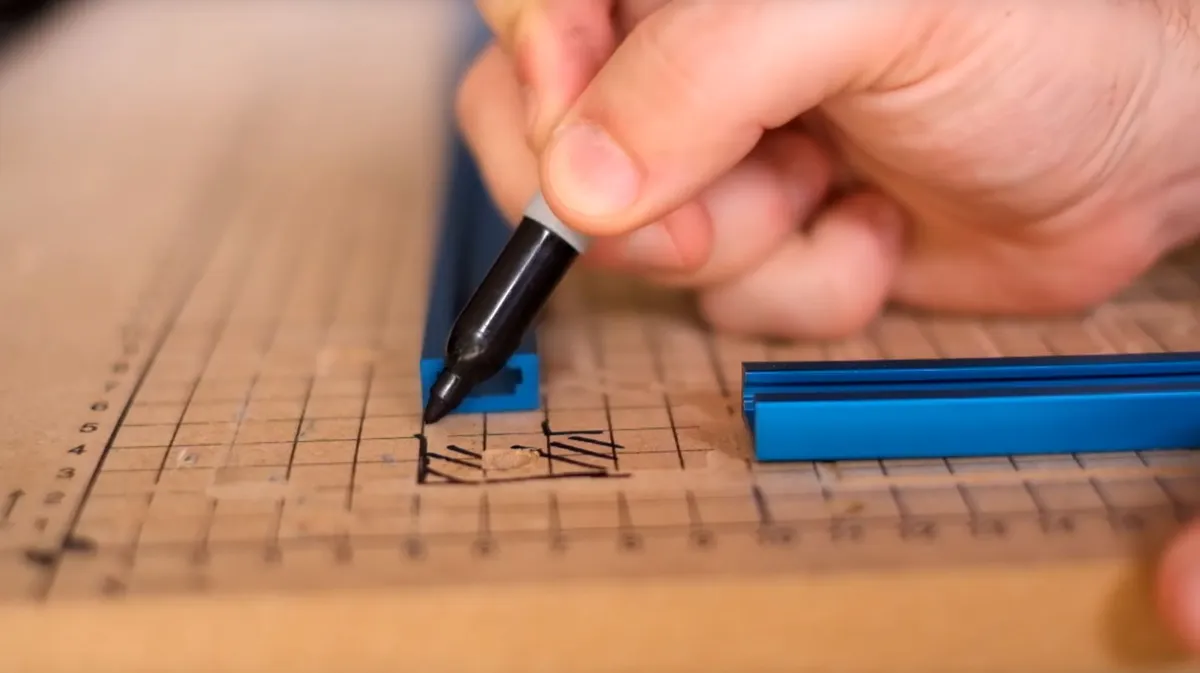

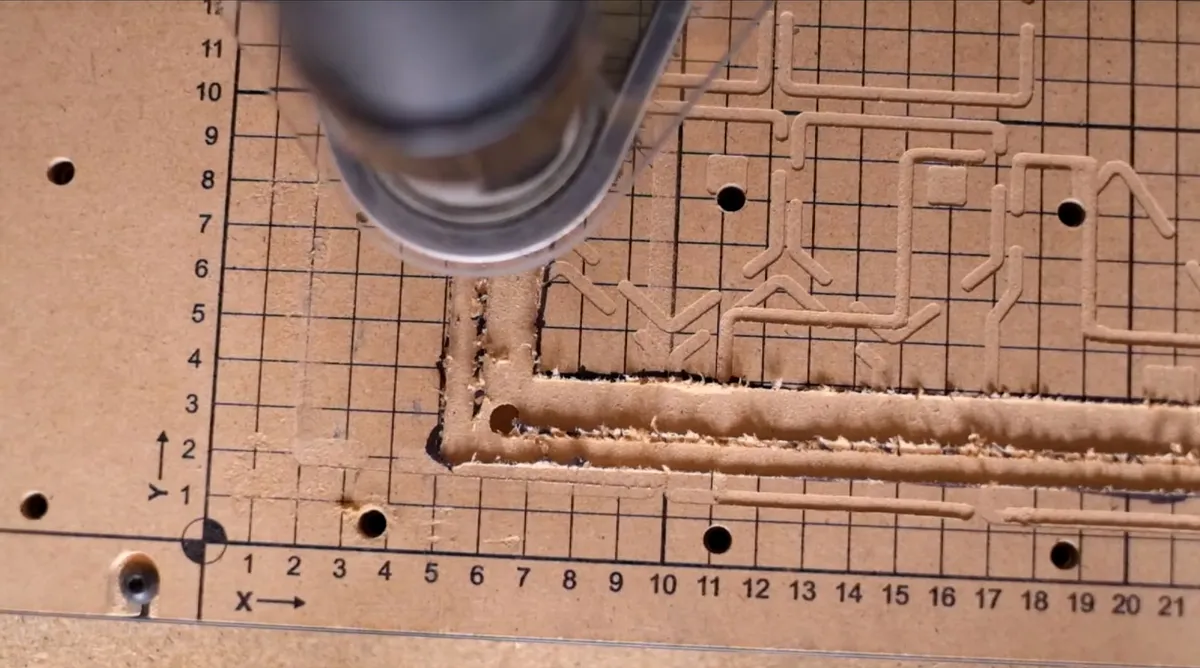

Carve into your wasteboard

We go into more detail in our YouTube video (see above) but we chose for the t-track to start at 5 cm in the X direction and 2 cm in the Y direction and that's what our file is setup to cut. We used a "1/4 in flat endmill":https://amzn.to/2GL4mbP to cut into the waste-board.

Estimated time: 60 minutes

2

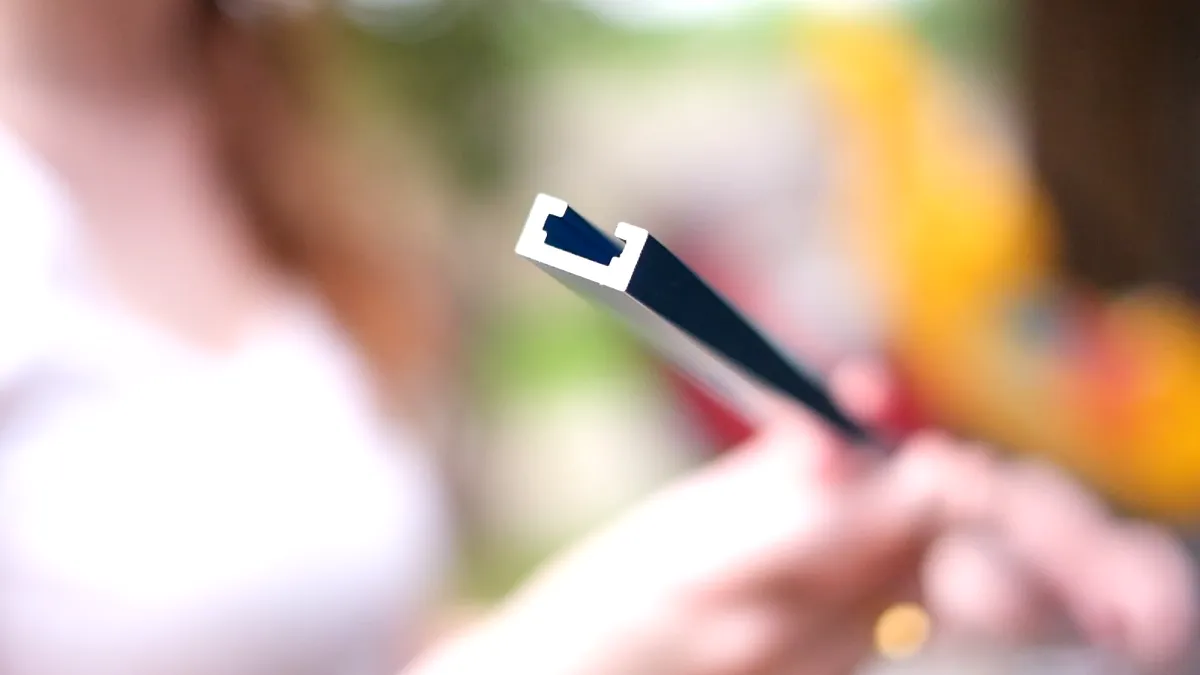

Cut t-track to length

We cut the x axis track to 25.25". We cut the y-axis track to 26.25".

Estimated time: 5 minutes

3

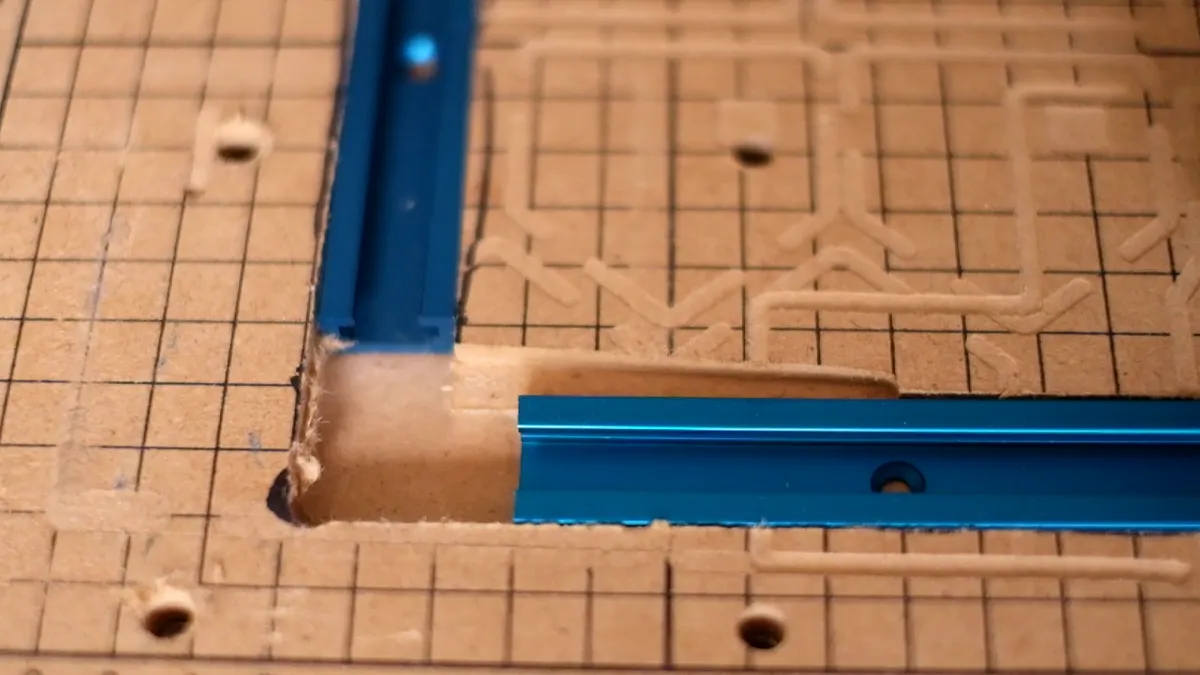

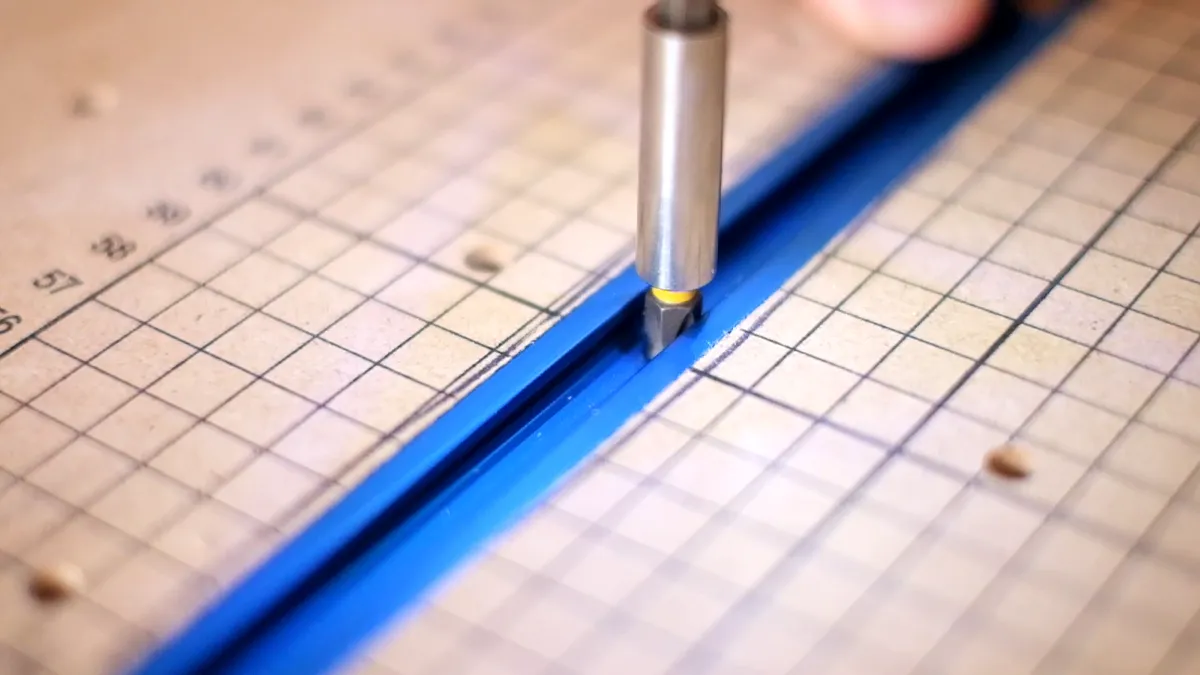

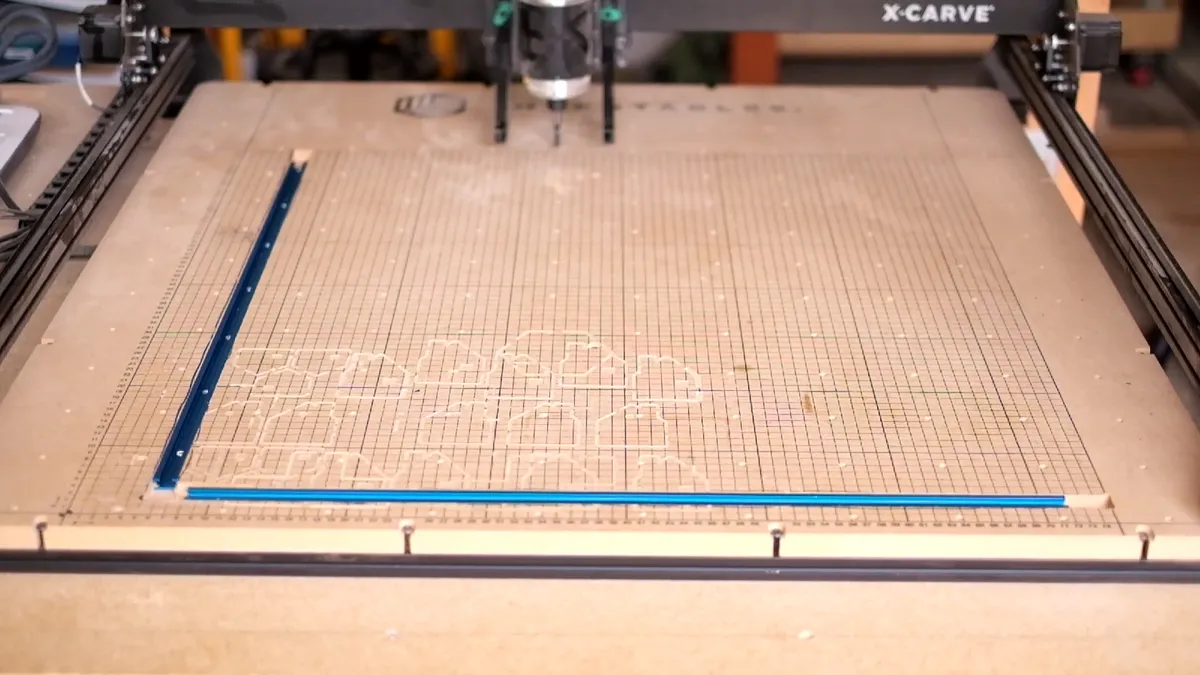

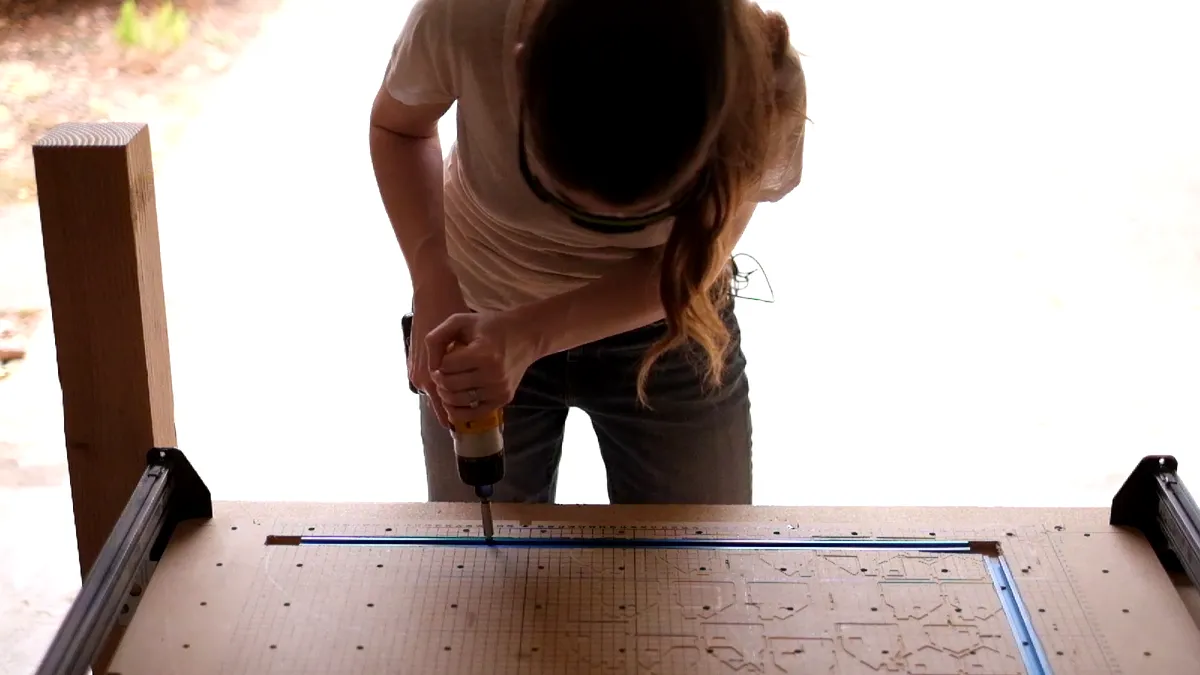

Install t-track

We centered the track into the cut we made, leaving enough room to install the clamps.

Estimated time: 5 minutes

4

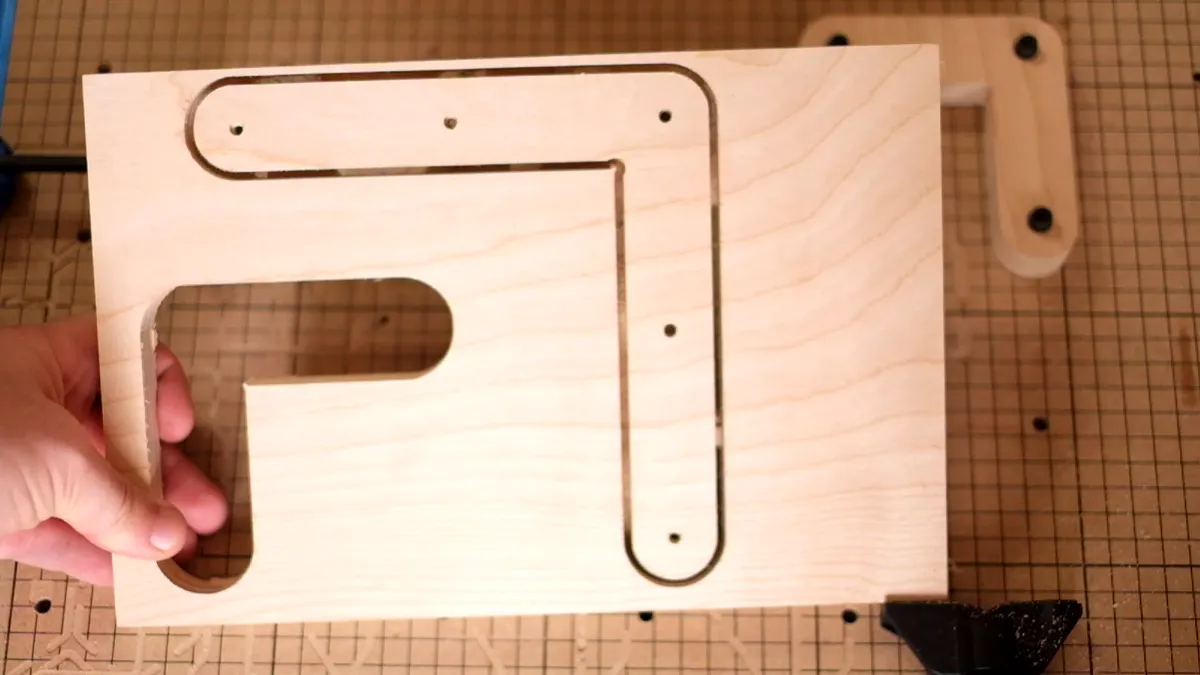

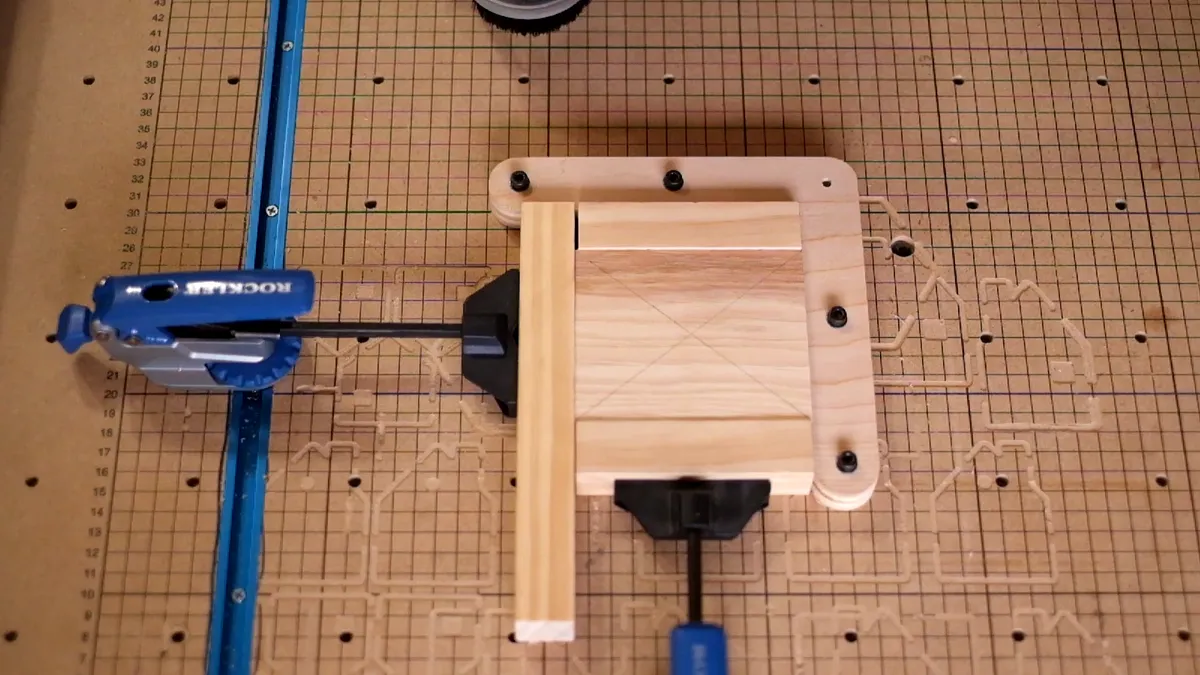

Cut brackets and enjoy your new clamping system!

We've designed a few brackets that you can use for right angles: "Small":https://goo.gl/w5Urp9 "Medium":https://goo.gl/nkRM2R

But clamps for all sorts of shapes should be pretty easy to design!

Estimated time: 15 minutes

Kenny Freeman

The links to the right angle brackets don't work.

Kenny Freeman

Evan and Katelyn

Thanks for the heads up! They should be fixed now :)

Evan and Katelyn

Matt Slaga

I was trying to figure out what kind of T-Track and clamps you used, and found it after a little research. It appears to be Rockler tracks and Auto-Lock T-Track Clamp. Figured I would post the comment for anyone else looking. Great concept, how have you found it working for you over time?

Matt Slaga

Matt Slaga

Video was great too, thanks for posting!

Matt Slaga

Evan and Katelyn

Thanks Matt! Yes we have them linked in our video description but should have linked them here too, thanks for doing that. Glad you liked the video!

Evan and Katelyn

Kristian Ang

Great video How did you carv the nice bowl Kristian /Sweden

Kristian Ang

Evan and Katelyn

We'll try to do a video on the bowl someday :)

Evan and Katelyn

Craig Baltzer

how do you set up to do an air run?

Craig Baltzer

Evan and Katelyn

To do an air run just set the z zero height to be above your work

Evan and Katelyn

Josh Coxwell

do you have a file for the rocker t track as well?

Josh Coxwell

Michael Hopfensperger

Hey guys, I've tried to find the info but failed so far. What size X Carve do you have? I have the 750mm one.. will your design work with it? Thank you so much for any help.

Michael Hopfensperger

D Devine

Overview and instructions for your entire waste board would be awesome. I would love to make something like this for mine. Seems like it would make setup way easier and more efficient. Thanks guys. Sincerely, Devine (thingiverse)

D Devine

Nickolas Jones

Awesome bracket system. I'm getting my first CNC Router (X-Carve) today, and will look at making this modification to it as soon as possible. Thank you.

Nickolas Jones

Don Lamb

It looks like from the video, you have a 750 x 750 mm. If I am doing the math correctly, the amount of room you are allowing from the edges should not have to change with a 1000x1000. From the video, the right side measurement should be 30 mm and the left side should be 80 mm. next text ...

Don Lamb

Don Lamb

The measurement of the track for 1000x1000 should be 989 mm. Is that correct?

Don Lamb

Don Lamb

Or 38 15/16th

Don Lamb

Don Lamb

Ok. my flaw is that the channel should be at this measurement not the channel length, since there is the opening for the clamp to slide in . Sorry for the confusion

Don Lamb

Jon Dunsmore

This is AWESOME! Ordering my track clamps soon and definitely doing this. It will be such a huge improvement in productivity! Thanks!

Jon Dunsmore

Jeffrey Eubanks

Are you loosing any carving foot print area with this

Jeffrey Eubanks

Rich-Marc

Good morning. Can you tell me how you did the air run first to make sure everything was square and straight? Thanks in advance.

Rich-Marc

sandra hojjati

Hi .the only thing i enjoyed in this video was that you guys were happy and working together. wishing the best for you .

sandra hojjati

Lester Robertson

I have the 2 inch riser upgrade, how do I get the machine to cut into the waste board? with the bits at their correct insertion depth, the tip of the tool will sit just above the waste board at the lowest possible z axis location.

Lester Robertson

Brian Baakman

What are the cut settings for the 1/4" flat endmill bit?

Brian Baakman

Neil Manders

great idea. Now all I have to do is convince my makerspace to let me add tack their machine.

Neil Manders

Kristian Ang

Where did U buy the clamps. I can´t find them here in Sweden Kristian

Kristian Ang
