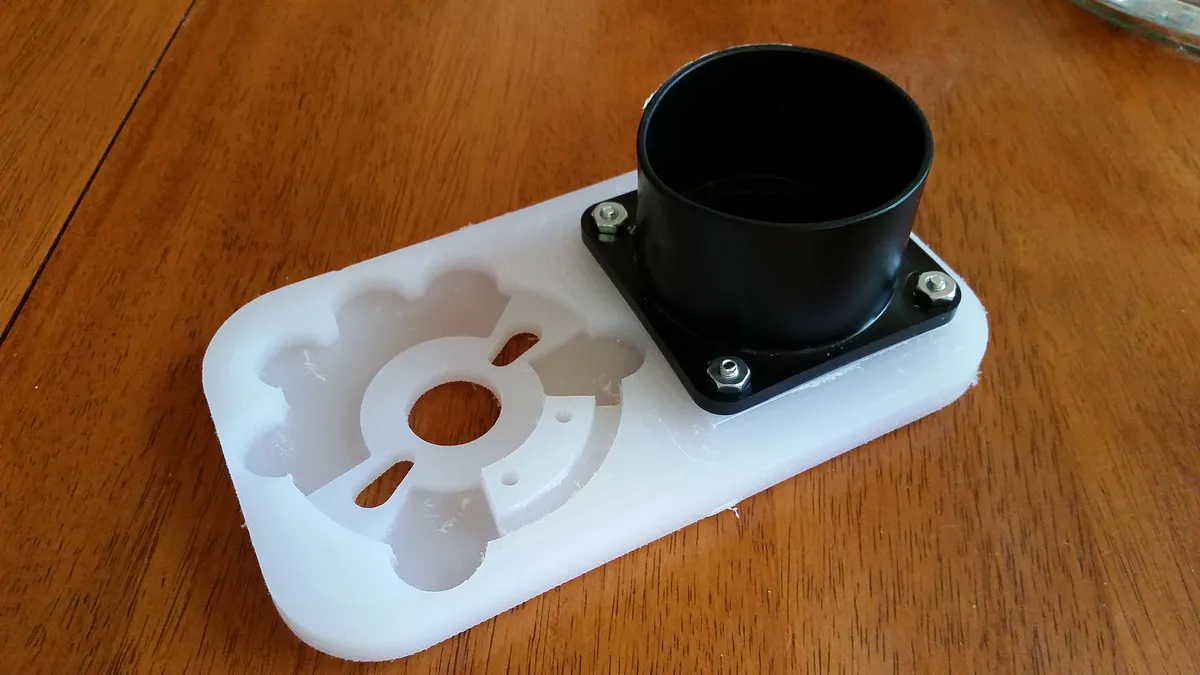

Air diverter and dust shoe for Dewalt 611. I carved this out of a 1/2" thick plastic cutting board. The carve took about 3 hours with a 1/8" bit. The vacuum adapter is a Rigid Universal Tool Adapter VT1407 available at Home Depot.

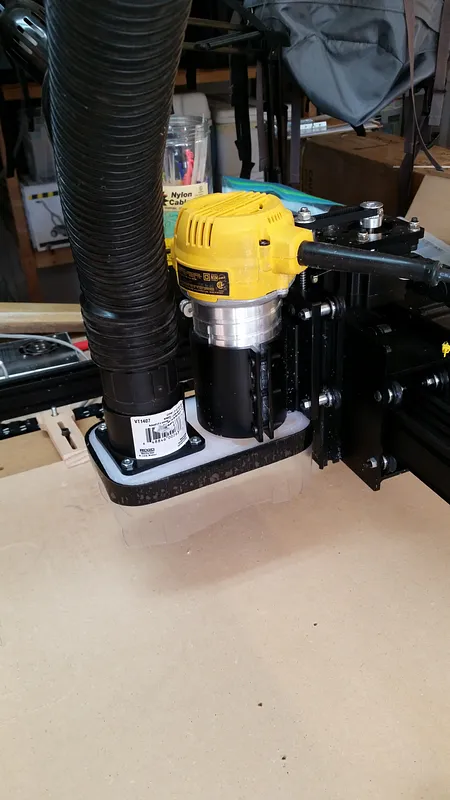

Velcro strip. The velcro has an adhesive back. The velcro is 3/4" wide so it hangs below the skirt about 1/4". Helps to keep the clear vinyl from getting ducked up in the vacuum too.
I tried this and it cut clear through and never did the air diverter part. I selected all and clicked "carve". Not sure where I went wrong. I was using a 1/8" bit like you said and the material was 1/2". Hmmmmmm....... help! :)
Mason, notice the 2 screw holes in the indention of the shoe, 2 screws come in the 611 that hold the side button in on the router. You remove those, attach the shoe in the obvious fit and stick the screws back in through the shoe first then up into the router and screw em in.
Hey trying to cut this and the last couple of percent went psycho. Can you explain what happened. It was at just over three hours when it happened. The spot marked one was about an eighth off and the vacuum hose cutout was way off. Everything was fine until then.
question..... did dewalt redesign the 611 because i will have to buy longer screws to make this work? where the boot mounts to the router its too thick to use standard oem screws
Made this yesterday from Cherry - Not recommended. Ordered an HDPE sheet today to remake this next weekend. Is the mounting secure enough, just using those two screws? Seems like a lot of tension will be focused on that one area.
A suggestion for the design: if you superimpose a zero-depth circle inside the cut-out where the vacuum adapter attaches, the X-Carve won't spend the extra time carving that area down, only to cut it out entirely later in the carve.
Comments
Looks great.
Alan Davis · September 05, 2015
How did you attach your dust skirt?
James Mitchell · September 06, 2015
Velcro strip. The velcro has an adhesive back. The velcro is 3/4" wide so it hangs below the skirt about 1/4". Helps to keep the clear vinyl from getting ducked up in the vacuum too.
Taylor Ledak · September 06, 2015
Totally made one of these from 1/2 plywood.... I don't recommend it lol
Bryan Sheets · September 10, 2015
I tried this and it cut clear through and never did the air diverter part. I selected all and clicked "carve". Not sure where I went wrong. I was using a 1/8" bit like you said and the material was 1/2". Hmmmmmm....... help! :)
Matthew Jamison · September 17, 2015
How does this attach to the spindle?
Mason TejeraPro · November 06, 2015
Mason, notice the 2 screw holes in the indention of the shoe, 2 screws come in the 611 that hold the side button in on the router. You remove those, attach the shoe in the obvious fit and stick the screws back in through the shoe first then up into the router and screw em in.
Matt Young · March 03, 2016
Hey trying to cut this and the last couple of percent went psycho. Can you explain what happened. It was at just over three hours when it happened. The spot marked one was about an eighth off and the vacuum hose cutout was way off. Everything was fine until then.
John Isbell · March 04, 2016
Thanks so much easy to made in mdf not sure if it will be strong enough to last. But as a prototype it should last more than 5 min :) Cheers
Neil Berkeley · May 22, 2016
question..... did dewalt redesign the 611 because i will have to buy longer screws to make this work? where the boot mounts to the router its too thick to use standard oem screws
Neil Berkeley · May 23, 2016
I ended up replacing the spindle screws with #2 wood screws. Worked well.
Ken Bradshaw · September 27, 2016
I cut this last night from hard maple and it came out great! Thanks for posting this. Pictures to follow.
Rob Deckert · November 21, 2016
Made this yesterday from Cherry - Not recommended. Ordered an HDPE sheet today to remake this next weekend. Is the mounting secure enough, just using those two screws? Seems like a lot of tension will be focused on that one area.
David · December 27, 2016
A suggestion for the design: if you superimpose a zero-depth circle inside the cut-out where the vacuum adapter attaches, the X-Carve won't spend the extra time carving that area down, only to cut it out entirely later in the carve.
Christopher Finke · January 14, 2017
Does anyone have a source for buying the dust skirt?
David E Yoder · April 21, 2018
You got an STL for this?
Adam Haile · December 03, 2018
Also looking for a link to the dust skirt for this build. Let me know if you have one!
Cameron Balch · July 31, 2019
