General Information

Rep Chi AND stop losing your keys

Like this project Easel logo Open in Easel®
1

Designing

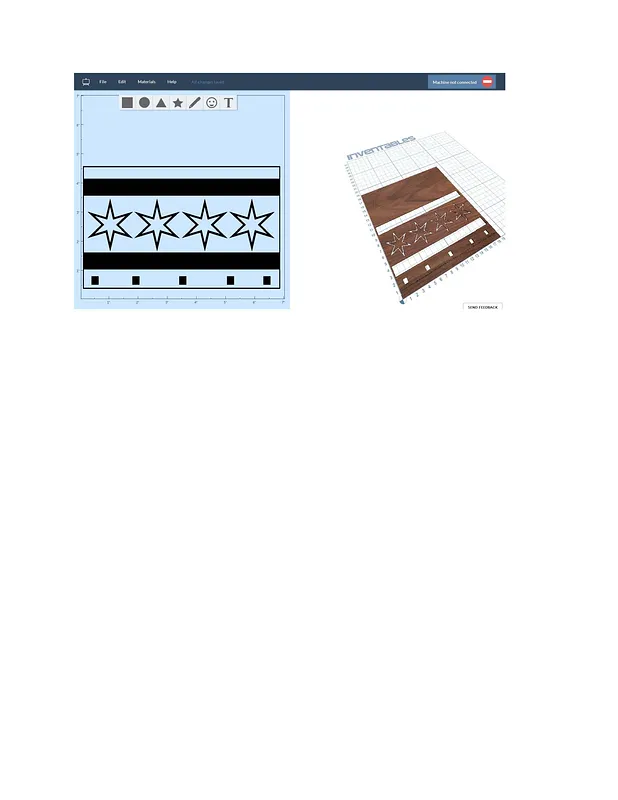

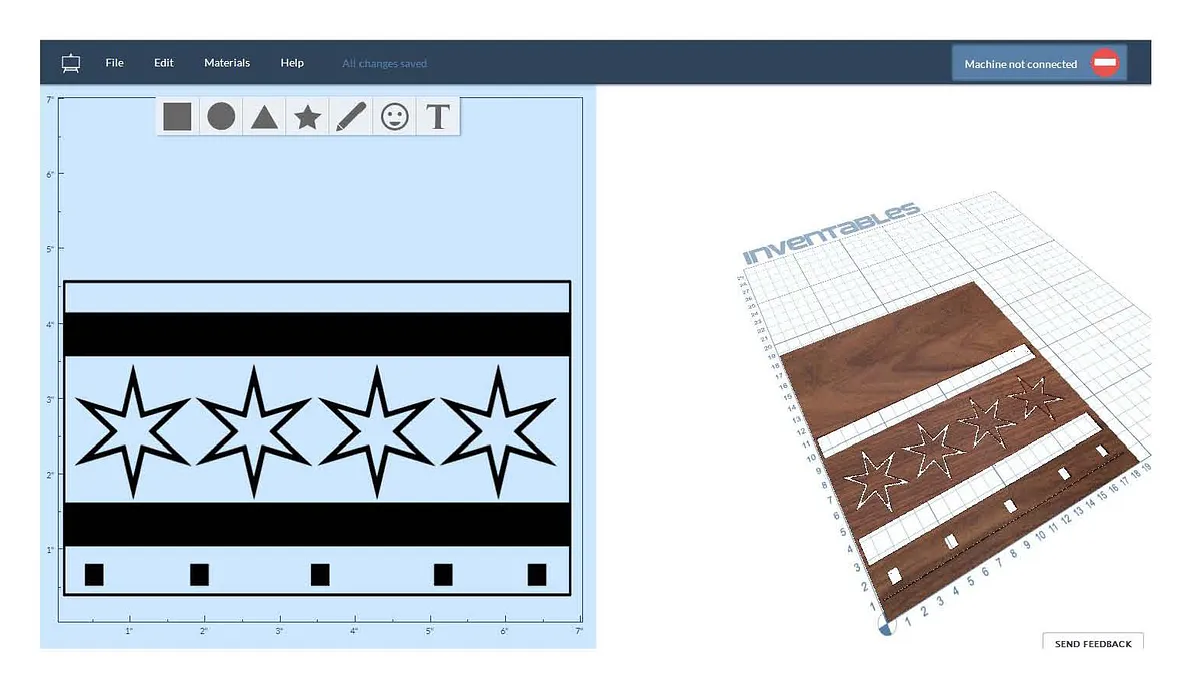

I designed this project using Easel (www.easel.com).

This HDPE is white on top, but when you engrave it deeper than .05", it reveals a thick layer of blue. Use the following depth settings for each part of the file:

2 Rectangles - .07" 4 Stars - .25" to cut all the way through the HDPE 5 Squares - .25" to cut all the way through the HDPE

2

Milling

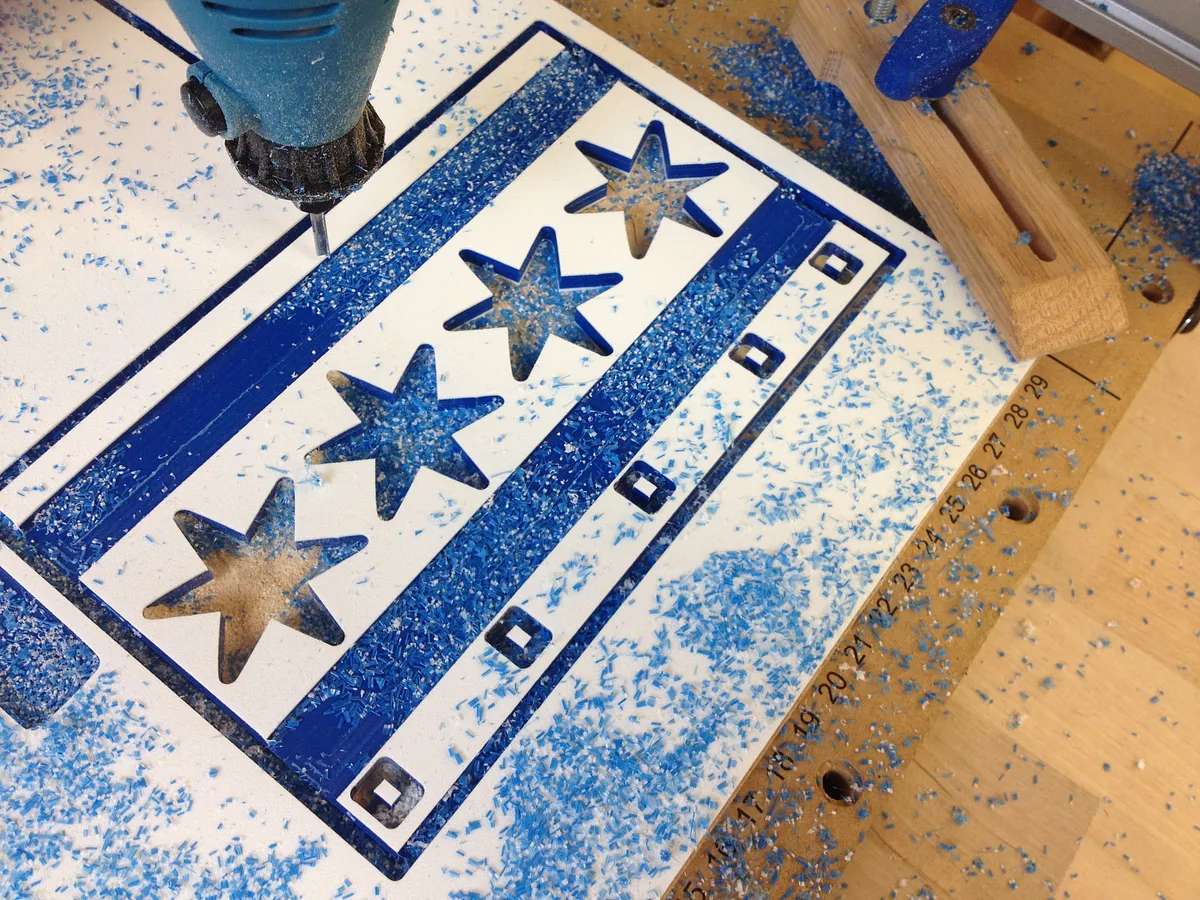

Mill the HDPE. I cut this on a Shapeoko 2 with a speed of 15 and a depth per pass of .04". I used a carbide 2 flute straight flute end mill found in the Inventables End Mill Starter Set. The material milled beautifully.

Next mill the "silver acrylic hooks":http://app.easel.com/projects/pvBa6hf-CByf0G-vA8pnHg and the "red acrylic backer":http://app.easel.com/projects/wOuMtWmC275F2TR2wUuHRg. I cut these on a Shapeoko 2 with a speed of 25 and a depth per pass of .02"

3

Assembling

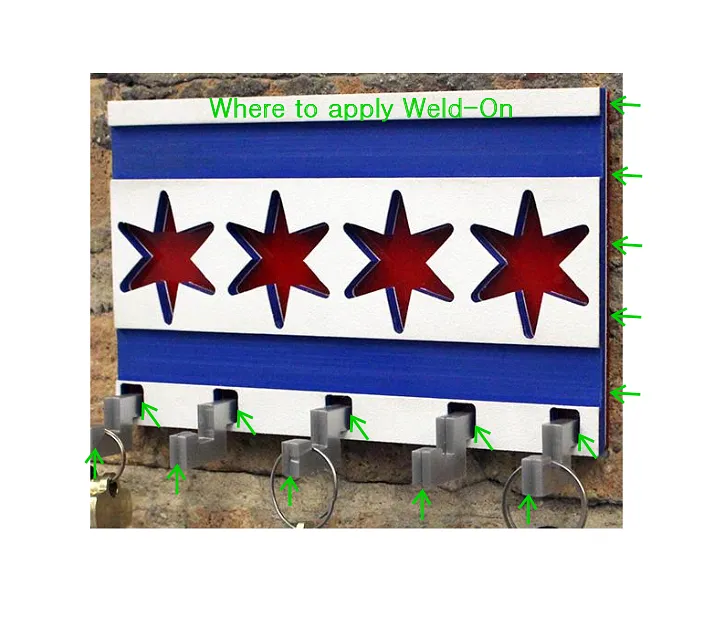

To attach the red acrylic, carefully cover the back of the cut HDPE with Weld-On. Line the red acrylic up and press it against the back of the HDPE. Apply pressure for a few minutes until the pieces are fused together.

After cutting the metallic silver acrylic, you'll have 10 hook pieces. Each hook is made from 2 of these pieces sandwiched together. For each hook, apply Weld-On to the large flat surface of one piece, then line the 2nd piece up the same way and press them together. Apply pressure for about a minute until the 2 pieces are fused together.

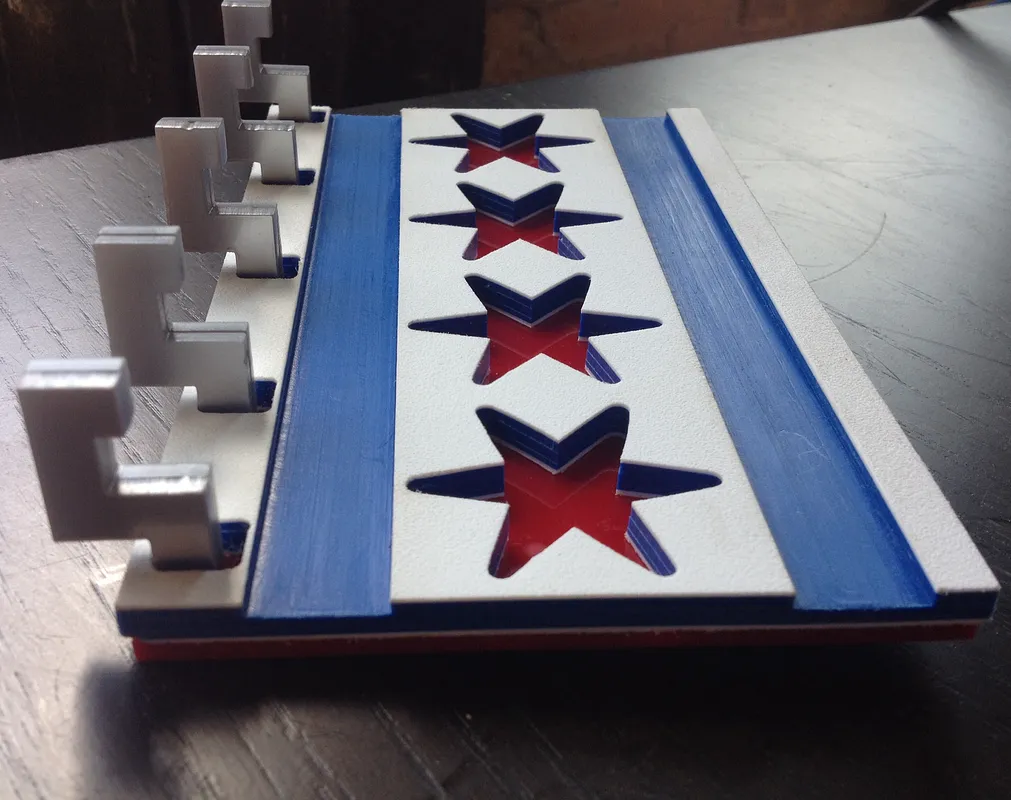

Attach the hooks to the HDPE/acrylic piece one at a time. Put a few drops of Weld-On into one of the 5 square holes, making sure it covers both the inner edges of the HDPE and the red acrylic. Put a few drops on the back of the hook, then insert the hook into the hole. Apply pressure and hold for a few minutes until the hook is secure. Repeat in the other 4 holes. Let the Weld-On dry completely for a couple of hours before using the hooks.

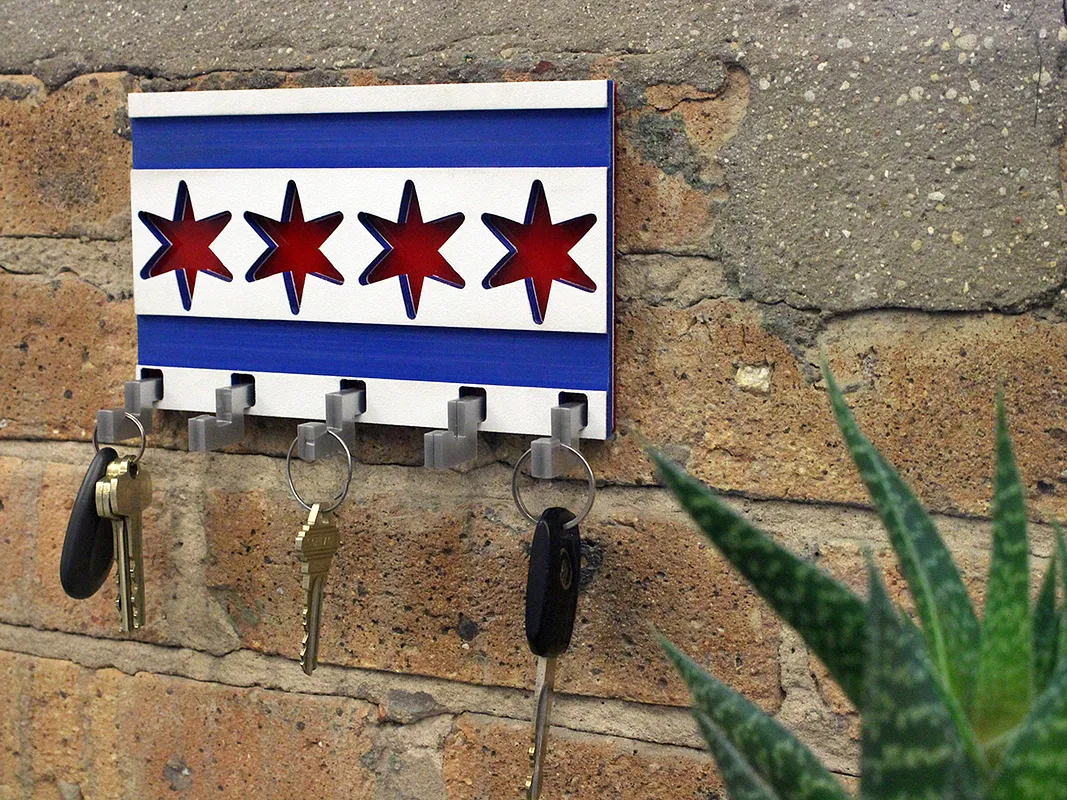

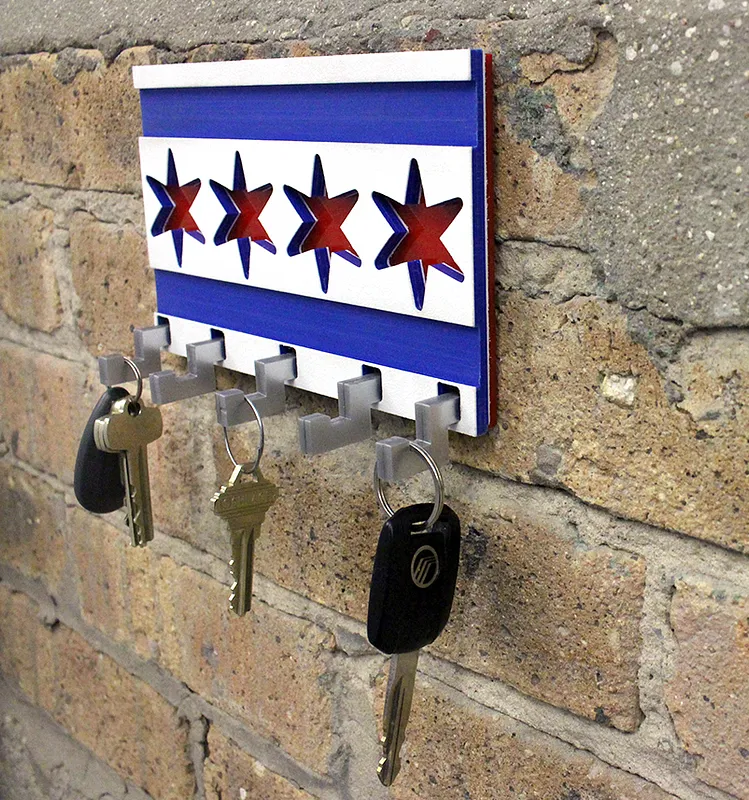

I hung this on the wall using basic mounting/hanging strips meant for photos.

4

Finishing

Lightly sand the milled portions of the HDPE to remove tool marks. This will leave the blue parts a little white/dusty - apply a small amount of mineral oil to restore the color and add a polished finish.
