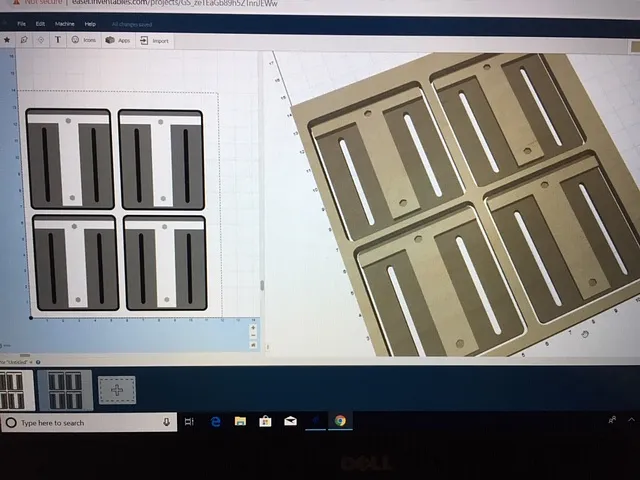

I designed this one with the new features that allows it to act as a bump stop and a hold down clamp. It also allows for the Inventable screws to work from their clamp system. I also added two nuts for additional clamping power that I am still experimenting with. Hope you enjoy this project.
I really love the design of these. I made a couple, but after they were done, I realized the distance between the slots where a few millimeters short of the 75 mm distance between the hole on my carve spoil board. Any guidance on what I can do to fix that? Thanks.
consider making a video showing how to find your projects in the Easel sandbox, I must have missed in your video saying what the name of this file was. I was looking for 80 mm clamp.
I have now made several. But resized to 45 mm on center for the 3018 Pro CNC. works better than anything else I have tried with our tight cramped space.
I wish to provide my file to you to share if it is wanted.
How do I post a photo to show you?
I made 6 of these. I made them out of 3/4 MDF but changed the depth to 3/8 instead of 1/4 to be more sturdy(in my mind) but left the top at 1/4. Thanks for the great idea and the use of your project.
